QUICK START GUIDE
HARRIER IP CAMERA INTERFACE BOARD
Introduction
This guide is designed to get you quickly up and running with the Harrier IP Camera Interface Board
(AS-CIB-IP-001-A or AS-CIB-IP-002-A) together with the Harrier Ethernet Connection Board (AS-CIB-IP-
IFETH-001-A or AS-CIB-IP-IFPOE-001-A). The Harrier IP camera interface solution can be purchased as a
pre-assembled camera module with the Harrier 10x/36x/40x AF-Zoom Camera, the Sony FCB-EV series
cameras and the Tamron MP3010M-EV camera (e.g. AS-CIB-IP-001-3010-A).
This document should be read in conjunction with the datasheets of the Harrier IP Camera Interface Board
and the Harrier Ethernet Connection Board.

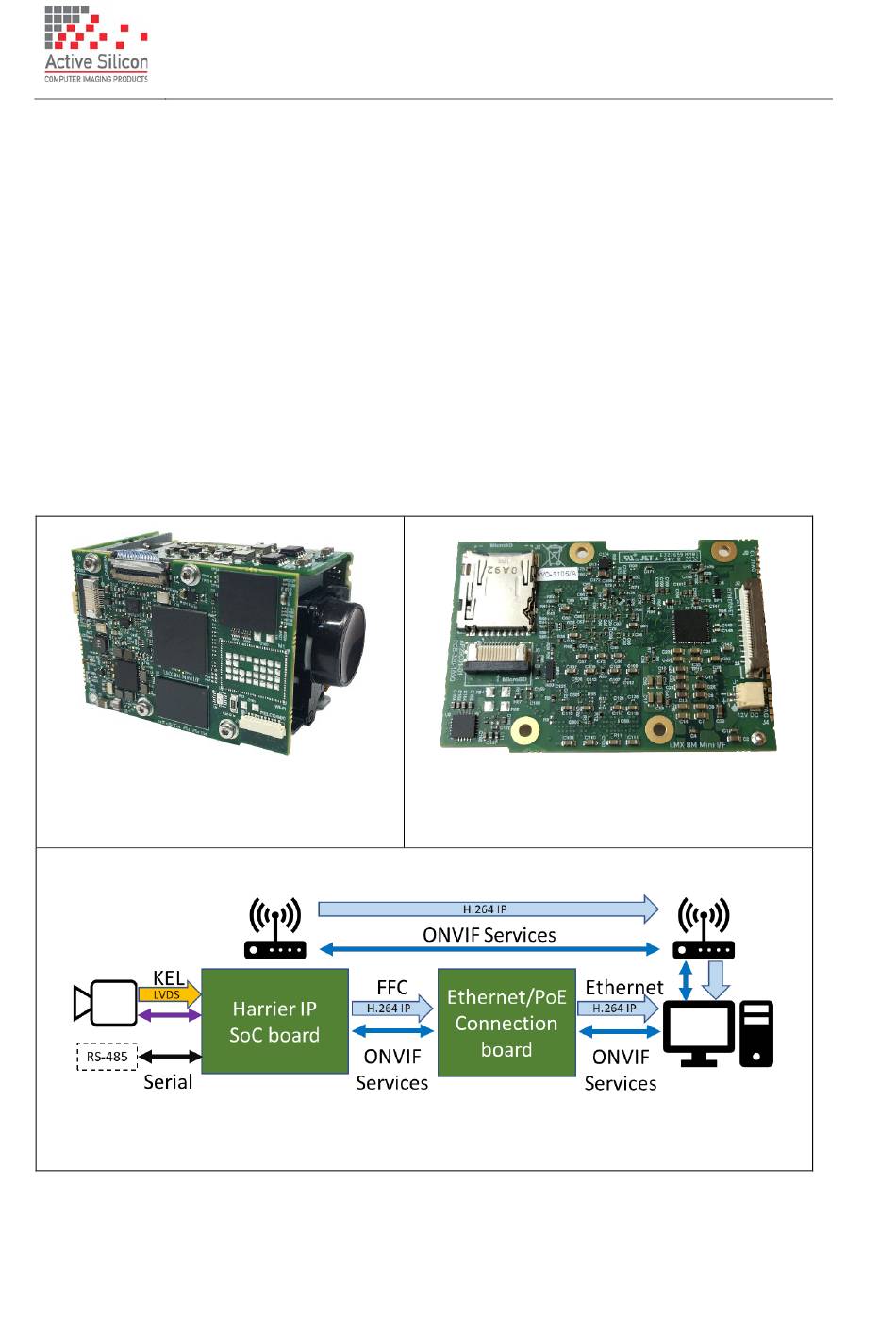

Figure 1. Harrier IP Camera Interface
Board and Ethernet Connection Board
mounted on a Tamron MP1110M camera
Figure 3. Harrier IP camera system block diagram
(wireless/PoE features are optional).
March 2023
HARRIER IP CAMERA INTERFACE BOARD
Figure 2. Reverse side of Harrier IP Camera
Interface Board
QUICK START GUIDE
Version 1.04 – March 2023
Page 1 of 12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AS-CIB-IP-001-A and is the answer not in the manual?

Questions and answers

Related Manuals for Active Silicon AS-CIB-IP-001-A

Summary of Contents for Active Silicon AS-CIB-IP-001-A

  • Page 1 This guide is designed to get you quickly up and running with the Harrier IP Camera Interface Board (AS-CIB-IP-001-A or AS-CIB-IP-002-A) together with the Harrier Ethernet Connection Board (AS-CIB-IP- IFETH-001-A or AS-CIB-IP-IFPOE-001-A). The Harrier IP camera interface solution can be purchased as a pre-assembled camera module with the Harrier 10x/36x/40x AF-Zoom Camera, the Sony FCB-EV series cameras and the Tamron MP3010M-EV camera (e.g.

  • Page 2: Evaluation Kit Contents

    QUICK START GUIDE HARRIER IP CAMERA INTERFACE BOARD Version 1.04 – March 2023 Evaluation Kit Contents The Evaluation Kit for Harrier IP (AS-CIB-IP-001-EVAL-A) contains all the parts needed to evaluate the Harrier IP Camera Interface Board. Note that the evaluation kit does not include a Harrier IP Camera Interface Board or camera, these need to be ordered separately.
  • Page 3 QUICK START GUIDE HARRIER IP CAMERA INTERFACE BOARD Version 1.04 – March 2023 Setting up the Boards If you have purchased a pre-assembled camera you can skip this step. 1. Connect the Harrier IP Camera Interface Board (SoC board) (J2) to the Ethernet Connection Board (J1) using a 24-way 0.5mm pitch double ended (same side contacts) FFC cable.

  • Page 4: Quick Start

    QUICK START GUIDE HARRIER IP CAMERA INTERFACE BOARD Version 1.04 – March 2023 Quick Start 1. Download the ONVIF Device Manager from https://sourceforge.net/projects/onvifdm/ 2. Connect the correct power socket adapter to the multi-region power supply. 3. Connect the JST connector on the power adapter cable to J3 on the Ethernet Connection Board. Connect the barrel connector plug on the multi-region power supply to the power adapter cable barrel socket.
  • Page 5 QUICK START GUIDE HARRIER IP CAMERA INTERFACE BOARD Version 1.04 – March 2023 Discovering the IP Address of the Camera Finding out the camera’s IP address requires the ONVIF Device Manager. By default, the camera is automatically assigned an IP address using DHCP. To discover the IP address: •...

  • Page 6: Assigning A Fixed Ip Address

    QUICK START GUIDE HARRIER IP CAMERA INTERFACE BOARD Version 1.04 – March 2023 Assigning a Fixed IP Address A fixed IP address can be set on the Harrier IP Website (Network Settings page) served by the Harrier IP Camera Interface Board. •...

  • Page 7: Controlling The Camera

    QUICK START GUIDE HARRIER IP CAMERA INTERFACE BOARD Version 1.04 – March 2023 Viewing Video Streams To view streaming video from the Harrier IP Camera Interface Board you will need a media player such as VLC media player or GStreamer. Streams can also be viewed in the ONVIF Device Manager. There are three stream profiles available: •...
  • Page 8 QUICK START GUIDE HARRIER IP CAMERA INTERFACE BOARD Version 1.04 – March 2023 Controlling the Camera via the Harrier IP Website (Evaluation Only) For evaluation purposes the Harrier IP Website Maintenance and Camera Control pages provide a simple way to control the camera: •...
  • Page 9 QUICK START GUIDE HARRIER IP CAMERA INTERFACE BOARD Version 1.04 – March 2023 Figure 13. Harrier IP Maintenance web page Using the Harrier IP Serial Ports The Harrier IP has two serial ports that may be used by the client application via the ONVIF DeviceIO service.

  • Page 10: Setting Up A Wi-Fi Connection

    QUICK START GUIDE HARRIER IP CAMERA INTERFACE BOARD Version 1.04 – March 2023 Setting up a WiFi connection If your Harrier IP Camera Interface Board supports WiFi it will have a wireless module fitted and it will have a serial number that starts with 724. The title of the Harrier IP Website will also indicate that the board has Wireless/WiFi support.
  • Page 11 QUICK START GUIDE HARRIER IP CAMERA INTERFACE BOARD Version 1.04 – March 2023 Note: when you click on ‘Submit’ the IP address will change, and you will need to use the new address to access steaming video and the Harrier IP Website. Figure 15.

  • Page 12: Technical Support

    ONVIF Device Manager: https://sourceforge.net/projects/onvifdm/ VLC media player: https://www.videolan.org/vlc/index.en-GB.html GStreamer: https://gstreamer.freedesktop.org/download/ Technical Support In case of any issues, please contact Active Silicon Technical Support by email on: techsupport@activesilicon.com. Headquarters: North America: Active Silicon Ltd Active Silicon, Inc. Pinewood Mews, Bond Close, Iver, 479 Jumpers Hole Road, Suite 301, Bucks, SL0 0NA, UK.
