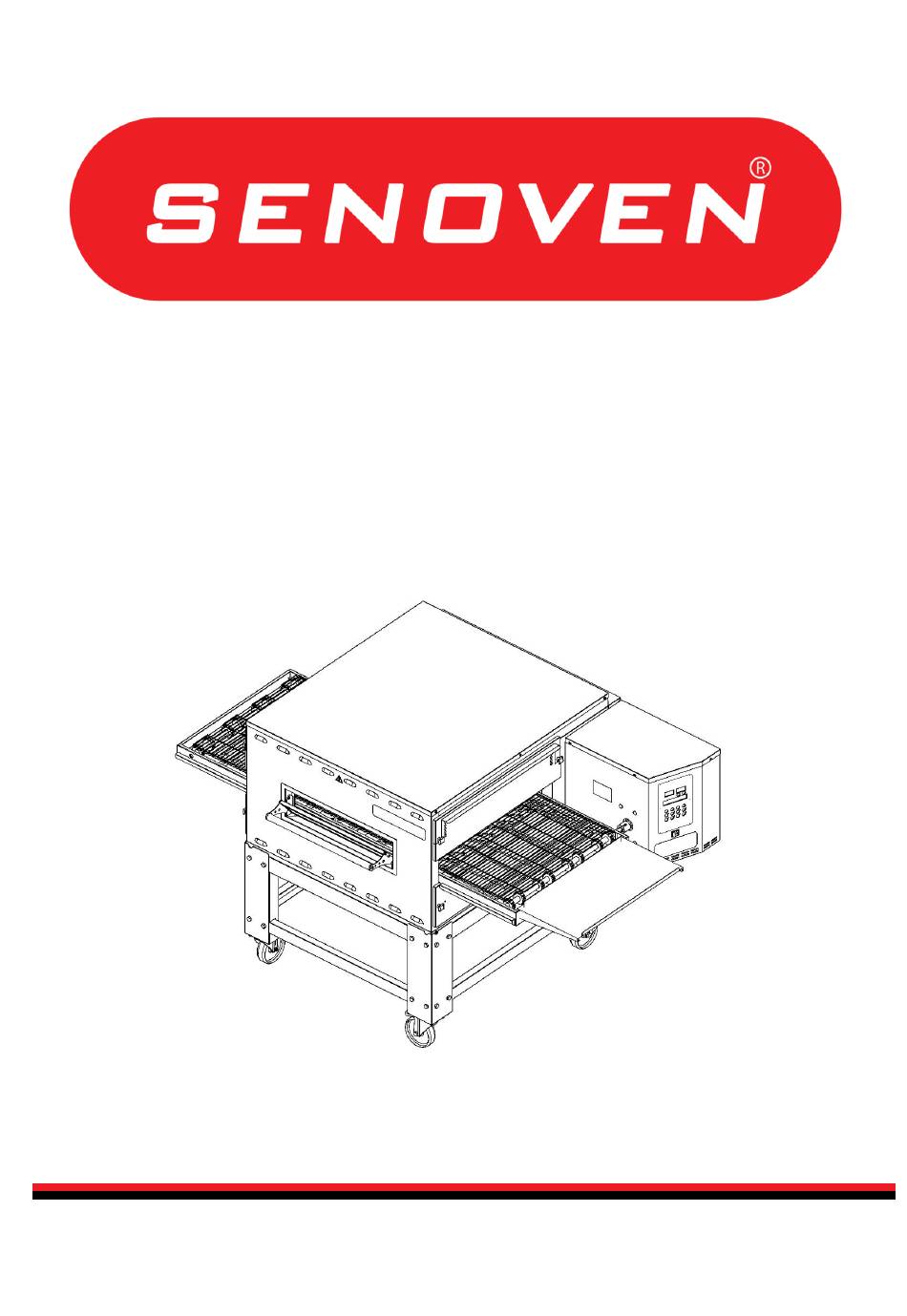

- Page 1 MODEL SEN 1700 BLOWING CONVEYOR OVEN (DIGITAL SCREEN) USER & MAINTENANCE MANUAL ŞENGÜN MAKİNA İNŞAAT ve KIRTASİYE SAN. TİC. LTD.
- Page 2 These instructions apply only if the country code is shown on the device. If the country code does not appear on the device, refer to the technical instructions that give instructions for adapting the device to the country. SEN 1700 / SENOVEN...
-
Page 3: Warranty Certificate
- Any failure of the product warranty period is added to the product warranty time. The repair time is until 20 working days. - Istanbul courts are competent in case of dispute. AUTHORIZED PERSON STAMP –SIGNATURE SEN 1700 / SENOVEN... - Page 4 For information you coonot understand, ask your nearest out horized service Please note that if the technical service personnel is kept waiting you will be billed for each hour. SEN 1700 / SENOVEN...
- Page 5 Do not use paper when placing food product through the oven! Usage of flammable materials may cause a fire and should never be placed in the oven. WARNING! Do not put any object to anywhere of the oven except the conveyor. WARNING! Always be careful while you are working. SEN 1700 / SENOVEN...
- Page 6 Cleaning and maintenance are the most important factors of oven performance. The processes which are not available in the manual can cancel the appliance of warranty, cause property damage, injury or death. Read and understand the instructions in the manual SEN 1700 / SENOVEN...
-
Page 7: Table Of Contents
2.10 Double Floor Oven Assembly 2.11 Air Duct Disassembly / Assembly SECTION 3: INSTRUCTIONS FOR USE 3.1 Distance Requirements 3.2 General Information of Ventilation 3.3 Ventilation Advice 3.4 Installation Elements 3.5 SEN 1700 Oven Technical Specifications Table SEN 1700 / SENOVEN... - Page 8 SECTION 5: COOKED PRODUCTS 5.1 Some of The Cooked Products 5.2 Cooking Time and Temperature 5.3 Total Cooking Calculation 5.4 Sample Capacity Table SECTION 6: SPARE PARTS MANUAL SECTION 7: ELECTRICAL DIAGRAM SECTION 8: LABELS NOTES SEN 1700 / SENOVEN...
-
Page 9: Section 1: Introduction
1.1 Introduction of Body Components: NOTE: Entrance of product depends for the cooking style. The out sheet can be attached other side of the oven. 1.2 Functions of Parts: 1.2.1 Oven Body: Every SEN series oven has a main body. SEN 1700 / SENOVEN... -
Page 10: Overlap Assembly
Conveyors provide the input and output of the product. Belt is controlled by microprocessor. Cooking time can be set between 1 - 30 minutes. The speed of belt determines the Products cooking time. The width of belt is 610 mm and consist by interlocking wires. SEN 1700 / SENOVEN... -
Page 11: General Information
Conveyor Drive System Conveyor control system Cooking Time 1 min – 30 min Adjustable Insulation 4 Side Heat Source 6 Heater Oven Chamber Steel (Galvanized) Steel Enclosure 430 Stainless Steel DB Level < 70 dba Source Electricity SEN 1700 / SENOVEN... -
Page 12: Electrical And Technical Specifications Table
Oven Electricity Technical Specifications Table Ampere Load Cable Minimum Voltage Faze T (PE) Section 400V 6 mm² 19,8 kw 28,5 28,5 50/60HZ NOTE: Specifications can be changed by Şengün Makina. Above Specifications are given for information. SEN 1700 / SENOVEN... -
Page 13: Dimensions
1.10 Dimensions: Duplex Single Oven (Side View) (Isometric) Dimensions outside SEN 1700 / SENOVEN... -
Page 14: Electrical Input
Front View ELECTRICAL INPUT Top View SEN 1700 / SENOVEN... -
Page 15: Section 2: Assemble
SECTION 2: ASSEMBLE OPTIONAL PART NAME UNIT Product Out Sheet Forward/Back Waste Collecting Sheet Entry and Exit Cover Sheet Stopper Sheet (Optional) SEN 1700 / SENOVEN... -
Page 16: Front/Back Waste Collecting Sheet
2.1 Product Out Sheet: Attach the product out sheet to the conveyor chassis as shown in the figure. And Push it. 2.2 Front/Back Waste Collecting Sheet: Front and back waste collecting sheets are taken out as shown in pictures. SEN 1700 / SENOVEN... -
Page 17: Entry And Exit Cover Sheet
Covers are set as desired through holes which are different levels. Covers are attached by bakelite bolts. 2.4 Stopper Sheet (Optional): Stopper blocks the products and keep them into the belt. Stopper is attached to the belt. SEN 1700 / SENOVEN... -
Page 18: Belt Assembly
2.5 Belt Assembly: The conveyor is mounted inside the machine as shown in the picture. The drive shaft is centered on the clutch pipe. SEN 1700 / SENOVEN... - Page 19 Clutch pipe is attached by the drive shaft spring as shown in the figure. Belt assembly is completed. For disassembly, use every steps in reverse order. SEN 1700 / SENOVEN...
-
Page 20: Belt Wire Assembly
3. If belt wire problem appears, remove a 4. The final wire assembly wire as shown in the figure. For disassembly, use every steps in reverse order. NOTE: Clean the belt wire once a week or month for better performance. SEN 1700 / SENOVEN... -
Page 21: High Chassis Assembly
2.7 High Chassis Assembly: SEN 1700 HIGH CHASSIS (L 1026 mm x W 921 mm x H 559 mm) SPARE PARTS LIST SPARE PART SPARE PARTS SPARE PART SPARE PARTS ITEM UNIT ITEM UNIT NUMBER DESCRIPTION NUMBER DESCRIPTION 07135 CHASSIS LEG SHEET... -
Page 22: Low Chassis Assembly
2.8 Low Chassis Assembly: SEN 1700 LOW CHASSIS (L 1026 mm x W 921 mm x H 265,5 mm) SPARE PARTS LIST SPARE PART SPARE PARTS SPARE PART SPARE PARTS ITEM UNIT ITEM UNIT NUMBER DESCRIPTION NUMBER DESCRIPTION 01797 CHASIS LEG SHEET... -
Page 23: Chassis-Oven Assembly
2.9 Chassis-Oven Assembly: SEN 1700 / SENOVEN... -
Page 24: Double Floor Oven Assembly
2.10 Double Floor Oven Assembly: NOTE: Bolts are included in the package ITEM SPARE PART NUMBER SPARE PART DESCRIPTION UNIT 02056 HOLDER 00046 BOLT SEN 1700 / SENOVEN... -
Page 25: Air Duct Disassembly / Assembly
Internal Plate U1, External Plate U1, CAUTION! If you assembly wrong air canals your oven cooking characteristic could change. 8. You can do cleaning after this process. You can do assembly do reverse what you did. SEN 1700 / SENOVEN... -
Page 26: Section 3: Instructions For Use
The ventilation mouth (hood) should be in harmony with the general ventilation and heating system. ANTENTİON: Do not allow air to flow through the cooking tunnel. The air must not be directed to the front top of the oven, to the side or to the rear. SEN 1700 / SENOVEN... -
Page 27: Ventilation Advice
Getting caught in the belt could result in serious injury. DANGER! If the power supply cord appears to be damaged, do not attempt to operate the unit. Contact a service agent or qualified electrician to repair! SEN 1700 / SENOVEN... -
Page 28: Installation Elements
TTR Cable is Flexible, shatterproof and loosen proof Grounding has to be proper. Use regulator if voltage is high or low. NOTE: If you fallow the above steps, assembly process can be made smoothly and quickly. SEN 1700 / SENOVEN... -
Page 29: Sen 1700 Oven Technical Specifications Table
3.5 SEN 1700 Oven Technical Specifications Table: Oven Electricity Technical Specifications Table Ampere Load Cable Minimum Voltage Faze T (PE) Section 400V 6 mm² 19,8 kw 28,5 28,5 50/60 HZ SEN 1700 3 FAZE CONNECTION Terminal Blog POTENTIAL GROUNDING FUSE... -
Page 30: Working Condition
Working Temperature: -20 - 70°C Maximum Damp: %90 Rh (without condensation) Height: Up to 2000 meters Environments where device use is not suitable. Corrosive atmospheric environments. Explosive atmospheric environments. Home applications. (The device only can be used industrial applications.) SEN 1700 / SENOVEN... - Page 31 SEN 1700 / SENOVEN...
- Page 32 13. Program Set Button: Press this button once for 5 seconds and enter the set section. 14. ON/OFF Button: With this button the device is returned to the “on’’ or “off’’ state. Button turns off when the device is switched off screen turns off. SEN 1700 / SENOVEN...
-
Page 33: Warnings
3. If all values are normal but the product still doesn’t cook or over heat, call the manufacturer. 4.2 Closing: Top the switch off the oven. The attention, you can turn off the switch on the display will appear. And then you can turn off switch. SEN 1700 / SENOVEN... -
Page 34: Functions
If the oven fails to operate, check the circuit breaker to be sure it is turned on. Be sure that circuit breaker is ok before you call the Authorized Service Agency. The name and phone number of the Authorized Service Agency should be located at the bottom of the data plate. SEN 1700 / SENOVEN... -
Page 35: Cleaning Instructions
2. Remove the tape, dismantle and clean it. See “tape mounting and wire mounting” for more information. 3. Remove, disassemble and clean the oven room front and rear covers. NOTE: Be sure to clean and inspect the ventilation hood in accordance with the ventilation hood manufacturer’s specifications. SEN 1700 / SENOVEN... -
Page 36: How To Call Technical Service
If the oven not working, see if automatic fuse works. If there is no problem, call technical service. There is technical service number on the information plate on the back of the oven. If you can’t see technical service number on the oven, please call company. SEN 1700 / SENOVEN... -
Page 37: Section 5: Cooked Products
SEN series ovens show much better performance than other ovens (Especially pizza cooking). 5.2 Cooking Time and Temperature: PİZZA - ALUMINIUM PAN - TIME: 6 MINUTES - 260 °C - FRESH PİDE - TIME: 5 MINUTES - 260 °C - OVER CONVEYOR - FRESH SEN 1700 / SENOVEN... -
Page 38: Total Cooking Calculation
Amount /Hour Total Producti 109,8 219,60 Amount /Hour Sample 2: Oven Chamber Length: 915 mm. Cooking Time: 5 min Pan Length: 500 mm. Producti 5 dk. 21,96 Amount /Hour Producti 21,96 65,88 Amount Pan Length /Hour SEN 1700 / SENOVEN... -
Page 39: Sample Capacity Table
30 cm 36 cm 41 cm Pizza Diameter 5 Minutes 5 ½ 6 Minutes 6 ½ 30 cm 36 cm 41 cm Pizza Diameter 7 Minutes 7 ½ 8 Minutes 30 cm 36 cm 41 cm SEN 1700 / SENOVEN... -
Page 40: Section 6: Spare Parts Manual
SECTION 6: SPARE PARTS MANUAL SPARE PARTS MANUAL SEN 1700 / SENOVEN... - Page 41 SEN 1700 / SENOVEN...
- Page 42 00317 WASHER 07107 BURNER SHEET 02211 TERMINAL BEIGE 00042 WASHER 02210 TERMINAL BLUE 00041 BOLT 02209 TERMINAL 00316M SCREEN 01348 TERMINAL RAIL 02579 WASHER 00292 LIMITER GLASS BRAKER 01831 BOLT 01865 TERMINALS 01305 01089 RECORD NUT SEN 1700 / SENOVEN...
- Page 43 WATCHING WINDOW 07162 GLASS FRAME 07160 GLASS FRAME CONNECTION 01759 WINDOW EDGE PLATE 01752-1 RUBBER PLUG 01753-1 COVER HANDLE 02342 BOLT 00045 101503 BOLT 04077 WASHER 00157 BOLT 07172 GLASS OPEN/CLOSE LAMA 07170 GLASS OPEN/CLOSE LAMA SEN 1700 / SENOVEN...
- Page 44 WASHER 01961 WASHER 04074 BOLT 07156 ENGINE SHEET 101511 F.I.R ENGINE 07030 STUD 01959 01963 WASHER 07031 FAN COVER SHEET 00279 BOLT 01960 WASHER 00398M 00277 WASHER 07004M BACK COVER 01299 WASHER 00042 WASHER 00041 BOLT SEN 1700 / SENOVEN...
-
Page 45: Back Cover
07005M BACK ISOLATION COVER 07168 ENGINE SHEET 07169 SHAFT 01317 RESISTANCE INPUT TUBE 01672 BOLT 01728 TERMINALS 04074 BOLT 01961 WASHER 05529 WASHER 01299 WASHER 00042 WASHER 00556 BOLT 07116 BAHÇIVAN ENGINE 07030 STUD 07109 RESISTANCE SEN 1700 / SENOVEN... - Page 46 INTERNAL AIR DUCT SHEET 07054 FIX SHEET 07016M AIR DUCT SHEET 00416M BODY 07000 TOP/ BOTTOM COVER 00046 BOLT 00124 HANDLE 00417M SIDE PACKAGE 07010M SIDE PACKAGE 07027M ENTRANCE/OUT SHEET 01731 THERMOCOUPLES 01596-1 00441M INTERNAL AIR DUCT SHEET SEN 1700 / SENOVEN...
-
Page 47: Spare Parts
SPARE PARTS These materials are supplied with the machine. According to the cooking quality of the product to be cooked, air feeder are removed and these sheets are attached. SEN 1700 / SENOVEN... - Page 48 M00377 SSR BOX SEN 1700 / SENOVEN...
- Page 49 SSR RELAY 02634 01296 WASHER 01295 BOLT 01307 SPONGE 01306 SPONGE 01706 WASHER 00278 BOLT 01299 WASHER 01305 01271 BOLT 01011 SSR SHEET 02320 SPEED CONTROL 01290 01871 TERMINAL RAIL 01294 TERMINAL (GROUNDING) 01615 CONDACTOR 00292 LIMITER SEN 1700 / SENOVEN...
- Page 50 SPARE PART NUMBER SPARE PART DESCRIPTION UNIT 02013 BELT DRIVE BEARING 07093 WASTE PAN 00096 07095 STOPER SHEET 07000M WIRE BELT 07029 PRODUCT OUT SHEET (OPTIONAL) 00374M CONVEYOR CHASSIS 00319M CONVEYOR IDLE SHAFT 00318M CONVEYOR DRIVE SHAFT SEN 1700 / SENOVEN...
-
Page 51: Section 7: Electrical Diagram
SECTION 7: ELECTRICAL DIAGRAM SEN 1700 / SENOVEN... - Page 52 SEN 1700 / SENOVEN...
- Page 53 SEN 1700 / SENOVEN...
- Page 54 SEN 1700 / SENOVEN...
- Page 55 SECTION 8: LABELS (High Temperature) (Grounding) Electrical Input Warning Labels SEN 1700 / SENOVEN...
- Page 56 Technical Label (Product Card) Warning Labels SEN 1700 / SENOVEN...
- Page 57 NOTE: SEN 1700 / SENOVEN...
- Page 58 İkitelli Organize Sanayi Bölgesi, Atatürk Bulvarı, Pufa İş Merkezi No: 98 Bodrum Kat: 2-3 Başakşehir/ İstanbul/ Türkiye Phone: +90 212 671 23 23 (Pbx) Phone 2: +90 212 671 84 84 Fax: +90 212 671 88 28 GSM: +90 533 957 14 53 e-Mail : info@sengunmakina.com web : www.sengunmakina.com SEN 1700 / SENOVEN...
