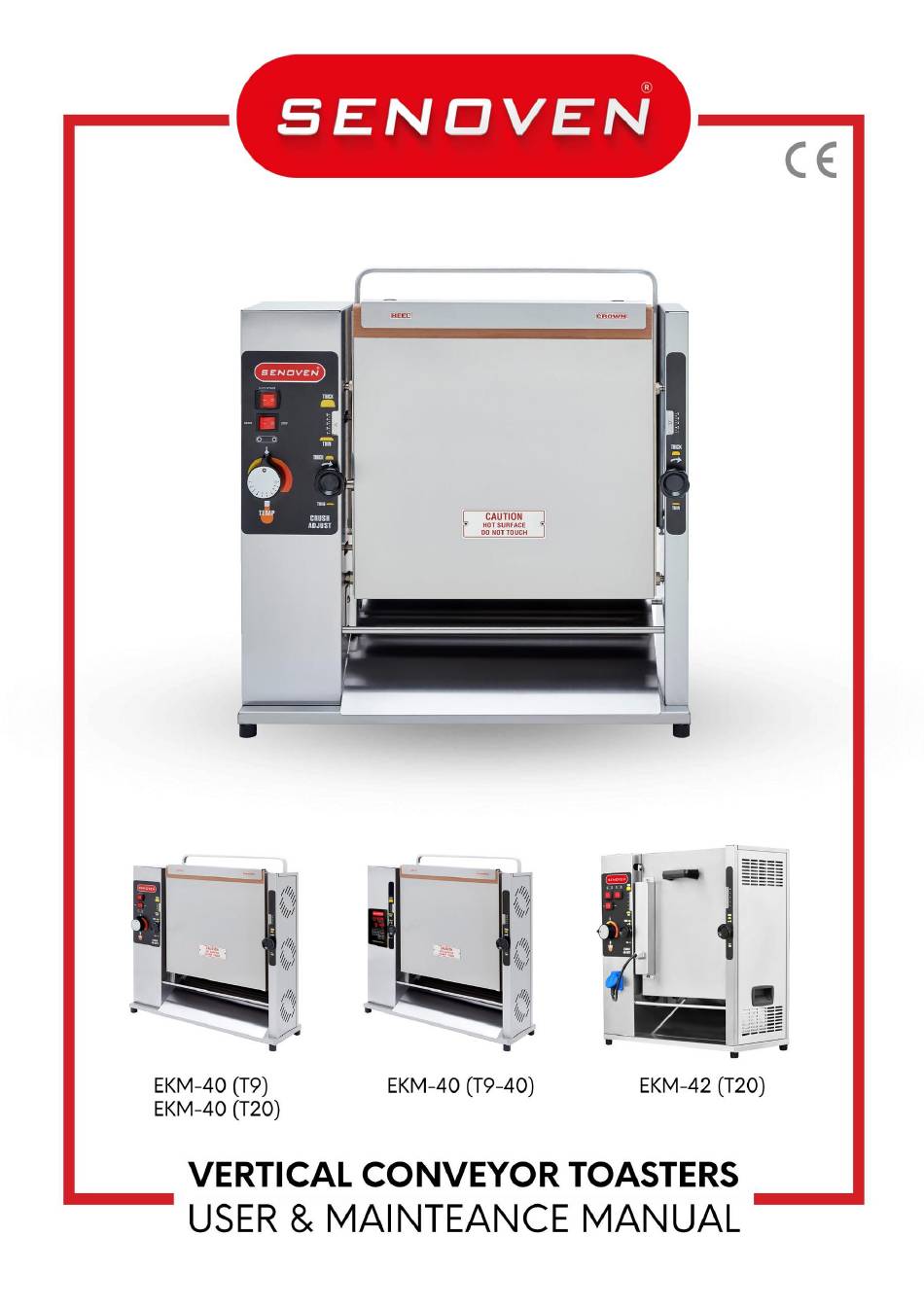

Senoven EKM-40 User And Maintenance Manual

Vertical conveyor toasters
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EKM-40 and is the answer not in the manual?

Questions and answers

Related Manuals for Senoven EKM-40

Summary of Contents for Senoven EKM-40

  • Page 2: Table Of Contents

    SECTION 4: ASSEMBLY 4.1 Assembly Instructions 4.2 Operating 4.3 Optionally 4.3.1 Conveyor and Engine Gears SECTION 5: MAINTENANCE INSTRUCTIONS 5.1 Cleaning Instructions SECTION 6: SOLVING PROBLEMS SECTION 7: ELECTRICAL DIAGRAM EKM-40 (T20) / EKM-40 (T9) / EKM-40 (T9-40) / EKM-42 (T20)

  • Page 3: Section 1: Warranty Certificate

    SERIAL NUMBER: SALE DATE: Sold at the date above EKM-40 (T20) MODEL VERTICAL CONVEYOR TOASTER, EKM-40 (T9) MODEL VERTICAL CONVEYOR TOASTER, EKM-40 (T9-40) MODEL VERTICAL CONVEYOR TOASTER and EKM- 42 (T20) MODEL VERTICAL CONVEYOR TOASTER are guaranteed against production failures for 1 Year by ŞENGÜN MAKİNA İNŞAAT ve KIRTASİYE SAN.

  • Page 4: Section 2: Introduction And Notifying

     Please note that if the technical service personnel, who is arrived for installation or repair, is being kept, the hourly rate and expenses will be billed to you. EKM-40 (T20) / EKM-40 (T9) / EKM-40 (T9-40) / EKM-42 (T20)

  • Page 5: Section 3: Toaster Description

    4 cm Crown Max. Bread Height: 3 cm 3 cm 3 cm 3 cm Heel Max. Bread Height: Ø20 cm Ø20 cm Ø20 cm Ø20 cm Max. Bread Diameter: EKM-40 (T20) / EKM-40 (T9) / EKM-40 (T9-40) / EKM-42 (T20)

  • Page 6: Dimensions

    SECTION 3 | TOASTER DESCRIPTION 3.3 Dimensions EKM-40 (T20), EKM-40 (T9): EKM-40 (T9-40): EKM-40 (T20) / EKM-40 (T9) / EKM-40 (T9-40) / EKM-42 (T20)

  • Page 7: Section 4: Assembly

    SECTION 4 | ASSEMBLY EKM-42 (T20): EKM-40 (T20) / EKM-40 (T9) / EKM-40 (T9-40) / EKM-42 (T20)

  • Page 8: Assembly Instructions

     Place Vertical Conveyor Toaster on a flat surface. Remove the protective covering.  Assemble the teflon layer on the heat plate. 3. Lift conveyor off conveyor the guide rails and set aside. EKM-40 (T20) / EKM-40 (T9) / EKM-40 (T9-40) / EKM-42 (T20)
  • Page 9 6. Attach the conveyor by passing through the guide rails. Ensure that the conveyor sockets are firmly seated. 7. Hang the back end of the crumb tray on the bar under the conveyor group. 8. Plug unit into a grounded plug. EKM-40 (T20) / EKM-40 (T9) / EKM-40 (T9-40) / EKM-42 (T20)

  • Page 10: Operating

    7. Turn the two roller adjustment buttons clockwise for thicker products. Turn the two roller adjustment knob counterclockwise for thinner products. 8. 1 for thinnest product, 5 for thickest. EKM-40 (T20) / EKM-40 (T9) / EKM-40 (T9-40) / EKM-42 (T20)
  • Page 11 Turn the thermostat adjustment knob counterclockwise for lighter frying. CAUTION: After adjusting the thermostat, wait for 15 minutes to stabilize the level of the toaster. EKM-40 (T20) / EKM-40 (T9) / EKM-40 (T9-40) / EKM-42 (T20)

  • Page 12: Conveyor And Engine Gears

    4. Carefully tighten the set screw one-half at a time until parallelism is achieved. 5. Remove the conveyor assembly. 6. Apply a drop of lubrication to both set screws. 7. Replace the conveyor assembly. EKM-40 (T20) / EKM-40 (T9) / EKM-40 (T9-40) / EKM-42 (T20)

  • Page 13: Section 5: Maintenance Instructions

    CAUTION: Use a damp cloth to remove residues on the conveyor. CAUTION: Do not use sharp objects, hard wire brushes, dishwashing wires or abrasive cleaners on the plate. Otherwise, irreparable damage can be done. EKM-40 (T20) / EKM-40 (T9) / EKM-40 (T9-40) / EKM-42 (T20)

  • Page 14: Section 6: Solving Problems

    (Thermostat does not function). Bread does not fry. Adjust the print plate for proper Check the plate temperature. compression. (see section 4.2) Adjust the thermostat at the appropriate temperature. EKM-40 (T20) / EKM-40 (T9) / EKM-40 (T9-40) / EKM-42 (T20)
  • Page 15 SECTION 7 | ELECTRICAL DIAGRAM EKM-40 (T20) EKM-40 (T20) / EKM-40 (T9) / EKM-40 (T9-40) / EKM-42 (T20)
  • Page 16 SECTION 7 | ELECTRICAL DIAGRAM EKM-40 (T9) EKM-40 (T20) / EKM-40 (T9) / EKM-40 (T9-40) / EKM-42 (T20)
  • Page 17 SECTION 7 | ELECTRICAL DIAGRAM EKM-40 (T9-40) EKM-40 (T20) / EKM-40 (T9) / EKM-40 (T9-40) / EKM-42 (T20)
  • Page 18 SECTION 7 | ELECTRICAL DIAGRAM EKM-40 (T9-40) EKM-40 (T20) / EKM-40 (T9) / EKM-40 (T9-40) / EKM-42 (T20)
  • Page 19 SECTION 7 | ELECTRICAL DIAGRAM EKM-42 (T20) EKM-40 (T20) / EKM-40 (T9) / EKM-40 (T9-40) / EKM-42 (T20)
  • Page 20 NOTES NOTES: EKM-40 (T20) / EKM-40 (T9) / EKM-40 (T9-40) / EKM-42 (T20)
  • Page 21 NOTES NOTES: EKM-40 (T20) / EKM-40 (T9) / EKM-40 (T9-40) / EKM-42 (T20)
  • Page 22 EKM-40 (T20) / EKM-40 (T9) / EKM-40 (T9-40) / EKM-42 (T20)
