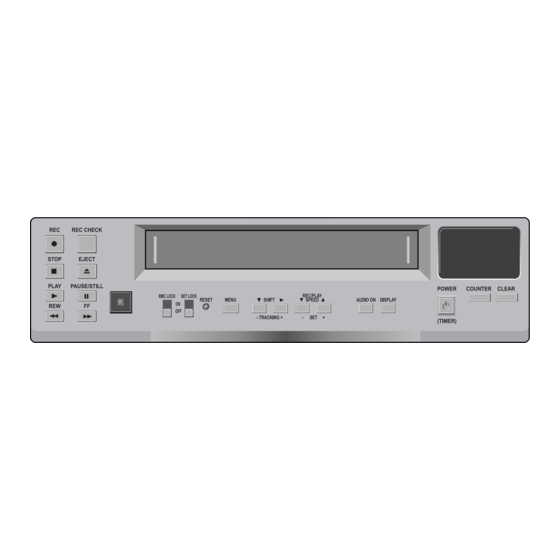

- Page 1 TIME LAPSE RECORDER with DIGITAL SHUTTLE 960 HR / 40 HOUR REAL TIME - COMPUTER CONTROL User’s Guide D V 3 K 6 8 3 D Z - S D Be sure to read carefully and follow all the SAFETY INFORMATION on page i.
-
Page 2: Worth Knowing
Worth Knowing Please keep the video machine's guarantee card and receipt safe for warranty purposes. Precautions Read carefully through this manual to familiarize yourself with this high-quality Time Lapse video cassette recorder. Make sure the rating of your household electricity supply matches that shown on the back of the Time Lapse video cassette recorder. -
Page 3: Table Of Contents
Contents Locations of controls and indicators ... 1 Front panel ... 1 Digital display ... 2 Back panel ... 4 Remote control ... 5 Connections ... 6 Video Cassettes Tapes ... 7 Types of On-screen displays and Display Sequence ... 8 Setting the Clock ... -
Page 4: Digital Display
Digital Display 1 Operation Indicators display the actual operation mode. Operation Mode 1 Record (REC) 2 Record pause (REC PAUSE) 3 Playback (PLAY) 4 Still image (STILL) 5 Fast forward (FF) 6 Rewind (REW) 7 CUE (CUE)+ 8 Review (REVIEW)+ 9 Slow (Pause Still + FF, Pause Still + REW) 2 Cassette indicator : Comes on when a cassette is loaded. -
Page 5: Back Panel
Back Panel AC POWER CORD WARNING OUT terminal SERIES IN terminal COM terminal SERIES OUT terminal SW OUT terminal VIDEO OUT jack VIDEO IN jack AUDIO IN jack 10 TAPE END terminal 11 PANIC IN terminal 12 COM terminal 13 ALARM OUT terminal 14 ALARM IN terminal 15 MIC(microphone input) jack 16 AUDIO OUT jack... -
Page 6: Connections
Time Lapse Video Cassette Recorder Use only video cassette tapes bearing the This VCR was primarily designed for use with E-180 cassette tapes. It is recommended to use E-180 VHS or E- 240 VHS video cassette tapes for optimal performance. -
Page 7: Types Of On-Screen Displays And Display Sequence
Types of On-screen displays and Display Sequence • If the VCR is in timer recording stand-by mode (the “ ” indicator is displayed on the display panel), the on-screen displays will not be available. First press the POWER(STANDBY/ON) button, to cancel the recording stand-by mode, then proceed with the VCR programming. -
Page 8: Setting The Clock
Press the SHIFT displayed. Press the SET - (or +) button to set the hours (eg : 09), then press the SHIFT ) is located in “VCR Mode Set”. Initial MENU button, the VCR MODE SET menu ) is located in button, the CLOCK SET menu is button. -
Page 9: Changing The On-Screen Display
Press the MENU button. The initial MENU is displayed. The arrow mark ( Mode Set”. Press the SHIFT Set, then the VCR MODE SET menu is displayed. Press the SHIFT ) points “Display set”. Press the SHIFT the DISPLAY SET menu is displayed. -
Page 10: Normal Recording
• The “REC” and “ • If a recording pause continues for 5 minutes or display panel. more, the VCR will go into stop mode to avoid To resume recording, press the REC button, or press damage to the tape. -
Page 11: Program Timer Recording
13 Press the POWER(STANDBY/ON) button. recording, press the • The timer recording indicator “ POWER(STANDBY/ON) button to cancel the timer display panel. The VCR is now in timer recording recording mode. stand-by mode. Time Lapse Video Cassette Recorder button. button, until the cursor direction ”... - Page 12 • The clear button can erase the programmed timer recording in the line that the cursor is located. Notes... • During timer recording all the buttons on the VCR, except the STOP button, are disabled. If the STOP button is pressed for three seconds during timer recording, the recording will stop.
-
Page 13: Alarm Recording
Alarm Recording Alarm Recording Setting Alarm recording is performed when there is an input (trigger) at the ALARM IN terminal, “ on the display panel. Make all necessary connections. Press the MENU, SHIFT sequence to display the REC MODE SET menu . Press the SHIFT points to ALARM REC SET. -
Page 14: Panic Recording
“Series Rec Set” is set to “NO”, series Timer recording recording will not be Security lock switch (SET LOCK switch) possible. Press the REC button on VCR No.1. • Recording will start in series recording mode. VCR No.1 VCR No.2 and on Loaded... -
Page 15: Autorepeat Recording
Set the security lock on VCR No.1. • When the end of the tape on VCR No.1 is reached, the output at the SERIES OUT terminal will switch signal. This will start recording on VCR No.2, the tape will stop and be ejected on VCR No.1. -
Page 16: Normal Playback
Normal Playback Normal Playback Turn on the power to the TV monitor. Load the video cassette tape. Press the REC/PLAY SPEED • A slow motion effect or select the playback speed. accelerated playback effect can be achieved by • The selected playback speed is displayed on the display panel. using a slower or faster •... -
Page 17: Reverse Play / Picture Search
• The tape will be rewound for about 5 seconds and slow suspended momentarily. play mode will be performed. The VCR will then return to the previous recording mode. Alarm Search Press the Menu button to display the initial menu. -
Page 18: Alarm Scan / Index Search
Press the SHIFT reverse without entering a specific alarm number. • The display returns to the normal screen. • The VCR will advance (or rewind) the tape at high speed, and playback the first 5 seconds of every alarm recording. -
Page 19: Setting The Security Lock (Set Lock)
Setting the Security Lock (Set Lock) The security lock function is designed to prevent accidental stopping of recording if the STOP button is • While the security lock is pressed inadvertently. engaged, all commands are disabled. Set the SET LOCK switch to “ON” position. •... -
Page 20: Rs-232C Setting
Press the MENU button to display the initial MENU. In the following cases, the buzzer will be heard Press the SHIFT approximately 5 times. The VCR MODE SET menu is displayed. - If the REC button is pressed while a cassette without erasure-prevention tab is loaded. -
Page 21: Setting In/Out Terminals
Press the SHIFT “High” or “Low”. Press the MENU button three times, the normal screen is displayed. button to display the VCR MODE button to move the arrow mark button to display the IN/OUTPUT button to move the arrow mark button to set “N/C”... - Page 22 Time Lapse Video Cassette Recorder Time Lapse Video Cassette Recorder If you are also using a Multi View system, use the following diagrams as a guide to connecting the VCR for normal or alarm recording. Connecting to a Multiview System for Normal Recording...
-
Page 23: Daily Inspection
Connecting to a Multiview System for Alarm Recording Daily Inspection • If the security lock is • If any problem is Time Lapse Video Cassette Recorder Time Lapse Video Cassette Recorder The following daily inspections are recommended in order to assure long-term and trouble-free operation of the unit. -
Page 24: Panic Recording
Troubleshooting Guide If the unit does not operate normally when you follow the instructions indicated in the manual, please refer to the table below. SYMPTOM POSSIBLE CAUSE No power. The power cord is not correctly connected to the wall outlet. The unit is in timer recording stand- by mode. -
Page 25: Specifications
Specifications General Specifications Recording method Dual-azimuth 4-head rotating helical scanning system Audio recording In 3, 6, 18 and 30 hour modes Tape speed 33.35 m/sec (3 hour mode) Specified video cassette tape VHS 1/2 inch video cassette tape Recording/playback time 3, 6, 18, 30, 48, 72, 168, 240, 480, 720, 960 hours (when using E-180 tape) Fast forward/rewind time...
