Summary of Contents for GreenWorks GPW1900

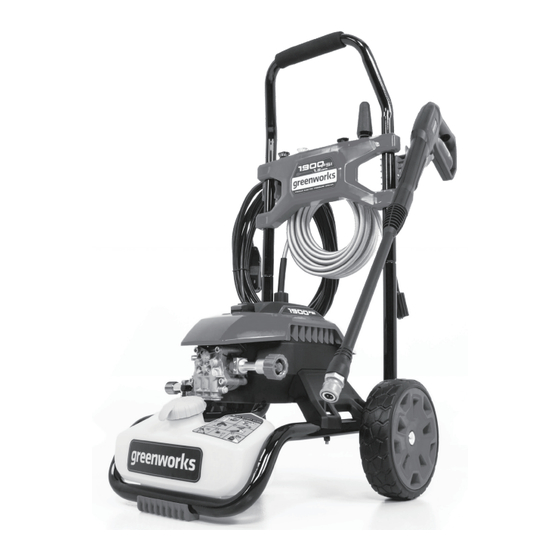

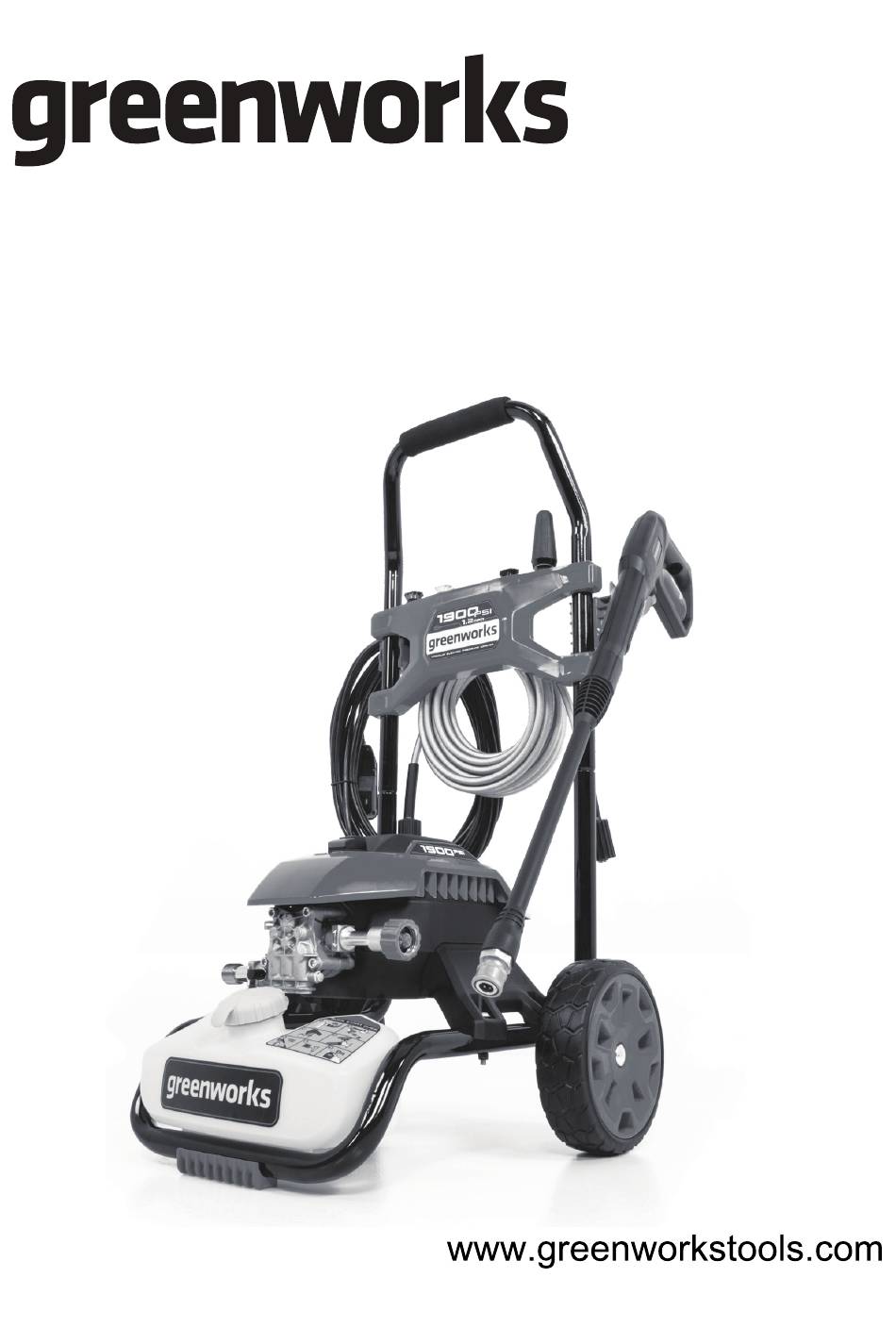

- Page 1 GPW1900 PRESSURE WASHER OPERATOR MANUAL LAVADORA A PRESIÓN MANUAL DEL OPERADOR PWA112...
-
Page 2: Table Of Contents
English Install the upper handle........6 Description......... 2 Install the wheels..........6 Purpose.............. 2 Install the spray wand........6 Overview............2 3.10 Install the high pressure hose......7 General power tool safety Operation........... 7 warnings..........2 Connect the water supply to the machine..7 General power tool safety warnings.... -
Page 3: Description
English DESCRIPTION GENERAL POWER TOOL SAFETY WARNINGS PURPOSE • The machine is not intended for use by persons (including children) with reduced physical, sensory or mental The machine is used to used to clean vehicles, boats, capabilities, or lack of experience and knowledge, unless buildings, porches, decks, patios, and driveways. -
Page 4: Pressure Washer Safety Warnings
English EXTENSION CORDS • Do not abuse the cord. Never use the cord to carry the product or to disconnect the plug from an outlet. Keep • Use only extension cords that are intended for outdoor cord away from heat, oil, sharp edges, or moving parts. use. -
Page 5: Risk Levels
English PROPOSITION 65 Symbol Explanation To reduce the risk of injury from WARNING kickback, hold the spray lance se- This product contains a chemical known to the state of curely with both hands when the ma- California to cause cancer, birth defects or other chine is on. -
Page 6: Unpack The Machine
English UNPACK THE MACHINE INSTALL THE HOSE HOOK WARNING Make sure that you correctly assemble the machine before use. WARNING • If the parts are damaged, do not use the machine. • If you do not have all the parts, do not operate the machine. -
Page 7: Install The Power Cord Storage Arm
English INSTALL THE POWER CORD INSTALL THE WHEELS STORAGE ARM 1. Put an axle (14) through the wheel and handle frame. 2. Attach a washer (13) to the axle (14). 3. Put a cotter pin (12) through the hole of the axle (14). INSTALL THE SPRAY WAND 1. -
Page 8: Install The High Pressure Hose
English 3.10 INSTALL THE HIGH PRESSURE CAUTION HOSE Inspect the filter in the water inlet connector before you connect the garden hose • If the filter is damaged, do not use the machine until the filter is replaced. • If the filter is dirty, clean the filter. 1. -
Page 9: Change The Spray Tip
English • Release the spray gun trigger (21) to stop water flow SPRAY TIP APPLICATION through the spray tip (11). White - Wide fan tip (40° ) 4.2.1 UNLOCK THE GUN TRIGGER • The white 40 degree tip, referred to •... -
Page 10: Start The Machine
English STOP THE MACHINE WARNING Do the instructions on the solution bottle to prepare 1. Release the spray gun trigger. detergent. 2. Press down on the ON/OFF switch, once again, to set the power switch to the "OFF" (O) position. NOTE WARNING If it is necessary, use a funnel to prevent the spill of... -
Page 11: Transportation And Storage
English TROUBLESHOOTING 5.1.2 CLEAN THE SPRAY TIP 1. Use a straight paper clip or cleaning tool (21) to clean the PROBLEM POSSIBLE SOLUTION spray tip (11). CAUSE 2. Flush and clean the unwanted materials out of the spray tip (11) with the garden hose (20). The motor does The power button Set the power... -
Page 12: Technical Data
English PROBLEM POSSIBLE SOLUTION PROBLEM POSSIBLE SOLUTION CAUSE CAUSE The water supply Open water supply The motor buzzes, The supply volt- Make sure that on- is not sufficient. fully. Check gar- but the machine age is low. ly the pressure den hose for kinks, does not start. -
Page 13: Limited Warranty
(3) years against defects in materials, parts or workmanship. Greenworks, at its own discretion, will repair or replace any and all parts found to be defective, through normal use, free of charge to the customer. -
Page 14: Exploded View
English EXPLODED VIEW Item No. Part No. Description 311023613 Upper handle assembly 311043613 Lower handle assembly 311053613 Soap tank 311063613 Wheel assembly 311093613 Power cord assembly 311103613 Accessory assembly 33201671 Spray tip cleaning tool 31103973 High pressure hose 333011936 Hose hook 312021639AB 31115661 Gun wand...
