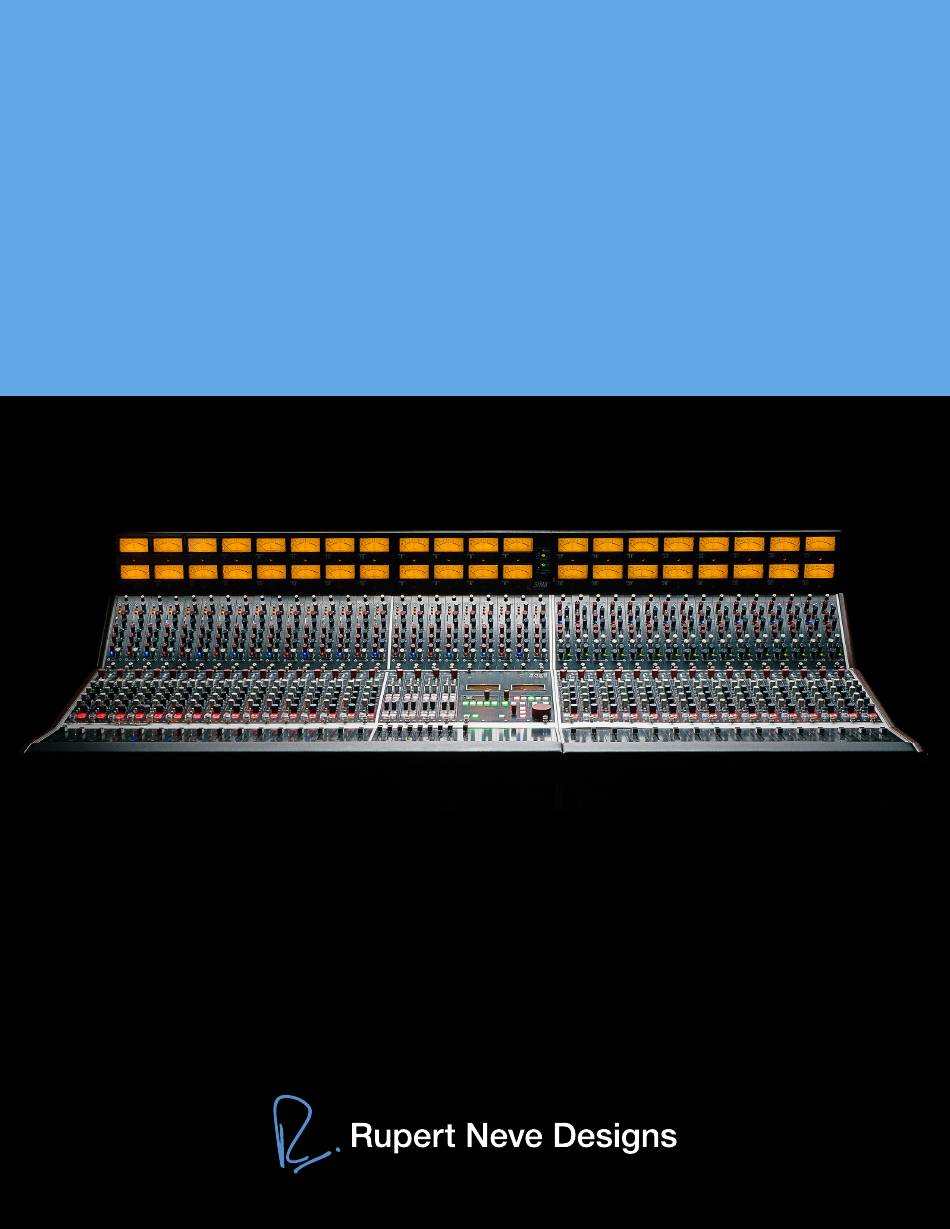

  • Page 1 5088 5088 Fully Discrete Analog Mixer Operations Manual Operations Manual...

  • Page 2: Important Safety Instructions

    CAUTION: Changes or modifications to this device not expressly 11. Only use attachments/accessories specified by the manufacturer. approved by Rupert Neve Designs LLC, could void the user's authority to 12. Use only with a cart, stand, tripod, bracket, or PORTABLE CART operate the equipment under FCC rules.

  • Page 3: Table Of Contents

    Safety Guidelines Unpacking Installing Modules Console Connections Rear Panel Diagrams Console Configurations Weights and Dimensions 5088 Block Diagram Penthouse & Channel Modules 5051 Penthouse Module 5052 Penthouse Module 541 & 551 Channel Modules Group Module VU Meter Bridge Master Section...

  • Page 4: Introduction

    Please contact our support team at the following email address for troubleshooting if you encounter an issue: service@rupertneve.com DO NOT operate the 5088 near any water sources or in areas with high indoor air pollution. (smoke, dust, etc.) DO NOT place any beverages on or around the 5088 console. If liquids (water, coffee, soda, etc.) are spilled on the console, immediately turn off all console power supplies.

  • Page 5: Unpacking

    Unpacking the 5088 The 5088 is a large-format mixing console that ships in high-quality wooden crates to ensure safe transport. These are a few important items to note when getting ready to unpack and install a 5088 console. 1. Please make sure to have at least 4 people on-hand to help with unpacking the crate and moving the console.
  • Page 6 Unpacking the 5088 (continued) 1. Use a powered drill with a Phillips head bit to unscrew the top panel of the crate. 2. Carefully slide the top panel off the crate and set it safely to the side. 3. Starting with the bottom center screw, remove the longer side panel by alternately loosening the screws on the left and right sides of the panel.
  • Page 7 Unpacking the 5088 (continued) 4. A) For 16 and 32 Channel consoles, unscrew the brace that supports the Meter Bridge. 1. Carefully lift it out of the crate. 2. Unscrew the brace that lays across the penthouse section and carefully lift it out of the crate.
  • Page 8 When lifting the front of the console it is best to hold it by the metal frame, NOT the armrest. 6. Once the 5088 is out of the crate you may begin removing the boxes from the bottom section of the crate.

  • Page 9: Installing Modules

    BEFORE loading the 5088 chassis with modules, make sure to secure the chassis to the console stand once it is placed in the desired location. A fully loaded 5088 console can weigh more than 750lbs, making it significantly more difficult to reposition once it is loaded.

  • Page 10: Connecting The Main Power Supply

    Connecting the Main Power Supply The 4 RU Main Power Supply included with the 5088 Console is designed to supply power to 32 channels maximum. If another 16 Channel Expansion Chassis is added, an additional power supply will be required.

  • Page 12: Connecting Audio

    5088 Console’s I/O to a patch bay. Installing a patch bay will protect the 5088’s rear panel I/O from unnecessary wear and make signal routing more convenient.

  • Page 13: Rear Panel Diagrams

    Rear Panel Diagrams ** Specific measurement diagrams of rear panel connections are available upon request. Please contact our support team to obtain these diagrams: service@rupertneve.com ** 8 Channel Frame: Master Section + Inputs 1-8 Master Section: 6 x XLR Female 3x Stereo External Source Inputs 9 x XLR Male 3x Stereo Speaker Feed Outputs...
  • Page 14 Rear Panel Diagrams (continued) 16 Channel Frame: Master Section Master Section: 6 x XLR Female 3x Stereo External Source Inputs 9 x XLR Male 3x Stereo Speaker Feed Outputs 1x Stereo Bus Output 1x Mono Oscillator Output 5 x TRS 1x Stereo Bus Insert Send 1x Stereo Bus Insert Return 1x Mono Talkback Remote...
  • Page 15 Rear Panel Diagrams (continued) 16 Channel Frame: Inputs 1-16: 32 x XLR Female 16x Line Inputs 16x ‘Tape’ Inputs 16 x TRS 16x ‘Buss’ Inputs 16 x XLR Male 16x Direct Outputs 1x Mono Group Direct Outputs Expander Section: Inputs 17-32: 32 x XLR Female 16x Line Inputs 16x ‘Tape’...

  • Page 16: Console Configurations

    Alternatively, in order to capture a more complete picture of the 5088’s sonic character, the penthouse module outputs can be routed to the line inputs on the 5088, and the 5088’s Direct Outputs can be connected to the A/D Converter/tape machine inputs for recording through the 5088, using Auxes 1-8 and Groups 1-8 to create cue mixes and effects sends/returns.

  • Page 18: Weights And Dimensions

    5088 Console Dimensions & Weights 8 Channel Console with Penthouse and Meterbridge 8 Channel Console with Penthouse and Meterbridge Width: 76 cm / 29.9 in Width: 76 cm / 29.9 in Depth: 105 cm / 41.3 in Depth: 105 cm / 41.3 in Height: 58.2 cm / 22.9 in...

  • Page 22: Penthouse & Channel Modules

    5088 Modules Penthouse Modules 5051 5052 EQ/Compressor Mic Pre/EQ NDUCTOR EQ LINE 1 LINE 2 LINE EQ IN TRIM 1.5K TO EQ HI PEAK MID FREQ MID HI Q EQ PRE POST MIC GAIN Red 120Hz Blue 60Hz LO PEAK...

  • Page 23: Console Modules

    5088 Modules (continued) Console Modules series series METER TAPE LINE TRIM BUSS TRIM GROUPS TRIM GROUPS STEREO STEREO ∞ LEVEL 8 LEVEL 6 BAL 5/6 SOLO AUX TO GROUPS ∞ LEVEL 7 LEVEL 5 LEVEL 6 ∞ PAN 5/6 LEVEL 4...

  • Page 24: 5051 Penthouse Module

    5051 Front Panel 5051 EQ/Compressor NDUCTOR EQ LINE 1/LINE 2 LINE 1 Push-button switch that toggles between LINE 1 and LINE 2 inputs LINE 2 Center-detent potentiometer that controls the amount of boost or cut for the high frequency shelf/peak EQ EQ IN within a range of +/- 15 dB EQ IN...

  • Page 26: 5052 Penthouse Module

    5052 Front Panel 5052 Mic Pre/EQ MIC/LINE TRIM Push-button switch that selects the mic input or the line input LINE Center-detent potentiometer that controls the input trim within a range of +/- 6 dB Illuminated push-button switch that engages 48V Phantom Power TRIM TO EQ Polarity...

  • Page 28: 541 & 551 Channel Modules

    541 Mono Channel Module Front Panel series TAPE TAPE Push-button switch that selects the Tape Input LINE/BUSS TRIM LINE Push-button switch that toggles between the Line input and the Buss input BUSS Center-detent potentiometer that controls the input trim within a range of +/- 10 dB POLARITY Push-button switch that inverts the phase of the input signal...
  • Page 30 551 Stereo Channel Module Front Panel series METER L/R METER RIGHT INPUT TRIM Push-button switch that toggles the corresponding VU meter to displaying Center-detent potentiometer that controls the right channel input trim the left (out) or right (in) channel within a range of +/- 10 dB LEFT INPUT TRIM TRIM Center-detent potentiometer that controls the left channel input trim...
  • Page 32 NOTE: Before removing channel modules to change jumper positions, POWER OFF THE 5088. You can adjust the jumpers using fingers or a small set of needle-nose pliers. Please contact our support staff at the following email address if any questions arise: service@rupertneve.com...
  • Page 33 Channel Module Internal Jumpers (continued) Direct Out: Pre-fader / Pre-mute Direct Out: Pre-fader / Post-mute Aux 5/6: Pre-Fader/Post Fader The Aux 5/6 jumper J4 is physically located on the upper (daughter) board between the AUX 3/4 PRE/ POST and AUX 3/4 MUTE push-button switches.

  • Page 34: Group Module

    561 Group Channel Module Front Panel EFFECTS INPUT TRIM Center-detent potentiometer that controls the stereo effects input trim within a range of +/- 10 dB STEREO EFFECTS INPUT (RETURN) GROUP ASSIGN Push-button switches that assign the effects input to the corresponding group bus MUTE SOLO...
  • Page 36 Group Module Internal Jumpers Group Module Direct Output: Pre-Fader/Post Fader By default, the 561 Group Direct Outputs are set to Post-Fader, Post-Mute. This can be changed via internal jumpers (J1, J2, J4, J5, J10 and J11). NOTE: Please contact our service & support team at the following email address if any questions arise: service@rupertneve.com Group Module Bus Selector The Group Bus that each 561 Group module receives is determined by the position of...
  • Page 37 Group Module Internal Jumpers (continued) Group Module 3/4 internal jumpers J6 and J7 set to receive Group Buses 3 and 4 GROUP GROUP BUS 4 BUS 3 Group Module Aux Bus Selector The Aux Bus that each 561 Group module receives is determined by the position of jumpers J8 and J9.

  • Page 38: Vu Meter Bridge

    VU Meter Bridge The VU Meter bridge has independent VU meters for monitoring both the Channel and Group module signals. The Channel section VU meters can be toggled between reading Pre-Fader, Post-Fader, and Direct Output using the push-buttons on the right side of the Meterbridge. The Group section VU meters can be toggled between Aux Out, Group Insert Out, and Group Direct Output monitoring.

  • Page 39: Master Section

    Master Section Rupert Neve Designs 5088 F u l l y D i s c r e t e A n a l o g u e M i x e r LEFT RIGHT TALKBACK OSCILLATOR 100 Hz 1KHz 10 KHz...
  • Page 40 5088 F u l l y D i s c r e t e A n a l o g u e M i x e r Master Section (continued) LEFT & RIGHT VU METERS LEFT RIGHT The Left & Right VU Meters are calibrated as standard VU meters where 0 VU = +4dBu.
  • Page 41 OSCILLATOR The oscillator section can be used to calibrate input & output levels and verify the frequency response of each 5088 chan- nel. The male XLR output connector for the oscillator is found on the back of the master section rear panel. The oscillator...

  • Page 42: Monitor Controls

    Master Section (continued) 100 Hz 1KHz 10 KHz GROUPS SOLO MODE TB LEVEL OSC LEVEL The ‘SOLO MODE’ section has an illuminated switch that engages Solo-in-Place (SIP). SIP allows for the monitoring of a channel signal post-pan and fader control, maintaining the signal’s position in the stereo field. This can be useful when SPEAKER SELECT MONITOR needing to solo a channel and also listen to the corresponding effects return, for example.

  • Page 44: Product Warranty

    PRODUCT WARRANTY Rupert Neve Designs warrants this product to be free from defects in materials and workmanship for a period of three (3) years from date of purchase, and agrees to remedy any defect identified within such three year period by, at our option, repairing or replacing the product.
