Rupert Neve Designs 5088 Operation Manual

Fully discrete analogue mixer
Hide thumbs Also See for 5088:
Table of Contents

Advertisement

Quick Links

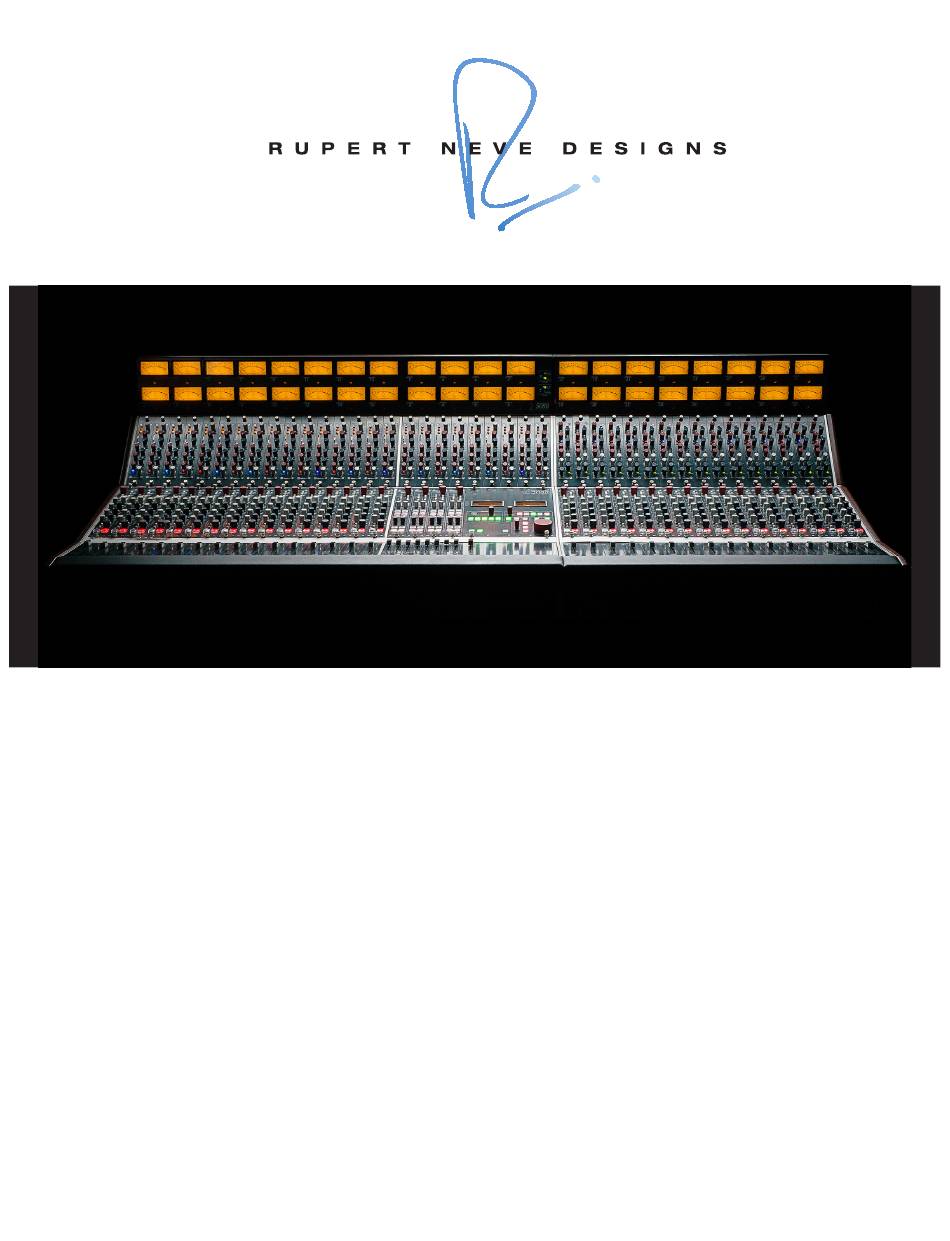

5 0 8 8
Fully Discrete
Analogue Mixer
Operations Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5088 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rupert Neve Designs 5088

Summary of Contents for Rupert Neve Designs 5088

  • Page 1 5 0 8 8 Fully Discrete Analogue Mixer Operations Manual...
  • Page 2 CAUTION: Changes or modifications to this device not expressly 11. Only use attachments/accessories specified by the manufacturer. approved by Rupert Neve Designs LLC, could void the user's authority to 12. Use only with a cart, stand, tripod, bracket, or PORTABLE CART operate the equipment under FCC rules.

  • Page 3: Table Of Contents

    Unpacking Installing Modules Guarding Against Interference Connecting Audio Connecting the Power Supply Studio Configuration Suggestions Dimensions 5088 Console Block Diagram Cleaning and Service Instructions Channel Module Channel Module Block Diagram Group Module Group Module Block Diagram Master Section Master Section Block Diagram...

  • Page 5: Introduction

    DO NOT operate the 5088 near any water sources or in areas with high indoor air pollution (smoke, dust, etc.) DO NOT place any beverages on or around the 5088 console.

  • Page 6: Unpacking

    5088: Operations Manual DO NOT setup the 5088 Console or its Power Supplies in an unventilated or tightly enclosed space. DO NOT block any of the chassis ventilation holes. The 5088’s class-A discrete circuits generate heat during operation and the ventilation holes allow the internal console fans to properly dissipate the heat.

  • Page 7: Installing Modules

    NOT by the arm rest. Once the 5088 is out of the crate, you may begin removing the boxes from the bottom section of the crate.

  • Page 8: Guarding Against Interference

    5088 Console’s I/O to a patch bay. Installing a patch bay will protect the 5088’s rear panel I/O from unnecessary wear and will make signal routing more convenient.
  • Page 9 5088: Operations Manual Back Panels Channel I/O Master Section I/O Group I/O (per module) 6 x XLR Female 3 x TRS 3 Stereo External Source Inputs Effects Input 9 x XLR Male Group Insert Send 3 Stereo Speaker Feed Outputs...

  • Page 10: Connecting The Power Supply

    AD Converter inputs. Route each DA Converter output to a corresponding tape input on the 5088 (if latency is acceptably low), and create stereo and cue mixes with the 5088’s 541 Channel and 561 Group routing controls for recording or mixing.

  • Page 11: Dimensions

    5088: Operations Manual “Super 8” Main Chassis Dimensions Width: 76 cm / 29.9 in Depth: 74.4 cm / 29.3 in Height: 27.2 cm / 10.7 in Weight: 189 lbs. “Super 8” with Penthouse and Meterbridge Width: 76 cm / 29.9 in Depth: 105 cm / 41.4 in...
  • Page 12 5088: Operations Manual...
  • Page 13 5088: Operations Manual...
  • Page 14 5088: Operations Manual...

  • Page 15: 5088 Console Block Diagram

    5088: Operations Manual...
  • Page 16 5088: Operations Manual...

  • Page 17: Cleaning And Service Instructions

    Shipping To remove a 541 Channel or 561 Group module for servicing, power off the 5088, unscrew the thumbscrews at the top and Instructions bottom of the module and carefully slide the module out of the slot by pulling upwards on the thumbscrews.

  • Page 18: Channel Module

    5088: Operations Manual 541 Channel Module Input Select Input Select Selects between Tape, Input Trim Input Trim Line and Buss inputs series A detented trim pot allows TAPE for +/-10dB adjustment of the Input Channell LINE BUSS Phase Reverse Phase Reverse...
  • Page 19 5088: Operations Manual The push-buttons at the top of each 541 Channel select be- Channel Module tween transformer-coupled LINE, BUSS or TAPE inputs. The BUSS input is not a line input, and should only be used with BUSS outputs from Portico modules.
  • Page 20 Aux 5/6 as well as the Direct Output. Jumpers Before removing Channel modules to change jumper posi- tions, power off the 5088. Grab the jumpers using your fingers or a small set of needle-nose pliers. Aux 5/6: Pre-Fader/Post Fader...
  • Page 21 5088: Operations Manual Post-fader / Post-mute (default) Pre-fader / Pre-mute Pre-fader / Post-mute...

  • Page 22: Channel Module Block Diagram

    5088: Operations Manual...
  • Page 23 5088: Operations Manual...

  • Page 24: Group Module

    Group Channel 5088: Operations Manual 561 Group Module seri Stereo FX Input Trim Stereo Effects Input Trim EFFECTS INPUT A detented trim pot allows for +10dB / Stereo Effects Group Sends Stereo FX Group Sends -infinity adjustment of the FX Signal...
  • Page 25 Stereo Buss. SOLO and MUTE Illuminated latching buttons. Each Stereo Effects Return consists of two transformer- coupled line inputs which connect to TRS jacks on the 5088’s Back Panel I/O. The 561 Group includes a pair of transformer-coupled Auxiliary Master Outputs that are accessible on the 5088’s Back Panel I/O via XLR jacks.
  • Page 26 5088: Operations Manual Group Module Direct Output: Pre-Fader/Post Fader Group Module Jumpers By default, the 541 Group Direct Outputs are set to Post-Fad- er, Post-Mute. This can be changed via internal jumpers (J1, J2, J4, J5, J10 and J11). Before attempting this change, please contact our support staff at the following email address: sup- port@rupertneve.com.
  • Page 27 5088: Operations Manual Group Module Aux Buss Selector The Aux Buss that each 561 Group module receives is de- termined by the position of jumpers J8 and J9. In the photo below, Group Module 1/2 has internal jumpers J8 and J9 set to receive Aux Buss 1 and 2.

  • Page 28: Group Module Block Diagram

    5088: Operations Manual...
  • Page 29 5088: Operations Manual...

  • Page 30: Master Section

    5088: Operations Manual Master Section...
  • Page 31 GROUPS. If additional external Talkback signal routing is required, the TB TO OSC OUT button routes the Talkback signal to the male XLR on the 5088’s Back Panel I/O labeled OSCILLATOR. All five of these Talkback routing options can be used individually or simultaneously.
  • Page 32 Speaker Select Section Three buttons, MON A, MON B, and MON C allow the transformer-coupled Monitor outputs to be assigned to one of 3 sets of stereo male XLR loudspeaker outputs on the 5088’s Back Panel I/O. Monitor Section The Monitor source can be selected via the STEREO MIX and EXT 1, EXT 2, and EXT 3 buttons.
  • Page 33 Jumper J3 is set by default to a low gain Talkback setting, intended for use with a condenser microphone. To change these jumper settings, first power down the 5088 Console. Loosen the thumbscrews on the 561 Group modules 5/6 and 7/8. Removing these two 561 Group modules will provide enough space to change the jumper settings without removing the Master Section.

  • Page 34: Master Section Block Diagram

    5088: Operations Manual...

  • Page 35: Limited Warranty

    5088: Operations Manual Rupert Neve Designs warrants this product to be free from Limited Warranty defects in materials and workmanship for a period of one (1) year from date of purchase, and agrees to remedy any defect identified within that period by, at our option, repairing or replacing the product.
  • Page 36 Rupert Neve Designs PO Box 1969 Wimberley TX 78676 www.rupertneve.com tel: +1 512-847-3013 fax: +1 512-847-8869 PN: 775-00026 revD...
