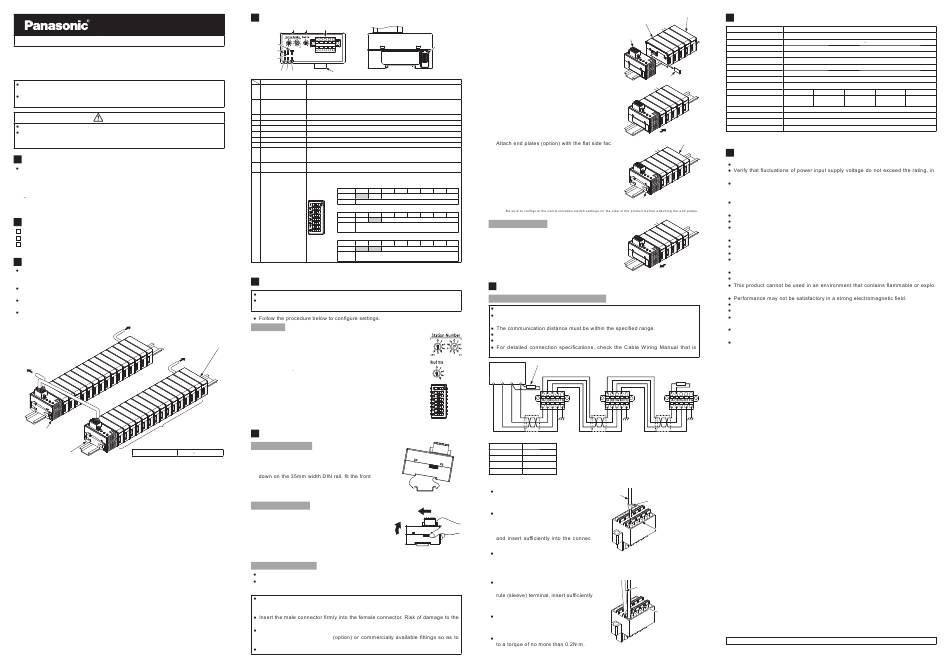

Panasonic SC-HG1-C Instruction Manual

INSTRUCTION MANUAL
CC-Link Communication Unit SC-HG1-C
MJE-SCHG1C No.0095-39V
Thank you very much for purchasing Panasonic products. Read this Instruction Man-
ual carefully and thoroughly for the correct and optimum use of this product. Kindly
keep this manual in a convenient place for quick reference.
For communication commands and other detailed information about the CC-Link
Communication Unit SC-HG1-C, refer to the "SC-HG1-C User's Manual".
CC-Link is a registered trademark of Mitsubishi Electric Corporation, and is con-
trolled by the CC-Link Partner Association.
WARNING
Never use this product as a device for personnel protection.
For personnel protection, use only products that meet the laws and standards for
personnel protection that apply in each region or country, such as OSHA, ANSI
and IEC.
1 REGULATIONS AND STANDARDS
This product conforms to the regulations and standards below.
<Conformity Directives / Conforming Regulations>
EU Law : EMC Directive 2014/30/EU
British Legislation : EMC Regulations 2016/1091
Applicable Standards
EN 61000-6-4 : 2007 +A1 : 2011,EN 61000-6-2 : 2005
2 CONTENTS OF PACKAGE
Main unit:
Instruction Manual (English / Japanese, Chinese / Korean):
General Information for Safety, Compliance, and Instructions
3 SYSTEM CONFIGURATION
This product is a communication unit that is used to monitor sensor ON / OFF out-
put and detection amounts using CC-Link communication between the controller
and CC-Link host device.
This product can be connected to a maximum of 15 controllers (one master con-
troller, 14 slave controllers).
The CC-Link version can be switched between Version 1.10 and Version 2.0
(2 stations x8 / 4 stations x4) using the mode setting switch.
The power that drives this product is supplied from a connected controller / mas-
ter controller.
To power supply
Controller - master (Option)
To power
To CC-Link host device supply
Controllers - slave (Option)
SC-HG1-C
(Maximum 14 units connectable)
Compatible controllers HG-SC
End plate MS-DIN-E (Option)
4 DESCRIPTION OF PARTS
1 2 3
10
9
8
7 6 5 4
Name Function
Set the CC-Link station number to a number between 1 to 64 (an error will result if set
Station number setting
1 to 0 or 65 or higher).
switch
[Factory setting: 1]
Set the CC-Link communication speed.
Communication speed
2 0: 156kbps, 1: 625kbps, 2: 2.5Mbps, 3: 5Mbps, 4: 10Mbps
setting switch
[Factory setting:156kbps]
3 Connector for CC-Link Connect to a host device or other SC-HG1-C.
4 Male connector Connect to a master controller or slave controller.
5 Power indicator (Green) Lights up when power is supplied.
6 RD indicator (Green) Lights up during data reception.
7 L RUN indicator (Green) Lights up while data link is executed.
8 SD indicator (Green) Lights up during data transmission.
Lights up if the station setting number switch and communication speed setting switch
9 L ERR. indicator (Red) are in invalid positions when the power is turned ON.
Blinks when a switch setting is changed while the power is ON.
Lights up when CC-Link communication is interrupted.
10 ERR. indicator (Red)
Blinks when a communication error occurs.
Set the communication method and number of occupied stations.
[Factory setting: CC-Link mode 1]
• CC-Link mode 1
SW No. 1 2
ON / OFF ON OFF
Remarks CC-Link Ver. 1.10, Number of occupied stations: 4
• CC-Link mode 2
SW No. 1 2
11 Mode setting switch
ON / OFF OFF ON
CC-Link Ver. 2.00, Number of occupied stations: 2
Remarks
Expanded cyclic transmission speed: x8
1 pc.
1 pc. each • CC-Link mode 3
1 pc. SW No. 1 2
ON / OFF ON ON
CC-Link Ver. 2.00, Number of occupied stations: 4
Remarks
Expanded cyclic transmission speed: x4
Note: Use with unused switches set to OFF.
5 COMMUNICATION SETTINGS
After changing the settings, always turn the power OFF and then ON.
For the communication conditions and commands, refer to the "SC-HG1-C
User's Manual".
Procedure
1. Set the address with the station number setting switches.
2. Set the communication speed with the communication speed
setting switch
3. Set the communication method and number of occupied stations
with the mode setting switch.
6 MOUNTING AND CONNECTIONS
Mounting procedure
1. Hook the rear of the mounting part onto the
35mm width DIN rail.
2. While pressing the rear of the mounting part
of the mounting part onto the DIN rail.
Removal procedure
1. Grasp the product and push forward.
2. Lift the front to remove.
Note: If you attempt to lift the front without pushing the product forward, you may bend the hook on the back of the
mounting part.
Connection procedure
This product must be connected to a controller.
Up to 15 controllers (one master controller and 14 slave controllers) can be con-
nected to the product.
Always shut OFF the power before connecting the product to or disconnecting
the product from from a controller. Risk of damage to the product and controller if
connected with the power ON.
product and controller if not connected completely.
To connect the product to a controller, the units must be mounted on a DIN rail.
Attach end plates MS-DIN-E
enclose the connected units at the ends.
For cautions on using controllers, refer to the manual for the controller.
1. Mount the product on a 35mm width DIN rail.
2. Remove the connector cover from the control-
ler. (Note 1)
11
<Switch cover removed>
3. Slide the product so that it directly contacts the
controller.
4.
ing in so as to enclose the connected units at
the ends. (Note 2)
5. Tighten the screws to fasten the end plates.
3 4 5 6 7 8
Not used (Note)
Notes: 1) Be sure to keep the connector cover you removed from the controller.
2)
3 4 5 6 7 8
Not used (Note)
Removal procedure
1. Loosen the screws on the end plates and re-
move the end plates.
3 4 5 6 7 8
2. Slide and remove the product and controllers.
Not used (Note)
7 CONNECTING AN EXTERNAL DEVICE
Connecting the host communication cable
Make sure that the power supply is OFF while performing wiring work.
Use only a special-use communication cable that is approved by the CC-Link
Partner Association.
Do not set duplicate station numbers.
Allow a cable length of at least 200mm between stations.
published by the CC-Link Partner Association.
Terminal resistor (Note)
CC-Link host device
<Station No.: 1>
SLD DG DB DA
<Terminal names and corresponding lead wire colors>
Terminal name Color code
DA Blue
DB White
DG Yellow
SLD Shield
2. Press down
<Terminal block connection procedure>
1. Insert
Use a special-use CC-Link communi-
35mm width DIN rail
cation cable (shielded 3-conductor
1. Push forward twisted cable).
When connecting the terminal block,
use stranded wires (lead wires) with a
ferrule (sleeve) terminal (please obtain
2. Lift
separately) attached as shown at right,
tion hole.
When inserted correctly, the wire is
locked and cannot be pulled out. Take
care not to pull with excessive force,
as the wire may break.
To connect stranded wire (lead wire) to
the terminal block without using a fer-
into the connection hole while pressing
the release button.
To disconnect stranded (lead) wire, pull
out the wire while pressing the release
button.
When attaching the connector, tighten
Controller - master unit (Option) 8 SPECIFICATIONS
Controller - slave unit (Option)
Designation
Model No.
This product
Compatible controllers
Number of units connectable
Supply voltage (Note)
Current consumption
Communication method
Remote station type
Connector cover
Number of occupied station
Station No. setting
Communication speed
Maximum overall cable
distance
Ambient temperature
Ambient humidity
Material
Weight
Slide
Note: Power is supplied from a connected controller / master controller.
- End plate (Option)
9 CAUTIONS
This product has been developed / manufactured for industrial use only.
cluding controllers.
When using devices that are sources of noise (switching regulators, invertor mo-
tors, etc.) near the installation area of the product, always ground frame-ground
(F.G.) terminals of those devices individually.
End plate (Option)
Do not use during the initial transient time (2s) after the power supply is switched
ON.
Make sure that the power is OFF while performing wiring or connection work.
Risk of damage and burning if the load is incorrectly wired or short-circuiting occurs.
Do not wire in parallel with a high-voltage line or power line, or run through the
same conduit. Risk of malfunctioning due to induction.
This product is suitable for indoor use only.
Avoid dust, dirt, and steam.
Do not use in locations where there are corrosive or other harmful gases.
Ensure that the product does not come into contact with organic solvents such as
Slide thinner.
Ensure that the product does not come into contact with strong acid or alkaline.
Ensure that the product does not come into contact with oil or grease.
sive gases.
Do not drop or otherwise subject to shock. Risk of product damage.
Never attempt to disassemble, repair, or modify the product.
When the product becomes unusable or unneeded, dispose of the product appro-
priately as industrial waste.
Design the system to allow the addition of external safety circuits and other
means of protection against system trouble.
In the case this product is incorporated into your product which is designed to
conform with the EMC Directive for CE Marking and the EMC Regulation for
UKCA Marking, install this product in a conducting box as per the User's Manual
(issued by Mitsubishi Electric Corporation) of the PLC.
<Station No.: 2> <End unit>
Terminal resistor (Note)
F.G. F.G. F.G.
Note: Select terminal resistors that are suitable for the cable, and connect
to the stations at both ends of the line connection.
Lead wire
Ferrule (sleeve) terminal
(Please obtain separately)
Lead wire insertion hole
-
Flat-head screwdriver
Release button
Panasonic Industry Co., Ltd.
1006, Oaza Kadoma, Kadoma-shi, Osaka 571-8506, Japan
https://industry.panasonic.com/
Please visit our website for inquiries and about our sales network.
Panasonic Industry Co., Ltd. 2024
April, 2024
CC-Link communication unit
SC-HG1-C
HG-SC
Maximum of 15 controllers (one master, 14 slaves) per SC-HG1-C unit
24V DC ±10%, Including ripple 0.5V (P-P)
80mA or less
Switchable CC-Link Ver. 1.10 or 2.00
Remote device station
CC-Link Ver. 1.10: 4 stations, CC-Link Ver. 2.00: Switchable 2 or 4 stations
1 to 64 (0 and 65 or more: Error)
156kbps 625kbps 2.5Mbps 5Mbps 10Mbps
1,200m 900m 400m 160m 100m
-10 to +45°C (No condensation or icing), Storage: -20 to +60°C
35 to 85% RH, Storage: 35 to 85% RH
Unit case: PC
Approx. 80g
-
-
PRINTED IN JAPAN
