Quick Start Guide
DWM3001CDK Quick Start Guide
Introduction
The Qorvo® DWM3001CDK is a certified development kit to evaluate the capabilities of the low cost Qorvo® UWB
& Bluetooth Low Energy module DWM3001C.
DWM3001C module contains a Qorvo® DW3110 non-PDoA UWB transceiver and a Nordic® nRF52833 SoC.
More details about DWM3001CDK board can be found on Qorvo® website on
2
page
.
1
https://www.qorvo.com/products/p/DWM3001CDK
2
https://www.qorvo.com/products/p/DWM3001C
August 2024 | Subject to change without notice

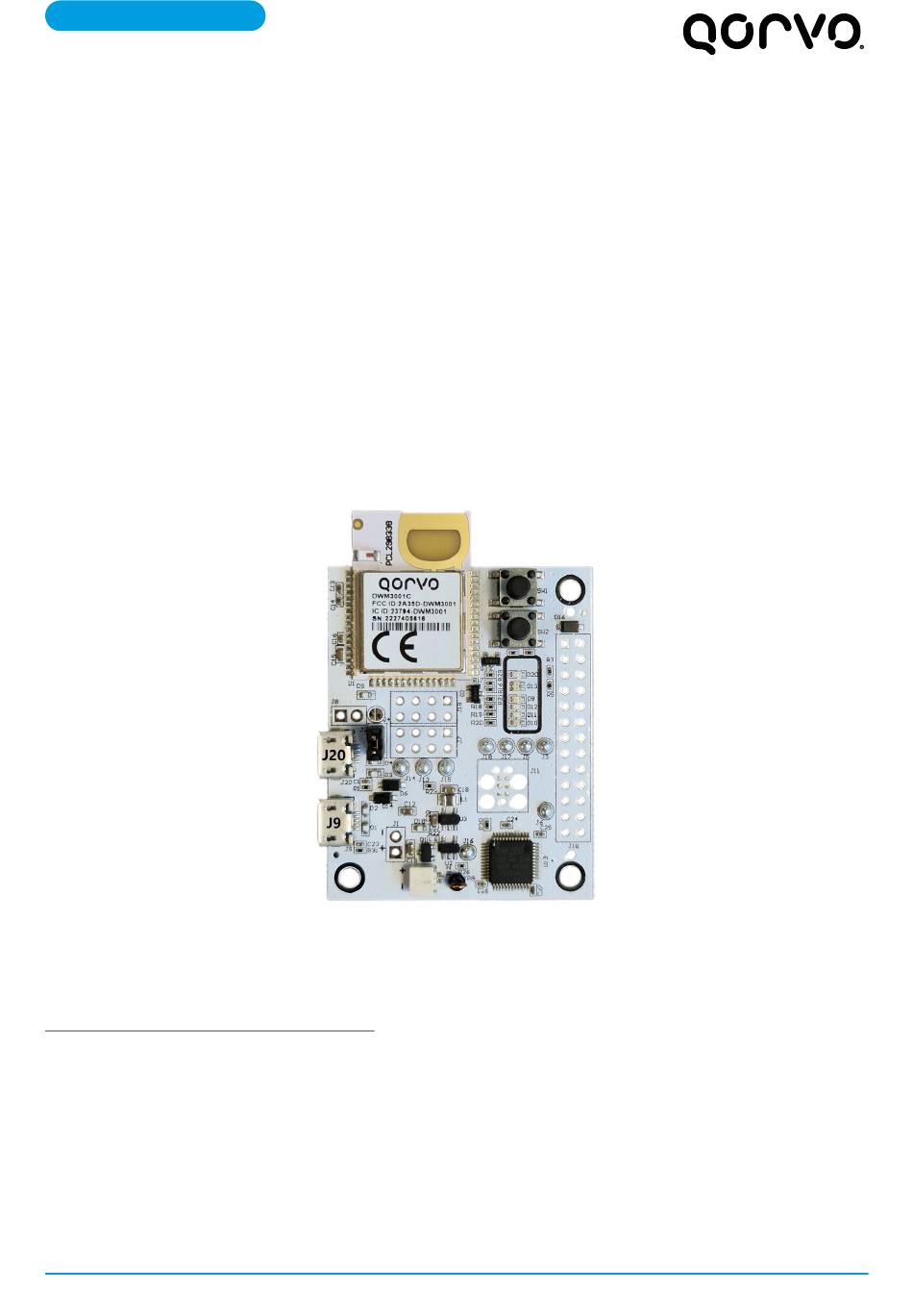

Fig. 1.1: DWM3001CDK board
© 2024 Qorvo US, Inc.
Qorvo® Proprietary Information
1 of 16
1
DWM3001CDK page
and
Release QM33SDK-1.0.0 |
DWM3001C
www.qorvo.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Qorvo DWM3001CDK
Summary of Contents for Qorvo DWM3001CDK
- Page 1 DWM3001CDK Quick Start Guide Introduction The Qorvo® DWM3001CDK is a certified development kit to evaluate the capabilities of the low cost Qorvo® UWB & Bluetooth Low Energy module DWM3001C. DWM3001C module contains a Qorvo® DW3110 non-PDoA UWB transceiver and a Nordic® nRF52833 SoC.
-
Page 2: Required Tools
4. Once the software is installed, you can proceed with flashing your development kit. Flashing the development kit Warning: DWM3001CDK boards are not shipped preprogrammed. UCI version needs to be flashed to continue. 1. To flash the board, connect a micro-USB cable to the board (J9 USB connector shown in the figure DWM3001CDK board.) - Page 3 Quick Start Guide Note: To evaluate the board with the Qorvo One TWR GUI application please ensure that you flashed the UCI hex file. Fig. 1.3: Select .hex file to flash. 5. Once the progress bar is completed, the device has been successfully flashed. Perform a power cycle by disconnecting and reconnecting the power supply to reset the board.
- Page 4 Quick Start Guide DWM3001CDK Setup Connect the DWM3001CDK board to a PC beside an AoA-capable board (such as Qorvo® QM33120WDK1 AoA system) using micro-USB cables. Note: Make sure that the antennas face each other during the evaluation. © 2024 Qorvo US, Inc.
- Page 5 Quick Start Guide Ranging and AoA Evaluation Install Qorvo One TWR GUI evaluation software included in the package and start the application. Please check Qorvo Software License and click Next if you agree to the terms and conditions. Warning: • If you got the error: dlopen(): error loading libfuse.so.2...
- Page 6 Quick Start Guide Fig. 1.5: Welcome screen The boards will be detected and displayed on the main screen. © 2024 Qorvo US, Inc. Qorvo® Proprietary Information August 2024 | Subject to change without notice 6 of 16 Release QM33SDK-1.0.0 |...
- Page 7 Use FiRa Configuration button to setup the ranging parameters. A new window will appear, allowing you to modify various FiRa settings, such as UWB Channel or Ranging duration. © 2024 Qorvo US, Inc. Qorvo® Proprietary Information August 2024 | Subject to change without notice 7 of 16 Release QM33SDK-1.0.0 |...
- Page 8 Quick Start Guide Fig. 1.7: FiRa configuration Apply desired setting and click Save button. You can also use Reset all Configuration to restore the default values. © 2024 Qorvo US, Inc. Qorvo® Proprietary Information August 2024 | Subject to change without notice 8 of 16 Release QM33SDK-1.0.0 |...
-
Page 9: Device Configuration
• If you perform a Non-Volatile Memory (NVM) erase, such as a chip erase, it is crucial to reapply calibration and configuration to the device. © 2024 Qorvo US, Inc. Qorvo® Proprietary Information August 2024 | Subject to change without notice 9 of 16 Release QM33SDK-1.0.0 |... - Page 10 Fig. 1.9: Device calibration file Press Save button in Device configuration window to apply configuration and calibration. When calibration has changed, saving may take up to 10 seconds. © 2024 Qorvo US, Inc. Qorvo® Proprietary Information August 2024 | Subject to change without notice 10 of 16 Release QM33SDK-1.0.0 |...
- Page 11 Quick Start Guide TWR Ranging Press Save and start to start the ranging experience. Fig. 1.10: Real Time Location © 2024 Qorvo US, Inc. Qorvo® Proprietary Information August 2024 | Subject to change without notice 11 of 16 Release QM33SDK-1.0.0 |...
-
Page 12: Auto Calibration
Quick Start Guide Auto Calibration The Qorvo One TWR GUI software provides an auto calibration feature that simplifies the calibration process on the development boards. This feature automatically adjusts the antenna delay and the PDoA offset in the NVM of the MCU. - Page 13 Note: It is important to follow the instructions displayed in the window as precisely as possible to ensure improved performance. Fig. 1.13: Auto Calibration window © 2024 Qorvo US, Inc. Qorvo® Proprietary Information August 2024 | Subject to change without notice 13 of 16 Release QM33SDK-1.0.0 |...
- Page 14 Click on the Calibrate button to start the auto calibration. Once the auto calibration process is complete, the software will display a message indicating the success of the calibration. Fig. 1.14: Auto Calibration completed © 2024 Qorvo US, Inc. Qorvo® Proprietary Information August 2024 | Subject to change without notice 14 of 16 Release QM33SDK-1.0.0 |...
- Page 15 Fig. 1.15: Auto Calibration tab with device calibrated After completing the auto calibration, you can proceed with the TWR ranging or AoA evaluation as described in the previous section. © 2024 Qorvo US, Inc. Qorvo® Proprietary Information August 2024 | Subject to change without notice 15 of 16 Release QM33SDK-1.0.0 |...
-
Page 16: Revision History
– Updated GUI images to the latest version. • Updated target board images and their descriptions. DW3_QM33_SDK_0.1.1 2022-11-03 Initial release © 2024 Qorvo US, Inc. Qorvo® Proprietary Information August 2024 | Subject to change without notice 16 of 16 Release QM33SDK-1.0.0 |...
