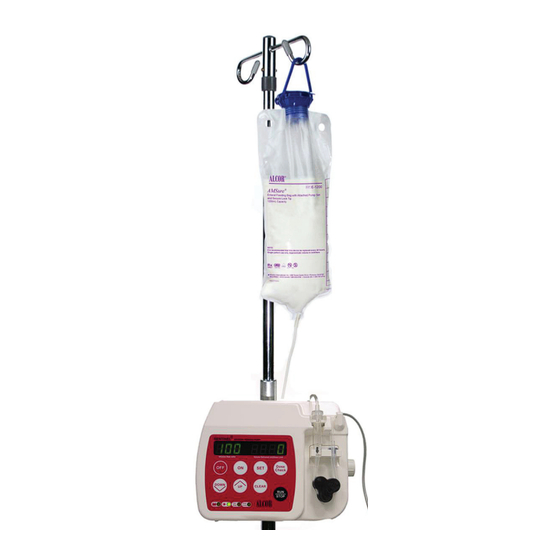

- Page 1 SENTINEL® ENTERAL FEEDING PUMP USER TRAINING PACKET...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Section Page ® Sentinel Enteral Feeding Pump Inservice Video DVD (inside front cover of binder) …………………………… Sentinel Enteral Feeding Pump and Sets – Safety Features & Benefits …………………………………………………………………. III. Pump Components (Front & back photos with parts labeled) ….. Set Installation …………………………………………………………. -
Page 3: Sentinel ® Enteral Feeding Pump Inservice Video
SENTINEL® ENTERAL FEEDING PUMP INSERVICE VIDEO (DVD) SECTION I:... -
Page 4: Benefits
SENTINEL® PUMP AND SETS KEY FEATURES & BENEFITS SECTION II: Pump Large, dual display shows infusion rate and volume delivered simultaneously Patented drop detection technology minimizes nuisance alarms Advanced memory keeps settings until manually erased Clear audible & visual alarms ... -
Page 5: Pump Components (Front & Back Photos With Parts Labeled)
PUMP COMPONENTS SECTION III: Front DROP SENSOR TUBING HOOK VOLUME INFUSED INFUSION RATE DISPLAY DISPLAY SET LOCATOR SHELF KEYPAD ROTOR VISUAL INDICATORS Back CAP HOLDER... -
Page 6: Set Installation
SET INSTALLATION SECTION IV: 1. Close roller clamp and insert 4. Pull tubing under rotor. and seat drip chamber. 2. Open roller clamp and expel air from tubing. 3. Close roller clamp. 7. Seat tube adapter into locator 5. Wrap tubing behind tubing retainer. shelf. -
Page 7: Programming Guide
SENTINEL® ENTERAL FEEDING PUMP Programming Guide • Refer to Operating Manual for detailed instructions • See also Programming Directions on the pump... - Page 8 Set Infusion Rate Set Dose Limit (Left Display) (Right Display) 1. Press RUN/STOP. 1. Press ON. Alarm Right display will will sound. Right flash. display will flash. 2. Press SET. dos Set 2. Press UP or DOWN will display on left. until desired 3.
-
Page 9: Lock/Unlock Keypad
Reset Volume Delivered Reset Volume Delivered (current dose) & Dose Limit (current dose) to Zero to Zero & Infusion Rate to 5 1. Press RUN/STOP. 1. Press RUN/STOP. Right display will Right display will flash. flash. 2. Press CLEAR. Hold 2. -
Page 10: Alarms & Indicators
ALARMS & INDICATORS OCC/EMP →Pathway occluded →Container empty →Drip chamber improperly installed, or →Pump inactive for over 2½ minutes DOSE COMP →Dose limit has been reached. (4 beeps, flashing indicator, 2½ minute repeats) FLO FAST →Tubing not on rotor, or Drop sensor blocked over 6 seconds. -
Page 11: Troubleshooting Guide
TROUBLESHOOTING GUIDE SECTION VI: SITUATION POSSIBLE CAUSE SOLUTIONS Battery light flashes. After Battery charge level is low. Plug cord into AC outlet for 10 15 minutes, pump stops, hours for full recharge. displays flash, & alarm beeps. OCC/EMP alarm activates. 1. -
Page 12: Proficiency Test
PROFICIENCY TEST SECTION VII: ® SENTINEL ENTERAL FEEDING PUMP PROFICIENCY TEST NAME ________________________________________________ DATE ____________________ FACILITY _________________________________________________________________________ CITY, STATE ______________________________________________________________________ PART A: DEMONSTRATE THESE PUMP/SET SETUP STEPS Task Satisfactory Completion (initial) 1. Load the set into the pump and prime the line ________________ 2. -
Page 13: Frequently Asked Questions
FREQUENTLY ASKED QUESTIONS SECTION VIII: ® 1. How can I clean the Sentinel Enteral Feeding Pump? Clean the pump housing with warm soapy water and a damp cloth or sponge. Clean the drop sensor parts with soft cotton swabs dipped in isopropyl alcohol. Do not use cleaners that will degrade polycarbonate. -
Page 14: Key Contacts (For Technical Questions, Customer Service, Etc.)
KEY CONTACTS SECTION IX: Orders/Customer Service ………………………………………….Amsino (800) 632-6746 Sets Technical Information ………….…………………………….Amsino (800) 632-6746 Pump Technical Information ………………….……… ALCOR Scientific (800) 495-5270 Warranty/Repair ………………………………………. ALCOR Scientific (800) 495-5270... - Page 15 Sentinel® Enteral Feeding Pump Quick Reference Refer to Operating Manual for detailed instructions See also Programming Directions on the pump Set Infusion Rate Set Dose Limit (Left Display) (Right Display) Adjust Dose Limit Adjust Infusion Rate (Right Display) (Left Display) Check Dose Limit Check Accumulated Volume (Right Display)
- Page 16 Sentinel® Enteral Feeding Pump Quick Reference Refer to Operating Manual for detailed instructions See also Programming Directions on the pump Reset Volume Delivered Reset Volume Delivered (current dose) & Dose Limit (current dose) to Zero to Zero & Infusion Rate to 5 Hold for 3 beeps Hold for 7 beeps Reset Accumulated...
