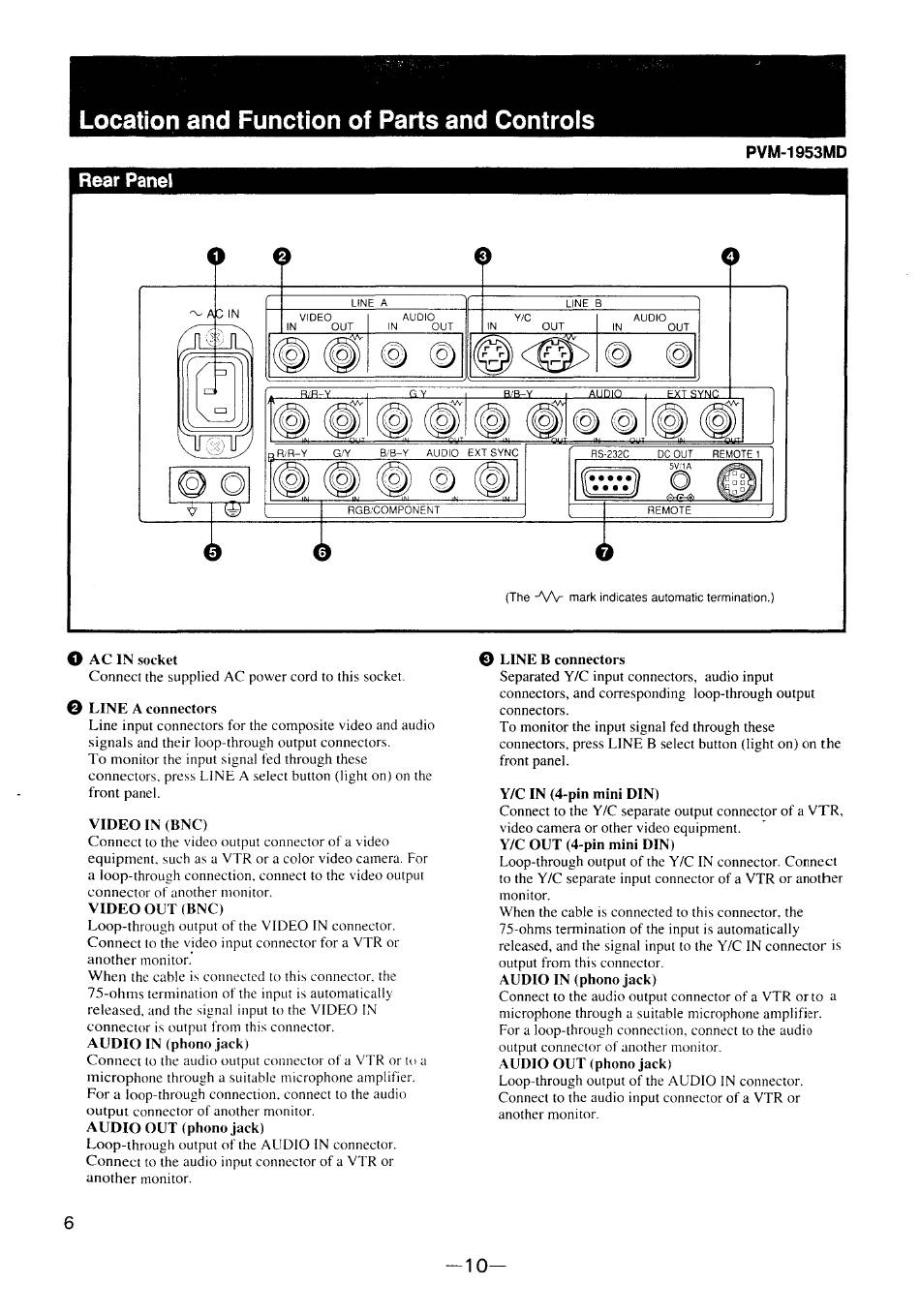

Location and Function of Parts and Controls
Rear Panel
LINE A
RGB:COMPONENT
0
AC IN socket
Connect the supplied AC power cord to this socket.
f)
LINE A connectors
6
Line input connectors for the composite video and audio
signals and their loop-through output connectors.
To monitor the input signal fed through these
connectors. press LINE A select button (light on) on the
front panel.
VIDEO IN (BNC)
Connect to the video output connector of a video
equipment. such as a VTR or a color video camera. For
a loop-through connection. connect to the video output
connector of another monitor.
VIDEO OUT (BNC)
Loop-through output of the VIDEO IN connector.
Connect to the video input connector for a VTR or
another monitor:
When the cable is connected to this connector. the
75-ohms termination of the input is automatically
released, and the signal input to the VIDEO IN
connector is output from this connector.
AUDIO IN (phono jack)
Connect to the audio output connector of a VTR or tu a
microphone through a suitable microphone amplifier.
For a loop-through connection, connect to the audio
output connector of another monitor.
AUDIO OUT (phono jack)
Loop-through output of the AUDIO IN connector.
Connect to the audio input connector of a VTR or
another monitor.
PVM-1953MD
LINE B
(The
-1\/'v-
mark indicates automatic termination.)
E) LINE B connectors
Separated Y/C input connectors, audio input
connectors, and corresponding loop-through output
connectors.
To monitor the input signal fed through these
connectors, press LINE B select button (light on) on the
front panel.
Y/C IN (4-pin mini DIN)
Connect to the Y/C separate output connector of a VTR,
video camera or other video equipment. ·
Y/C OUT (4-pin mini DIN)
Loop-through output of the Y /C IN connector. Connect
to the Y/C separate input connector of a VTR or another
monitor.
When the cable is connected to this connector, the
75-ohms termination of the input is automatically
released, and the signal input to the Y/C IN connector is
output from this connector.
AUDIO IN (phono jack)
Connect to the audio output connector of a VTR or to a
microphone through a suitable microphone amplifier.
For a loop-through connection, connect to the audio
output connector of another monitor.
AUDIO OUT (phono jack)
Loop-through output of the AUDIO IN connector.
Connect to the audio input connector of a VTR or
another monitor.
-10-
