Bluesound Professional Pendant Quick Setup Manual

d Repeat Step 5a to 5c for the three other doglegs.
e Connect applicable connector from compatible device and then install cap
Wire gauge: 14-18 AWG
For further wiring information, please refer to BCS250 QSG and BCS300 QSG.
from POE data/power supply
LAN 1 LAN 2 LAN 3 LAN 4
Ensure compliance with UL1480A
requirements by using Gripple XP2-
HG wire rope with a Snap-On Hook for
suspending the pendant.
https://www.gripple.com/umbraco/
Surface/ProductTechnicalDocuments/
Download?url=PI-EXPRESS-ENG.pdf
©2024 BLUESOUND PROFESSIONAL, A DIVISION OF LENBROOK INDUSTRIES LIMITED
All rights reserved. Bluesound and Bluesound logo are trademarks of Bluesound Professional, a division of Lenbrook Industries Limited.
No part of this publication may be reproduced, stored or transmitted in any form without the written permission of Bluesound Professional.
PENDANT QSG V09 JAN 2024
from external device (e.g., B170S)
Pendant
Quick Setup Guide

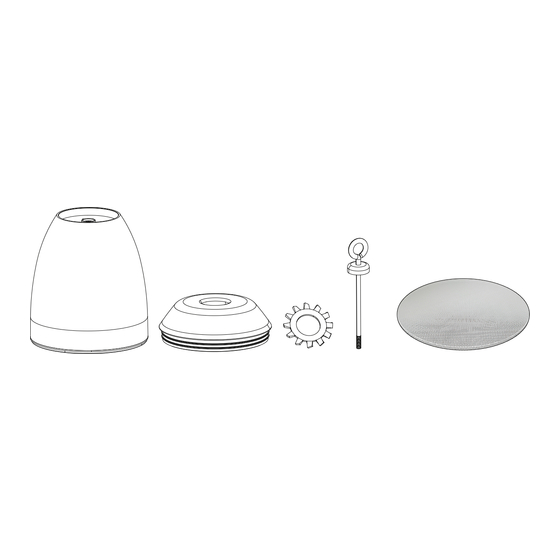

WHAT'S IN THE BOX
IMPORTANT!
• Pendant WH (White Pendant accessory kit) does not include BCS Round Grille White. Use BCS Round Grille White that is
supplied with BCS250 or BCS300.
• Pendant Blk (Black Pendant accessory kit) includes BCS Round Grille Black.
https:/ /www.bluesoundprofessional.com/product/pendant-kit
https:/ /support.bluesoundprofessional.com
INSTALL
1 Remove connector not applicable
for BCS300
Dogleg
for BCS250
