- Page 1 EOC655 Series User Manual EOC655 User Manual...
-
Page 2: Table Of Contents
EOC655 Series User Manual Table of Contents Table of Contents ..........................2 Safety and Regulatory Information .....................5 About this Guide ..........................5 Purpose ..............................5 Definitions, Acronyms and Abbreviations....................5 FCC User Information ..........................6 Federal Communication Commission Interference Statement ............. 6 FCC Caution ............................6 Radiation Exposure Statement ...................... - Page 3 EOC655 Series User Manual Access through Ethernet ........................15 Access through 2.4GHz Radio Interface ....................15 Access remotely over a network ......................15 Login Process ............................16 HTTP ..............................16 SNMP ..............................16 SSH - admin............................16 SSH - root ............................. 17 User Credentials and Roles ........................
- Page 4 EOC655 Series User Manual 2.4 GHz Radio ............................37 DHCP Fixed Leases ..........................38 Leases ..............................39 Management ........................... 40 ................................. 40 General ..............................40 Location ..............................41 GPS ................................42 SNMP ............................... 44 HTTP ................................ 44 Backup & Restore ..........................44 Upgrade Firmware ..........................
-
Page 5: Safety And Regulatory Information
Purpose This document provides information related to configuration and management of the EnGenius EOC655 Series radios. It is intended to be used by the system administrator. Definitions, Acronyms and Abbreviations The following typographic conventions and symbols are used throughout this document. -
Page 6: Fcc User Information
EOC655 Series User Manual FCC User Information Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. -
Page 7: Product Overview
EOC655 Series User Manual Product Overview EOC655 Series of products were tailored for Wireless Internet service providers (WISP’s) who wish to deliver uninterrupted wireless connectivity to Enterprise, Campuses, Public Wi-Fi, Smart Cities, Educational institutions, Industrial Security or just about any demanding wireless broadband connectivity. - Page 8 EOC655 Series User Manual WARNING Please carefully select the installation position and make sure that the final output power does not exceed the limit set force in relevant rules. The violation of the rule could lead to serious federal penalties.
-
Page 9: Outdoor Installation Of Radios
EOC655 Series User Manual Outdoor Installation of Radios EnGenius EOC655 Series products are all outdoor radios installed in one of the following methods: 1. Pole/Tower Mount: Radio installation kit includes two metal hose clamps to support pole sizes from 30mm to 60mm diameter. -
Page 10: Certified Antenna Gain & Tx Power Values

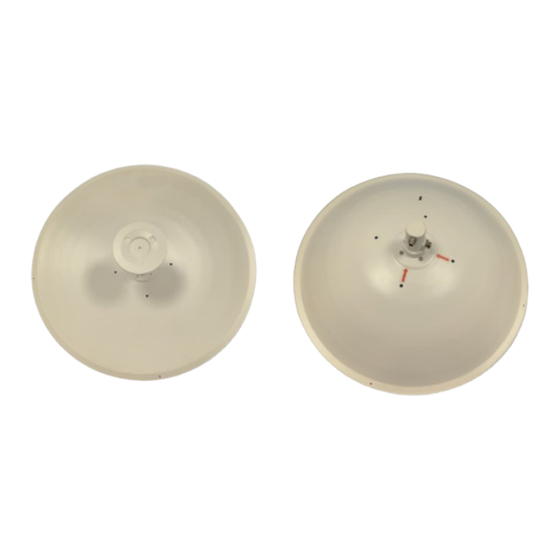

EOC655 Series User Manual Certified Antenna Gain & Tx Power Values Antennas shown in the table below are approved for EOC655 series Radio deployments. Model Name Spruce (5G-1) Pine (5G-2) Tx Power Per Chain (dBm) UNII-1 / UNII-2A / UNII-2C / UNII-3 Main Model: 1. - Page 11 EOC655 Series User Manual S.No Antenna Model Antenna Gain (dBi) Antenna Install Degree/Images 18 dBi Embedded Panel 4.67 Antenna 23dBi N-type Panel An- 4.34 tenna Omni 10 dBi Antenna - 0.04 Sector 18 dBi Antenna - 2.77 2 foot 30 dBi Dish An- 7.63...
-
Page 12: Safety Precautions & Notices
EOC655 Series User Manual The formula used for the calculation of the Transmit Power is given below: Tx-Power = EIRP – Ga – Gm EIRP Equivalent Isotopically Radiated Power Antenna Gain at 30° in Elevation plane. Gain for Multi Input Multi Output ... - Page 13 EOC655 Series User Manual This equipment is provided with a detachable power cord, which has an integral safety ground wire intended for connection to a grounded safety outlet. Do not substitute the power cord with one that is not the provided approved type. Never use an adapter plug to connect to a 2-wire outlet as this will defeat the continuity of the grounding wire.
-
Page 14: Device Operation - Point To Point Protocol
EOC655 Series User Manual Device Operation – Point to Point Protocol EOC655 series models implements Point to Point protocol designed for Outdoor deployments. The protocol is a polling protocol where the data exchange between BSU and SU is controlled by the BSU. BSU allocates poll slots to the registered subscribers for data exchange. -
Page 15: Pc Configuration
After the basic network configuration, scan for wireless devices that are available on the network, default SSID is EOC655<last 2 digits of ethernet MAC> with a passphrase as eoc@1234 The device can also be accessed using EnGenius Network Mobile App or using any laptop wireless connection. -
Page 16: Login Process
EOC655 Series User Manual Login Process Launch any web browser on the PC that is connected to the device. In the URL type 192.168.1.1 and enter the default credentials as username: admin and password: admin Login and access the device settings. -
Page 17: Ssh - Root
EOC655 Series User Manual SSH - root Enable Secure Shell (SSH) to make secure, encrypted connections in the network. Secure Shell is a network protocol that allows data to be exchanged using a secure channel between two network devices. The administrators are required to provide a username, password, port number combination for authentication. -
Page 18: Summary
EOC655 Series User Manual Apply: Click Apply to save all changes made to the configuration parameters Reboot: Click to restart the device. Logout: Click Logout, when necessary, make sure to click Apply to save the most recent updates. Again, the login page pops-out after a successful logout. -
Page 19: System
EOC655 Series User Manual System IP configuration To configure the IP Configuration, Click Quick Start> System Address Type: Dynamic / Static If Static is selected, the user should manually configure the network parameters. If Dynamic is selected, the device obtains the IPv4 parameters from a DHCP server automatically. - Page 20 EOC655 Series User Manual Gateway IP Specifies the IP address of the device gateway. When Address Type is set to Dynamic, this parameter is read-only and displays the IP address of the device gateway. The device will be set to the Default Gateway IP address 192.168.1.1 if it cannot obtain the Gateway IP address from a DHCP server.
-
Page 21: Location
EOC655 Series User Manual Access mode is available only on the Ethernet interface of SU. In access mode, tagged frames with specified Access VLAN ID are going out of the device through the Ethernet interface were untagged and forwarded. - Page 22 EOC655 Series User Manual Link Type Link type is a mode of selecting a wireless connection between AP and SU radios. A Link type here can be a PTP/ PTMP. Few mandatory parameters are customized in AP than in SU.
-
Page 23: 2.4 Ghz Radio
EOC655 Series User Manual Bandwidth: 20/40/80/160MHz Given the above options, the admin has the flexibility to select the bandwidth. In general, 2.4GHz radio can have a bandwidth of 20 MHz i.e., for short distances. 5GHz radio can have 40 MHz/ 80MHz bandwidth. -
Page 24: Site Survey
EOC655 Series User Manual Channel: Auto When Auto is selected, the best Wi-Fi Channel is selected to achieve the performance. Site Survey To configure the Site Survey, Click Quick Start> Site Survey Site Survey tab is created for Radio 1 and Radio 2 where it can scan and join the AP with the same SSID. -
Page 25: Performance Test
EOC655 Series User Manual Note: This is only for Radio 1 and Radio 2 Wireless PTP and PTMP link parameters are summarized in this tab. Click on any entry redirects to another window with detail statistics where you can find a disconnect option and to conduct a link test. -
Page 26: Wireless
The results of various parameters are displayed in the same screen. Wireless EOC655 Series devices are Dual-Band radio’s that support 5GHz and 2.4GHz operating frequencies. Radio 1/Radio 2 Configuration... - Page 27 EOC655 Series User Manual Properties Status – Enable/Disable the Radio. Link Type - Link Type is a mode of choosing a wireless connection between AP and SU radios. A Link type here can be a PTP/ PTMP Radio Mode: BSU / SU ...
-
Page 28: Mimo
EOC655 Series User Manual Given the above options, the admin has the flexibility to select the bandwidth. In general, 2.4 GHz radio can have a bandwidth of 20 MHz i.e., for short distances. A 5GHz radio can have 40 MHz/ 80MHz bandwidth. -
Page 29: Ddrs
EOC655 Series User Manual EOC655 Series devices support Multiple-Input-Multiple-Output (MIMO) antenna technology that uses multiple antennas at both the transmitting end and receiving end to improve communication performance. The transmitting antenna uses multiple radio Tx chains and signal paths to simultaneously transmit different data streams, whereas the receiver combines the Rx signals resulting in higher throughput. -
Page 30: Atpc
EOC655 Series User Manual Auto Stream: When you select Auto, DDRS decides the stream modes based on the environmental conditions. Note: The data rate can be varied from min to max based on SNR and Retransmission percentage. ATPC To configure ATPC, Click Wireless> Radio 1 or Radio 2 Configuration > ATPC... -
Page 31: Mac-Acl
EOC655 Series User Manual Encryption Type: Select AES-256 Key: Select any desired key considering the note below. Note: If the encryption type is selected as none, then there exists any security to the data frames transmitted over the wireless medium MAC-ACL MAC Access Control List is an additional security mechanism in a wireless network. -
Page 32: Dcs (Dynamic Channel Selection)
EOC655 Series User Manual (Dynamic Channel Selection) To enable DCS, Click Wireless> 5 GHz Radio Configuration> DCS The DCS parameter allows an AP to monitor the retransmissions of packets transmitted to the associated SU on the current operating channel. When the average Local RTx percentage of associated SU crosses user configured DCS threshold value, before switching to new channel, AP evaluates local RTx percentage for 30 sec and triggers Spectrum Analyzer to scan the medium. -
Page 33: 2.4Ghz Radio Configurations
EOC655 Series User Manual 2.4GHz Radio Configurations Properties To configure properties, Click Wireless > 2.4 GHz Radio Configuration> Properties Radio Mode: Access Point Radio Status: Enable/ Disable Service Set Identifier (SSID) SSID is simply the technical term for a network name. -
Page 34: Network
EOC655 Series User Manual Encryption Type: Select WPA2-PSK Key: Select any desired key considering the note below. None: If the encryption type is selected as none, then there doesn’t exist any security to the data frames transmitted over the wireless medium Mobile App: Mobile App is used to configure the radio. -
Page 35: Vlan
EOC655 Series User Manual Address Type Static A static IP address is simply an address that does not change until the device is decommissioned or your network architecture changes Address Type Dynamic Dynamic addresses are assigned, as needed, by Dynamic Host Configuration Protocol (DHCP) servers and are subjected to change periodically. -
Page 36: Ethernet
EOC655 Series User Manual To enable or disable the VLAN functionality. VLAN Mode Transparent Virtual LAN is a custom network created from one or more existing LANs. It enables groups of devices from multiple networks (both wired and wireless) to be combined into a single logical network. -
Page 37: Dhcp Server
EOC655 Series User Manual DHCP Server Dynamic Host Configuration Protocol (DHCP) is a network protocol that enables a server to assign an IP address to the DHCP client from a defined range of IP addresses configured for a given network. Allocating IP addresses from a central location simplifies the process of configuring IP addresses to individual DHCP clients and avoids IP conflicts. -
Page 38: Dhcp Fixed Leases
EOC655 Series User Manual IP Address An IP address (internet protocol address) is a numerical representation that uniquely identifies a specific interface on the network. Subnet Mask The subnet mask number helps to define the relationship between the host (computers, routers, switches, etc.) and the rest of the network. -
Page 39: Leases
EOC655 Series User Manual By clicking the ADD user redirected to new window to add the entry of hostname Mac Address, IP Address. Here the MAC address and IP address are banded and listed down. Leases To configure the Leases parameters, Click Network > DHCP Server> Leases DHCP Leases DHCP Leases displays the list of IP addresses assigned by a DHCP server. -
Page 40: Management
EOC655 Series User Manual Management This chapter provides information on how to manage the device by using a Web interface. It contains information on the following: To configure General, Click Management > System > System Configuration> General General Local Time Display the current time of the radio. -
Page 41: Location
EOC655 Series User Manual System log System logs can be stored in external syslog server on PC. Log Server IP Configure the PC IP Address on which syslog server is running. Log Server Port The port on which the current log server is operating. -
Page 42: Gps
EOC655 Series User Manual System Name This will help in identifying the SU name. Location This will help in identifying the location of the SU. Email This will help in identifying and contacting the customer through email. Phone Number This will help in identifying and contacting the customer through phone. - Page 43 EOC655 Series User Manual It shows the compass readings to help in alignment of the device w.r.t to the poles. Services The device can be managed using different management protocols. The supported protocols are HTTP, SSH, SNMP. HTTP To configure the HTTP, Click Management > Services >>HTTP...
-
Page 44: Snmp
EOC655 Series User Manual Passwords setting, or modification can be done in this section. SNMP To configure the SNMP, Click Management > Services >>SNMP Enable SNMP SNMP version: SNMP v1, SNMPv1-v2, SNMP v3 SNMP Read /Read-Write Password: Here Read and Read Write password are available to read the configuration from the SNMP. -
Page 45: Upgrade Firmware
EOC655 Series User Manual This back-up option allows the user to download the device configuration locally. The restore option allows the user to restore the device configuration to the uploaded configuration file. Restoring the config file to the device will take 30 sec approx. -
Page 46: Auto Upgrade
EOC655 Series User Manual This option allows the user to reset all device configuration to factory defaults. After reset, the device must be accessed using the LAN interface locally and must be re-configured to allow the device to join into the network again. -
Page 47: Monitor
EOC655 Series User Manual Auto Upgrade functionality allows the user to upgrade new firmware automatically to all the available SU. To use this, the admin needs to configure BSU in Server Mode and Upload the latest firmware package. In SU side, configure the mode as Client and firmware check time (when the SU will check for new firmware) and Firmware Upgrade Time (At what time exactly the firmware upgrade will happen). - Page 48 EOC655 Series User Manual Detailed Statistics MAC Address: Displays the MAC address of the linked remote device. IPv4-Address: Displays the IP address of the remote device. Link Id: Displays the link Id of remote device. Distance (Km): Displays the distance between the AP and SU.
-
Page 49: Interface Statistics
EOC655 Series User Manual Remote Signal (dB): Displays the Signal strength of the remote device. Rate (Mbps): Displays the Transmit (Tx) and Receive (Rx) rate of a device. Throughput (Mbps): Displays the current Input and Output bandwidth. -
Page 50: Logs
EOC655 Series User Manual Logs To view the Radio 1/Radio 2 or 2.4GHz Logs, click Monitor > Radio 1 Statistics/ Radio 2 Statistics/ 2.4GHz Statistics > Logs The user can see all the logs related to the respective radio (Connection/Disconnection/DFS, DCS etc.) -
Page 51: Ethernet Statistics
EOC655 Series User Manual Locally terminated: If an AP is a local device and loses SU link or vice versa due to a reboot/soft reset/ a manual disconnect, then the termination reason is said to be locally terminated. Remote terminated: If SU is unable to connect to an AP, due to a reboot/soft reset/ a manual disconnect, then the termination reason is said to be Remote terminated. -
Page 52: Learn Table
EOC655 Series User Manual Log Type Display Ethernet Advance statistics: Displays a summary of Tx, Rx, Errors, L2, L3- Multicast& Broadcast drop count. Display Ethernet statistics: A summary of basic Ethernet statistics (Tx, Rx, collisions etc.) Network statistics for all Interfaces: A summary of all wired and wireless interfaces Learn Table To view the LAN Table Statistics, click Monitor >... -
Page 53: Arp
EOC655 Series User Manual This section displays the mapping of the IP and MAC addresses of all nodes in the network. This information is based upon the Address Resolution Protocol (ARP). ARP is a L2 neighboring protocol which converts the IP address into a physical address on the Ethernet network. -
Page 54: System Logs
EOC655 Series User Manual System Logs To view the System, click Monitor > System Logs Any recent changes in the device configuration are reflected here. All the device logs like Reboot, Init, Reset are displayed under Device Logs. Temperature logs are recorded only after a certain temperature login interval. -
Page 55: Tools
EOC655 Series User Manual Tools To view the Tools, click Monitor> Statistics > Tools Diagnostics Few popular network utilities are used to determine the network connections. Ping The main purpose of using this command is to verify whether the device can connect over the network to another device or not. -
Page 56: Spectrum Analyzer
EOC655 Series User Manual Spectrum Analyzer To view the Spectrum Analyzer, click Monitor> Tools > Spectrum Analyzer Same can be started for either of the Radios. This is available only in AP. Scans all the frequencies from the configured start frequency to end frequency for a scan time of 2sec on each frequency. -
Page 57: Site Survey
EOC655 Series User Manual Site Survey To view the Site Survey, click Monitor> Tools > Site Survey Site Survey is for 5GHz Radio where it can scan and join the AP with the same SSID. Once the Access Point parameters are configured, the subscriber unit will scan and get parameters updated from the AP. - Page 58 EOC655 Series User Manual E-mail: sales@engeniustech.com Tel:...
