Saddlemen BR1800 Series User's Manual & Installation Instructions

ITEM
BR1800
BR1800EX (w/buckles)
BR1800EXS (w/buckles & studs)
BR1800 Tactical (w/Molle)
BR1800D
BR4200

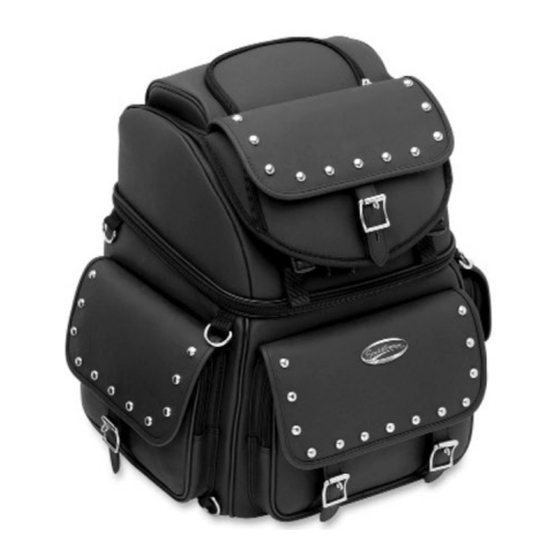

The BR1800, BR3400 and BR4200 series of sissy bar bags all mount the same way to your motorcycle, with a sissy bar mount and/or included back
seat mounting harness. Features may vary between each model. BR1800 bags offer 1800 cubic inches of cargo space; BR3400 bags offer 3400
cubic inches. The BR4200 has 4200 cubic inches of capacity, and includes smooth rolling wheels and a retractable handle.
Qty Item
1 Bag
1 Seat Mounting Harness (right)
1 Seat Mounting Harness (left)
Please read these instructions completely before starting installation. All "NOTE," "CAUTION" and "WARNING" notations are serious safety issues
and should be read carefully. Possible injury to riders or damage to the motorcycle and/or accessory may result if improperly installed.
These instructions contain important information for future reference and should be given to the customer.
READ THESE INSTRUCTIONS THOROUGHLY BEFORE INSTALLATION!
Because of the variety of motorcycle configurations, other accessories, and the features and intended use of this Saddlemen accessory luggage, there can
be many different mounting options. You are responsible for the proper installation of this accessory on your motorcycle. Your attention to these installation
instructions and recommendations will permit safe and proper use of this accessory. You must mount this accessory properly and securely before riding your
motorcycle. If you lack the ability to safely and properly install this accessory, seek out a qualified motorcycle technician for assistance. During installation,
support the motorcycle with a suitable stand or lift so it will not tip over and injure you, or damage the vehicle. Using or mounting this accessory improperly
could result in a loss of control of the motorcycle which could result in damage to your motorcycle or other personal property, the property of third parties,
and/or personal injury to yourself or others, up to and including death.
BE SURE TO THOROUGHLY READ AND CLOSELY FOLLOW THE MOUNTING INSTRUCTIONS THAT ARE INCLUDED WITH THIS ACCESSORY BAG
• The bag must be installed and securely fastened onto the seat or the luggage rack of the motorcycle.
• Install the bag securely so it will not shift or move while riding. Make sure the mounting straps or the bag will not contact the wheels, suspension or any
other moving parts of the motorcycle.
PART NUMBER
3515-0113
3515-0118
3515-0119
3515-0207
3515-0218
3515-0191
Qty Item
2 Pull Down Straps
1 Backpack Strap
1 Instruction Sheet
ITEM
BR3400
BR3400EX (w/buckles)
BR3400EXS (w/buckles & studs)
BR3400 Tactical (w/Molle)
BR3400D
Qty
1
4
IS 11-400061 BR1800/3400/4200 (Rev 3 03-2023)
PART NUMBER
3515-0107
3515-0120
3515-0121
3515-0202
3515-0219
Item
Backrest Pad
Mounting Harness Straps
