Saddlemen 713FBM Installation Instructions

www.saddlemen.com
F FLT F
EATURES OF THE

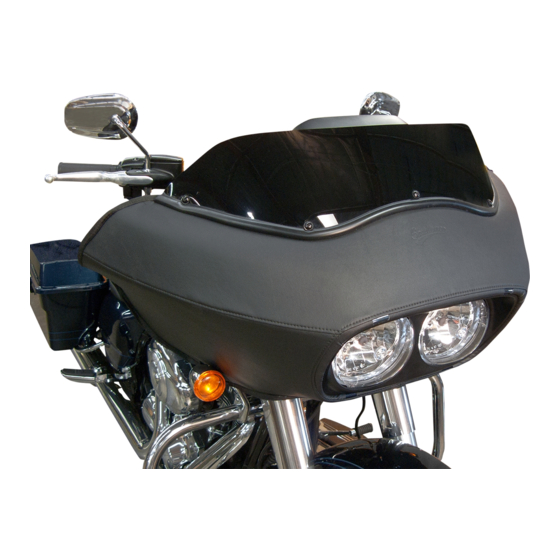

• For 1998-2013 Touring Models FLT & FLTR (Frame-mount fairing)
• Protect the finish of your motorcycle's fairing with a Saddlemen fairing bra.
•
Supple looking, marine-grade SaddleHyde looks great while keeping the road crud off of your fairing.
• A superb fit and special backing provides for light bra contact to the fairing surface to prevent rub-marks.
•
Cover appearance complements Saddlemen and other seat's covers.
• Simple installation - does not require unbolting fairing from chassis - instructions included.
• Designed and made in the U.S.A.
READ THESE INSTRUCTIONS THOROUGHLY BEFORE INSTALLATION!
You are responsible for the proper installation of this Saddlemen accessory on your motor vehicle. Your attention to the supplied installation instructions
and recommendations will permit safe and proper use of this accessory. You must mount this accessory properly and securely before riding your vehicle.
If you lack the ability to safely and properly mount this accessory, seek out a qualified motorcycle technician for assistance. During accessory installation,
support the vehicle with a suitable stand or lift so it will not tip over and injure you, or damage the vehicle. Using or mounting this accessory improperly
could result in a loss of control of the motor vehicle which could result in damage to your vehicle or other personal property, the property of third parties,
and/or personal injury to yourself or others up to and including death.
BE SURE TO THOROUGHLY READ AND CLOSELY FOLLOW THE MOUNTING INSTRUCTIONS THAT ARE INCLUDED WITH THIS ACCESSORY:
• The fairing bra must be installed and securely fastened onto the fairing cowl of the motorcycle. For your and your passenger's safety, install the fairing
bra securely so it will not shift or move while riding. Make sure the bra or its mounting materials will not contact the controls, wheels, suspension or
any other moving parts of your vehicle.
• If you do not understand these instructions DO NOT mount the fairing bra. Remove any portion of the bra you may have already installed on your
motorcycle.
• Thoroughly inspect your fairing bra before every ride. Do not use this accessory if the mounting system has been modified, or has deteriorated,
loosened or is beginning to fail.
• Continually check the security of the fairing bra at each stop as you ride. Hardware on a motorcycle can loosen during operation, so be sure to check
it frequently - your and your passenger's health depends upon your attention to safety.
• Do not use this accessory if you have any doubts as to whether it is properly mounted to your motorcycle.
• When using this or any accessory, do not exceed your vehicle's Maximum Gross Vehicle Weight as listed on your motorcycle or in it's owner's manual.
• If your accessory fairing bra is ever damaged, do not use it until it has been inspected by your local professional motorcycle dealer. Replace the
accessory immediately if it has damage that will prevent it from being properly secured to your vehicle.
DO NOT ATTEMPT TO USE THIS ACCESSORY IF:
• You do not understand these installation and use instructions,
• You do not understand any part of the accessory mounting system,
• You have any doubts as to the security of the mounting system.
If you do not understand the Mounting Instructions DO NOT mount the accessory and remove any other items you may have installed on your vehicle.
Contact your local professional motorcycle dealer for assistance, or call the Saddlemen support line at (310) 638-1222.
Remember: Motorcycling can be a dangerous activity. Installation of any accessory can increase your risk if it is not installed properly. You are responsible to
install this accessory so it will not contact any portion of the drive train, suspension or steering, or if it will in any way interfere with the controls or the operation of
your motorcycle.
P
ARTS INCLUDED WITH THE
Part Qty.
Fairing bra 1
R T
ECOMMENDED OOLS
#2 and/or #3 Phillips screw drivers
T20 ~ T27 Torx drivers (or socket on ratchet/extension)
www.saddlemen.com
B :
AIRING RA
FLT F B
AIRING RA
Part
Instruction sheet
:
The images in this instruction set may be different than your accessory or motorcycle.
17801 S S
OUTH USANA
F
F F
OR
OR
OR
:
Qty.
1
Flat screw driver (or small, thin pry-bar tool)
Protective tape
(Other tools may be required, depending upon your vehicle)
R , R D
OAD ANCHO OMINGUEZ
F
F
F
AIRING
AIRING AIRING
F -
F F - -
RAME MOUNTED
RAME MOUNTED
RAME MOUNTED
2350-0224
2350-0224 2350-0224
[713FBM]
[713FBM] [713FBM]
Continued on next page...
, CA 90221 (310) 638-1222 1 / 5
713FBM (10-28-2013 v2) 11-400286
