DTS SLICE6 AIR Use And Operation

Interface device
Hide thumbs Also See for SLICE6 AIR:
1
2
3
4
5

Advertisement

Quick Links

Download this manual

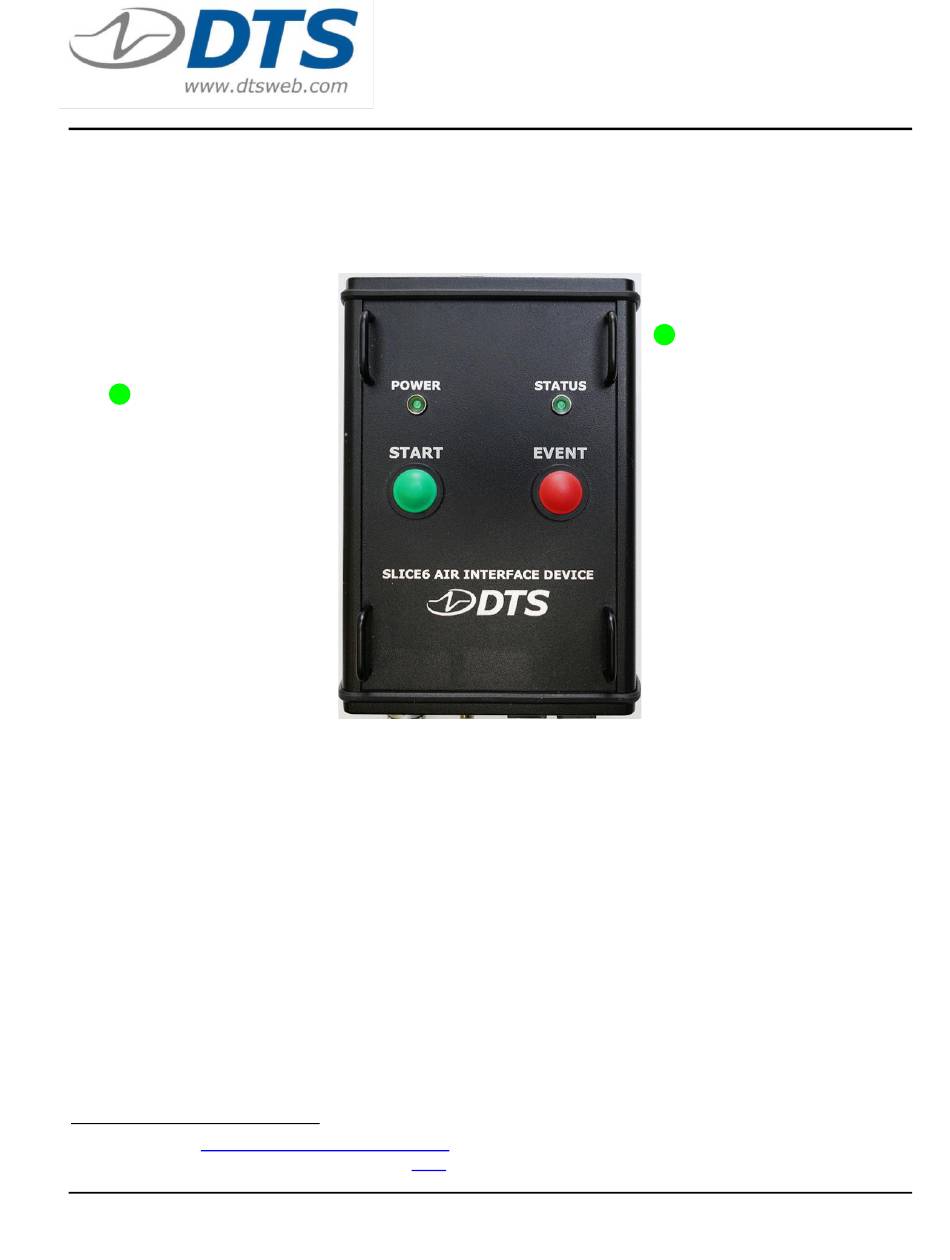

The SLICE6 AIR Interface Device supports power, signal pass-through and communications
for benchtop testing of SLICE6 AIR DAS
POWER LED (green or off)
= input voltage is applied
START pushbutton switch
Sends start signal to system.
SLICE6 AIR DAS User's Manual
1
Please see the
on additional support equipment is available here.
support.dtsweb.com
+1 562 493 0158
SLICE6 AIR Interface Device
1
.
for information on its features and operation. Information
1
© Diversified Technical Systems, Inc. - All Rights Reserved.
Use and Operation
STATUS LED (green or off)
= system is recording data
(recorder mode) -or-
DAS armed and waiting
for event/trigger
(circular buffer mode)
EVENT pushbutton switch
Sends event signal to system.
13006-90480-MAN (Rev. 0)

Advertisement

loading
Need help?

Need help?

Do you have a question about the SLICE6 AIR and is the answer not in the manual?

Questions and answers

Related Manuals for DTS SLICE6 AIR

Summary of Contents for DTS SLICE6 AIR

  • Page 1 SLICE6 AIR Interface Device Use and Operation The SLICE6 AIR Interface Device supports power, signal pass-through and communications for benchtop testing of SLICE6 AIR DAS STATUS LED (green or off) = system is recording data (recorder mode) -or- POWER LED (green or off)
  • Page 2 ENET2 = use with other accessories Note: The SLICE6 AIR Interface to connect to SLICE6 AIR DAS. Device does not contain a OFF/STBY (standby) = only battery. output power is active. Daisy chain multiple units together (ENET2 (unit 1)→ENET1 (unit 2),...
  • Page 3 SLICE6 AIR Interface Device April 2022 15V IN CONTROL (LEMO P/N ECG.2B.304.CLL) (LEMO P/N ECG.2B.307.CLL) (panel view) (panel view) Function Function +VDC input +Start record output (contact closure to pin 2) -VDC input/Ground -Start record output (contact closure to pin 1)
  • Page 4 SLICE6 AIR Interface Device April 2022 SYSTEM (high-density DB26S) (panel view) Function Function +VDC START* Ethernet Rx1+ UART_Tx+ Ethernet Rx1- UART_Tx- Ethernet Tx1+ UART_Rx+ Ethernet Tx1- UART_Rx- Ethernet Rx2+ Ground Ethernet Rx2- Ground Ethernet Tx2+ Ground Ethernet Tx2- +VDC Status...

  • Page 5: Revision History

    SLICE6 AIR Interface Device April 2022 Revision History Date Changed By Description Approved by 28 Apr 2022 E. Kippen Initial release. G. Netherwood support.dtsweb.com 13006-90480-MAN (Rev. 0) +1 562 493 0158 © Diversified Technical Systems, Inc. - All Rights Reserved.
