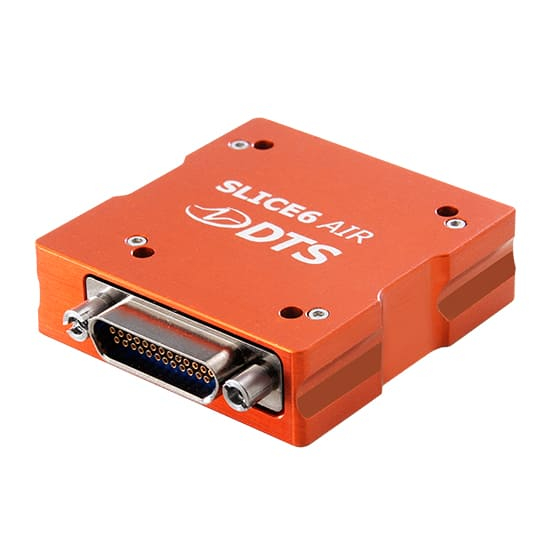

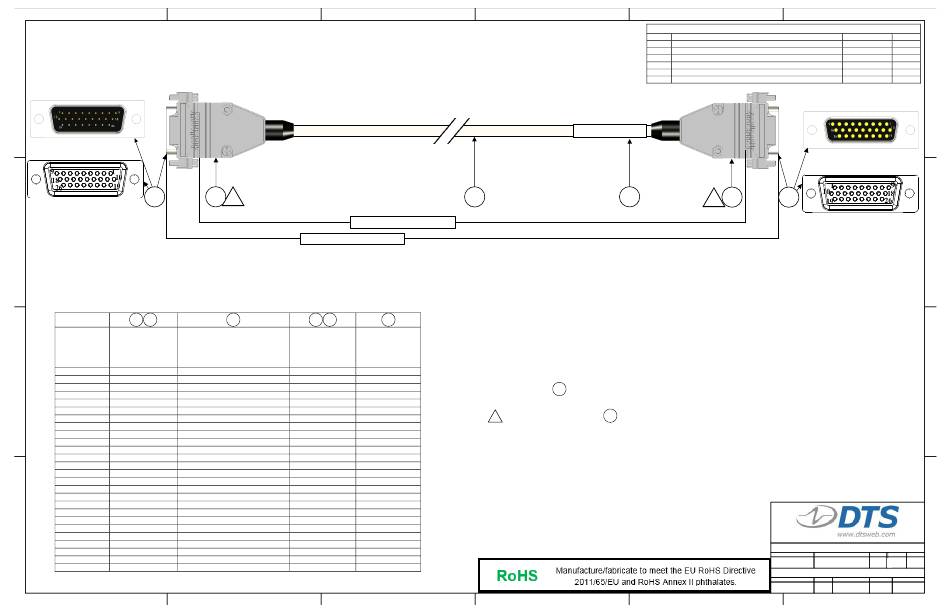

SLICE6 AIR DAS Extension Cable (HDD-26 Plug to HDD-26 Socket)
Doc. No. 13006-9047x-R-ASY
FACE VIEW
80000-01263-R
180-026-103L001
1
2
1
SOLDER VIEW
1
2
3
Key
80000-01263-R
70005-00036-R
180-026-103L001
3M 3600B/26
Function
+
(SEE ROUTING FOR LENGTH)
80000-01109-R
SOLID (STRIPE)
979-015-030R121
VDC INPUT
PIN 1
BLK with (RED)
TX1P
PIN 2
BLK with (BLU)
TX1N
PIN 3
BLU with (BLK)
RX1P
PIN 4
BLK with (ORG)
RX1N
PIN 5
ORG with (BLK)
TX2P
PIN 6
RED with (WHT)
TX2N
PIN 7
WHT with (RED)
RX2P
PIN 8
RED with (YEL)
RX2N
PIN 9
YEL with (RED)
VDC INPUT
PIN 10
RED with (BLK)
VDC INPUT
PIN 11
BLK with (WHT)
GND
PIN 12
BLK with (GRN)
PPS
PIN 13
BLK with (YEL)
START
PIN 14
BLK with (BRN)
UART_TX_P
PIN 15
RED with (GRN
UART_TX_N
PIN 16
GRN with (RED)
UART_RX_P
PIN 17
RED with (BRN)
UART_RX_N
PIN 18
BRN with (RED)
GND
PIN 19
WHT with (BLK)
GND
PIN 20
GRN with (BLK)
GND
PIN 21
YEL with (BLK)
ON
PIN 22
BRN with (BLK)
STATUS
PIN 23
RED with (BLU)
EVENT
PIN 24
BLU with (RED)
IRIG
PIN 25
RED with (ORG)
CASE
PIN 26
ORG with (RED)
3
ROUTING LENGTH ± 2 %
ROUTING LENGTH ± 3%
4
2
5
Notes:
80000-01264-R
180-026-203L001
White Printable
+
Heat Shrink
80000-01109-R
979-015-030R121
SCKT 1
-
SCKT 2
-
SCKT 3
-
SCKT 4
-
SCKT 5
-
SCKT 6
-
SCKT 7
-
SCKT 8
-
SCKT 9
-
SCKT 10
-
SCKT 11
-
SCKT 12
-
SCKT 13
-
SCKT 14
-
SCKT 15
-
SCKT 16
-
SCKT 17
-
SCKT 18
-
SCKT 19
-
SCKT 20
-
SCKT 21
-
SCKT 22
-
SCKT 23
-
SCKT 24
-
SCKT 25
-
SCKT 26
-
REV
0
Add P/N label here
5
a. See Sheet 2 for detailed assembly instructions
b. In accordance with IPC/WHMA-A-620 Class requirements; Strip and solder all wires so the insulation
is as close as possible to the solder cups
c. Use RMA or no-clean flux
d. Test appropriately to verify connections per wiring table
5
e. Apply Label
as appropriate; use the actual DTS Part Number
a. See the Production Traveler
2
1
Assemble Backshell(s)
in accordance with instructions on sheet 2.
REVISIONS
DESCRIPTION
DATE
INITIAL RELEASE
27 JUN 2019
FACE VIEW
80000-01264-R
180-026-203L001
2
4
1
SOLDER VIEW
SLICE6 AIR DAS Extension Cable
SLICE6 AIR
13006-9047x-R-ASY
0
1
13006-9047x-R-ASY.docx
JW
---
26 JUN 2019
---
APPR
DS
of 2
DS
