SLICE6 DAS
User's Manual
June 2018
13006-90010-MAN (Rev. 0)
© Diversified Technical Systems, Inc. All Rights Reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SLICE6 DAS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DTS SLICE6 DAS

Summary of Contents for DTS SLICE6 DAS

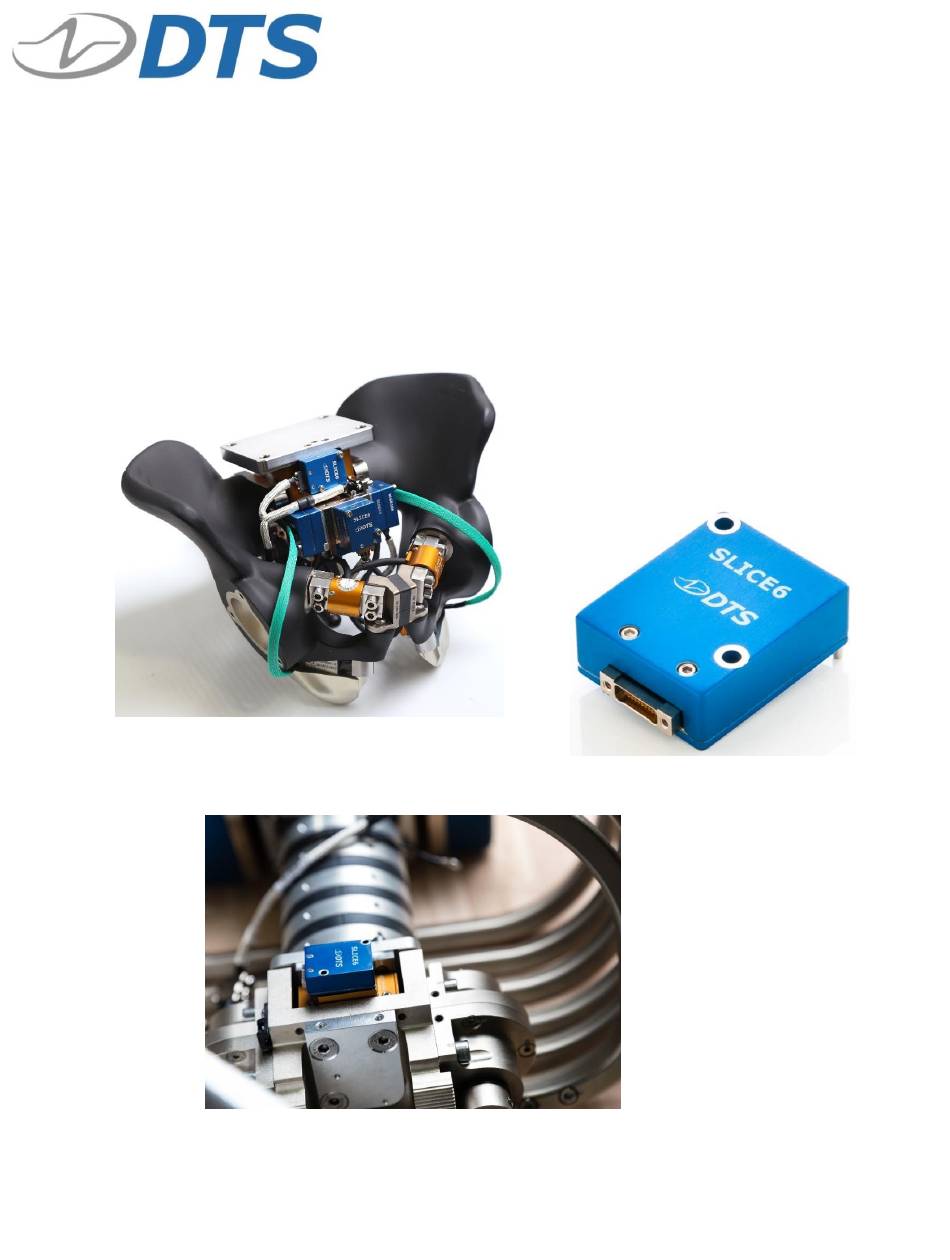

  • Page 1 SLICE6 DAS User’s Manual June 2018 13006-90010-MAN (Rev. 0) © Diversified Technical Systems, Inc. All Rights Reserved.

  • Page 2: Table Of Contents

    SLICE6 DAS User’s Manual June 2018 Table of Contents DTS Support ........................4 Introducing the SLICE6 DAS ..................... 5 Sensor Interface ......................... 5 Supported Sensor Types ....................6 Input Range ........................6 Excitation Sources ......................6 Bridge Completion ......................7 Hardware Filters .......................
  • Page 3 SLICE6 DAS User’s Manual June 2018 Continuous Recorder Mode ..................13 Start Record and Event Initiation ................... 13 Appendix A: Hardware Specifications ................15 Connector Information and Pin Assignments ..............15 Mechanical Specifications ....................17 Accessories/Support Equipment ..................18 Appendix B: Sensor Interface Wiring Diagrams ............19 Appendix C: Declaration of CE Conformity ..............

  • Page 4: Dts Support

    DTS has support engineers worldwide with extensive product knowledge and crash test experience to help via telephone, e-mail or on-site visits. The best way to contact a DTS support engineer is to submit a request through the DTS Help Center portal (support.dtsweb.com).

  • Page 5: Introducing The Slice6 Das

    Sensor interface connector Communication bus Sensor Interface The SLICE6 DAS supports 6 sensor measurement channels and is available with a single connector that supports all sensor signals. See Appendix A for sensor connector pin assignments. support.dtsweb.com 13006-90010-MAN (Rev. 0)

  • Page 6: Supported Sensor Types

    2018  Diversified Technical Systems, Inc. All Rights Reserved. SLICE6 DAS Sensor Interface Supported Sensor Types Supplying 5 V excitation up to 20 mA per channel, the SLICE6 DAS supports many types of sensors including accelerometers, load cells and pressure sensors. The following general sensor types are supported: •...

  • Page 7: Bridge Completion

    Timing Protocol) provides standards for precision clock synchronization for measurement and control systems via Ethernet network communications. Timing information is extracted from the network’s master clock and used by the SLICE6 DAS to adjust their internal (local) clock, providing precision timing for high channel-count systems with a sampling synchronization better than 10 µs.

  • Page 8: Led

    SLICE6 DAS User’s Manual June 2018 The SLICE6 DAS has a single LED indicator that shows system status. LED behavior is summarized below. Priority* Condition Idle; not connected (0.5 Hz) Idle; connected Communicating; idle or real-time (single flash when command received) Idle (connected or not connected;...

  • Page 9: Data Memory Size

    June 2018 Data Memory Size With 15 GB of flash memory available for data storage, the SLICE6 DAS can record ~52 minutes of data at the maximum sampling rate (6 channels at 400 ksps). Since the recording capacity is very large, it is generally best to limit sampling rates and event durations to the minimum necessary to avoid large and cumbersome data files.

  • Page 10: Basic Care And Handling

    Shock Rating Each SLICE6 DAS is rated for 500 g, 3 ms or 2000 g, 0.8 ms half-sine duration, in all axes. Mounting Considerations SLICE6 equipment should be bolted securely to the test vehicle or dynamic testing device to provide the best shock protection.

  • Page 11: Slice6 Das Maintenance

    2.5 W The SLICE6 DAS does not contain an internal battery and must be connected to external power at all times for operation. Without external power applied, the SLICE6 DAS is in a power off state. With power applied, the DAS is either in deep sleep or on. If the ON signal is absent or removed, the DAS enters deep sleep, the lowest power consumption state.

  • Page 12: Software

    The discussion below provides a general introduction to data collection. Please see the software manual for a detailed discussion and implementation specifics. The SLICE6 DAS is a standalone data logger. Once the system is armed, the PC can be disconnected if desired. After receiving a Start Record or Event signal, SLICE autonomously collects data, storing it to flash memory with no user interaction.

  • Page 13: Hybrid Recorder Mode

    SLICE6 DAS can be placed in an auto-arm mode that will cause the unit to arm automatically when the power is cycled. This available with any available data collection mode.
  • Page 14 SLICE6 DAS User’s Manual June 2018 Finally, if the SLICE6 DAS remains connected to the PC during data collection, the control software can be used to initiate data collection. The table below summarizes the data collection modes and event/triggering options.

  • Page 15: Appendix A: Hardware Specifications

    SLICE6 DAS User’s Manual June 2018 Appendix A: Hardware Specifications Connector Information and Pin Assignments Communication Bus Connector (Omnetics A29100-021) (looking into the connector) Function /ON (contact closure input to ground) /START (contact closure input to ground) /EVENT (contact closure input to ground)
  • Page 16 SLICE6 DAS User’s Manual June 2018 Sensor Interface Connector (Omnetics A79047-001) (looking into the connector) Suggested mating connector P/N: Omnetics A79046-x01 (DTS P/N 80000-04063(-R)) Function Function No connection No connection +Ex (Ch 4) +Sig (Ch 2) +Sig (Ch 4) -Sig (Ch 2)

  • Page 17: Mechanical Specifications

    P/N, DRAWING FORMAT 2017-08-28 GN All copyright, patent, and ownership rights are retained. This information shall not be disclosed, reproduced in whole or in part, or used for manufacture without prior written consent from DTS. NOTES: SENSOR CONNECTOR 1. MASS: 15 GRAMS...

  • Page 18: Accessories/Support Equipment

    13006-90321: SLICE6 Distributor for THOR (13-36 V input range) 13006-90420: SLICE6 Distributor (Gen2) 80000-04090: Conn assy; 21-pin plug to pigtails, 30 AWG, 18" (mates with comm bus) 89100-19880-R: SLICE6 DAS sealing gasket 89100-14480-R: Heat sink, SLICE MICRO/NANO/SLICE6; base plate support.dtsweb.com...

  • Page 19: Appendix B: Sensor Interface Wiring Diagrams

    SLICE6 DAS User’s Manual June 2018 Appendix B: Sensor Interface Wiring Diagrams 2018  Diversified Technical Systems, Inc. All Rights Reserved. Signal Generator support.dtsweb.com 13006-90010-MAN (Rev. 0)
  • Page 21 SLICE6 DAS User’s Manual June 2018 Revision History Date Description 4 June 2018 Initial release. support.dtsweb.com 13006-90010-MAN (Rev. 0)
