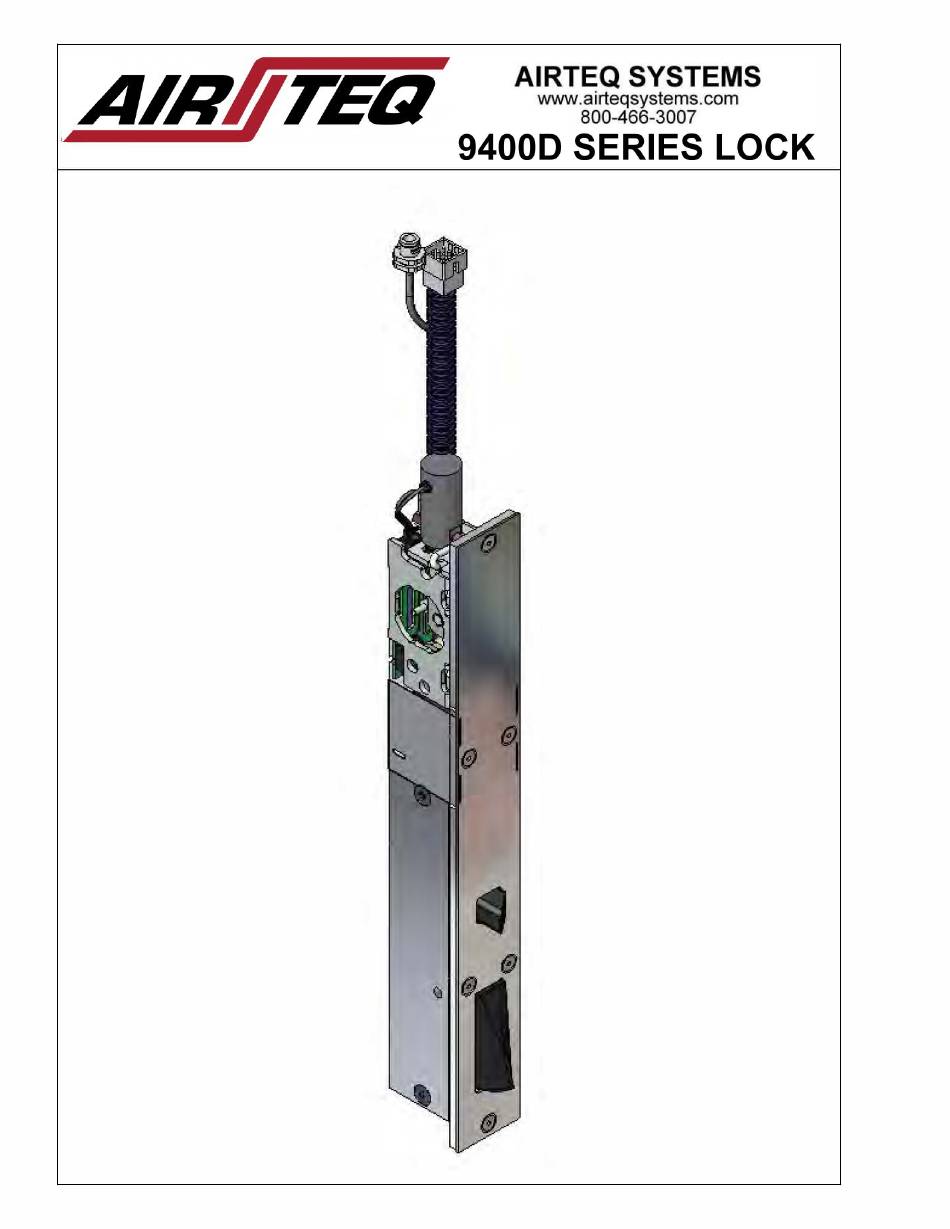

- Page 1 9424 7-24-06...
- Page 2 AIRTEQ www.airteq.com 800-466-3007 9400D SJtES LOCK 9400 3-28-07 RACK/GEAR TIMING DETAIL KEY SWITCH ACTUATOR INSTALLATION DETAIL "" < "" RLB INSTALLATION DETAIL ELHB CLIP INSTALLATION DETAIL...
- Page 3 ....AIRTEQ ..� � www.airteq.com .IIIIIUI � .IIIIIUI � �-� � .:::.::: �� 800-466-3007 .,:::: 9400D SERIES LOCK 9400D REQ. FOR 9400 7-24-06 ITEM NO. PART NUMBER DESCRIPTION QTY. FEATURE: 146-9424-016 RLB PAWL WELDMENT 216-9424-029 ACTUATOR, RLB 216-9424-024...
- Page 4 POWER DEVICE FROM A CLASS 2 POWER SOURCE WHEN PNEUMATIC TUBING OCCUPIES THE SAME SPACE AS CONTROL WIRING. COMPANY CONFIDENTIAL: THIS DRAWING IS THE PROPERlY OF AIRTEQ SYSTEMS AND MUST BE ACCOUNTED FOR. INFORMATION HEREON IS CONFIDENTIAL AND MUST NOT BE USED, REPRODUCED, REVEALED TO UNAUTHORIZED PERSONS OR SENT OUTSIDE THE COMPANY WITHOUT PROPER AUTHORIZATION.
- Page 5 �- -- ....�====� ....AIRTEQ .., ....,, .., ..,, ..w � www.airteq.com � �� � ==== ��� 800-466-3007 � ..r.: � --.. 1111/T 1111/T � � 9400 AIR CYLINDER PARTS PART NUMBER DESCRIPTION ITEM NO.
- Page 6 9400 8-24-05 AIRTEQ www.airteq.com 800-466-3007 94000 RECOMMENDED SPARE PARTS ITEM DESCRIPTION PART NUMBER 146-9400-110 SOLENOID ASSEMBLY D SERIES DEADLATCH SPRING 315-0000-023 315-0000-022 ACTUATOR RETURN SPRING 216-9400-022 TORSION SPRING REPAIR KIT, 9400 AIR CYLINDER {INCLUDES SPING, 400-9400-000 O-RING PISTON SEAL AND LUBE...
- Page 7 LOCK MAINTENANCE INFORMATION...
- Page 8 Airteq Systems recommends cleaning and lubricating each type of lock according to the following instructions approximately every (2) years. (Yearly for locks in high use areas).
-
Page 9: Recommended Lubricants
When grooves due to wear are noted in the steps on the key bit, the old key should be replaced. 2) When rekeying is performed, new tumbler stacks should be purchased as a set including a new key. This enables Airteq to maintain complete keying records. WARNING: 1) Never use WD40 or similar silicone based lubricants. - Page 10 TROUBLESHOOTING 9400, 9500 AND 9700 LOCKS If the lock is not working properly, the following chart may be used as a guide to locate and correct the problem. Because the lock receives its signal from the electronic control system, a thorough check of the control system should be con- ducted.
- Page 11 PROBLEM CHECK LATCHBOLT WILL NOT RETRACT *AIR SUPPLY TO LOCK *MECHANICAL INTERFERENCE *POWER INPUT TO UNLOCK SOLENOID (POWER SHOULD BE PRESENT DURING LOCK OPEN CYCLE) *BROKEN OR LOOSE WIRING *FAULTY OR CONTAMINATED SOLENOID VALVE *MECHANICAL INTERFERENCE LATCHBOLT WILL NOT EXTEND *BROKEN OR LOOSE WIRING (SHORT TO GROUND) *POWER INPUT TO UNLOCK SOLENOID...
