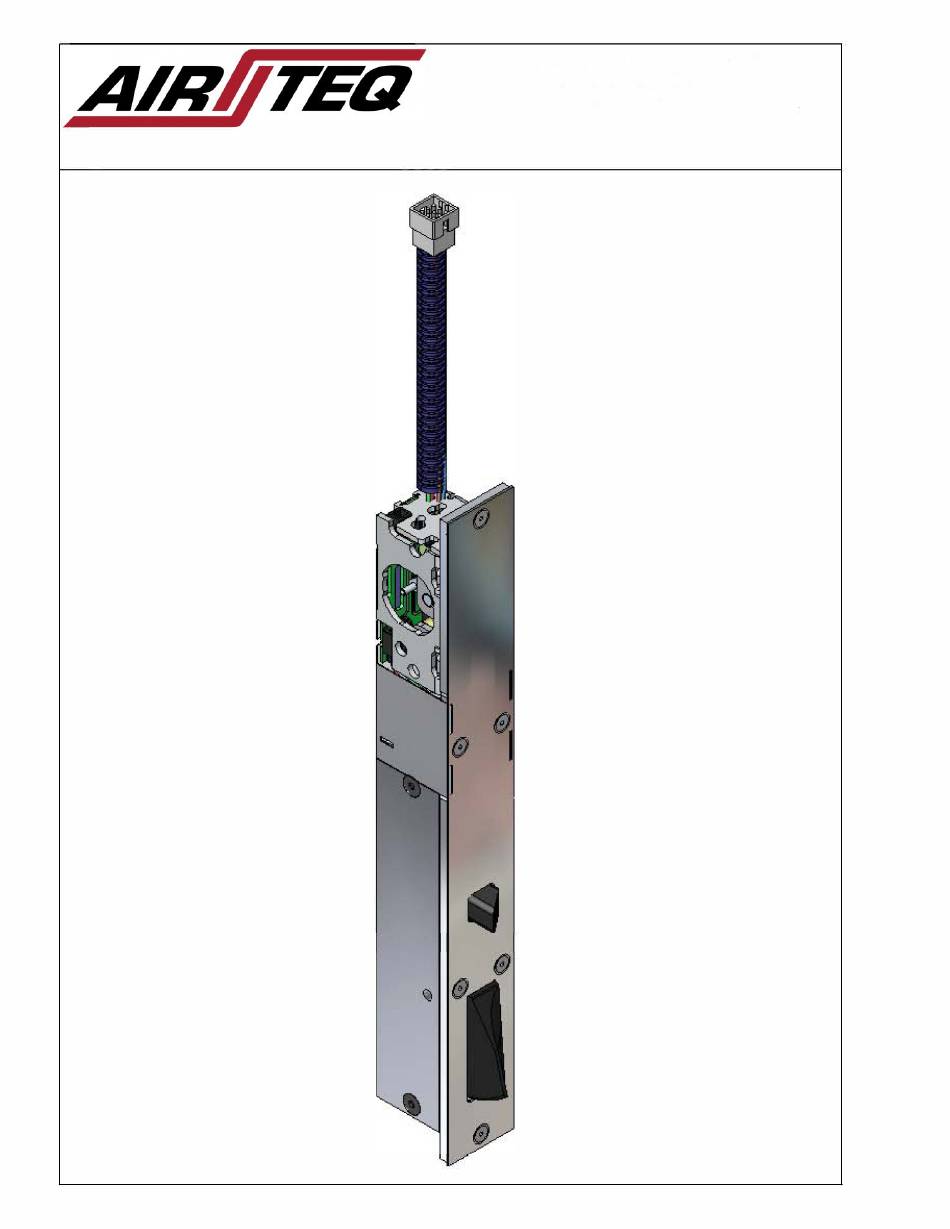

- Page 1 AIRTEQ www.airteq.com 800-466-3007 9424D SERIES LOCK 9424 8-08...
- Page 2 AIRTEQ www.airteq.com 800-466-3007 9424D SERIES LOCK 9424 8--08 RACK/GEAR TIMING DETAIL KEY SWITCH ACTUATOR INSTALLATION DETAIL RLB INSTALLATION DETAIL ELHB CLIP INSTALLATION DETAI...
- Page 3 _._,, � AIRTEQ � -=-����===== ..www.airteq.com ----- ..,,_..,.._ II/Ir � � 800-466-3007 9424D SERIES LOCK REQ. FOR 9424 7-24-06 ITEM NO. PART NUMBER DESCRIPTION FEATURE: 146-9424-016 RLB PAWL WELDMENT 216-9424-029 ACTUATOR, RLB 216-9424-024 STANDARD (OR) ACTUATOR 216-9424-021 MOTOR KEY...
- Page 4 AIRTEQ www.airteq.com 800-466-3007 9424D RECOMMENDED SPARE PARTS ITEM NO. PART NUMBER DESCRIPTION 9424 7-24-06 315-0000-023 DEADLATCH SPRING 315-0000-022 ACTUATOR RETURN SPRING 216-9400-022 TORSION SPRING LOCK STATUS SWITCH ASSY 160-9400-023 146-9400-101 CIRCUIT BOARD ASSY 146-9400-1 02 (OR) CIRCUIT BOARD ASSY W/KEY SWITCH...
-
Page 5: M Otor Lock
Q O "ti Z TTTrl AND MAINTAIN UNLOCK STATUS UNTIL SIGNAL IS REMOVED FROM FULL CYCLE REQUEST. COMPANY CONFIDENTIAL: THIS DRAWING IS THE PROPERlY OF AIRTEQ SYSTEMS "' 2 i 8 5. SCHEMATIC SHOWN WITH DOOR IN THE CLOSED "' AND MUST BE ACCOUNTIED FOR. - Page 6 LOCK MAINTENANCE INFORMATION...
- Page 7 Airteq Systems recommends cleaning and lubricating each type of lock according to the following instructions approximately every (2) years. (Yearly for locks in high use areas).
-
Page 8: Recommended Lubricants
When grooves due to wear are noted in the steps on the key bit, the old key should be replaced. 2) When rekeying is performed, new tumbler stacks should be purchased as a set including a new key. This enables Airteq to maintain complete keying records. WARNING: 1) Never use WD40 or similar silicone based lubricants. - Page 9 TROUBLESHOOTING 9424, 9524, 9624 AND 9724 LOCKS If the lock is not working properly, the following chart may be used as a guide to locate and correct the problem. Because the lock receives its signal from the electronic control system, a thorough check of the control system should be con- ducted.
- Page 10 PROBLEM CHECK LATCHBOLT WILL NOT RETRACT *MECHANICAL INTERFERENCE *POWER INPUT TO L.I.M. (12pin connector) (24 VDC should be momentarily present on pin 2 at the initiation of an unlock request, momen- tarily present on pin 3 at the initation of a full cycle request and constantly present on pin 4.) *BROKEN OR LOOSE WIRING *IF CORRECT VOLTAGE IS PRESENT ON...
