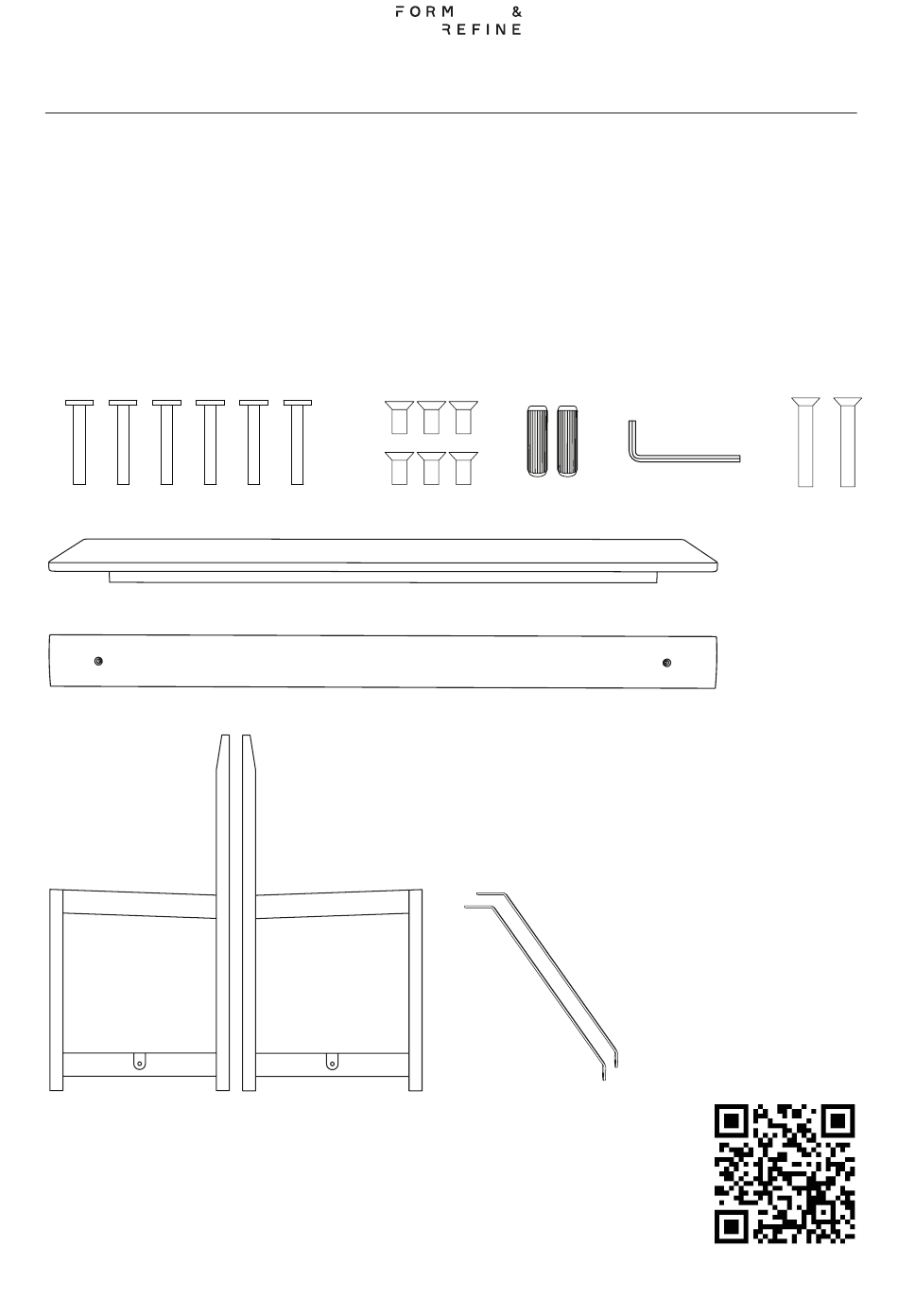

- Page 1 Position Bench Assembly guide Components Place the components on a blanket to avoid scratches on the floor and on the product Video assembly guide...
- Page 2 Step 1 Place the seat bottom up on any larger table. Let the side with shortest gap between the rim and the seat face outwards. To protect the surface from scratches lay a piece of textile or cardboard under the seat Step 2 Place the leg frames above the bushings.
- Page 3 Step 3 Place the two brass parts(F) on the seat and mount the short brass screws(B). Tighten the screws with a large flat-headed screwdriver. Important note: Brass is softer than iron, therefore be careful not to scratch the screw Step 4 Place the two dowels(C) in the legs...
- Page 4 Step 5 Place the backrest in the two dowels. Mount the two long brass screws(E) in the backrest. Tighten the screws with a large flat-headed screwdriver. Important note: Brass is softer than iron, therefore be Step 6 The product is now assembled. The screws need to be tightened after 3 months of use and then every year.
