AssetTrac
Installation Guide
Kit Includes:

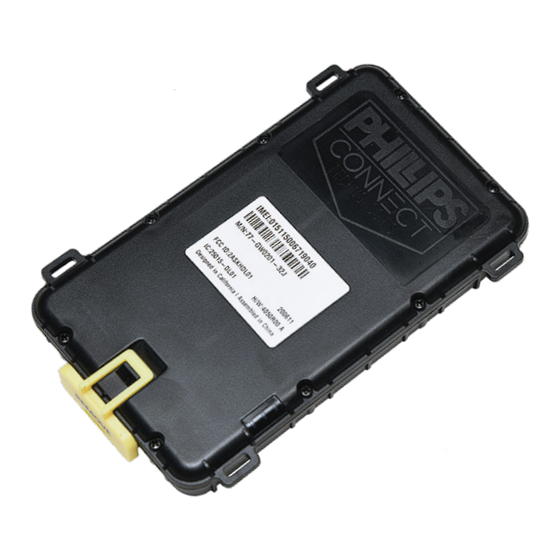

AssetTrac™
Device
The AssetTrac™ device can be
installed anywhere on any type of
powered or non-powered asset as
long as nothing is obstructing its
view of the ground or sky.
833.213.5839
www.phillips-connect.com
Two (2)
Fir Tree Zip Ties
™
Tool List:
Cordless Drill
(Optional)
Mounting and Connecting
the AssetTrac
1. Before installing the AssetTrac, remove
the Ship Mode Plug from the device.
Remove Shipping
Cap from unit
2. Insert the cable ties
and use them as
a guide to mark
where you will
need to
drill your
holes.
5/16" Drill Bit
(Optional)
Isopropyl
Alcohol
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Philips AssetTrac
Summary of Contents for Philips AssetTrac
- Page 1 Mounting and Connecting installed anywhere on any type of the AssetTrac powered or non-powered asset as 1. Before installing the AssetTrac, remove long as nothing is obstructing its the Ship Mode Plug from the device. view of the ground or sky.
- Page 2 4. Flip the device upside down to remove the VHB back adhesive. Remove VHB backing VHB adhesive If tethering AssetTrac™, follow additional instructions below and note the wiring diagram. Wiring Diagram: = Power (connect to red stud) 5. Flip the device...
