Summary of Contents for Growatt INFINITY 1300 PRO

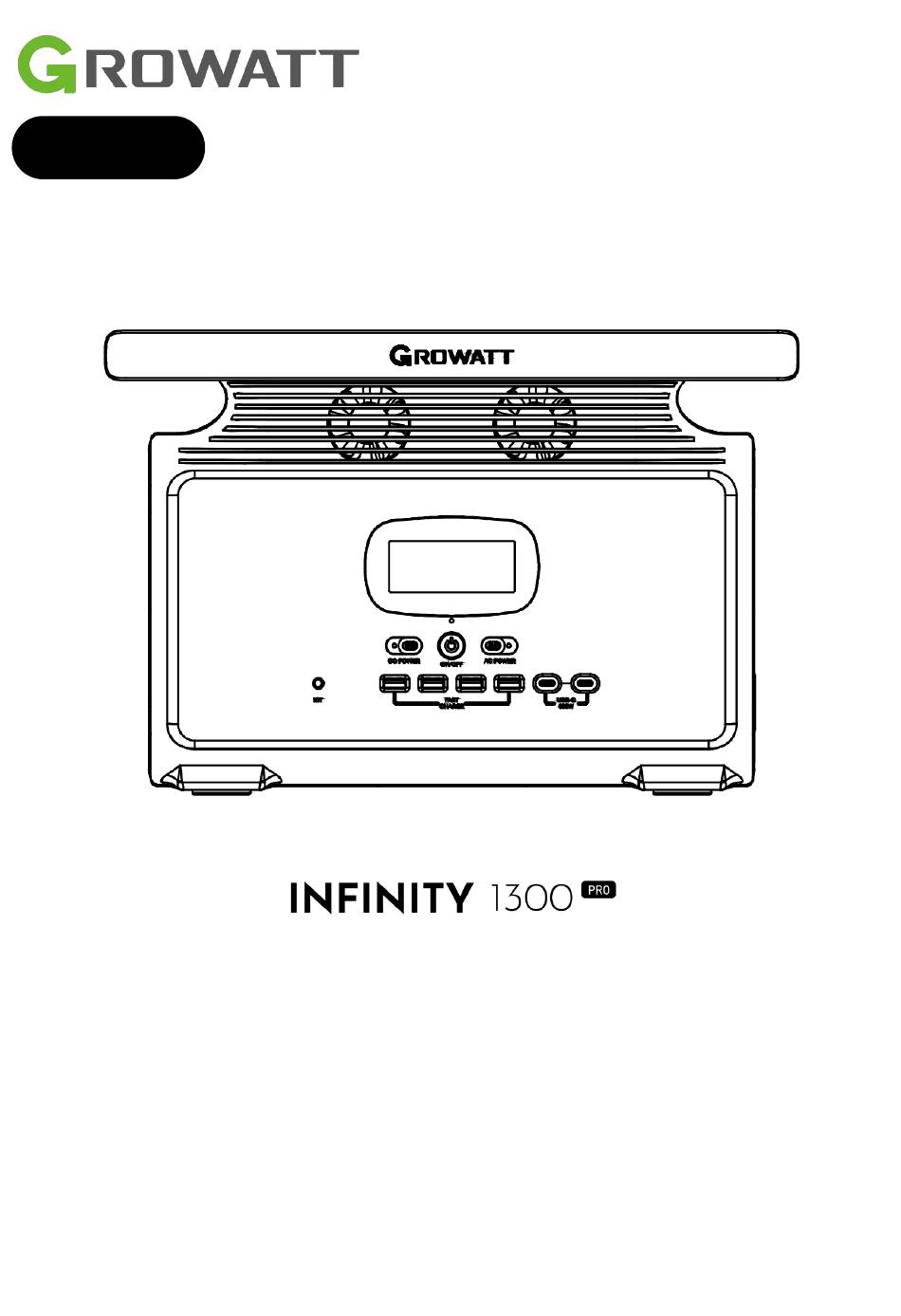

- Page 1 User Manual Contact us 1. Keep it dry and do not place heavy objects on the INFINITY 1300 PRO. www.growattportable.com 2. Do not dismantle, punch, shake, hit, or burn it. 3. Recycle and place INFINITY 1300 PRO according to local policies.
-
Page 2: Table Of Contents
Content Package Contents ......................................... 1 Important Safety Instructions ....................................1 Ports and Buttons ......................................... 5 LCD Screen ............................................6 How to Use ............................................8 Basic Instruction ........................................8 How To Recharge ........................................9 I) AC/Vehicle Charging ....................................9 II) Solar Charging ....................................... 10 Advanced Features ........................................ -
Page 3: Package Contents
Users promise to be responsible for their actions and all consequences arising therefrom. Growatt is not responsible for any damage caused by using the product not in accordance with the User Manual. - Page 4 2. The use of unofficial component is strictly prohibited. For replacement, please check the relevant purchase information on the Growatt official website. Growatt is not responsible for product accidents and malfunctions caused by the use of products not officially provided by Growatt.
-
Page 5: Storage And Transportation
II. Storage and Transportation 1. Keep the INFINITY 1300 PRO out of the reach of children and pets. If your child accidentally swallows product parts, seek medical help right away. 2. If it prompts that the battery is too low after use, please charge it before storing it. Otherwise, long-term storage with low power may cause damage to the battery inside the product. -
Page 6: Fcc Warning
FCC Warning This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 7: Ports And Buttons
PORTS AND BUTTONS 1. Solar/Vehicle Charging Port 8. USB-A Fast Charge Output Port 2. AC Charging Port 9. USB-C Output Port 3. AC Input Overload Protection Reset 10. AC Power Button/Indicator 4. LCD Display 11. Wireless Charging 5. DC Power Button/Indicator 12. -
Page 8: Lcd Screen
Display the remaining discharge time. Time Errors Codes The machine experiences a warning or a fault. INFINITY 1300 PRO is supplying power to external devices via wireless charging function Wireless Charging Indicator DC 5521 & Car Cigarette When the DC 5521 port or Car Cigarette Lighter port is loaded, the icon lights up, and an alarm Lighter Indicator message appears if it is overloaded. -
Page 9: Output Indicator
The current battery temperature is low, and the charging efficiency will be reduced. Keep using Warning the product, and the charging efficiency will return to normal as the temperature rises. The frequency of the current AC output port of INFINITY 1300 PRO. You can change the output Output Frequency frequency to 50Hz or 60Hz. -
Page 10: How To Use
HOW TO USE BASIC INSTRUCTION Before use, please put the INFINITY 1300 PRO on clean and flat ground to ensure that the machine will not be in contact with liquid or tilted, and check whether there are foreign objects on the body. -
Page 11: How To Recharge
If you charge it immediately after discharge, a high temperature warning will be displayed, which is normal. I) AC/VEHICLE CHARGING The INFINITY 1300 PRO charging port is located on the sides of the product. The INFINITY 1300 PRO can be charged via AC power (AC input port) or a car cigarette lighter (XT60 port). -
Page 12: Ii) Solar Charging
1300 PRO. Four 200W Solar Panels You can connect the MC4 connector on the solar panel to the MC4-XT60 adapter cable to provide power to INFINITY 1300 PRO through the XT60 port on the side of INFINITY 1300 PRO. Solar Connector XT60 Port Figure I. -
Page 13: Advanced Features
EPS Instructions Users can connect the INFINITY 1300 PRO to the power grid, and then connect electrical appliances to the AC output ports of INFINITY 1300 PRO. When the power grid is cut off, INFINITY 1300 PRO can continue to use battery energy to power electrical appliances and protect your equipment (as shown in the figure below). -
Page 14: Watt+ Function
4. The Watt+ feature enables the INFINITY 1300 PRO to power 2500W (with a possible error of ±10%) appliances, while the actual maximum output remains at 1800W (the maximum output power allowed by the model). -
Page 15: Bluetooth Connection
You can choose any of the following methods to connect the device: Bluetooth Connection a) Enter the "Device" page and click "Bluetooth Connection". Or select the "+" button at the top right of the page, and then select "Bluetooth Connection". b) Turn on the device, which automatically turns on the WiFi Bluetooth function, sends Bluetooth and WiFi signals, and connects with your mobile device. - Page 16 (III) Using Multiple Mobile Devices to Control the Product If multiple users need to remotely control the product, the master account needs to authorize other MyGro accounts to allow other mobile devices to control the product. 1. Go to Device, select the product from the device list to enter the product details, and then click the to enter the setting page.
-
Page 17: Technical Specifications
TECHNICAL SPECIFICATIONS Basic Information Net Weight ≈19.5kg（43lbs） Dimensions (L*W*H) 419*230*280mm（14.49*9.06*11.02in） Wi-Fi Supported Bluetooth Support Input AC Input 100-120V~，50/60Hz, 15A, 1800W MAX. (1200W MAX Battery Charge) Vehicle Input 12-24V⎓，8A MAX Solar Input 12-60V⎓，800W MAX Output AC Outlet（X4） 120V~，50/60Hz，1800W MAX，TOTAL 1800W (PEAK 3600W) USB-A FAST CHARGE（X4）... -
Page 18: Faq
No, you can't. This product is a lithium battery product. According to international air transport regulations, lithium battery products exceeding 100Wh cannot be carried on the plane. Why does the INFINITY 1300 PRO not work properly when the total output power of the device is within the rated power of the INFINITY 1300 PRO? First, please check whether the battery capacity of the product is too low and charge it sufficiently prior to use. -
Page 19: Appendix 1： Error Codes
Temperature cooling, the product will continue to work normally. Product Overload The INFINITY 1300 PRO is overloaded. Unplug part or all of the loads and keep the total output within 2400W to resume normal operation. Inverter Low Please move it to a warmer spot or connect it to AC/PV power before use. -
Page 20: Appendix 2: Troubleshooting
When used in combination with Growatt's photovoltaic inverters (MIC 600-3300TL-X, NEO 600-1000M-X), the Smart PV Function can be engaged, allowing INFINITY 1300 PRO to utilize excess energy generated by the photovoltaic inverter for charging. INFINITY 1300 PRO can be easily connected to the photovoltaic system without the need for professional installation. With the ShinePhone APP, the user can exercise intelligent control, setting the charging power and execution conditions according to their own needs, enabling INFINITY 1300 PRO to perform intelligent charging and discharging.
