Electronical considerations

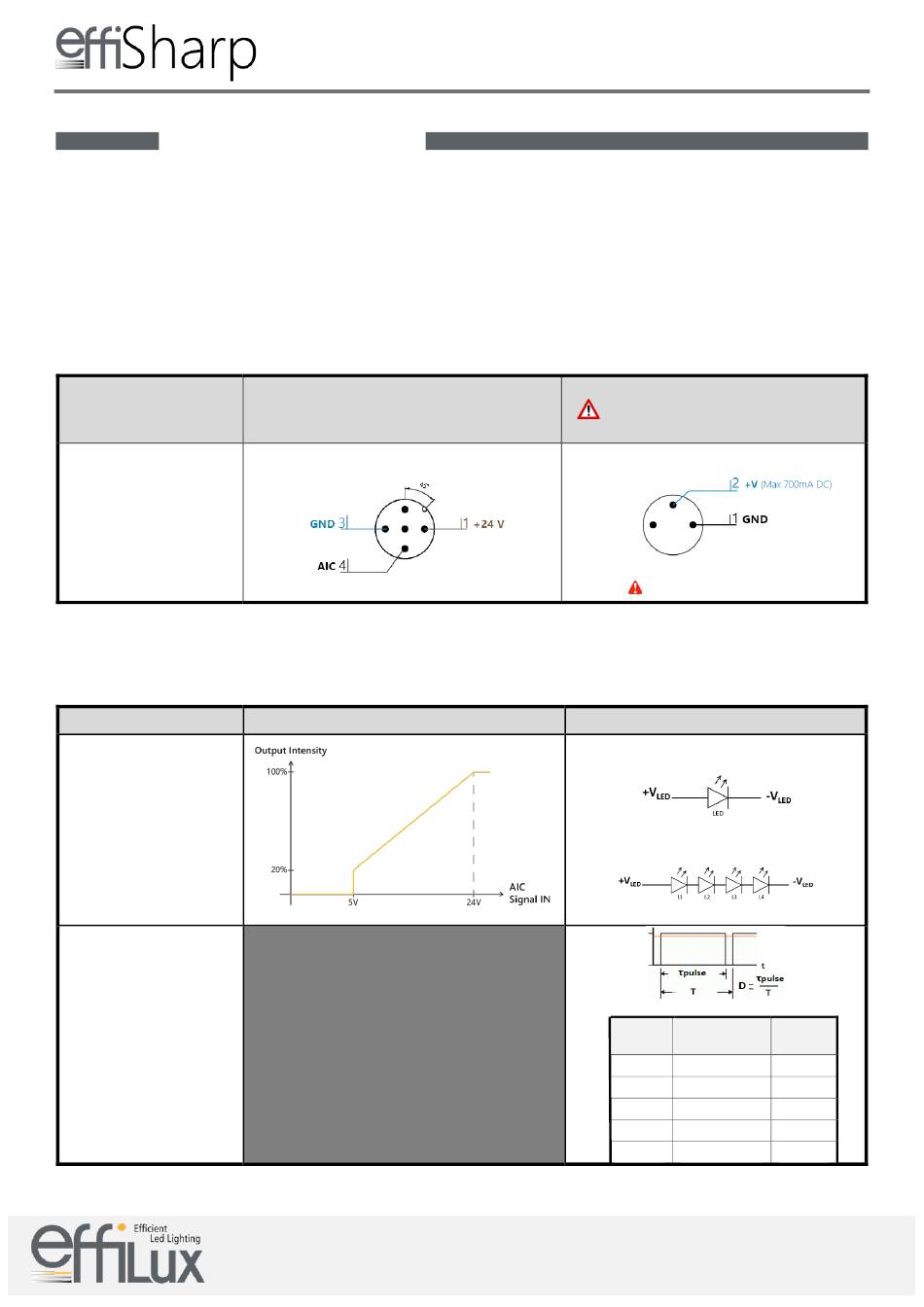

POWER CONSUMPTION & CONTACT ARRANGEMENT
The average power consumption is:
For the standard version (VVV = Ø in the part-number): 5W
•
• For the power version (VVV = PWR in the part-number): 15W
• For the STR option (without LED driver), the power consumption depends on the intensity which flows in the LED.
Depending on the chosen configuration (with or without LED driver), the light comes with different connections (refer to the
datasheet).
Chosen option
Contact arrangement
Notes:
The EFFI-SHARP requires 24V DC input power.
•

MODE CONTROL

Chosen option
Dimmable continuous
Adjustable strobe
Powerful & homogeneous projector
With LED driver
With LED driver
Not available
Mini Parc du Verger – Bâtiment E
1 Rue de Terre Neuve
91940 LES ULIS, FRANCE
Tel: +33 9 72 38 17 80 UK Importer: Gardasoft Vision Ltd.
Fax: +33 9 72 11 21 69 Trinity Court, Buckingway Business Park
Email: sales@effilux.fr Swavesey, Cambrige CB24 4UQ UK
USER MANUAL EFFI-SHARP
Version 2.4
Last update: June 20, 2024
Without LED driver = STR
Expert mode: LED are wired directly to the
M8 without protection
Max input intensity 700mA
Without LED driver = STR
Standard version :
Power version :
Max pulse
Current
duration (µs)
1.2A 50000
1.5A 10000
2A 1000
2.5A 100
3.5A 40
Duty
cycle
0.5
0.1
0.01
0.001
0.0004
