USER MANUAL
GENERAL PRODUCT INFORMATION
Une version française de cette notice est disponible sur la page produit correspondante de notre site web.
Thank you for purchasing an Effilux's product. To ensure proper use of the product, please read this User manual before use and keep

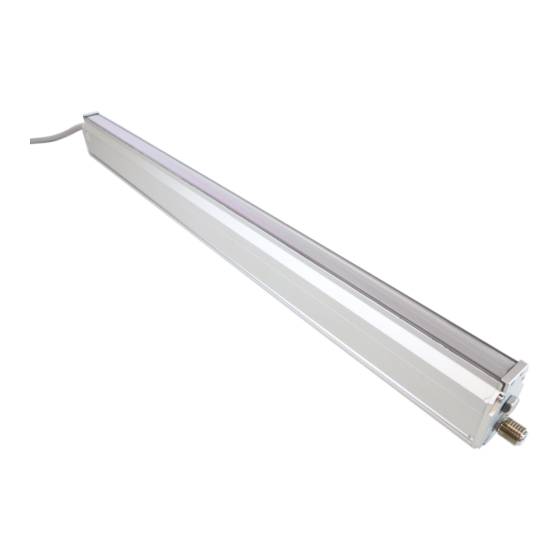

it for your future reference. Any improper use voids the warranty. This product is an LED light used for machine vision and industrial
inspection. Do not use the product for other applications, and be sure to follow the instructions below.
Datasheets and drawings in PDF and/or CAD can be downloaded from the Effilux website:
The label(s) on the product always indicate(s) the reference, the power consumption and the serial number of the product. Be sure
to check the content before using the product and handle the label(s) with care. The date of manufacturing is included in the serial
number of the product: XXXXXXYYMM-ZZZ with YY corresponding to the year and MM to the month. If the label is missing or
damaged and the content cannot be checked, please contact Effilux.
GENERAL WARNINGS AND PRECAUTIONS OF USE
Maintenance
The product must be switch off during any maintenance operation. To remove marks on the lens or on the window: Use alcohol-free
lens cleaning fluid on a cleaning tissue. Few drops will suffice. Please clean gently. Always apply the fluid to a tissue rather than the
lens itself. To clean optical components: Please wear gloves and use compressed air if there is dust.
Usage and storage environment
Operating environment
Storage environment
Informations
Except if a specific IP rating is given for your product (refer to the «Dust and Water resistance (IP rating) » section), please install the
product to locations with following conditions (Incorrect installation location may causes product failure) :
Well-ventilated places with minimal dust.
Places free from corrosive or combustible gas.
Places away from water taps, boilers, humidifiers, air conditioners, heaters or stoves.
User security
Incorrect use of the product may result in fire, electric shock, or other serious damages. Please ensure to follow below conditions. If an
abnormal condition occurs (fuming, heat, noises, etc.), stop using the product immediately and turn the power off.
Do not disassemble or modify the product.
Do not try to fix any damages on the product by yourself.
Do not touch the product with wet hands.
Wire and keep the flying leads cables in a dry area (regardless of the product's
degree of protection).
Make sure the power supply and the cable/connector are adapted to the
product specifications.
Do not inverse electrical polarity - check your connections and the conventions. The product packaging must be removed before use.
The cTÜVus certification is only applicable for the white (000) and red (625) devices, with a power consumption under 150W and, powered with a power supply
that fulfills SELV and Limited Energy according IEC 61010-1 9.4) With a power consumption under 150W (depending on the size and the software version) and,
powered with a power supply that fulfills SELV and Limited Energy according IEC 61010-1 9.4
USER MANUAL EN EFFI-LINE3-V1.0.2022
Temperature: 0 to 50°C - Humidity: 20 to 85RH% (without condensation) - Altitude: Up to 2000m
Temperature: -20 to 60°C - Humidity: 20 to 85RH% (without condensation)
Overvoltage category I - Protective class III - Pollution degree 3
Places free from any liquid, chemical product or steam.
Places that are not subject to sudden temperature changes.
Do not look directly at the LED light without protection.
Make sure special protective glasses are used with UV products (<420nm).
Do not use homemade cables.
Make sure the product does not show any moisture or liquid inside before
switching it ON.
The device must be powered by a 24V safety power supply in accordance to
local Electrical Safety rules
