Hundure EPC-408io Quick Start Manual

Converter tcp/ip to rs-485 & tcp/ip i/o control

Advertisement

Quick Links

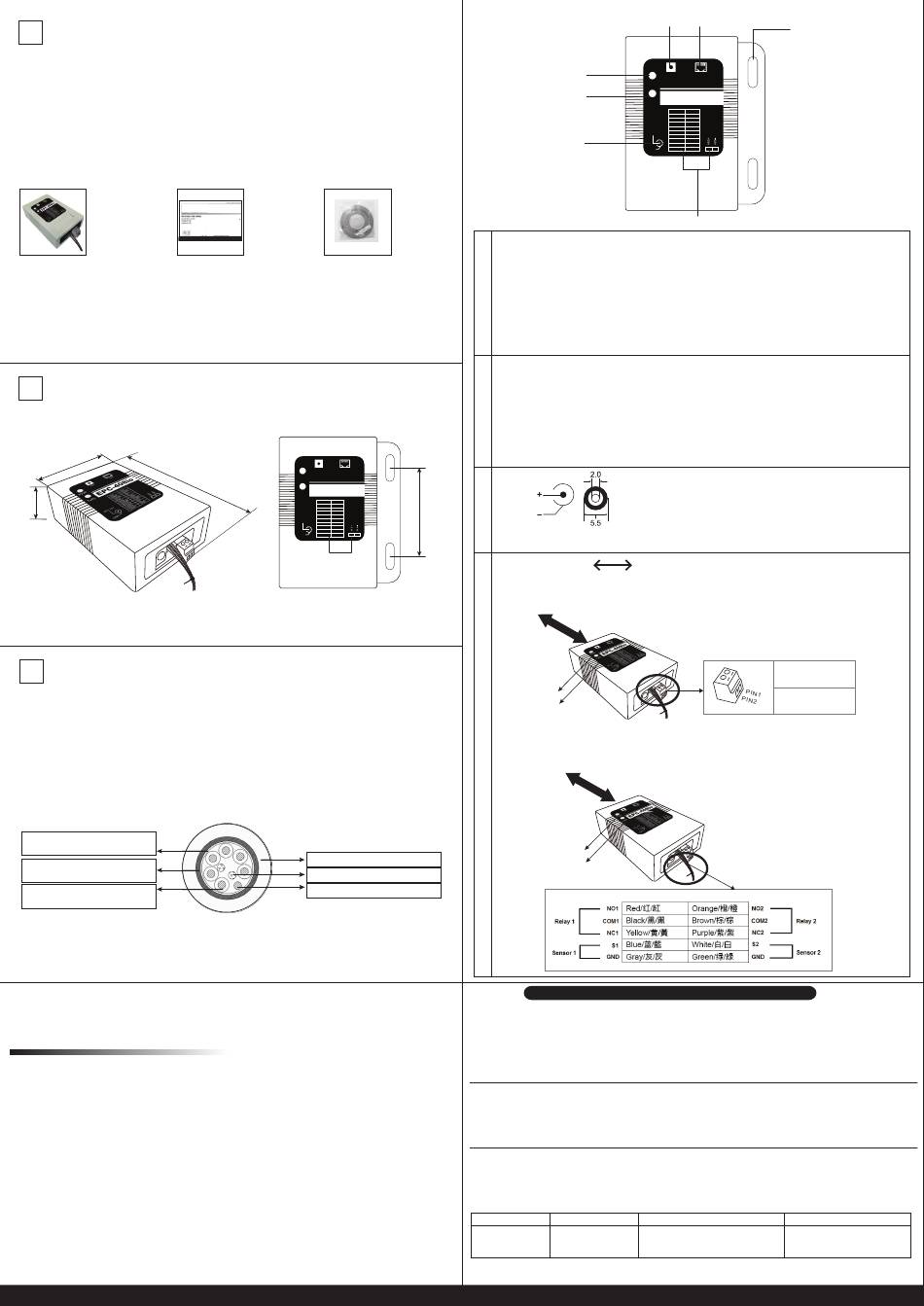

1
Package Contents
Kindly ensure the product's contents upon unpacking, and refer to this installation guide for the product's
specifications and important notices.
打開包裝確認產品包裝內容,並請詳細閱讀此手冊,認識產品規格特性與注意事項。
打開包裝確認產品包裝內容,並請詳細閱讀此手冊,認識產品規格特性與注意事項。
Converter x 1
Quick Start Guide x 1
轉換器
快速安裝手冊
轉換器
快速安裝手冊
2
Physical Dimension /外觀尺寸/ 外觀尺寸
62
105
27
3
Installation /安裝/ 安裝
The max. transmission distance of EPC-408io for RS-485 interface is 1200 meters.
Kindly use a 24AWG double shielded twisted pair cable, overall aluminum-Mylar foil shielded, with minimum 85%
tinned copper braid shield and frame retardant SR-PVC Jacket. Below is the dissected view of the cable.
EPC-408io 在 RS-485 模式下,最大傳輸距離1200公尺,使用時請採用 24AWG 以上的雙隔離網鋁箔對絞
傳輸線,線材剖面如下圖:
EPC-408io 在 RS-485 模式下,最大傳輸距離1200公尺,使用時請採用 24AWG 以上的雙隔離網鋁箔對絞
傳輸線,線材剖面如下圖:
Aluminum/鋁/ 鋁
Polyester /多元酯/
多元酯
Drain Shield /護罩電纜/ 護罩電纜
Conductor
導體平面纜線/ 導體平面纜線
HUNDURE
HUNDURE TECHNOLOGY CO., LTD.
Converter
io
EPC-408
TCP/IP to RS-485 & TCP/IP i/o control
Quick Start Guide
快速安裝手冊
快速安裝手冊
Ver. 1.1
EPC-408io-QMA-20171002
650.0408.0702.11000
www.hundure.com
/包裝內容/
包裝內容
Software CD x 1
光盤
光碟
SET
LAN
PWR
EPC-408io
TxRx
Red
NO1
Black
COM1
Yellow
NC1
Blue
S1
Gray
GND
Orange
NO2
DC+ 12V
Brown
COM2
Purple
NC2
White
S2
GND
Green
GND
Scale:mm
Jacket /多罩/
多罩
Filler /充填線/
充填線
Braid Wire /金屬絲網/
POWER
電源燈/ 電源燈
RS-485
Communication
通訊燈/ 通訊燈
LAN Network Communication Port
● IP Address: 172.16.250.100 (Default)
Setup IP address use "EPC-408_Tool" utility to do settings. Moreover, through user's Ethernet system is
also available. Open Ethernet Explorer and enter http://172.16.250.100, the screen shows the setting fields.
A
● IP位址:預設值172.16.250.100
設定IP位址,可使用工具程式 "EPC-408_Tool" 進行設定,也可透過網路系統進行,使用網路瀏覽器並輸入:
http://172.16.250.100,會顯示設定畫面。
● IP位址:預設值172.16.250.100
設定IP位址,可使用工具程式"EPC-408_Tool"進行設定,也可透過網路系統進行,使用網路瀏覽器並輸入:
http://172.16.250.100,會顯示設定畫面。
Reset Button
/ 重置鈕 /
● Under any conditions, if you forget to set the password, or if the EPC-408 TCP / IP converter fails to work
due to any incorrect settings : First, turn off the power, then use any tiny and pointy tool to hold the reset
button, at the same, turn on the power for 3 to 5 seconds or longer to make it restore to factory default
settings.
B
● 如果在任何情況下,您忘記了設置的密碼,或有不正確的設置使EPC-408 TCP / IP轉換器無法操作。
首先,關閉電源,並使用任何細尖工具按住重置鈕,同時打開電源持續 3~5秒以上,則恢復出廠預設值。
● 如果在任何情況下,您忘記了設置的密碼,或有不正確的設置使EPC-408 TCP / IP轉換器無法操作。
首先,關閉電源,並使用任何細尖工具按住重置鈕,同時打開電源持續 3~5秒以上,則恢復出廠預設值。
C
56
Scale:mm
Type 1: LAN
Kindly follow the wiring instructions below.
請依照圖示接線
請依照圖示接線
PC
LAN
Power
Communication
Input / Output Interface / 輸入輸出介面 / 輸入輸出介面
D
Kindly follow the wiring instructions below.
請依照圖示接線 / 請依照圖示接線
PC
Power
Communication
金屬絲網
One Year Limited Warranty /
We warrants this product against defect in material or workmanship for 1 year from the date of purchase. If such a defect is discovered within this warranty limitation,
contact your direct vendor for repair or replacement of your unit.
When returning the product, you must ship the product in its original packaging or packaging that gives an equal degree of protection. This warranty becomes invalid if
the factory-supplied serial number has been removed or altered on the product.
This warranty does not cover cosmetic damage or damage due to acts of God, accident, misuse, abuse, negligence or modification of any part of the product. This
warranty does not cover damage due to improper operation or maintenance, connection to improper equipment, or attempted repair by anyone other than We.
In no event shall We liability exceed the price paid for the product from direct, indirect, special, incidental, or consequential, damages resulting from the use of the
product the product, its accompanying software, or it's documentation. We makes no warranty or representation expressed, implied, or statutory, with respect to its
products,contents of use of this documentation and all accompanying software, and specially disclaims its qualit
particular purpose. We reserves the right to revise or update its product, software or documentation without obligation to notify any individual or entity.
我們保固此產品於購買日起一年之內因為材料上或是生產製造中所產生的缺陷,所造成的外觀上,或是功能上的缺陷及故障問題。若是您在此保固期限之內發現此類
問題,請聯絡本公司的服務人員,退回此產品,我們將替您免費維修或是更換產品。
當您退回此產品時,請依照原始的包裝方式包裝此產品,或是給予同等級的包裝保護;若是我們收到此產品時,產品上沒有出廠時的序號標籤,或是產品已經拆開或與出廠時有任何不
同,這個保固將變得無效。
此保固不包含天然的,以及人為的破壞或改變 、或是意外事故、不正常操作、誤用、濫用等外在因素所造成的損壞。
此保固不包含不當的操作或保養,不當的連結至其他設備,或是由本公司以外的人員企圖修復此產品。
起因於使用這種產品,在間接、特別、次要因素,或者隨之發生,造成伴隨著軟件或其它文檔的損害,本公司的責任在任何情況下都不得超過這產品的售價。
關於產品的軟件和文檔編制的全部內容,本公司並沒有表示保證或法定它的性能、暢銷性、或者適用於任何特別的目的。
本公司保留權利修正或者不斷改進它的產品,軟件或者文檔編製無義務通知任何個人或者購買者。
我們保固此產品於購買日起一年之內因為材料上或是生產製造中所產生的缺陷,所造成的外觀上,或是功能上的缺陷及故障問題。若是您在此保固期限之內發現此類
問題,請聯絡本公司的服務人員,退回此產品,我們將替您免費維修或是更換產品。
當您退回此產品時,請依照原始的包裝方式包裝此產品,或是給予同等級的包裝保護;若是我們收到此產品時,產品上沒有出廠時的序號標籤,或是產品已經拆開或與出廠時有任何不
同,這個保固將變得無效。
此保固不包含天然的,以及人為的破壞或改變 、或是意外事故、不正常操作、誤用、濫用等外在因素所造成的損壞。
此保固不包含不當的操作或保養,不當的連結至其他設備,或是由本公司以外的人員企圖修復此產品。
起因於使用這種產品,在間接、特別、次要因素,或者隨之發生,造成伴隨著軟件或其它文檔的損害,本公司的責任在任何情況下都不得超過這產品的售價。
關於產品的軟件和文檔編制的全部內容,本公司並沒有表示保證或法定它的性能、暢銷性、或者適用於任何特別的目的。
本公司保留權利修正或者不斷改進它的產品,軟件或者文檔編製無義務通知任何個人或者購買者。
Model
Serial no. /
/
型 號
/
型 號
Warranty will be valid only after filling out this form and stamped or signed by reseller!
此保固書必須填妥各項內容,並且蓋有經銷商印鑑始為有效.
此保固書必須填妥各項內容,並且蓋有經銷商印鑑始為有效.
B
A
SET
LAN
PWR
EPC-408io
TxRx
Red
NO1
Black
COM1
Yellow
NC1
Blue
S1
Gray
GND
Orange
NO2
DC+ 12V
Brown
COM2
C
Purple
NC2
White
S2
Green
GND
GND
D
/ LAN網路通訊埠 /
LAN網路通訊埠
重置鈕
Use only DC 12V / 500mA power adaptor,whose plug is positive on the
inner conductor and negative on the outer conductor.
It is recommended to buy a DC jack converter if adaptor is not purchased.
主機電源輸入,請使用DC 12V / 500mA專用電源。
若未選購變壓器時,建議另購電源轉接頭使用。
主機電源輸入,請使用DC 12V / 500mA專用電源。
若未選購變壓器時,建議另購電源轉接頭使用。
RS-485
LAN
/
產 品 保 固 證 明 書
產 品 保 固 證 明 書
Date of Purchase /
序號
/
序 號
購買 日期
/
購買 日 期
Mounting hole
固定孔/ 固定孔
PIN1 : RS-485 -
PIN2 : RS-485 +
y
, performance, merchantability or fitness for any
Reseller stamp /
經銷 商
/
經銷 商
www.hundure.com
