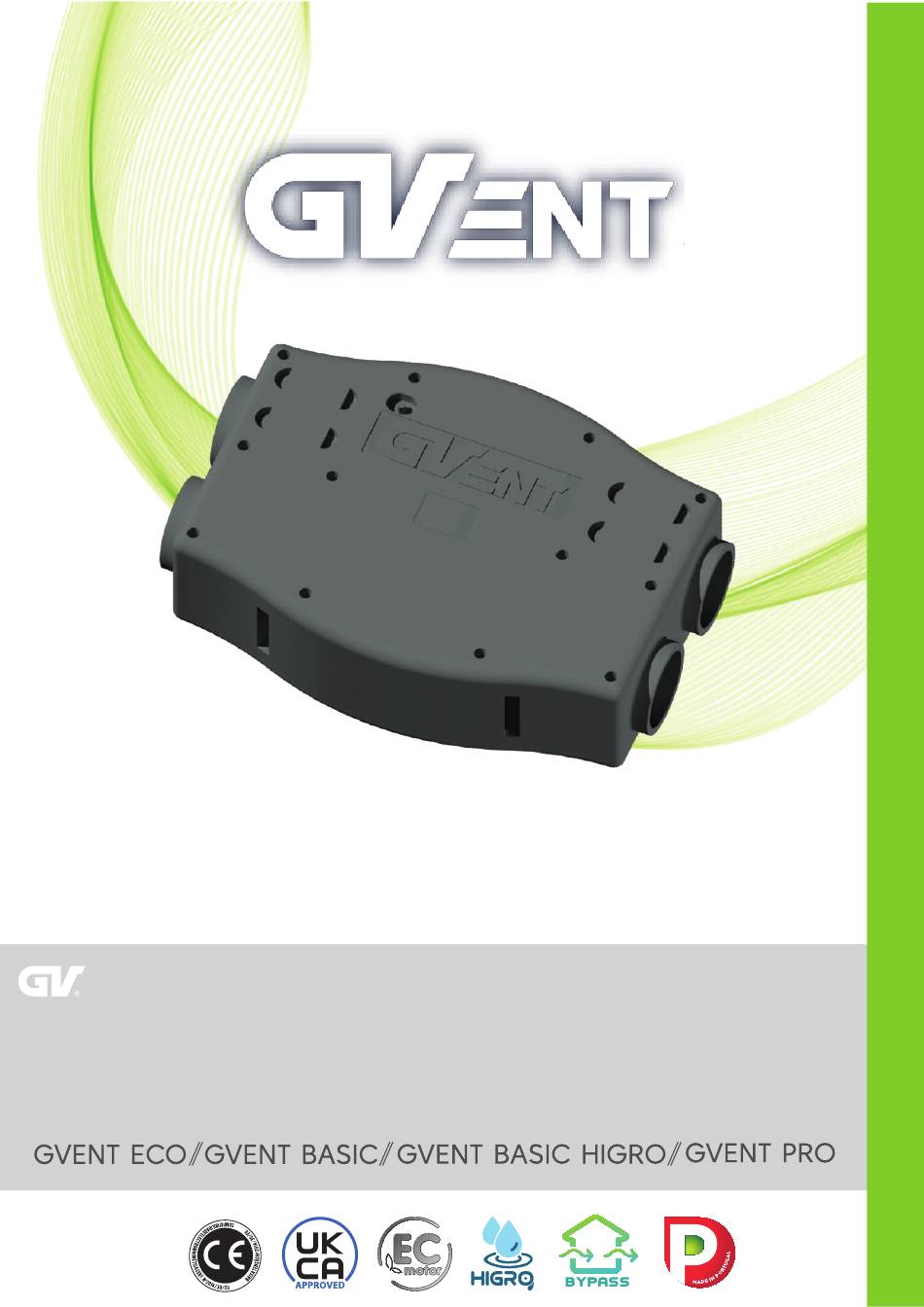

- Page 1 INSTALLATION MANUAL...
-
Page 2: Table Of Contents
INDEX Introduction Contents and optional accessories Precautions VMC application diagram Technical information General scheme Material Filter Exchanger Certificate Motor Hygrostat Bypass Dimensions Installation Contact... -
Page 3: Introduction
Introduction Thank you for purchasing our Controlled Mechanical Ventilation machine. A VMC/MVHR (Mechanical Ventilation with Heat Recovery) ventilation system is a system that ensures the renewal of air indoors automatically, maintaining air quality and energy efficiency. Our technology offers: Improved Air Quality: Eliminates pollutants, dust and allergens. Energy Efficiency: Operates with high efficiency, saving energy. -
Page 4: Precautions
Precautions GVent VMC/MVHRs must be serviced periodically, changing the filters in order to guarantee a clean flow of air without contamination. This period of time should be estimated according to the location of the installation; if it is an area with a lot of pollution, the filters should be changed more frequently than in an area without pollu- tion. -
Page 5: Technical Specifications
VMC/MVHR application scheme Double flow with BYPASS activated only inlet Technical Specifications Simple Flow Voltage 230 V 230 V 230 V 230 V 230 V Power min ~ max 6.5~28 W 15~75 W 13~56 W 13~56 W 13~56 W Height 490 mm 490 mm 490 mm... -
Page 6: General Layout
General layout Filter Easy to change air purification filters 220V/ 240V Electrical cable Humidity control Hygrostat regulator Switching on and off Inflow/Outflow 125mm pipe Speed control Motors Sewer connector Condensate drain 1 = 50% Bypass 2 = 80% Wall brackets Switch Control 3 = Bypass ON/OFF... -
Page 7: Material
DATE OF ISSUE: 28/10/2022 flow The names above correspond to the following certified models: TEST REPORT B-S2210A3476 GV Gvent GV Gvent GV Gvent GV Gvent GV Gvent Eco B-e2210A3475 Eco Basic Plus Eco Pro Eco Basic Eco Basic * Available in the UK... -
Page 8: Motor
Input voltage Perfomance curve Operating voltage (230VAC/50Hz) Temperature - Room temperature MODEL: PB3N133B2E-FZ5 Humidity - 65%RH GVENT ECO Operating voltage 184~276 VAC Power min ~ max 8.5~32 W Reading speed 3950 RPM Input current 0.19 A Input power 32 W Airflow 280 m³/h... -
Page 9: Bypass
Bypass Direct Bypass, via the user section on the controller, the extraction motor is switched off and only the intake motor operates. Heat recovery unit in operation Bypass activated *heating example direct air intake and outside temperature BYPASS Motor Dimensions Installation Step 1 - Mark the drilling location, taking into account that the VMC should be about 50cm from the floor and that there should be at least 40cm of free space on both... - Page 10 PIPE Black external coating prevents condensation PIPE Acoustic insulation hypoallergenic material For GVENT VMC pipework, we recommend using GV Pipes, which is a combination of materials that allow for greater insulation, noise reduction and conform to the European Reach standard.
-
Page 11: Contact
Connecting the potentiometer For Single Flow, ECO, BASIC and BASIC HIGRO models A: If you choose to use only the potentiometer installed on the machine, keep the lead between the yellow and red connector. B: If you want to use both potentiometers, remove the lead and connect them as shown in the image below.
