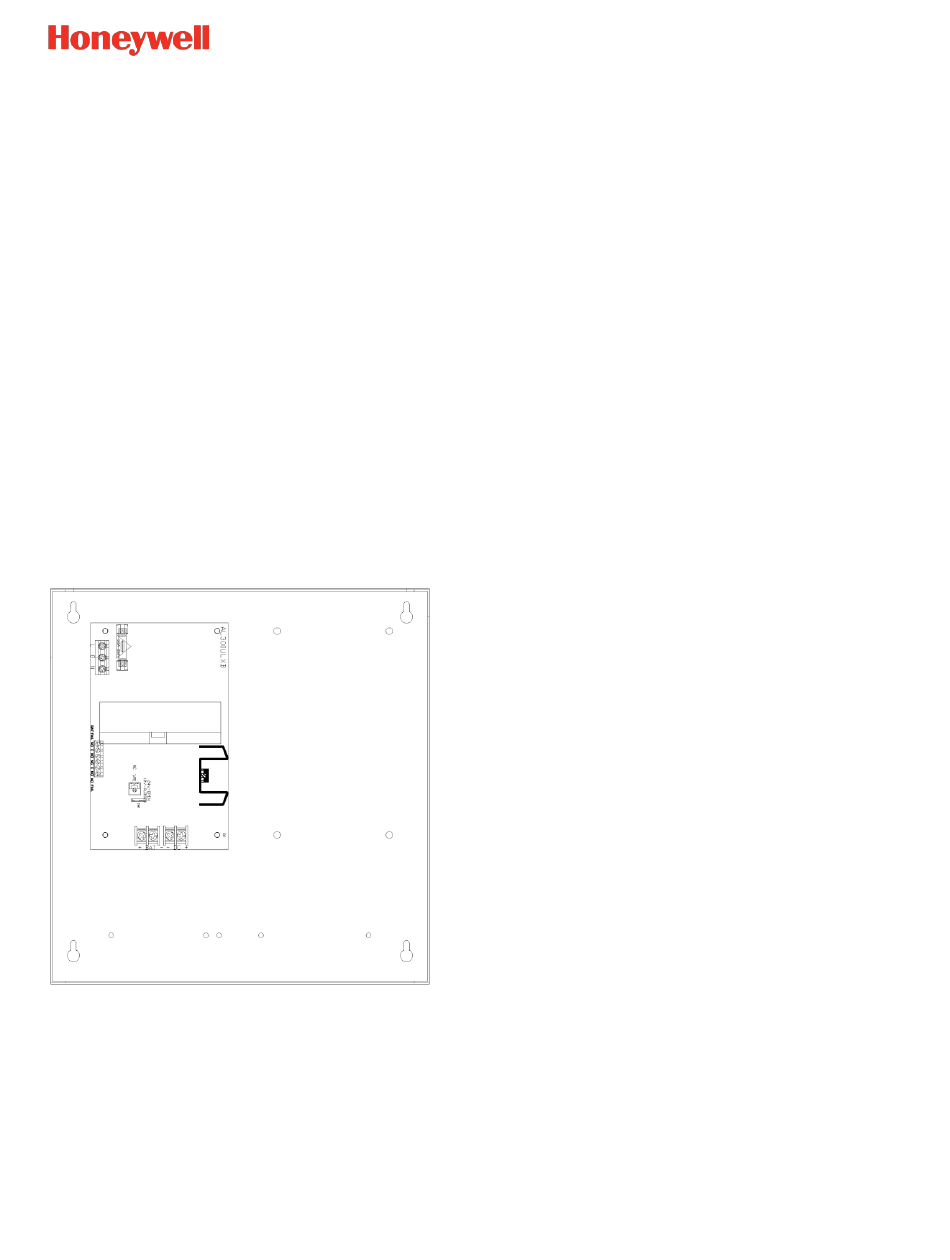

- Page 1 AREA OF REFUGE USER MANUAL AND INSTALLATION GUIDE Read and save these instructions before installation and use _______________________ Model number(s) HON-AOR-PSU-5-10 ______________________________ www.honeywellareaofrefuge.com 771-00005 aorsupport@talkaphone.com Rev 1.0 | 05/30/2024...
- Page 2 Find out more at www.talkaphone.com. The Honeywell trademark is used under license from Honeywell International Inc. Honeywell International Inc. makes no representation or warranties with respect to these products. These products are manufactured by Talk-A-Phone, LLC, Niles, IL 60714, USA.
-
Page 3: Table Of Contents
Table of contents ........................... 4 BOUT THIS GUIDE ONTENTS ........................6 ECHNICAL EQUIREMENTS NSTALLATION .......................... 13 YSTEM AINTENANCE ERVICING ......................15 IMITED ARRANTY NFORMATION HON-AOR-PSU-5-10 P ............. 16 OWER UPPLY NSTALLATION NFORMATION HEET DocID ((771-00005)) -
Page 4: About This Guide
ABOUT THIS GUIDE About this guide Scope This installation guide describes how to install, operate, and maintain Model HON-AOR-PSU-5-10. It is recommended that this instruction set be read completely prior to the start of any installation. Revision history Revision Supported Release... -
Page 5: Contents
CONTENTS Contents Please ensure receipt of each of the included HON-AOR-PSU-5-10 Power Supply components: Part Number Description HON-AOR-PSU-5-10 Class 2 power supply with enclosure for HON-AOR-5* or HON-AOR-10* Command Unit. 115VAC input, 24VDC output. You should inspect the HON-AOR-PSU-5-10 Power Supply when unpacking the box for possible damage in shipment. -
Page 6: Technical Requirements
THIS PRODUCT IS INTENDED FOR INDOOR USE ONLY. Agency Listings and File Numbers The HON-AOR-PSU-5-10 Power Supply is UL Listed to UL 1481, Standard for Power Supplies for Fire- Protective Signaling Systems and evaluated to CSA Standard C22.2 No.205-M1983. This listing can be found under UL File # S4707. -
Page 7: Battery Backup
TECHNICAL REQUIREMENTS Battery Backup Local backup power is provided by the HON-AOR-5 / HON-AOR-10 Command Unit – the backup battery can be found within that unit. A battery is not connected within the HON-AOR-PSU-5-10 Power Supply. DocID ((771-00005)) -
Page 8: Installation
INSTALLATION Installation It is the installer’s obligation to ensure compliance with all national, regional, and local regulations. Installation should be performed only by qualified personnel in CAUTION accordance with the National Electrical Code (NEC), NFPA 72, and other federal, state, and local statutes and building codes. Using shielded cable is recommended to avoid noise, hum, and other operational anomalies. -
Page 9: Terminal Identification
INSTALLATION Terminal Identification The following table provides further details and specifications on the input and output terminals. Terminal Legend Function Description L, N Connect 115VAC 60Hz. to these terminals: L to Hot, N to Neutral. Do not use the [G] terminal. + DC –... -
Page 10: Hardware Installation
Using shielded cable is recommended to avoid noise, hum, and other operational anomalies. This product is intended for indoor use only. Mount the HON-AOR-PSU-5-10 Power Supply in the desired location. See, Enclosure Dimensions (p.12), for further details. - Page 11 INSTALLATION Connect primary AC power (115VAC, 60Hz to the terminals marked [L] and [N]. See Connections (p.8) to locate these terminals. Turn on the primary AC power—the green “AC” LED on the power supply board will illuminate. This LED can be seen through the LED lens (labeled “POWER”) on the door of the enclosure. Measure the output voltage before connecting the HON-AOR-5 / HON-AOR-10 Command Unit.
-
Page 12: Led Diagnostics
No DC output Loss of AC. No DC output. Enclosure Dimensions The overall dimensions of the enclosure for the HON-AOR-PSU-5-10 Power Supply measure 12.5” x 13.0” x 3.25” (317.5mm x 330.2mm x 82.6mm). Further details are dimensioned below. DocID ((771-00005)) -
Page 13: System Maintenance
SYSTEM MAINTENANCE System Maintenance Annual Testing NFPA 72 requires that area of refuge two-way communication systems be inspected, tested, and maintained on an annual basis. NFPA 72 specifies the method required as “verify location and condition”. As such, the following guidelines are highly recommended: •... -
Page 14: Servicing
SERVICING Servicing For product service and repair, please contact: Talkaphone Area of Refuge (AOR) Support Email: aorsupport@talkaphone.com Phone: 773.539.1100... -
Page 15: Limited Warranty Information
LIMITED WARRANTY INFORMATION Limited Warranty Information For the latest warranty information, please visit: https://www.honeywellareaofrefuge.com/warranty DocID ((771-00005)) -
Page 16: Hon-Aor-Psu-5-10 Power Supply Installation Information Sheet
HON-AOR-PSU-5-10 POWER SUPPLY INSTALLATION INFORMATION SHEET HON-AOR-PSU-5-10 Power Supply Installation Information Sheet The below installation information sheet must be completed and securely retained for ready reference for future maintenance and operation of this HON-AOR-PSU-5-10 Power Supply. Area of Refuge Power Supply Model Number:... - Page 17 Niles, IL 60714 The Honeywell trademark is used under license from Honeywell International Inc. 773.539.1100 Honeywell International Inc. makes no representation or warranties with respect to these products. These products are manufactured by Talk-A-Phone, LLC, Niles, IL 60714, USA. aorsupport@talkaphone.com www.honeywellareaofrefuge.com...
