IPPTR12
Model -
12 Channel Surge Protection Panel
UNPROTECTED
PROTECTED
The IPPTR12 is designed to provide 12 channels of multistage surge
protection. It is ideally suited for multi-input devices such as a DVR, multi-
plexer or matrix system.
The IPPTR12 is rack mountable in a standard 19" rack. It installs in
minutes and provides a single easy access point for grounding of the unit.
Proper installation is critical to proper operation of the unit. Please
read installation instructions completely and insure good ground connections.
USA Office:
5410 Newport Drive • Rolling Meadows, IL 60008
Phone: (800) 528-4343
Fax: (847) 259-1300
E-mail: info@nitek.net • Web: www.nitek.net
1
2
3
4
IP PORT PROTECTOR
NITEK
5
6
7
8

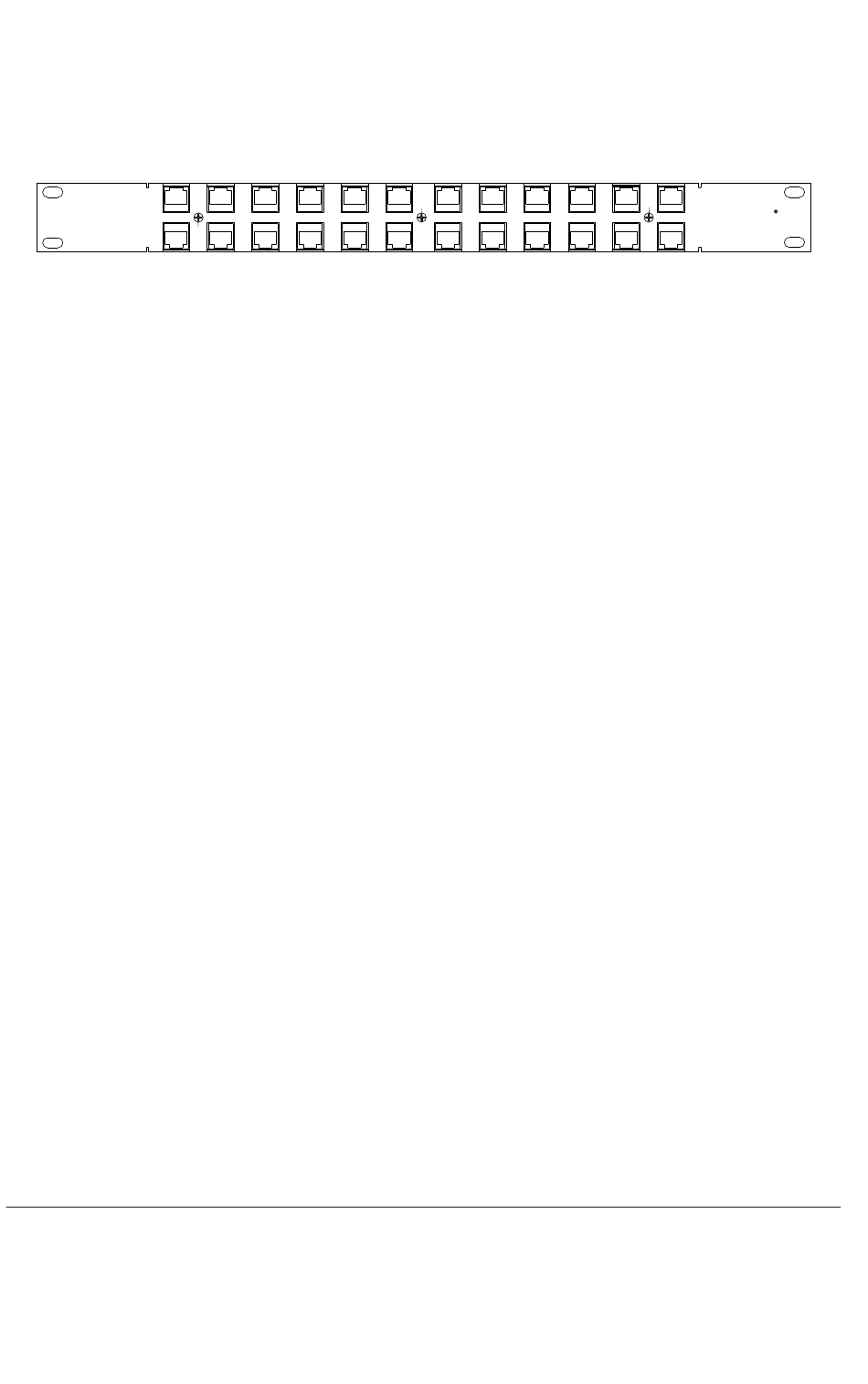

(front panel)
Europe Office:
De Schans 19-21 2a • 8231 KA Lelysted
Phone: +31(0)320 -230005
Fax: +31(0)320 -282186
E-mail: info@nitek.nl • Web: www.nitek.nl
NITEK
9
10
11
12
®
R
IP PORT
PROTECTOR
Rev 013008
