Model IPPWR16
16 Port Gb PoE+ Surge Protector
Description
The IPPWR16 is designed to provide 16 channels of
surge protection for network devices. It can be used
with both PoE+ and non-PoE devices.
IPPWR16 is cost-effective and ideally suited for
protecting multi-input devices such as a network
hub, NVR, or groups of IP cameras or servers. The
IPPWR16 is rack mountable in a standard 19" rack.
It installs in minutes and provides a single easy
access point for grounding.
Installation
The IPPWR16 must be properly installed to insure maximum protection. The function of the IPPWR16 is to
allow a surge to be routed to ground and to clamp the protected equipment video inputs to a minimum voltage.
There are three key points to remember when installing the IPPWR16. First, provide a low impedance
connection between the IPPWR16 and your protected equipment. This is best done by keeping the PROTECTED
Ethernet cable connections as short as possible, ideally less than 3 feet.
Second, the system should use a single ground point. Connect the grounding stud of the IPPWR16 to a single
ground point. A single ground point is a proper building ground to which equipment grounds are connected. Ideally,
the protected equipment should be isolated from ground. If the IPPWR16 and the protected equipment are both
grounded you will provide a parallel path to ground and a portion of the surge current can flow through that path.
Additionally, AC power line protectors should be used to complete your surge protection strategy.
Finally, the UNPROTECTED cables and wires should not be crossed with the PROTECTED cables and wires.
Crossing cables could provide a path for surge currents to bypass the IPPWR16 protection circuits.
Up to 15.4 watts
USA Office:
5410 Newport Drive, Rolling Meadows, IL 60008
Phone: (800) 529-8900
Fax: (847) 259-1300
E-mail: info@nitek.net
WWW.NITEK.NET
68-016-0103
All manuals and user guides at all-guides.com

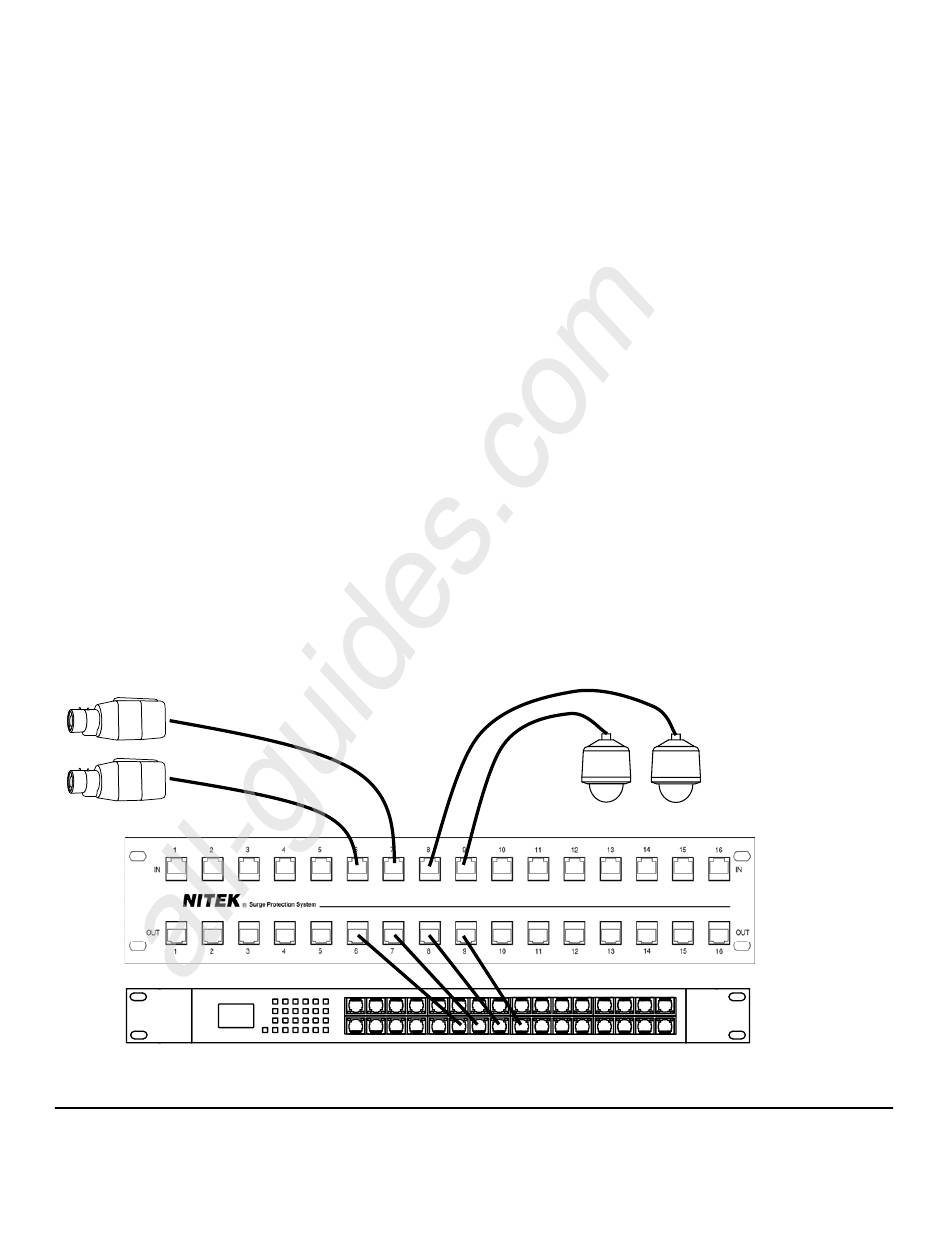

The
Network runs can be up
to 100 meters
NITEK
Installation and
Operation Manual
Specifications
Enclosure Type
Connection Method
Clamping Voltage
Network Type
Temperature
®
Europe Office:
De Schans 19-21 2a, 8231 KA Lelystad
The Netherlands
Tel: +31(0)320-230005
Fax: +31(0)320-282186
E-mail: info@nitek.nl
WWW.NITEK.NL
19" rack, 2RU Height
Standard RJ45
(16 In - 16 Out)
58v (on all lines)
10/100/1000
PoE+ or non-PoE
-40°C to +85°C
IPPWR16
POE Switch
Rev 052912
