Asus ZenWiFi AXE7800 Quick Start Manual

Quick
Start Guide

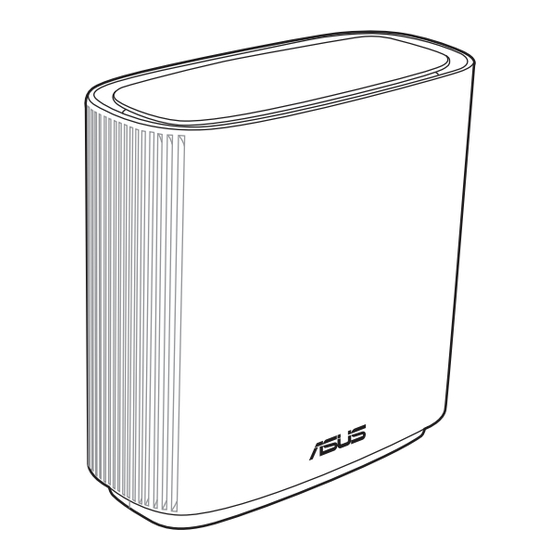

ASUS ZenWiFi AXE7800
AXE7800 Tri Band WiFi Router
Model: AXE7800
Before Setup
Preparing to set up an AiMesh WiFi system
Find three ZenWiFi AXE7800, and power them on.
1
Use a network cable to connect your optical modem to the WAN port of one ZenWiFi AXE7800, which will
2
be the AiMesh router, and the other two ZenWiFi AXE7800 will be the AiMesh nodes.
The LED turns solid blue to indicate that ZenWiFi AXE7800 is ready for setup.
3
ASUS Router App
Download free ASUS Router APP to set up and
manage your router(s).
AiMesh Setup Steps
01
Prepare
Place your AiMesh router and nodes at least 1
meter apart from each other during the setup
process.
02
AiMesh nodes
Keep your AiMesh nodes powered on and
standby for AiMesh system settings.
03 Launching ASUS Router APP
Launch ASUS Router APP, and then follow the on-screen instructions to finish the AiMesh setup.
Troubleshooting
If your AiMesh router cannot find any AiMesh node nearby or
synchronization fails, please check the following and try again.
a Move your AiMesh nodes closer to the AiMesh router ideally. Ensure that they are within 3 meters of each
other.
Your AiMesh nodes are powered on.
b
1 meter
apart
AiMesh node
Hardware Explanations
Plug the adapter into the DCIN port, and press the power button.
1
The power LED will light up when your hardware is ready.
2
Button and Port Explanations
DC-IN port Power switch LAN ports 1-3 USB 3.2 Gen 1 port
2.5G /1G WAN
port
Specifications:
DC Power adapter DC Output: +12V with max 3A current
Operating Temperature 0~40 C Storage
o
Operating Humidity 50~90% Storage
AiMesh nodes
AiMesh Setup Steps
1 meter
apart
AiMesh node
NOTE: When you're using a wireless backhaul to connect your router and AiMesh node, the WAN port on your AiMesh node
can be used as a LAN port providing up to 2.5G transmission speed.
2.5G / 1G WAN port
Connect your optical modem to this
port with a network cable.
LAN ports 1-3
Connect your PC to a LAN port with a
network cable.
0~70 C
o
20~90%
AiMesh router
AiMesh router
