Summary of Contents for MUSETEC AUDIO MH-DA006MINI

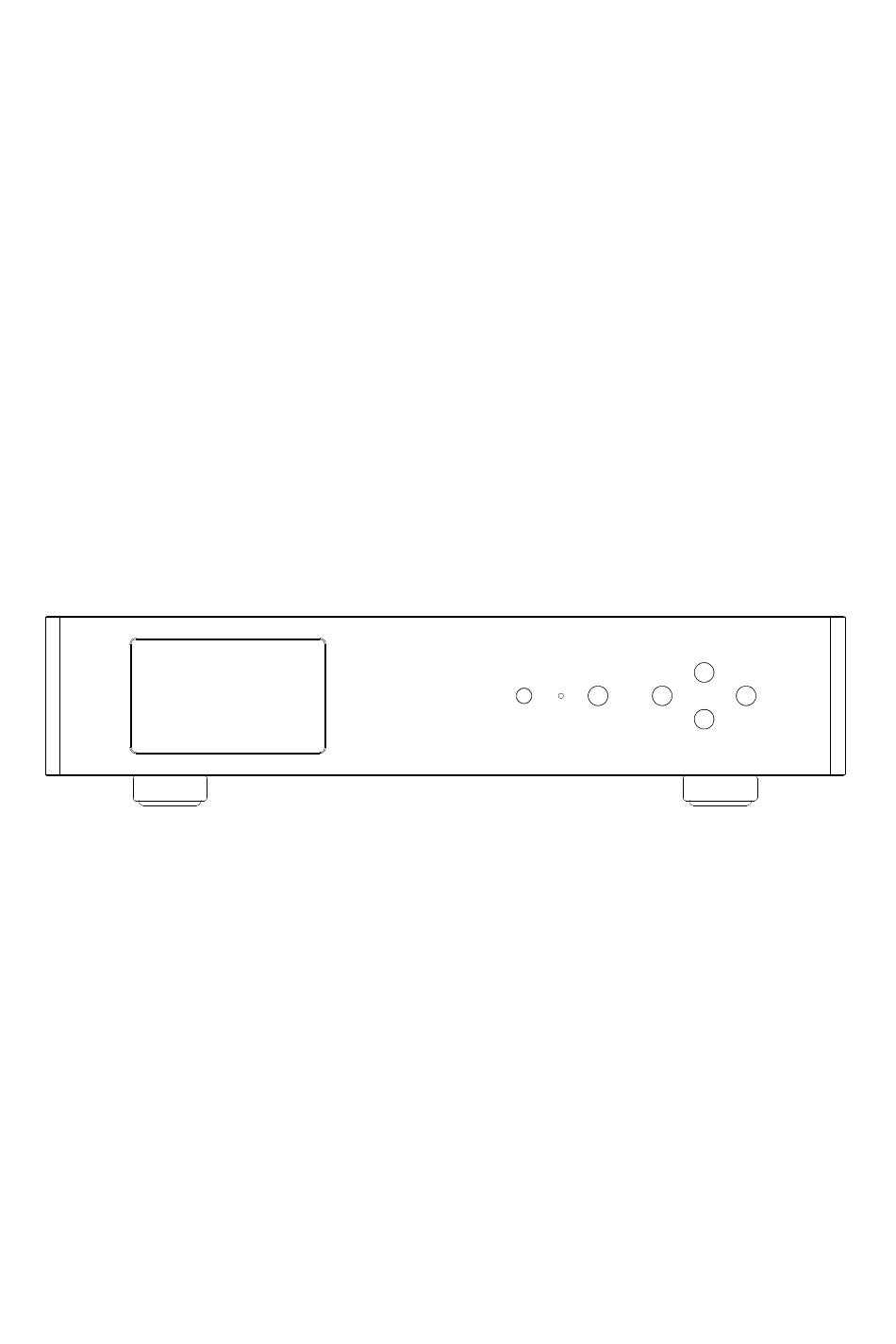

- Page 1 MUSETEC AUDIO MH DA006MINI User’s Manual Standby DOWN MUSETEC AUDIO MUSETEC AUDIO All Rights Reserved © www mu sound com...
- Page 2 MUSETEC AUDIO Dear Customer, Thank you very much for choosing our products. Before use, please be sure to read this document carefully, that will help you quickly and accurately obtain the use method. Notice! Please make sure that the voltage specification of the DAC matches the mains voltage in your area, if the voltage is different, the device may be damaged.
- Page 3 MUSETEC AUDIO Packing list MH-DA006MINI Remote controller Power cable Warranty card Screwdriver Bluetooth antenna Front Panel Standby DOWN MUSETEC AUDIO (2) (3) (4) (6) (7) (1) Displayer (2) Infrared remote signal receiver (3) Red Status LED Working mode LED Status...
- Page 4 MUSETEC AUDIO DIGITAL INPUT OUTPUT COAX1 □100-120V I2SH AES/EBU COAX2 RIGHT LEFT ■200-240V (10) (11) (12) (13) USB input Bluetooth antenna COAX1 S/PDIF input I2S input Optical S/PDIF input A ES/EBU input CO AX2 S/P DIF input X LR balanced output of right channel...
-
Page 5: Display Light
MUSETEC AUDIO The balanced output pin assignment. 2. Positive + 3. Negetive - Remote Controller Key Name Function POWER Power on/off POWER LIGHT LIGHT Display light ▲ INPUT Input select INPUT Settings menu ▼ Volume up ▲ FILT MODE Volume down ▼... - Page 6 MUSETEC AUDIO The main window. -100.5 dB FILTER Lin Phase Fast (1) Input channel name. Name Description COAX1 Digital coaxial s/pdif input 1 COAX2 Digital coaxial s/pdif input 2 AES/EBU Digital AES/EBU input Optical s/pdif input Bluetooh input I2SH I2S input USB input (2) Volume number.
- Page 7 MUSETEC AUDIO Display brightness setting. DISPLAY 100% DISPLAY AUTO OFF If there is no key operation within 30s, the displayer will be automatically turned off. It has 10 steps The brightness can be changed by press the LIGHT key on the remote controller / Auto off...
- Page 8 MUSETEC AUDIO Filter setting. FILTER Lin Phase Fast Linear phase fast roll-off DAC filter mode can be changed by press the FILT key of the remote controller. There are 6 filter modes. Filter Mode Description Lin Phase Fast Linear Phase Fast Roll-off...
- Page 9 MUSETEC AUDIO Settings window. Settings ▶ PCM Filter Lin Phase Fast IIS-H Input Display Light 100% Display Style Return Press the key on the front panel or remote controller to enter Settings window. How to select the item? Press the UP/DOWN keys to select items.
-
Page 10: Specifications
MUSETEC AUDIO Specifications Items Specifications Note Model MH DA 006MINI Black/Silver DAC Chips Es9039pro USB Port P CM 44.1K~384K 24/32bit Windows 10/11 32/64bit O SX 10.6+ Linux with S/P DIF Input CO AX CO AX2 AE S OPT P CM44.1K~192K 16~24bit... - Page 11 MUSETEC AUDIO MUSETEC Audio 2024 www.mu-sound.com...
