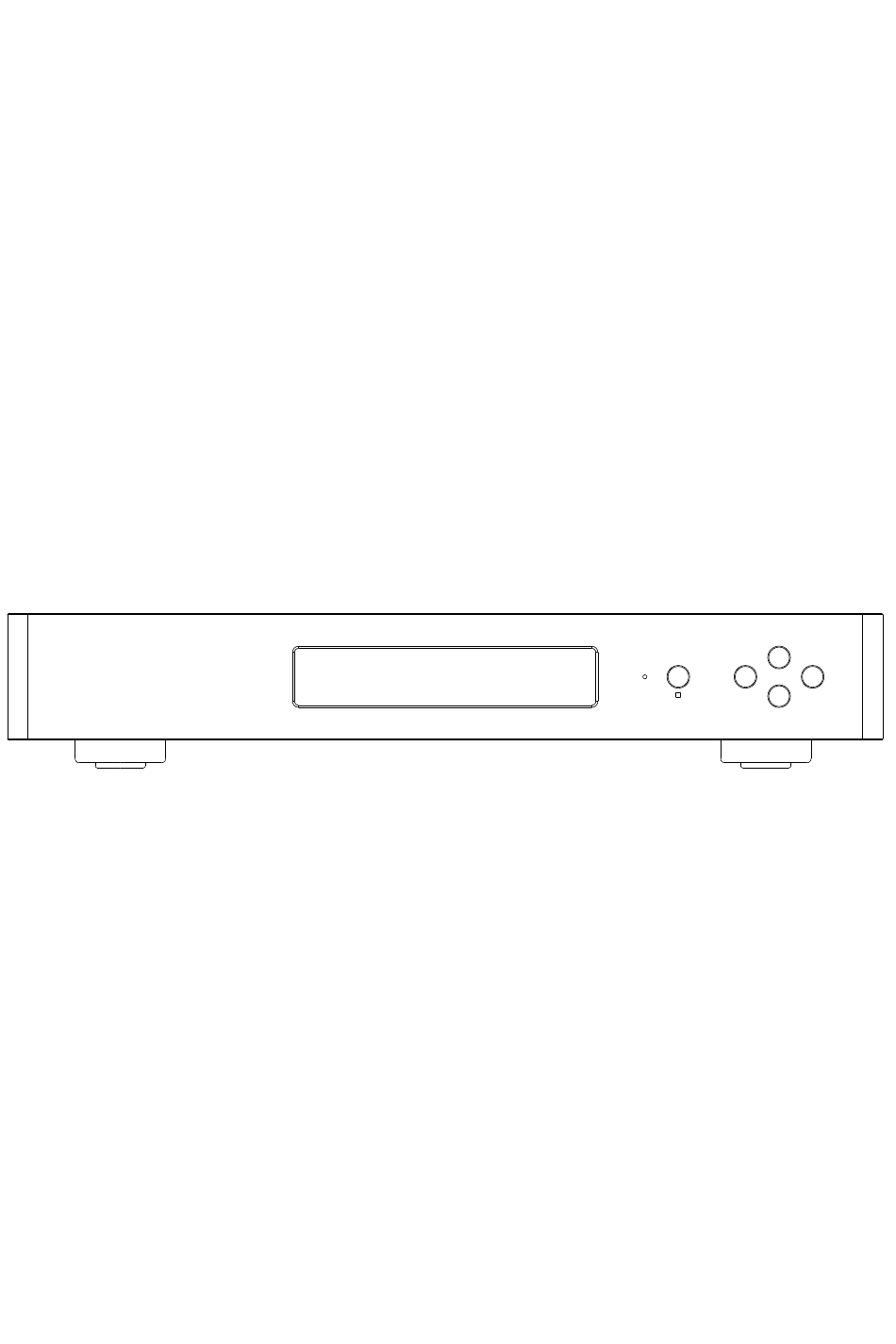

- Page 1 MUSETEC AUDIO MH-DA005 User’s Manual ⽤户⼿册 ▲ INPUT DPLL ▼ MUSETEC AUDIO ©嘉兴沐声电⼦有限公司MUSETEC AUDIO www.mu-sound.com...
- Page 2 MUSETEC AUDIO 尊敬的⽤户，感谢惠购沐声⾳频产品。在使⽤产品前，请详阅 ⽤户⼿册，以了解本机的正确操作⽅法。阅读完毕后，请妥善 保存此⼿册，以备⽇后参考。 Dear customer, thank you for choosing MUSETEC Audio products. Before use, please read this document patiently, in order to understand the correct operation of your machine. 注意！ 在接⼊电源前，请确认您订购的机器⼯作电压需求，⼀般分为 110V和220V两种规格，订货时需要明确⾃⼰家庭的⽤电电压。 为避免触电危险，请勿⾃⾏拆卸机盖或背板。 Notice! Before use, please confirm your family electric voltage. Make sure the product you ordered is right.
- Page 3 MUSETEC AUDIO 开箱检查 Out of Box Audit • MH-DA005解码器主机MH-DA005DAC x1 • 遥控器 Remote Controller x1 • 电源线 AC Power Cable x1 • USB线USBcable x1 • 保修卡WarrantyCard x1 • U盘 USB Flash Disk x1 • 螺丝⼑ Screwdriver 部件名称PartName...
- Page 4 MUSETEC AUDIO (14) MH-DA005 SERIAL NO. MS50001 MUSETEC AUDIO (1) (3) (9) (10) (11) (12) (13) (15) (1)USB固件擦除按钮USBfirmware erase key (2)USB输 入 input port (3)光纤SPDIF输⼊ Optical SPDIF input (4)数字同轴2输⼊ CoaxialSPDIFinputport2 (5)数字同轴1输⼊ CoaxialSPDIFinputport1 (6)数字平衡SPDIF输⼊ AES/EBUinputport (7)RJ45-I2S输⼊(注2) RJ45-I2Sinputport (Note 2) (8)I2S-H平衡输⼊(注1) I2Sbalanced inputport (Note 1) (9)模拟⾳频右声道平衡输出⼝(注3)Balanced outputRight (Note 3)
- Page 5 MUSETEC AUDIO 注2 Note 2 这⾥使⽤了⼀个RJ45端⼝作为第⼆组I2S信号的输⼊端⼝，所以这个 端⼝并不能作为标准的⽹⼝输⼊来使⽤，下⾯列出了该端⼝的8针引脚定义： HereWeuseaRJ45portasasecondaryI2Ssignal input, so users can not use this port as a normal ethernetinput. Below is the pin assignment of this port. 12345678 1. I2S_DATA / DSD_DATA1 2. GND 3. I2S_LRCK /DSD_DATA2 4. GND 5.
- Page 6 MUSETEC AUDIO 显⽰屏信息Displayinformation (1)(2)(3) (1) 输⼊端⼦名称 InputChannel (2) 采样率显⽰ SampleRate (3) 滤波器模式 FilterMode (4)(5) (4) 锁相环模式 DPLLMode (6) (5) ⾳量Volume (6) 去加重 De-emphasis 根据不同的端⼦选择以及信号输⼊类型，显⽰屏将分别显⽰ 以下内容： Accordingtodifferentinputchannelselectedanddifferent signal type, The displayer will display following contents.
- Page 7 MUSETEC AUDIO 显⽰屏信息 Display information detail (1) 输⼊选择 Input Select COAX1/COAX2/AES/OPT/I2S-E/I2S-H/USB (2)采样率显⽰ Sample Rate indicate PCM 44K/48K/88K/96K/176K/192K/352K/384K/768K DSD 64X/128X/256X/512X/1024X DOP 64X/128X/256X (3) 数字滤波器模式FilterMode FAST-L FIR FastRoll-off,Linear Phase Filter FIR SlowRoll-off,Linear Phase Filter SLOW-L IIR60KIIR Filter 60K DSD模式可见 IIR Filter 70K...
- Page 8 MUSETEC AUDIO (6) 输出⾳量调节Volumecontrol 0.0dB~-127dB(0.5dB间隔)（0.5dBStep） VOL-FIXED⾳量固定位0dBVolumefixedto0dB * ⾳量调节是采⽤DAC内部的数字调节，当⽤户的放⼤器具有独⽴的⾳量 调节功能时，请将DAC的⾳量调节设置为0dB，或者按下遥控器的BYP 按键以固定⾳量输出为0dB。如果⽤户的放⼤器不具有⾳量调节功能， 请在开启放⼤器电源之前，将解码器的⾳量调节到-20dB以下，以免开 启功放时过强的声⾳影响到您的⼼情。 Thevolumecontrolofthis DACisbasedondigitalcontrol.Once user have an external volume controller, such as a pre-amplifier, usershouldbypassthis functionbysetthevolumeto0dBorpress theBYPkeyontheremotecontroller .If user don’t have an external volume controller, user should turn the DAC volume down to -20dB toavoidtheloudsoundrushwhenturnonamplifier.
- Page 9 MUSETEC AUDIO 技术规格TechnicalSpecifications 项⽬Items 规格Specifications 备注Note 型号 ⿊⾊/银⾊ MH-DA005 Model Black/Silver 解码⽅案 双芯⽚ SABRE32 Reference ES9038pro DAC Chips 2chips PCM 44.1K~384K 24/32bit DSD64~DSD512 Amanero USB端⼝ Windows XP/vista/win7/win8 Windows USB Port 需要驱动 32/64bit Need Mac OSX 10.6+ COAX / BNC / AES / OPT S/PDIF输⼊...
- Page 10 备忘录Note MUSETEC AUDIO...
- Page 11 备忘录Note MUSETEC AUDIO...
- Page 12 MUSETEC AUDIO ©嘉兴沐声电⼦有限公司2020 地址：中国浙江省嘉兴市南湖区⼴益路万好家居E-302 邮箱：bleerock@126.com 邮编： 314000 ⽹址： www.mu-sound.com ©MUSETECAudio2020 Addr: E-302,WanhaoJiaju,GuangYi Rd., Nanhu District, Jiaxing City, Zhejiang Province, China Email: bleerock@126.com Web: www.mu-sound.com...
