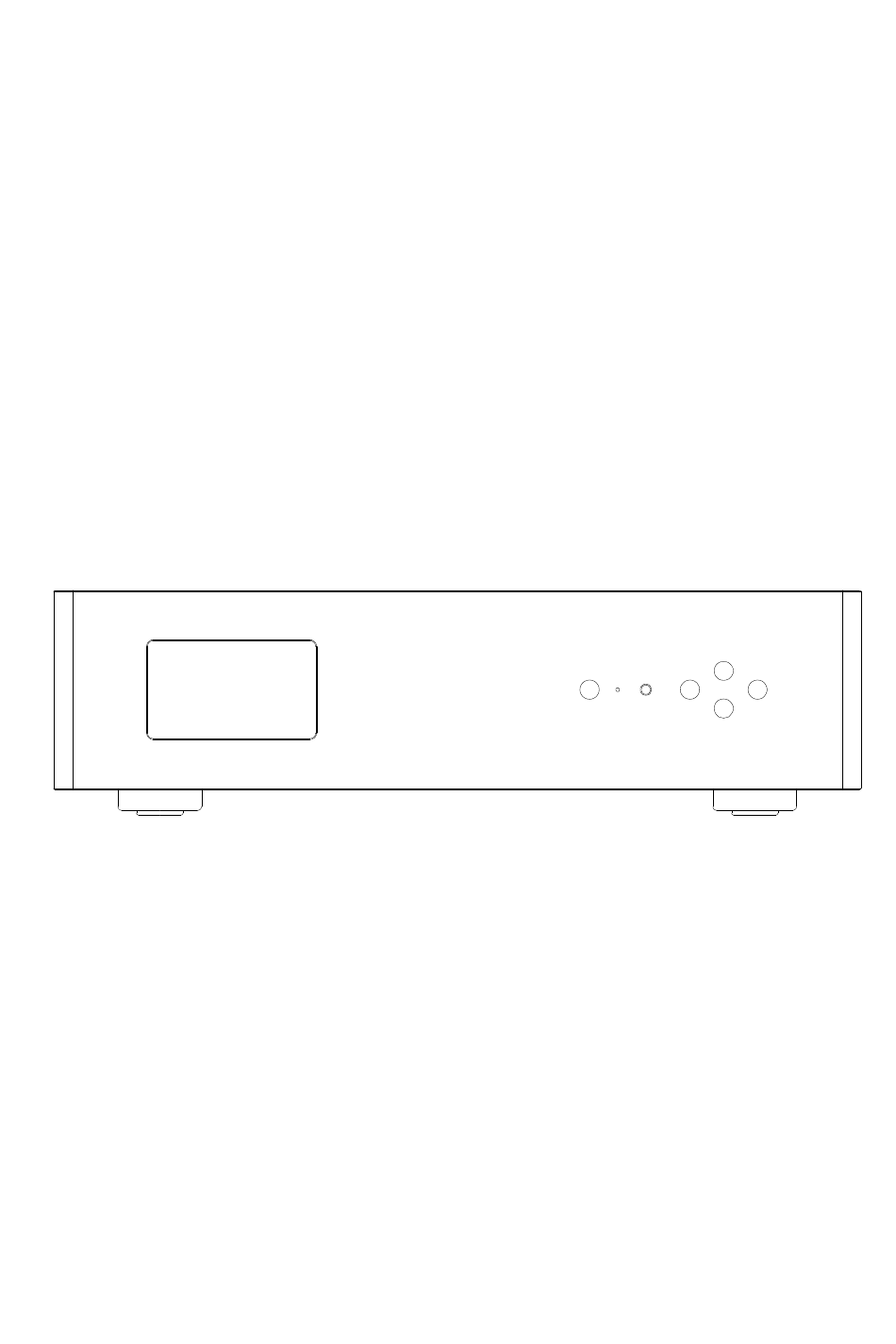

- Page 1 MUSETEC AUDIO MH DA006 User’s Manual Standby Input Down MUSETEC AUDIO MUSETEC AUDIO All Rights Reserved © www mu sound com...
- Page 2 MUSETEC AUDIO Dear Customer, Thank you very much for choosing our products. Before use, please be sure to read this document carefully, that will help you quickly and accurately obtain the use method. Notice! First, please confirm the voltage specification of your home.
- Page 3 MUSETEC AUDIO Packing list MH-DA006 USB disk Remote controller Power cable Warranty card Screwdriver Front Panel Standby Input Down MUSETEC AUDIO (2) (3) (4) (5) (6) (7) (1) Displayer (2) Standby Key (3) Red Status LED Working mode LED Status...
- Page 4 MUSETEC AUDIO Rear Panel (5) (6) (8) (11) COAX2 IIS-E OUTPUT-RIGHT OUTPUT-LEFT COAX1 AES/EBU IIS-H AC IN MH-DA006 FUSE SERIAL NO. MS6001 MUSETEC AUDIO (10) (12) (13) (14) (15) X LR balanced output of right channel RCA output of right channel...
-
Page 5: Display Light
MUSETEC AUDIO The balanced output pin assignment. 2. Positive + 3. Negetive - Remote Controller Key Name Function POWER Power on/off POWER LIGHT LIGHT Display light ▲ INPUT Input select INPUT Settings menu ▼ Volume up ▲ FILT MODE Volume down ▼... - Page 6 MUSETEC AUDIO The main window. SYNC -100.5 dB FILTER Lin Phase Fast (1) Input channel name. Name Description COAX1 Digital coaxial s/pdif input 1 COAX2 Digital coaxial s/pdif input 2 AES/EBU Digital AES/EBU input OPTICAL Optical s/pdif input IIS-E IIS standard CMOS logic input...
- Page 7 MUSETEC AUDIO Display brightness setting. DISPLAY 100% DISPLAY AUTO OFF If there is no key operation within 30s, the displayer will be automatically turned off. It has 10 steps The brightness can be changed by press the LIGHT key on the remote controller / Auto off...
- Page 8 MUSETEC AUDIO Filter setting. FILTER Lin Phase Fast Linear phase fast roll-off DAC filter mode can be changed by press the FILT key of the remote controller. There are 6 filter modes. Filter Mode Description Lin Phase Fast Linear Phase Fast Roll-off...
- Page 9 MUSETEC AUDIO Settings window. Settings ▶ PCM Filter Lin Phase Fast IIS-H Input AAAAB IIS-H Data IIS 32bit SYNC IIS-H Clock IIS-E Input See Detail.. IIS-E Data IIS 32bit Settings IIS-E Clock SYNC Display Light 100% Display Style Return Press the...
- Page 10 MUSETEC AUDIO Settings description. Item Description Total of 6 digital filter modes can be PCM Filter selected. IIS-H port pin definitions can be set to suit IIS-H Input different IIS connections. IIS-H data can be set to I2S or Left IIS-H Data Justified mode.
- Page 11 MUSETEC AUDIO IIS-E pin definition. PIN1 PCM-DATA / DSD-DATAL PIN3 PCM-LRCK / DSD-DATAR PIN5 PCM-BCLK / DSD-BCLK PIN7 DSDOE (0:PCM 1:DSD) MCLK PIN8 PIN2/4/6 GND IIS-H pin definition. ▶ IIS-H input AAAAB 19 17 15 13 11 9 7 5 3 1 Code<AAAAB>...
-
Page 12: Specifications
MUSETEC AUDIO Specifications Items Specifications Note Model MH DA Black/Silver DAC Chips Es9039pro*2 USB Port P CM 44.1K~768K 24/32bit DSD1024 Windows 10/11 32/64bit O SX 10.6+ Linux with S/P DIF Input CO AX CO AX2 AE S OPT P CM44.1K~192K 16~24bit... - Page 13 MUSETEC AUDIO MUSETEC Audio 2024 www.mu-sound.com...
