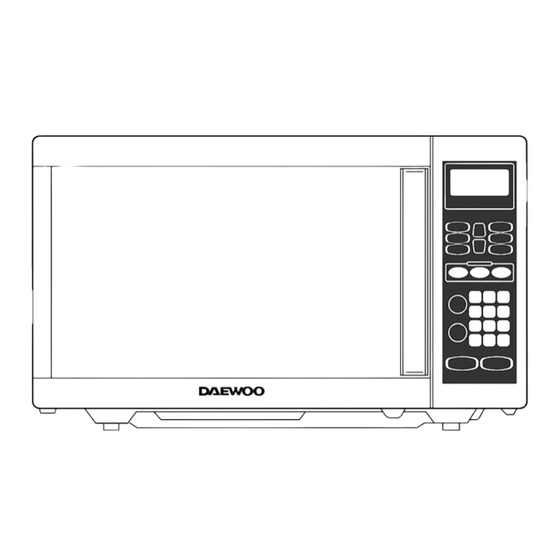

KOR-864HOA(¿ )-DECA˙ 02.9.26 9:52 AM ˘ ` 3 MICROWA VE OVEN KOR-864H OPERATING INSTRUCTIONS Before operating this oven, please read these instructions completely.
TO STOP THE OVEN WHILE THE OVEN IS OPERATING ... 15 UTENSIL TEST ... 16 MICROWAVE UTENSILS ... 16 CARE OF YOUR MICROWAVE OVEN ... 17 USE YOUR MICROWAVE OVEN SAFELY ... 18 BEFORE YOU CALL FOR SERVICE ... 19...
Do not leave paper products, cooking utensils, or food in the cavity when not in use. 17. Do not use this microwave oven to heat corrosive chemicals (for example, sulfides and chlorides). Vapours from such corrosive chemicals may interact with the contact and springs of the safety interlock switches thereby rendering them inoperable.
• Relocate the Microwave oven with respect to the receiver. • Move the microwave oven away from the receiver. • Plug the microwave oven into a different outlet so that microwave oven and receiver are on different branch circuits. THE MANUFACTURER is not responsible for any radio or TV interference caused by UNAUTHORIZED MODIFICATION to this microwave oven.
6. Power supply. This microwave oven requires a power supply of approximately 12 Amperes, 120 Volts, 60Hz and a grounded outlet. A short power cord is provided to reduce the risk of the user becoming entangled in or tripping over a longer cord. Longer cord sets or extension cords are available and may be used if care is exercised.
KOR-864HOA(¿ )-DECA˙ 02.9.26 9:52 AM ˘ ` 5 SPECIFICATIONS POWER SUPPLY POWER CONSUMPTION MICROWAVE OUTPUT POWER FREQUENCY OUTSIDE DIMENSIONS (W X H X D) CAVITY DIMENSIONS (W X H X D) NET WEIGHT TIMER POWER LEVELS * Specifications are subject to change without notice. 120V AC 60 Hz SINGLE PHASE WITH GROUNDING 1350 W 900 W...
KOR-864HOA(¿ )-DECA˙ 02.9.26 9:52 AM ˘ ` 6 FEATURES DIAGRAM 1. Door latch-When the door is closed it will automatically shut off. If the door is opened while the oven is operating, the magnetron will automatically shut off. 2. Door seal-The door seal maintains the microwave within the oven cavity and prevents microwave leakage.
Page 8
11. One touch-Used to cook or reheat specific quantities of food. 12. More-Used to add time to cooking. 13. Less-Used to remove time from cooking. 14. Auto Defrost-Used to defrost foods.(for weight) MICR MICROWAE OVEN KOR-864H BEVERAGE POPCORN MORE FRESH FROZEN VEGETABLE...
KOR-864HOA(¿ )-DECA˙ 02.9.26 9:52 AM ˘ ` 8 OPERATION PROCEDURE This section includes useful information about oven operation. 1. Plug power supply cord into a standard 3-pronged 12 Amp, 120V AC 60Hz power outlet. 2. After placing the food in a suitable container, open the oven door and put it on the glass tray. The glass tray and roller guide must always be in place during cooking.
KOR-864HOA(¿ )-DECA˙ 02.9.26 9:52 AM ˘ ` 9 CONTROLS SETTING THE CLOCK When the oven is first plugged in, the display will flash “:0” and a tone will sound. If the AC power ever goes off, the display shows “ : 0” when the power comes back on. 1.
KOR-864HOA(¿ )-DECA˙ 02.9.26 9:52 AM ˘ ` 10 WEIGHT DEFROSTING AUTO DEFROST lets you easily defrost food by eliminating guesswork in determining defrosting time. Follow the steps below for easy defrosting. 1. Touch MEAT pad. MEAT 2. Select the desired defrosting weight. (Refer to the weight defrost chart below.) 3.
KOR-864HOA(¿ )-DECA˙ 02.9.26 9:52 AM ˘ ` 11 COOKING IN ONE STAGE 1. Touch POWER pad. (Select the desired power POWER level.) 2. Touch number pads for the cooking time. 3. Touch START pad. When you touch START pad, the M/W indicator starts blinking to show the oven is cooking. The display counts down the time to show how much cooking time is left.
KOR-864HOA(¿ )-DECA˙ 02.9.26 9:52 AM ˘ ` 12 KITCHEN TIMER MODE Timer operates as a minute timer, can be set to delay cooking and used to set a holding time after cooking. However delay cooking can not be programmed for defrost. Timer operates without microwave energy. HOW TO USE AS A MINUTE TIMER 1.
KOR-864HOA(¿ )-DECA˙ 02.9.26 9:52 AM ˘ ` 13 SPEEDY COOK SPEEDY COOK allows you to reheat for 30 seconds at 100% (full power) by simply touching the SPEEDY COOK pad. By repeatedly touching the SPEEDY COOK pad, you can also extend reheating time to 5 minutes by 30 second increments.
Page 15
KOR-864HOA(¿ )-DECA˙ 02.9.26 9:52 AM ˘ ` 14 ONE TOUCH COOKING (continued) 1. Touch BEVERAGE pad once BEVERAGE for 1 cup, twice for 2 cups or three times for 3 cups. * BEVERAGE* (200ml/cup) • 1 cup (mug) : Touch BEVERAGE once. •...
KOR-864HOA(¿ )-DECA˙ 02.9.26 9:52 AM ˘ ` 15 LESS, MORE To alter one touch cooking or cooking time whilst oven is in operation, use LESS or MORE.(except for defrosting) Press LESS/MORE to decrease/increase the one touch cooking time in multiples of 10 seconds. The overall one touch cooking time can be increased to a maximum of 59 minutes 50 seconds.
If you are not sure, try this utensil test to check. • Put the empty utensil in the microwave oven. • Put one cup of water in a glass measure next to the empty utensil.
Control Panel. If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may occur when the microwave oven is operated under high humidity conditions and in no way indicates malfunction of the unit.
Do not hit or strike the control panel with hard objects. This can damage the oven. Food Never use your microwave oven for home canning. The oven is not designed for proper home canning. Improperly canned food may spoil and be dangerous to consume.
* Q : Why do I have moisture in my microwave oven after cooking? A : The moisture on the side of your microwave oven is normal. It is caused by steam from cooking food hitting the cool oven surface.
Note: The warranty service center list is constantly changing with the addition of our current qualified service centers. If there is inadequate or no local service facility, subject individual customer will call DAEWOO on the toll free number 1-800- DAEWOO8(1-800-323-9668) to be provided with further informations.
