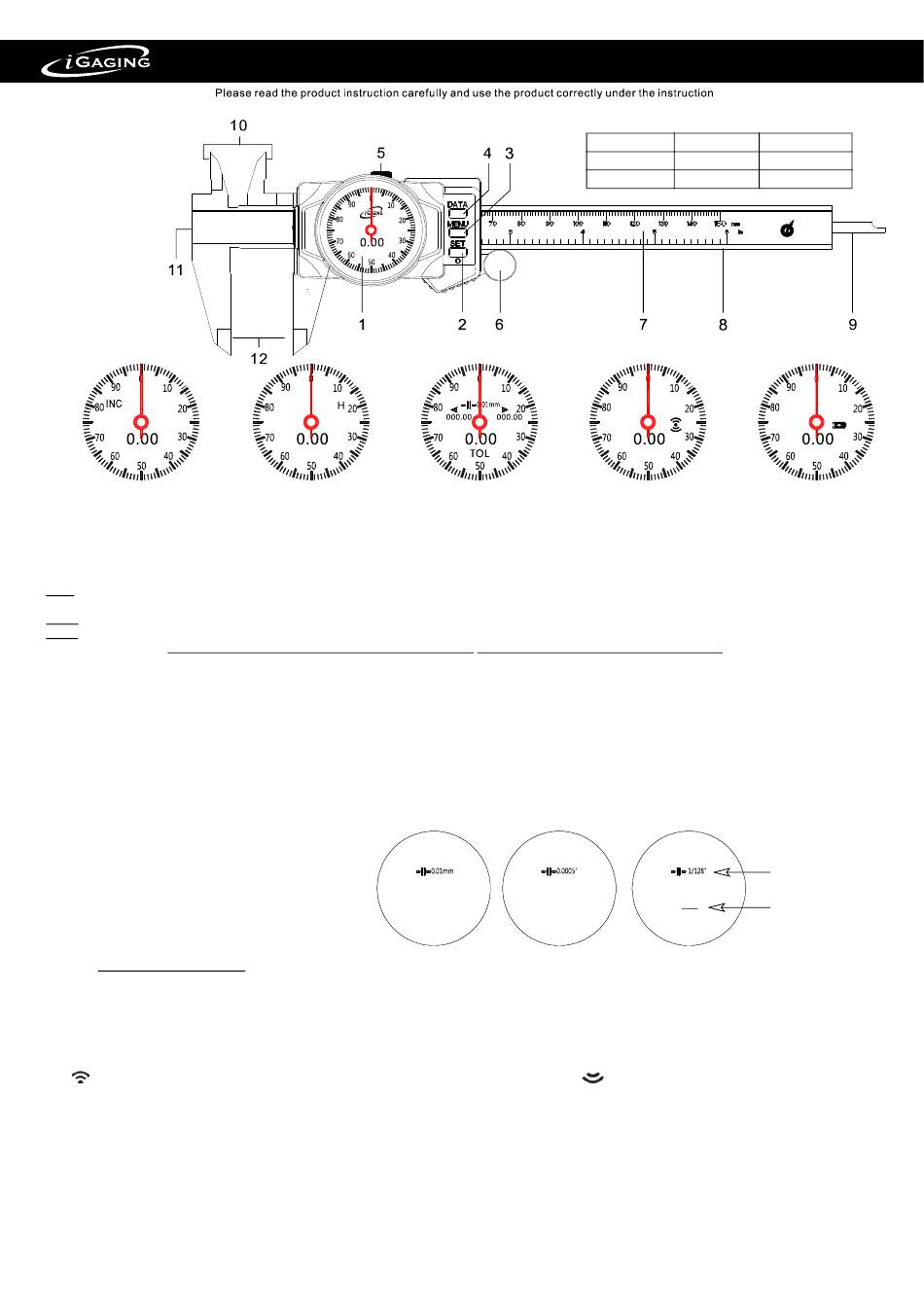

iGaging DigiDial 100-670-06 Instructions

®
Product Features
INC: incremental measure mode
1. LCD Display: Full color LCD digital display with real time digital dial movements and measurement reading.
2. SET/0 Button: short press (press and release) to turn on or reset zero; long press (press and hold for 3 seconds) to power off the gauge.
3. MENU Button: short press to switch among function settings. Short press SET/0 to enter the selected function setting; long press MENU button to
save the setting and exit out of MENU Mode. Functions are as follows:
- Units: when within MENU setting, short press SET/0 to switch reading amount inch decimal 0.0005", inch fractional 1/128, or metric 0.01mm. Long
press MENU to confirm and exit out.
- Bright: set display brightness to Night, Normal, or Bright by pressing SET/0; long press MENU to confirm and exit out.
- Sleep: change display sleep time amount 15s (second), 30s, 1 min (minute), 2 min, 5 min, and 10 min. Short press SET/0 to switch; long press MENU
to confirm and exit out. Display sleep does not mean the gauge is powered off. Please power off the gauge when not in use.
- INC: ability to set a incremental zero at any position. Short press SET/0 to switch between ON (INC to show on display) or OFF; long press MENU to
confirm and exit out.
- HOLD: ability to hold display reading value. Short press SET/0 to activate the function (H to show on display) or to deactivate; long press MENU to
confirm and exit out.
- TOL: ability to set and measure (low and high) tolerance to judge GO / NG. Short press SET/0 to activate the function (TOL to show on display) or to
deactivate; long press MENU to confirm and exit out.
When TOL is active, the digital dial face will show low tolerance value on the center left, and high tolerance value on the center right.
To set both low and high TOL value: long press MENU, the first digit on the center left of the display will turn RED on the setting digit, short press to
cycle though 0 to 9, enter the desired number, double click (double short press) MENU to move to the next digit; repeat the steps until all the value for
the low and high are entered; long press MENU to finish the setting. All low and high TOL values are in block.
When making a measurement, if the value is within tolerance, measured value will display in GREEN; otherwise, the value will stay in RED.
- Interface: ability to change the display style. Short press SET/0 to change between "Interface: 0", dial & digital display; or "Interface: 1", digital reading
display. Long press MENU to confirm and exit out.
4. DATA: (Smart Wireless model only) ability to export reading value to a compatible Bluetooth device; this is a push-button and a wireless keyboard
style data output function.
Turn on Bluetooth discovery on a desired device; long press and hold the physical DATA button located on the upper right corner of the caliper
display unit until the "keyboard" or "Bluetooth keyboard" is discovered on the Bluetooth device. Select and confirm the discovered device and exit out
Bluetooth discovery mode from the electronic device. Select and open a program or a APP that can take keyboard input from the electronic device, and
short press the DATA button on the caliper to export current measurement value. Note: for some Window operating system, re-discovery may not be
available. Delete "Bluetooth keyboard" from the setting and reset the Bluetooth discovery steps.
Smart Wireless will turn off within 15 minutes of non use to save power.
icon will flash during Bluetooth discovery and become stationary after connecting is set.
Follow / Apply local laws and regulation on Bluetooth translation and usage.
5. Locking Screw
6. Thumb Roller
7. Reading Scale
8. Caliper Beam
9. Caliper Depth Measurement Rod
10. Inside Measurement Jaws
11. Step Measurement Surface
12. Outside Measurement Jaws
INSTRUCTION
DigiDial Electronic Digital Caliper
Reading HOLD mode Tolerance Measure Mode
LCD Display when
using "Interface: 1"
0.0
Item# Range
100-670-06 0-6"/150mm
100-670-B06 0-6"/150mm
Smart Wireless Data Output
0.000
1
128
icon will show during data output.
Item# 100-670-06,-B06
Data Output
N/A
Smart Wireless
Digi Dial
Charging
Reading unit
Digital measurement
reading
