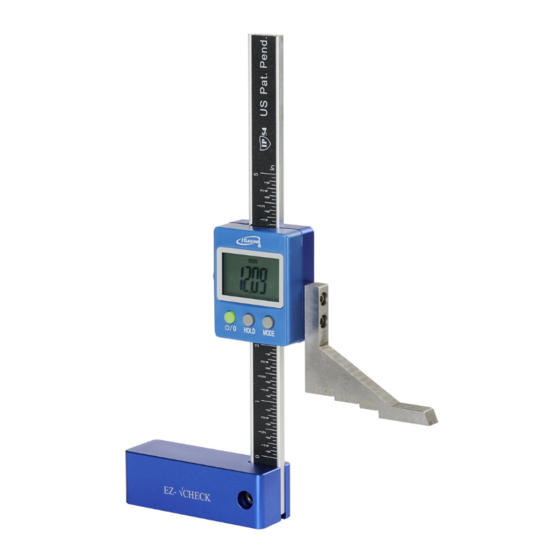

EZ-√Check
Digital Height Gauge
Operating Instructions

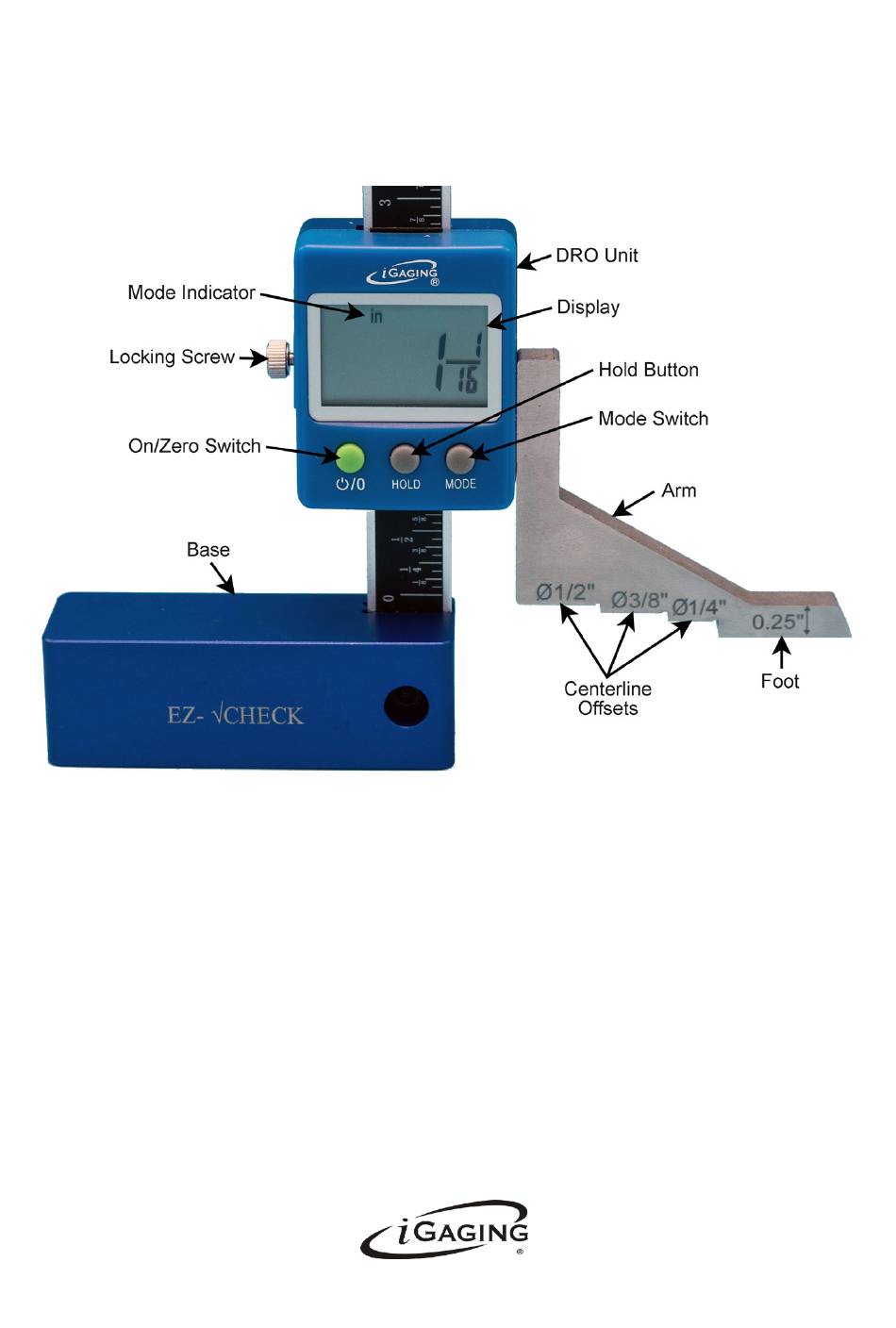

Normenclature
The Three Buttons on the DRO Unit
On/Zero Switch - A short push turns the display on. A second
push zeros the numeric display. The display turns itself off
after a few minutes of inactivity.
Hold Button - Push once to hold the display reading. Push
again to return the display to normal reading.
Mode Switch - Each push changes the display from fractional
inch to a decimal inch to metric.
®2021 iGaging
35-648
1
Advertisement
Table of Contents
Related Manuals for iGaging EZ-Check
Summary of Contents for iGaging EZ-Check
- Page 1 Hold Button - Push once to hold the display reading. Push again to return the display to normal reading. Mode Switch - Each push changes the display from fractional inch to a decimal inch to metric. ®2021 iGaging 35-648...
- Page 2 Router Table To adjust bit height, set up EZ-Check with the foot over bit as shown at right. Hold down on base while raising bit to the desired height.
