Yale SensCheck Window
Sensor Manual
IA-302 and AC-WSM
The Yale SensCheck Window Sensor monitors the status
of your window. It can detect if the window is open,
locked in the closed position, or locked in the vented
position. The window status will be shown in your Yale
Smart Living Home App.

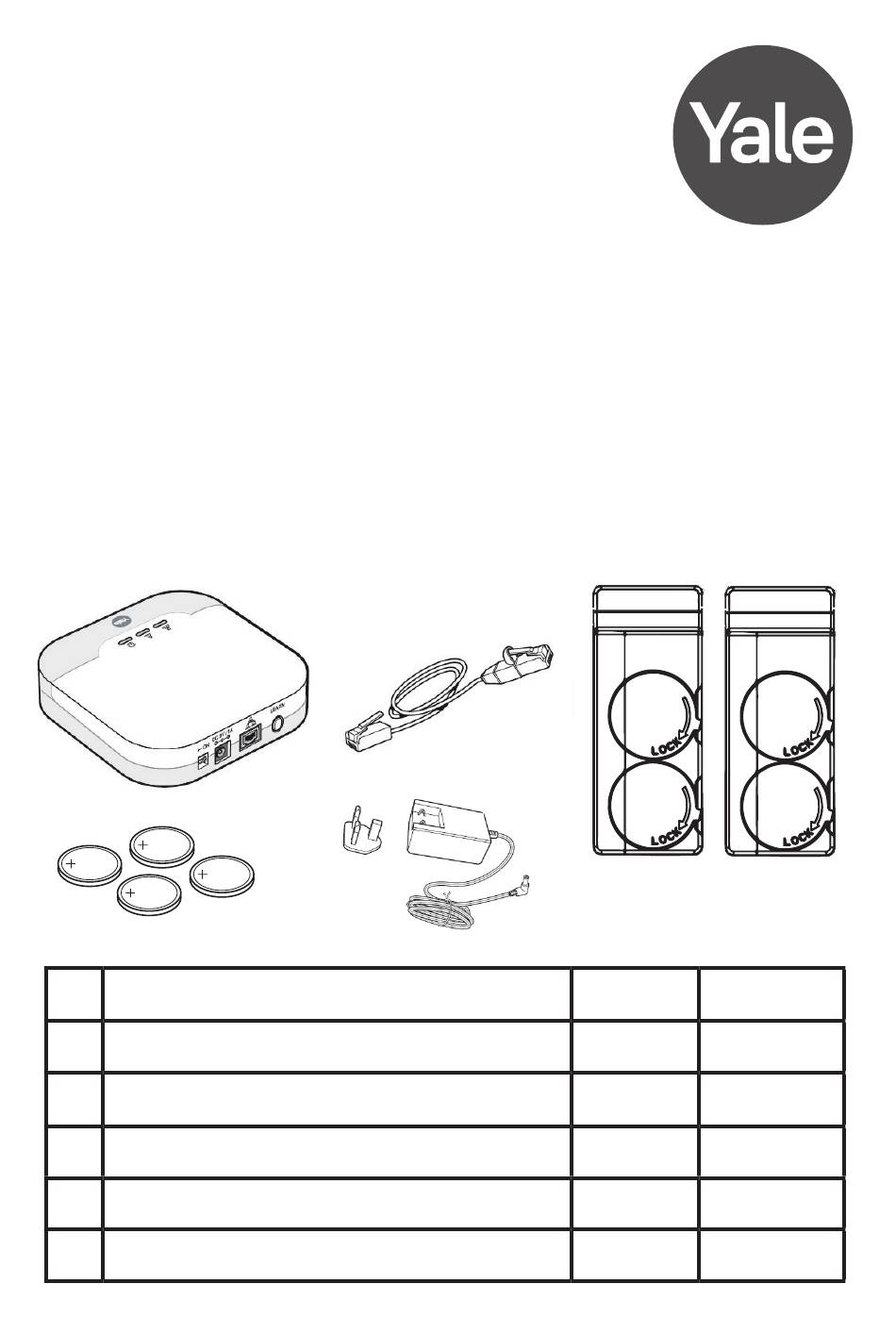

What's in the box
1
5
1.
1 x Yale Sync Hub
2.
1 x Ethernet cable
3.
1 x Power supply
4.
2 x Smart Module
5.
4 x CR2032 3V Lithium batteries
2
3
4
IA-302
AC-WSM
a
a
a
a
a
a
a

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SensCheck IA-302 and is the answer not in the manual?

Questions and answers

Summary of Contents for Yale SensCheck IA-302

  • Page 1 The Yale SensCheck Window Sensor monitors the status of your window. It can detect if the window is open, locked in the closed position, or locked in the vented position. The window status will be shown in your Yale Smart Living Home App. What’s in the box...
  • Page 2: Identifying The Parts

    1. Battery lids 2. Red LED Indicator 3. Sensor Area 1 (Venting Position) 4. Sensor Area 2 (Closed Position) 5. Learn Button 6. Mounting Bracket (already fitted to the Yale smart window) 7. Yale Sync Hub Tools required Pointed Pozi screwdriver...
  • Page 3: Getting Started

    ‘allow’. Getting Started Step 1 If you already have a Yale Sync Hub installed in your home, please go to the top left Menu button on your Yale Smart Living Home App and select ‘Add Device’. You can now proceed to Step 4.
  • Page 4 Step 2 Router NOT INCLUDED <On Off> Connect Yale Sync Hub 1. Connect the Ethernet cable to the Yale Sync Hub. 2. Make sure the other end is in a free internet port in your home router. 3. Remove the small rubber battery switch cover.
  • Page 5 Important note: Please register the Yale Sync Hub within one hour of power up, otherwise you may receive an app “authentication error”. If this happens, switch the Hub on/off following the steps seen below and continue with your installation. <On Off>...
  • Page 6: Inserting The Batteries

    Inserting the batteries Step 5: Fit Battery One into your Window Sensor and Select ‘Activate learning mode’ on your Yale Smart Living Home App. Battery Battery Using a pointed tool press and release Learn button (5) on Window Sensor. If the Yale Sync Hub...
  • Page 7 Step 6: Press ‘Learn’ button on your Smart Module for 10 seconds. Once you see a red LED on your sensor, release and select ‘Button Pressed’ on your Yale Smart Living Home App screen. Step 7: Fit Battery Two into the Smart Module.
  • Page 8 Fitting the smart module to the bracket Step 8: From inside your home, insert the moulded boss features found on the underside of your window sensor into the frame bracket. Slide the window sensor onto the bracket with the battery lids facing inwards. Outside Outside Inside...
  • Page 9 Smart Module Calibration Step 9: Fully close and lock the window. Select ‘Window is closed’ on your Yale Smart Living Home App Step 10: Lock the window in the ventilation position. Select ‘Window is vented’ on your Yale Smart Living Home App.
  • Page 10 Smart Module Calibration Step 11: Fully open the window. Select ‘Window is open’ on your Yale Smart Living Home App. Step 12: Fully close and lock the window. Wait up to 20 seconds for the app to check the reading and move to...
  • Page 11 Smart Module Calibration Step 13: Lock the window in the ventilation position. Wait up to 20 seconds for the app to check the reading and move to the next screen. Step 14: Fully open the window. Wait up to 20 seconds for the app to check the reading.
  • Page 12 - this can take up to 30 seconds. Once complete, select ‘Close’ on your Yale Smart Living Home App. Congratulations, you have successfully installed your Yale SensCheck Window Sensors. To add additional sensors repeat the process from step 4...
  • Page 13 App alerts Following successful installation and calibration of your Smart sensor/s; the following notifications will appear on your Yale Smart Living Home App Dashboard: Amber indicates a indicates a Green indicates all (named) window is (named) window windows are closed...
  • Page 14 To receive notifications regarding the status of your Yale Smart Sensors when leaving your property, go to the top left menu button on your Yale Smart Living Home App: Settings > Users > Notifications > Geo-notifications Move the yellow circle to position your geo-boundary and click ‘Save’.
  • Page 15 Personalisation Chime notifications To turn an audible chime on/off every time your window is opened, go to the top left menu button on your Yale Smart Living Home App: Settings > Alarm Settings > Devices > Select named sensor > Panel Chime (on/off)> Save...
  • Page 16 To set the volume of your audible chime every time your window is opened, go to the top left menu button on your Yale Smart Living Home App: Settings > Alarm settings > System settings > General configuration > Door/ window chime sounds >...
  • Page 17: Useful Information

    Useful information Changing the Batteries Twist the battery lids to unlock in the direction indicated on the battery lids until the batteries pop up. (This is easiest when the sensor is removed from the window frame). After the batteries have been removed, use a pointed tool to press the Learn button 5-6 times to fully discharge before inserting the new batteries.
  • Page 18 Useful information Batteries The Yale SensCheck Window Sensor uses two CR2032 3V Lithium batteries as its power source. When the battery is low, a low battery signal will be sent to the app and displayed as a warning on the app dashboard.
  • Page 19: Troubleshooting

    Useful information Sensor Status To view the status of your sensors, go to the top left menu button on your Yale Smart Living Home App: Settings > Alarm Settings > Devices Trouble Shooting Check app history log to see fault details.
  • Page 20 ** For information on Amazon Alexa skills and country compatibility please refer to Amazon’s website. Scan QR tag for help and support and to view additional products within the Yale range www.yalehome.co.uk ASSA ABLOY Nederland B.V. Postbus 40 4940 AA Raamsdonksveer...
