The Yale SensCheck Door Sensor monitors your door
lock status and the opening / closing of the door.

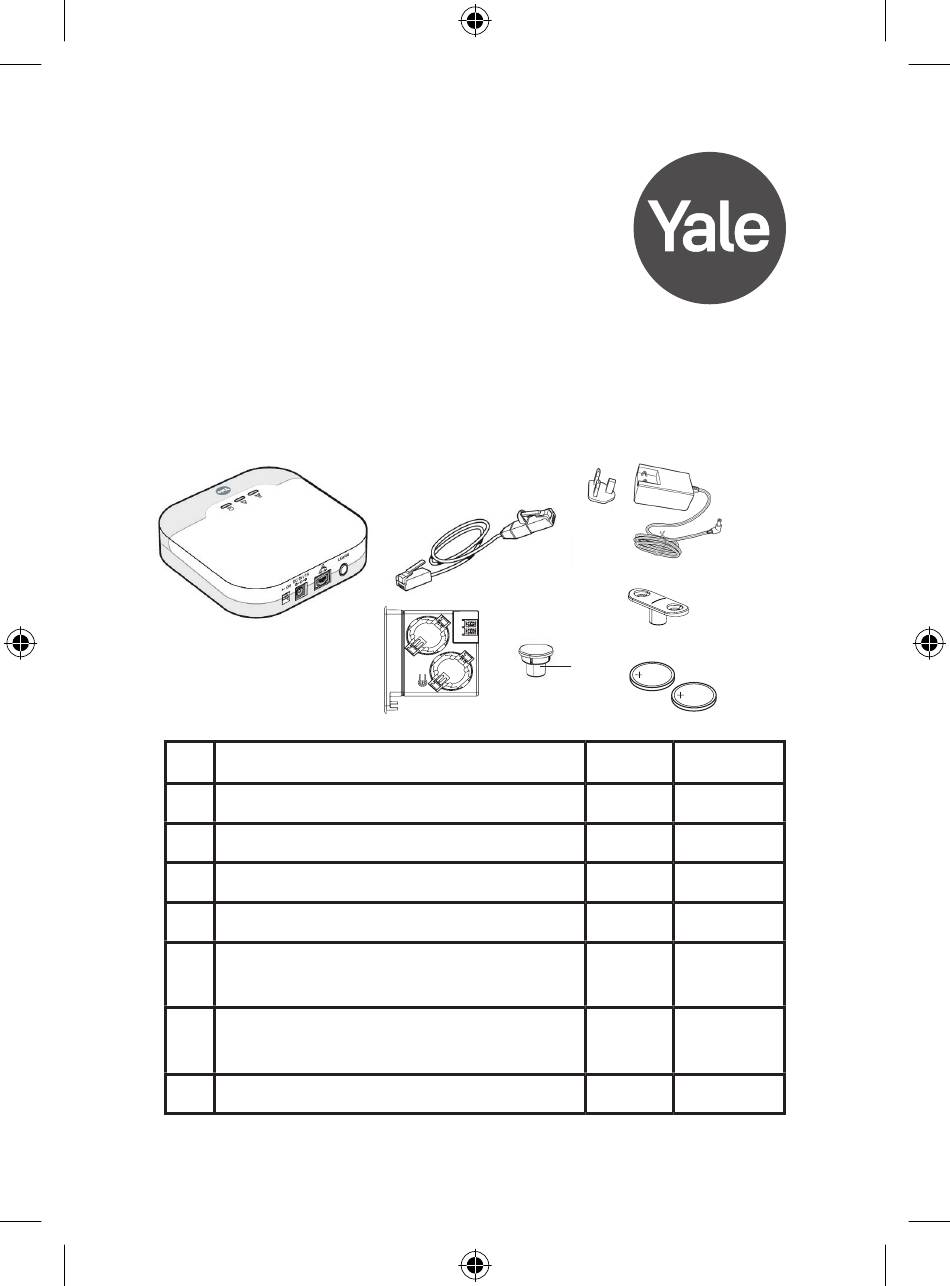

What's in the box
1
1.
1 x Yale Sync Hub
2.
1 x Ethernet cable
3.
1 x Power supply
4.
1 x Smart Module
5.
1 x PVCu Door Frame Magnet
Sensor
(If not pre-fitted)
6.
1 x Composite/ Timber Door Frame
Magnet Sensor
7
2 x CR2032 3V Lithium batteries
2
4
(If not pre-fitted)
3
6
5
7
Surface treatment:
Material:
General tolerance:
ISO 8015
ISO 2768-mH
Volume:
Mass:
Surface area:
Created (YYYY-MM-DD):
Designed by:
Drawn by:
Scale:
Projection:
1075.29 mm³
2:1 (A4)
1.08 gram
1761.05 mm²
Alternate ID
Document ID
Rev.:
1
SHEET 1 OF 1
Configuration:Default
IA-301 AC-DSM
a
a
a
a
a
a
a
a
a
a
a
Advertisement
Table of Contents
Related Manuals for Yale SensCheck IA-301
Summary of Contents for Yale SensCheck IA-301
- Page 1 Yale SensCheck Door Sensor Manual IA-301 and AC-DSM The Yale SensCheck Door Sensor monitors your door lock status and the opening / closing of the door. What’s in the box Surface treatment: Material: General tolerance: ISO 8015 ISO 2768-mH Volume:...
-
Page 2: Identifying The Parts
Identifying the Parts 1 x Siren Yale Home Hub x 1 Surface treatment: Material: General tolerance: ISO 8015 ISO 2768-mH Volume: Mass: Surface area: Created (YYYY-MM-DD): Designed by: Drawn by: Scale: Projection: 2:1 (A4) 1075.29 mm³ 1.08 gram 1761.05 mm²... -
Page 3: Getting Started
Important Information 1. We may need to update your firmware during set up. Please click ‘confirm’ if prompted. 2. Your Yale App may want to send notifications to your mobile phone. If requested, please click ‘allow’. Getting Started Step 1... - Page 4 Step 2 Router NOT INCLUDED <On Off> Connect Yale Sync Hub 1. Connect the Ethernet cable to the Yale Sync Hub. 2. Insert the other end into an available internet port in your home router. 3. Remove the small rubber battery switch cover, move the switch to ON, then replace the rubber cover.
- Page 5 - 1 Digit or special character Your Master PIN code must be 4 digits. Step 4: Select ‘I am adding an alarm device’. Step 5: Select ‘Activate learning mode’. Step 6: Your Yale Smart Living Home App will now search for your Door Sensor.
- Page 6 Module, this will send a learning signal to the Yale Sync Hub. Complete pairing process Step 8: If the Yale Sync Hub suc- cessfully received the signal, it will double-beep and the Yale Smart Living Home App will list the sen- Insert name here sor as shown below.
- Page 7 Insert the retaining screw and re-tighten. The Smart Module will flash once fully inserted. Select ‘Home’ button in the Yale Smart Living Home App to return to the Main Yale logo Retaining screw Important note: If your door has been supplied with the door frame sensor pre-fitted, please continue to App alerts.
- Page 8 Green indicates all door is unlocked the door is unlocked doors are closed and and open. and closed. locked. Congratulations your Yale SensCheck Door Sensor is now installed. Now you have successfully completed your installation, let’s personalise your sensors.
- Page 9 To receive notifications regarding the status of your Yale Smart Sensors when leaving your property, go to the top left menu button on your Yale Smart Living Home App: Settings > Users > Notifications > Geo-notifications Move the yellow circle to position your geo-boundary and click ‘Save’.
- Page 10 Personalisation Chime notifications To turn an audible chime on/off every time your door is opened, go to the top left menu button on your Yale Smart Living Home App: Settings > Alarm Settings > Devices > Select named sensor > Panel Chime (on/off)> Save...
- Page 11 To set the volume of your audible chime every time your door is opened, go to the top left menu button on your Yale Smart Living Home App: Settings > Alarm settings > System settings > General configuration > Door/ window chime sounds >...
-
Page 12: Useful Information
Useful information Batteries The Yale SensCheck Door Sensor uses two CR2032 3V Lithium batteries as its power source. When the battery is low, a low battery signal will be sent to the app and displayed as a warning on the app dashboard. - Page 13 Useful information Changing the Batteries Unscrew the module retaining screw and remove the Smart Module. Remove the batteries and press the Learn button 5-6 times to fully discharge before inserting the new batteries. Once the new batteries are installed, re-insert the Smart Module and secure with the retaining screw.
- Page 14 Useful information Sensor Status To view the status of your sensors, go to the top left menu button on your Yale Smart Living Home App: Settings > Alarm Settings > Devices...
-
Page 15: Troubleshooting
Trouble Shooting Check app history log to see fault details. System normal If you continue to have issues please visit https://help.yale.co.uk... - Page 16 ** For information on Amazon Alexa skills and country compatibility please refer to Amazon’s website. Scan QR tag for help and support and to view additional products within the Yale range www.yalehome.co.uk ASSA ABLOY Nederland B.V. Postbus 40 4940 AA Raamsdonksveer...
