- Page 3 S6 E-BIKE WELCOME AMYET! Please read this owner’ s handbook carefully before using your S6 in order to become thoroughly familiar with the correct operation of your bike’ s controls, its features, capabili- ties, and limitations. This handbook includes safe riding tips, but does not contain any of the techniques and skills necessary to ride an electric bicycle safely.
-
Page 4: Table Of Contents
AMYET S6 E-BIKE CONTENTS Getting Started 03--04 Assembly Instructions 04--06 Display And Setting 07--19 Battery Information 20--23 Safety Check 23--24 Service Your Ebike Regularly Riding Safety 26--28 Claims Process 29--30... -
Page 5: Getting Started

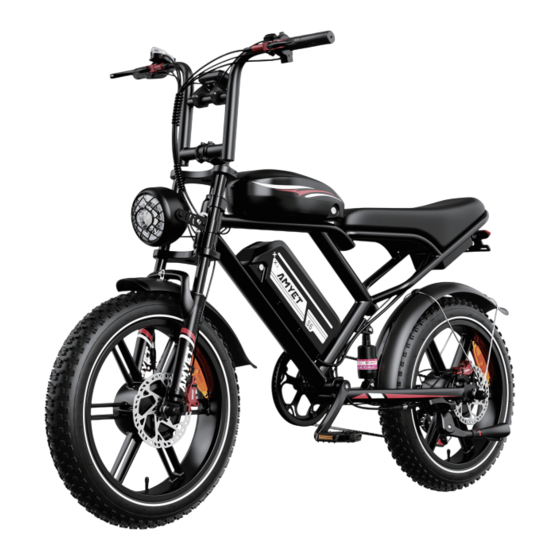

AMYET S6 E-BIKE GETTING STARTED E-BIKE STRUCTURE BATTERY BIKE FRAME SEAT LED HEADLIGHT REAR LIGHT BATTERY USB PORT BATTERY BIKE MOTOR DISC BRAK TIRE REAR DERAILLEUR CRANK PEDALS BIKE MOTOR IN THE PACKAGING Battery Keys Inflator Charger Pedals Covers Mudguard... -
Page 6: Assembly Instructions
SINGLE/DUAL MOTOR ASSEMBLY INSTRUCTIONS Assembly and first adjustment of your ebike from AMYET requires special tools and skills. We recommend that you have this done by a professional, reputable bike mechanic. Keep this manual and any other documents that came with your AMYET. -
Page 7: Install The Front Wheel
AMYET S6 E-BIKE 2.Install the handlebar A.Use the hex wrench to remove the bolts from the handlebar clamp. B. Once the clamp is open, place the lower crossbar of the handlebar in the groove of the top crown. C. Loosely tighten the handlebar clamp with the hex wrench, and adjust the angle of the handlebar to rider’... - Page 8 AMYET S6 E-BIKE 4.Install the front fender/mudguard A.Pass the fender from the back of the front wheel. B.Put the fender in the position of the front fork,insert the bolt into it,and then lock the nut, fix the nut with a wrench, and tighten the bolt with a hexagonal screwdriver.
-
Page 9: Display And Setting
AMYET S6 E-BIKE DISPLAY AND SETTING SPECIFICATION Rated operating power of the instrument: 15mA Maximum operating current of the instrument 30mA Shutdown leakage current: <1uA Power supply to the controller: 50mA Working temperature: -20～60°C Storage humidity: -30 to 70°C APPEARANCE AND PARAMETERS 1.View Sth From The Outside... -
Page 10: Routine Operation
AMYET S6 E-BIKE FUNCTIONALITY 1.Functional Overview The SX985 gauge offers a wide range of features to suit your riding needs, content includes: Speed display (including real-time speed, maximum speed, average speed) Boost Gear Adjustment and Indication Battery level display Error icon display... - Page 11 AMYET S6 E-BIKE 2.Display Interface Switching When the instrument is switched on, the instrument displays real-time speed (km/h) and total mileage (km) by default. Short press the key to display information to switch between total mileage (km), single mileage (km), maximum speed (km/h), and average speed (km/h).
-
Page 12: Battery Level Display
AMYET S6 E-BIKE 5.Boost Gear Selection Short press key to switch the electric vehicle power assist gear, thus changing the motor output power. Figure 5 Gear switching display interface The icon is always on to show the pure electric and power assisted modes, without this icon it is pure electric mode, and with this icon blinking it is pure power assisted mode. -
Page 13: Backlight Brightness
AMYET S6 E-BIKE Error Icon Define Motor Failure Failure of the speed control handle Controller Failure Brake Failure Figure 7.1 Error Code Display Screen Figure 7.2 Error Code Contents When an error code appears on the display interface, please troubleshoot the problem in time, the electric car will not be able to drive normally after the problem occurs. - Page 14 AMYET S6 E-BIKE Figure 1 Backlight Brightness Setting Interface 2.Metric Unit Setting P02 is the metric/imperial unit setting option, where 0 represents kilometres and 1 represents miles. The default is kilometres. Press the buttons at the same time to enter the parameter change status, short press the...
-
Page 15: Wheel Diameter Setting
AMYET S6 E-BIKE 4.Sleep Time Setting P04 is the auto power off time setting option, in order to save the power of the whole vehicle to get a higher range, this instrument is equipped with a long time without any operation auto power off... -
Page 16: Speed Limit Setting
AMYET S6 E-BIKE Figure 6 Wheel diameter setting interface 7.Velocimetry Sensor Magnet Count Setting P07 is the setting option for the number of magnets of the speed sensor, and the adjust- able range of the number of magnets of the instrument is 1~100. - Page 17 AMYET S6 E-BIKE 9.Zero Start, Non-Zero Start Settings 0: zero start; 1: non-zero boot; Figure 9 Zero Start, Non-Zero Start Setting Setting Screen 10.Drive Mode Setting 0: Enabling drive; 1: Electric drive; 2: Simultaneous coexistence of power-assisted and electric drives Figure 10 Driver mode setting screen 11.Boost Sensor Sensitivity Setting...
- Page 18 AMYET S6 E-BIKE Figure 11 Boost Sensor Sensitivity Setting Screen 12.Boost Start Strength Setting P12 is the booster start strength setting. Range: 0-5; Figure 12 Boost Start Strength Setting Screen 13.Helper Magnet Counting Disc Type Setting P13 is the pedal assist sensor magnets setting. The adjustable range is: 5/8/12.
-
Page 19: Wiring Diagram
AMYET S6 E-BIKE 14.Controller Current Limit Value Setting P14 is the controller current limit setting option, the instrument controller current limit adjustable range is: 1~20A. default 12A. Figure 14 Controller current limit setting interface 15.Tobedeveloped To Be Developed 16.Single Zero Setting Long press key for 5 seconds ODO clear. - Page 20 AMYET S6 E-BIKE Convex State Groove State Controllers Meter (female) Meter (male) 1.Standard Connector Wiring Sequence Standard Wiring Sequence Standard Cable Colours Functionality Red (VCC) Instrument Power Cord Blue (Kp) Controller Power Cord Black (GND) Instrument ground Green (RX) Data receiving line of the instrument...
- Page 21 AMYET S6 E-BIKE P07: Speed measurement magnetic steel number: range: 1-100; P08: Speed limit: Range 0-50km/h, where 50 indicates no speed limit, 1. Non communication state (instrument control): When the speed is greater than the set speed, the PWM output is turned off; When the speed drops below the set speed, the PWM output is automatically turned on, and the driving speed is ±...
-
Page 22: Battery Information
CAUTION: Do not put any object into your battery’ s charging port other than the AMYET charging plug designed for this purpose (and pictured in the illustration). Inserting other objects into the charging port could damage your battery. Safe operating temperatures We recommend riding in temperatures between -15°C to 40°C (5°F to 105°F). - Page 23 AMYET S6 E-BIKE NOTE ON USAGE Battery installation/mounting To install the battery, you do need the key. Check to ensure the battery mount is clean and dry, and then follow these steps. Before you charge NOTICE: Failure to follow the battery-charging best practices outlined in this manual could result in unnecessary wear to the battery and/or charger, and could lead to an underperforming or non-functional battery.
-
Page 24: Charging Procedure
Using a damaged battery or charger can damage additional components or create a fire hazard. Stop using your battery and charger and contact AMYET if any of the following occur: (1) your charger’ s flexible power cord or output cable or any of the electrical cables on... -
Page 25: Safety Check
Typical components affected are the tyres, brake pads and rotors, forks, spokes, wheels, and the battery. If you need to replace a part on your ebike, visit AMYET. If you want something that isn’ t listed there, contact AMYET Product Support. Be extremely careful about using parts or accessories that AMYET has not tested for safety and compatibility with your specific... - Page 26 WARNING: Using aftermarket accessories or components (trailers, stands, vehicle racks, etc.) that have not been tested by AMYET for safety and compatibility with your specific ebike may void your warranty, create an unsafe riding condition, result in ebike/property damage, or cause serious injury or death. If you use replacement parts or accessories not tested and recommended by AMYET, you do so at your own risk.
-
Page 27: Service Your Ebike Regularly
TYRE AND WHEEL CARE The S6 has tire sizes of 20” x 4” tires with inner tubes and a rim liner. The tyres and inner tubes that came with your ebike are designed for durability and safety for regular cycling activities. -
Page 28: Riding Safety
AMYET S6 E-BIKE RIDING SAFETY Please read carefully before enjoying your ride. Like any sport, cycling involves risk of injury and it is the rider’ s responsibility to assume potential risks and injury involved when riding. By choosing to ride a bicycle, you assume the responsibility for that risk. -
Page 29: Off-Road Riding
AMYET S6 E-BIKE ON THE WAY TO NOTE: For you and other safety,it is your responsibility to know the local laws that govern any type of vehicle you use.Please consciously abide by traffic rules. Riding any bike, ebike, or similar vehicle without a helmet puts you at VERY HIGH RISK of serious head injury or death. -
Page 30: Wet Conditions
Ensure headlight and taillight/brake light are functioning correctly and unobstructed. Use them. WET CONDITIONS Your S6 is not meant for use in puddles, heavy rain, or streams. Never immerse or submerge this product in water or liquid as the electrical system may be damaged. WARNING: Riding in wet conditions means slippery hands, feet, and riding surfaces, which greatly increases your risk of accidents, serious injury, or death. -
Page 31: Claims Process
Like any rechargeable battery, your AMYET rechargeable battery pack will experience a decrease in capacity over time as it is subjected to charge and discharge cycles. AMYET warranties that your battery pack will maintain 70% or higher capacity for at least 365 charge cycles or one years, whichever comes first. - Page 32 Damage to a Covered Component during shipping is not covered by this Limited Warranty, but AMYET will replace such damaged Covered Components if you: Notify AMYET of a Covered Component damaged in the shipping process within thirty (30) days of your receipt of the ebike;...
