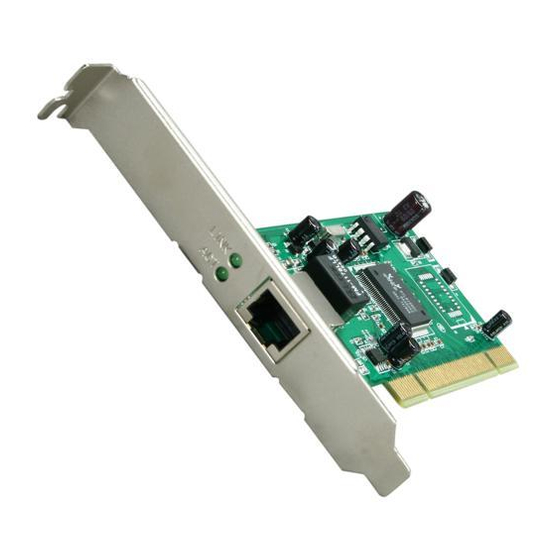

TRENDnet TEG-PCITXR User Manual
10/100/1000mbps gigabit ethernet card
Hide thumbs
Also See for TEG-PCITXR:
- User manual (24 pages) ,
- Quick installation manual (11 pages) ,
- Specifications (2 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for TRENDnet TEG-PCITXR
Summary of Contents for TRENDnet TEG-PCITXR
-
Page 2: Fcc Warning
FCC Warning This equipment has been tested and found to comply with the regulations for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in ... - Page 3 N T R O D U C T I O N Thank you for choosing the 10/100/1000Mbps Gigabit Ethernet Card for 32‐bit PCI Bus‐equipped personal computers. The 32‐bit PCI 10/100/1000Mbps Gigabit Ethernet Card is ideal for speeding up data transfers for network servers and other computers, such as those ...
-
Page 4: Gigabit Ethernet Technology
CSMA/CD protocol, full duplex, and management objects, but with a tenfold increase in theoretical throughput over 100Mbps Fast Ethernet and a one hundred‐fold increase over 10Mbps Ethernet. Since it is compatible with all 10Mbps and 100Mbps Ethernet environments, Gigabit Ethernet provides a straightforward upgrade without wasting a company’s existing investment in hardware, software, and trained ... - Page 5 Twisted‐Pair cable connections to support video conferencing, complex imaging, and similar data‐intensive applications. Likewise, since data transfers occur 10 times faster than Fast Ethernet, servers outfitted with Gigabit Ethernet NIC’s are able to perform 10 times the number of operations in the same amount of time. 3 ...
-
Page 6: Fast Ethernet Technology
Fast Ethernet Technology The growing importance of LANs and the increasing complexity of desktop computing applications are fueling the need for high performance networks. A number of high‐speed LAN technologies have been proposed to provide greater bandwidth and improve client/server response times. Among them, 100BASE‐T ... - Page 7 N P A C K I N G A N D N S T A L L A T I O N This chapter provides unpacking and installation information for the 32‐bit PCI 10/100/1000Mbps Gigabit Ethernet Card. Unpacking CAUTION: Under ordinary circumstances, the 32‐bit PCI ...
-
Page 8: Installing The Gigabit Ethernet Card
1. Insert the CD‐ROM to your CD‐ROM drive and once the Autorun window appears, select Install Driver option to start the installation. 2. Follow the instructions on your desktop and once the driver installation is completed, please shut down the computer, unplugs its power cord, and remove the chassis cover. 3. Insert the contact edge of the Gigabit Ethernet card into the connector of any available PCI Bus Master 10 ... - Page 9 Press the card firmly into the connector such that the card’s contacts are fully seated in the connector, this card can put either in 32‐bit or 64‐bit PCI slot, but it is recommended that the card to put in the 64‐bit PCI slot to have the maximum performance. 3. Install the bracket screw and secure the card to the computer chassis. ...
-
Page 10: Connecting The Network Cable
Connecting the Network Cable Four pair of Cat.5 UTP or STP cable with RJ‐45 connector is required for the 32‐bit PCI 10/100/1000Mbps Gigabit Ethernet Card. You can use standard or crossover cable to connect the switch MDI‐ X or MDI‐II port, because the 32‐bit PCI 10/100/1000Mbps Gigabit Ethernet Card will adjust the correct signal automatically. 12 ... - Page 11 L ED N D I C A T O R S Two LED indicators: Link, Activity. Link Indicator This indicator lights green when the Gigabit Card is connects to 10/100/1000Mbps Gigabit Ethernet Network. Activity Indicator (ACT) This indicator blinking green will be transmitting or received data on the network. 13 ...
- Page 12 E C H N I C A L P E C I F I C A T I O N S General Standards IEEE 802.3 10Base‐T Ethernet IEEE 802.3u 100Base‐TX Fast Ethernet IEEE 802.3ab 1000Base‐T Gigabit Ethernet IEEE 802.3x Flow Control Protocol CSMA/CD Data Transfer Ethernet: 10Mbps (half), 20Mbps (full) Rate Fast Ethernet: 100Mbps (half), 200Mbps (full) Gigabit Ethernet: 1000Mbps, 2000Mbps (full) Topology Star Network Ethernet: 2‐pair UTP Cat. 3,4,5 , EIA/TIA‐ 568 STP Cables ...
-
Page 13: Limited Warranty
AC/DC Power Adapter, Cooling Fan, and Power Supply carry 1 year warranty. If a product does not operate as warranted during the applicable warranty period, TRENDnet shall reserve the right, at its expense, to repair or replace the defective product or part and deliver an equivalent product or part to the customer. The repair/replacement unit’s warranty continues from the original date of purchase. All products that are replaced become the property of TRENDnet. Replacement products may be new or reconditioned. TRENDnet does not issue refunds or credit. Please contact the point‐of‐purchase for their ... - Page 14 There are no user serviceable parts inside the product. Do not remove or attempt to service the product by any unauthorized service center. This warranty is voided if (i) the product has been modified or repaired by any unauthorized service center, (ii) the product was subject to accident, abuse, or improper use (iii) the product was subject to conditions more severe than ...
- Page 15 DOES NOT OPERATE AS WARRANTED ABOVE, THE CUSTOMER’S SOLE REMEDY SHALL BE, AT TRENDNET’S OPTION, REPAIR OR REPLACE. THE FOREGOING WARRANTIES AND REMEDIES ARE EXCLUSIVE AND ARE IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, EITHER IN FACT OR BY OPERATION OF LAW, STATUTORY OR OTHERWISE, INCLUDING WARRANTIES OF MERCHANTABILITY AND ...
- Page 16 NOT BE AFFECTED IF ANY REMEDY PROVIDED HEREIN SHALL FAIL OF ITS ESSENTIAL PURPOSE. Governing Law: This Limited Warranty shall be governed by the laws of the state of California. Some TRENDnet products include software code written by third party developers. These codes are subject to the GNU General Public License ("GPL") or GNU Lesser General Public License ("LGPL"). Go to http://www.trendnet.com/gpl or http://www.trendnet.com Download section and look for the desired TRENDnet product to access to the GPL Code or LGPL Code. These codes are distributed WITHOUT WARRANTY and are subject to the copyrights ...
- Page 17 19 ...
