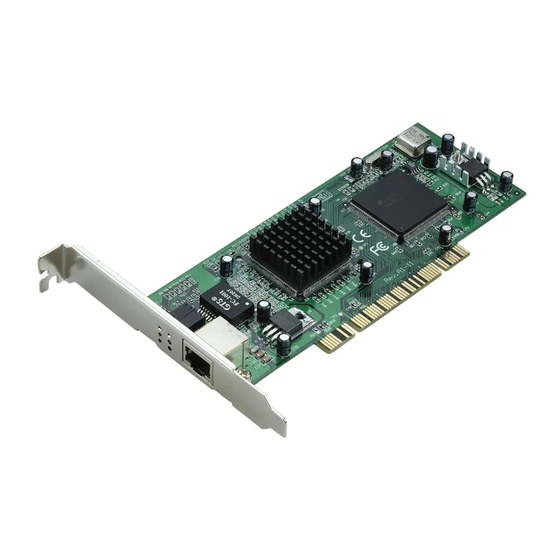

32-bit pci 10/100/1000mbps nway gigabit ethernet card
Hide thumbs Also See for TEG-PCITX:

Advertisement

Quick Links

TEG-PCITX
32-bit PCI
10/100/1000Mbps NWay
Gigabit Ethernet Card
User's Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TEG-PCITX and is the answer not in the manual?

Questions and answers

Summary of Contents for TRENDnet TEG-PCITX

  • Page 1 TEG-PCITX 32-bit PCI 10/100/1000Mbps NWay Gigabit Ethernet Card User’s Guide...
  • Page 2: Fcc Warning

    FCC Warning This equipment has been tested and found to comply with the regulations for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 3: Table Of Contents

    ABLE OF ONTENTS INTRODUCTION .................1 EATURES ....................1 IGABIT THERNET ECHNOLOGY..........2 THERNET ECHNOLOGY ............3 UNPACKING AND INSTALLATION ....5 NPACKING....................5 NSTALLING THE IGABIT THERNET ARD ......6 ONNECTING THE ETWORK ABLE ...........6 OFTWARE NSTALLATION..............7 LED INDICATORS ..............9 TECHNICAL SPECIFICATIONS ......11...
  • Page 5: Introduction

    ?? Full Duplex support for 10/100/1000Mb/s data rates ?? Auto MDI-II/MDI-X crossover for all three speeds ?? Built-in 8 KB Transmit and 32 KB Receive data FIFOs ?? Virtual LAN (VLAN) and long frame support. VLAN tag insertion supports for transmit packets. VLAN tag detection and...
  • Page 6: Gigabit Ethernet Technology

    Upgrading key components, such as your backbone and servers to Gigabit Ethernet can greatly improve network response times as well as significantly speed up the traffic between your subnets. Gigabit Ethernet enables Twisted-Pair cable connections to...
  • Page 7: Fast Ethernet Technology

    Fast Ethernet solutions in the years to come. 100Mbps Fast Ethernet is a new standard specified by the IEEE 802.3 LAN committee. It is an extension of the 10Mbps Ethernet standard with the ability to transmit and receive data at 100Mbps, while maintaining the CSMA/CD Ethernet protocol.
  • Page 9: Unpacking And Installation

    Unpacking CAUTION: Under ordinary circumstances, the 32-bit PCI 10/100/1000Mbps NWay Gigabit Ethernet Card will not be affected by static charge as may be received through your body during handling of the unit. However, there are special circumstances where you may carry an extraordinarily high static charge, and possibly damage the card and/or your computer.
  • Page 10: Installing The Gigabit Ethernet Card

    In such a case, the conflict of Interrupt Number will cause faults in the behavior of both devices. Install the adapter in a different slot or run the CMOS Setup utility, and manually assign a non- conflicting Interrupt Number (see Motherboard Manual for more information).
  • Page 11: Software Installation

    Software Installation Before you connect the 32-bit PCI 10/100/1000Mbps NWay Gigabit Ethernet Card to the network, you have to install the network driver first. The driver for each networking operating system is under a separate directory. A HELP.EXE file under root directory lists the information and detailed installation procedure of all the available drivers.
  • Page 13: Led Indicators

    LED I NDICATORS 1000Mbps Gigabit Ethernet Link (1000) This indicator lights green when the Gigabit Card is connected to 1000Mbps Gigabit Ethernet Network. 100Mbps Fast Ethernet Link (100) This indicator lights green when the Gigabit Card is connected to 100Mbps Fast Ethernet Network.
  • Page 15: Technical Specifications

    Auto MDI-II/MDI-X port Physical and Environmental Power 10 watts. (max.) Consumption Temperature Operating: -10 ~ 50 C, Storage: -10 ~ 70 C Humidity Operating: 10% ~ 90%, Storage: 5% ~ 90% Dimensions 164 x 69 mm (W x H) EMI:...
