Art.-No.: FWL 2200 WW
Operationsmanual
1 Safety instructions
Electrical equipment may only be installed and fitted by electrically skilled persons.
Danger of electric shock. Always disconnect before carrying out work on the devise or
load. At the same time, take into account all circuit breakers that supply dangerous
voltage to the device or load.
Danger of electric shock. Device is not suitable for disconnection from supply voltage.
Failure to observe the instructions may cause damage to the device and result in fire and
other hazards.
The radio communication takes place via a non-exclusively available transmission path,
and is therefore not suitable for safety-related applications, such as emergency stop and
emergency call.
These instructions are an integral part of the product, and must remain with the end
customer.

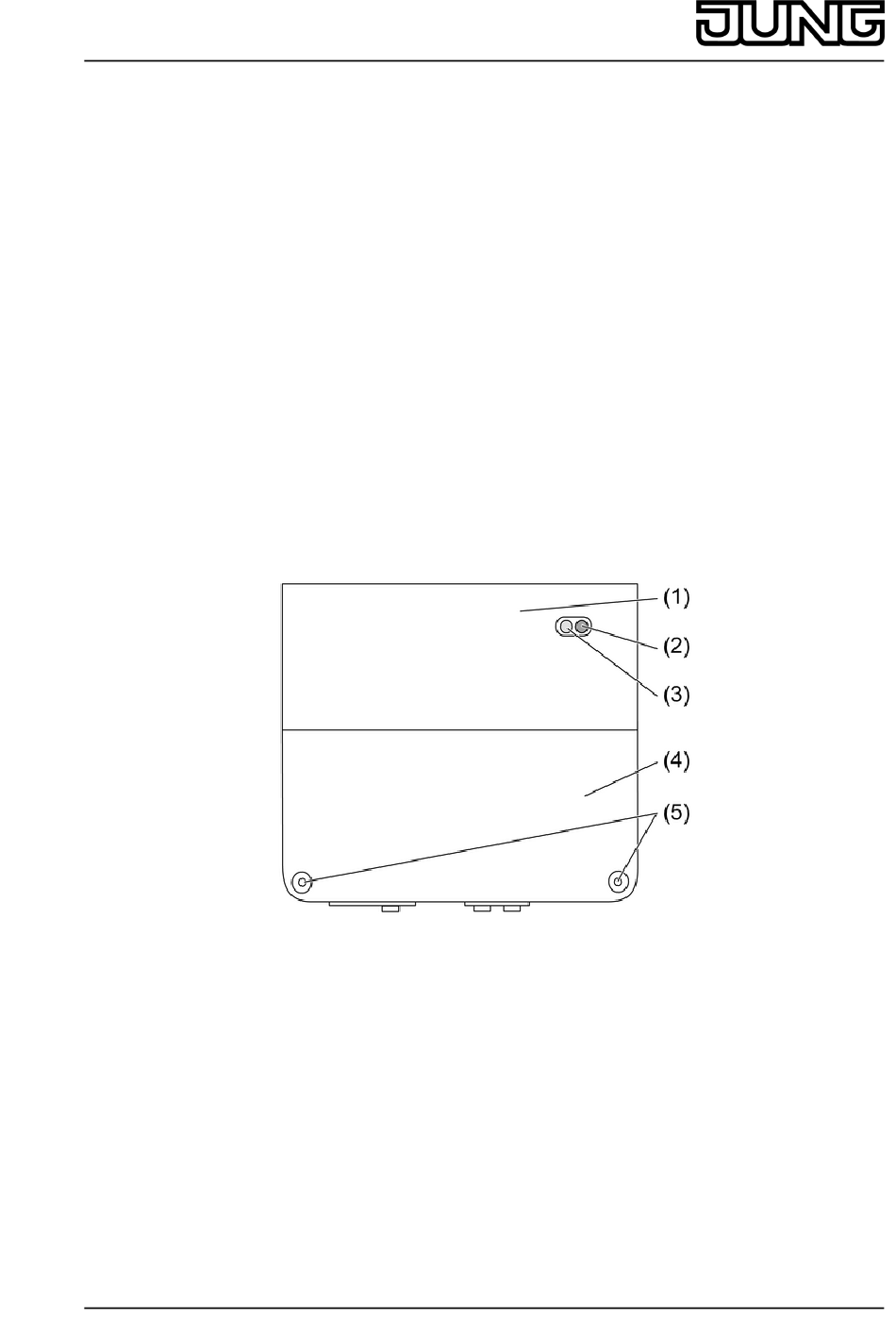

2 Device components
(1) Radio power pack
(2) red LED
(3) green LED
(4) Housing lid
(5) Screws
3 Function
System information
By statute, the reception characteristics and the antenna cannot be changed.
The device may be operated in all EU and EFTA countries.
The declaration of conformity can be viewed on our website.
32529813
J:0082529813
picture 1
1/10
20.07.2010
