Blinds Management
Centre plate with radio receiver, Centre plate with radio receiver and
sensor connection

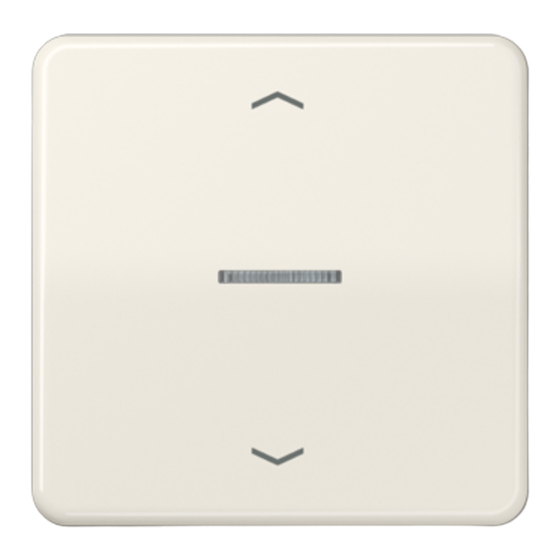

Centre plate with radio receiver
Art. No. : ..5232F..
Centre plate with radio receiver and sensor connection
Art. No. : ..5232FS..
Operating instructions
1 Safety instructions
Electrical equipment may only be installed and fitted by electrically skilled persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
Danger of electric shock. Always disconnect before carrying out work on the devise or
load. In so doing, take all the circuit breakers into account, which support dangerous
voltages to the device and or load.
Danger of electric shock. Device is not suitable for disconnection from supply voltage.
The radio communication takes place via a non-exclusively available transmission path,
and is therefore not suitable for safety-related applications, such as emergency stop and
emergency call.
These instructions are an integral part of the product, and must remain with the end
customer.

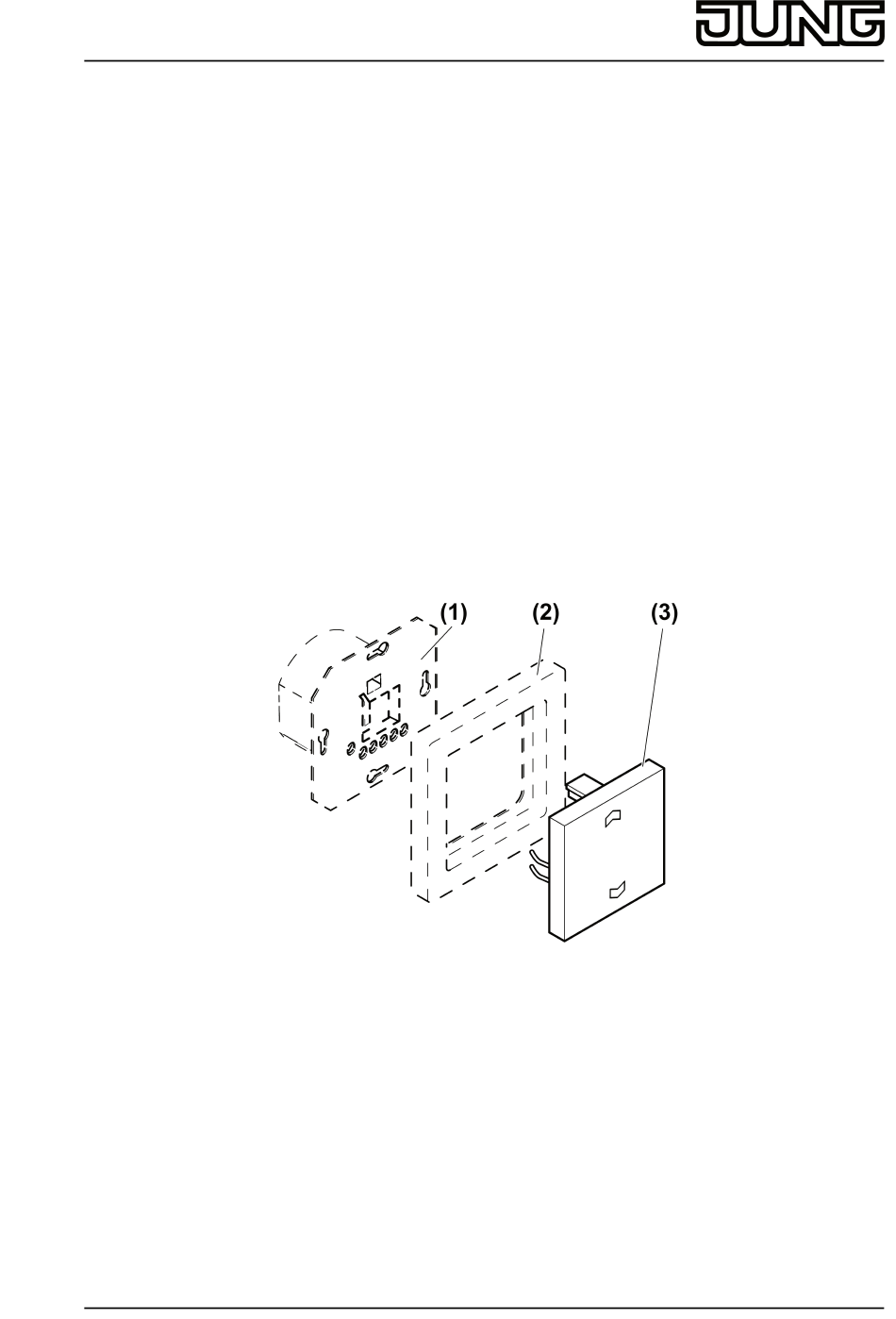

2 Device components
(1) Venetian blind control
(2) Frame
(3) Radio cover
3 Function
System information
By statute, the transmitting power, the reception characteristics and the antenna cannot be
changed.
The range of a radio system from the transmitter to the receiver depends on various
circumstances.
The range of the system can be optimised by selecting the optimal installation location, taking
into account the structural circumstances.
32524333
J0082524333
Figure 1: Device components
1/7
13.09.2016
Advertisement
Related Manuals for Jung 5232F Series
Summary of Contents for Jung 5232F Series
- Page 1 Blinds Management Centre plate with radio receiver, Centre plate with radio receiver and sensor connection Centre plate with radio receiver Art. No. : ..5232F.. Centre plate with radio receiver and sensor connection Art. No. : ..5232FS.. Operating instructions 1 Safety instructions Electrical equipment may only be installed and fitted by electrically skilled persons.
-
Page 2: Operation
Blinds Management Centre plate with radio receiver, Centre plate with radio receiver and sensor connection Figure 2: Reduced range due to structural obstacles Example of penetration of various materials: Material Penetration Wood, Plaster, Plasterboard approx. 90% Brick, Chipboard approx. 70% Reinforced concrete approx. - Page 3 Blinds Management Centre plate with radio receiver, Centre plate with radio receiver and sensor connection Adjusting the slats Press top or bottom of cover for shorter than one second. The slat position changes in the desired direction for as long as the button is pressed. Operation with radio transmitter A radio transmitter has to be taught in order to be able to operate the venetian blind via radio.
- Page 4 Blinds Management Centre plate with radio receiver, Centre plate with radio receiver and sensor connection Routing the sensor cable in-wall Figure 3: In-wall routing of the sensor cable i For in-wall routing of the sensor cable, use only shielded cables. Recommendation: J- Y(ST)Y 2x2x0.6 mm.
- Page 5 Blinds Management Centre plate with radio receiver, Centre plate with radio receiver and sensor connection Connecting sensors to terminal block Figure 5: Connection to the terminal block Connect the sun sensor with the correct polarity (figure 5) according to the connection diagram.
- Page 6 Blinds Management Centre plate with radio receiver, Centre plate with radio receiver and sensor connection Adjusting brightness threshold Figure 6: Back of cover: Adjuster for brightness threshold The brightness threshold can be adjusted within a range of approx. 5,000 Lux "small sun" to approx 80,000 Lux "large sun"...
-
Page 7: Troubleshooting
Extension flex Art. No. 32K 6.4 Conformity Albrecht Jung GmbH & Co. KG hereby declares that the radio system type Art. No. ..5232F.. / ..5232FS.. corresponds to the directive 2014/53/EU. You can find the full article number on the device. The complete text of the EU Declaration of Conformity is available under the Internet address: www.jung.de/ce...
