Jung FK100REG Operating Instructions

Radio Management
Master receiver for rail mounting
Master receiver for rail mounting
Art. No. : FK100REG
Operating instructions
1 Safety instructions
Electrical equipment may only be installed and fitted by electrically skilled persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
Danger of electric shock. Always disconnect before carrying out work on the devise or
load. In so doing, take all the circuit breakers into account, which support dangerous
voltages to the device and or load.
To ensure adequate contact protection, operate device only with the slide in use.
The radio communication takes place via a non-exclusively available transmission path,
and is therefore not suitable for safety-related applications, such as emergency stop and
emergency call.
These instructions are an integral part of the product, and must remain with the end
customer.

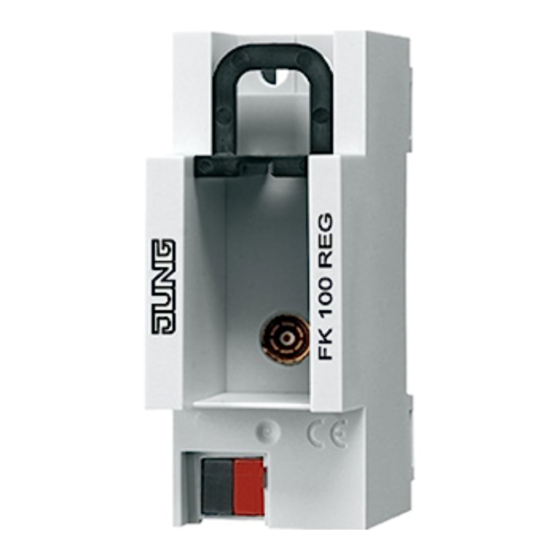

2 Device components
(1) Radio receiver
(2) SMB socket for optional connection of an external antenna
(3) Connection terminal for bus cable
(4) Slide for cable fixing and as contact protection
(5) Screw terminals for mains connection
3 Function
System information
By statute, the transmitting power, the reception characteristics and the antenna cannot be
changed.
The range of a radio system from the transmitter to the receiver depends on various
circumstances.
32549823
J0032549823

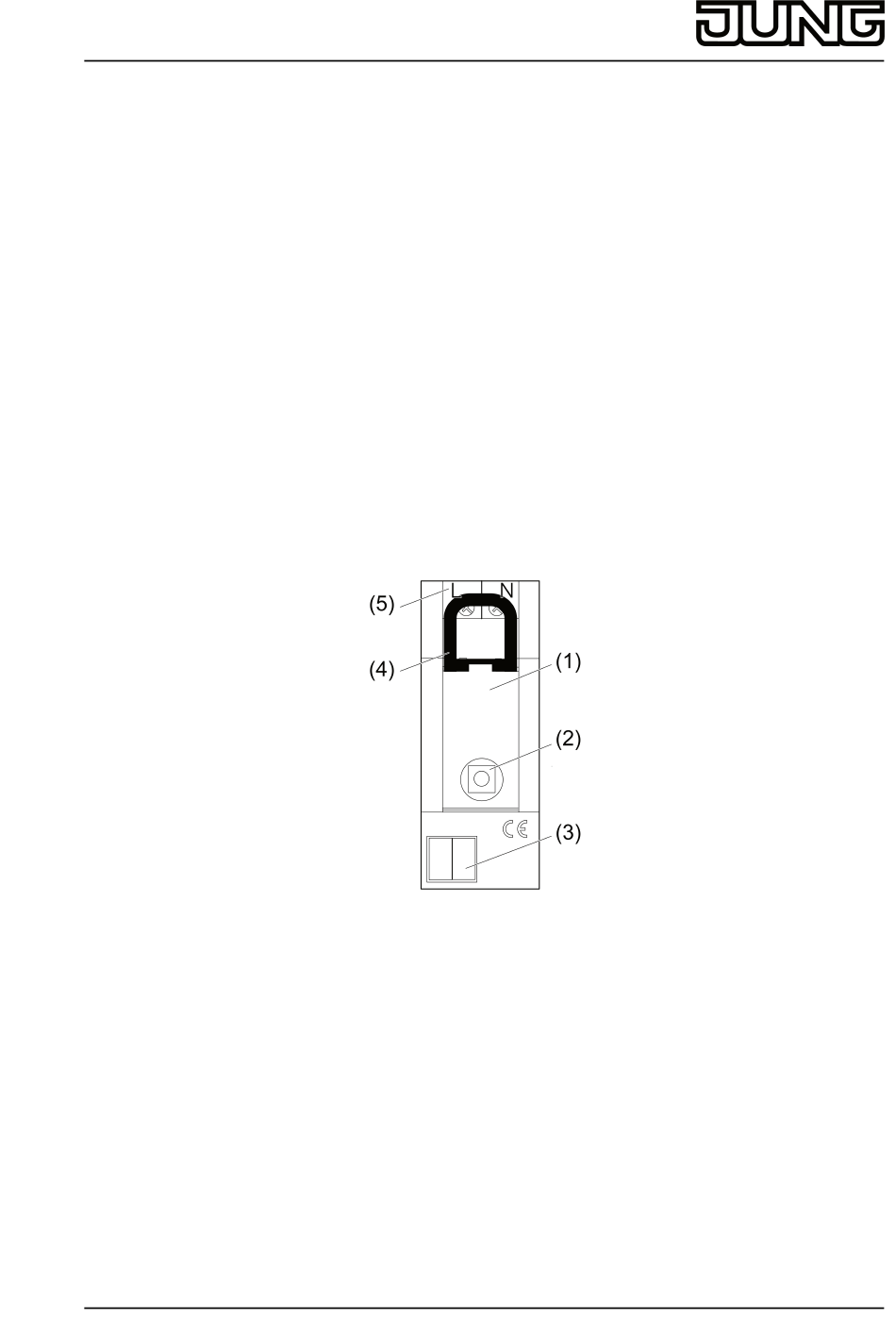

Figure 1
1/4 24.10.2016
