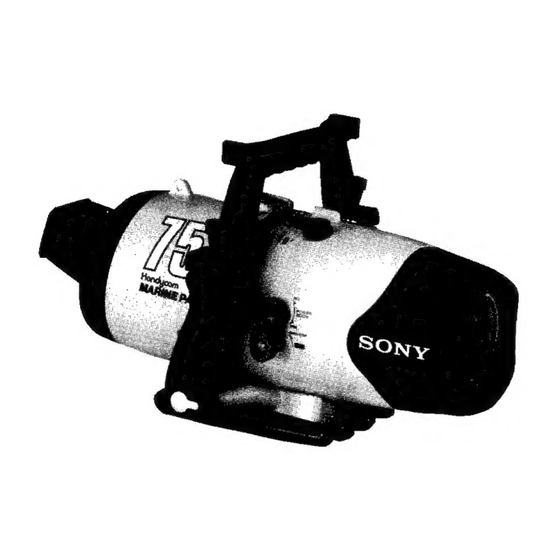

Sony HandyCam MPK-VX1 Service Manual

MPK-VX1
SERVICE MANUAL
US Model
Canadian Model
AEP Model
UK Model
E Model
Australian Model
Handycam
SPECIFICATIONS
Compatible equipment
U.S.A. and Canada ; CCD-V11, CCD-V99, CCD-V101
CCD-V8E, CCD-V700E, CCD-V900E
Material Plastic (ABS and PC), glass
Waterproof O-ring 3 buckles
Usable depth Up to 75 meters (246 feet)
Power sources One battery pack NP-66H, NP-77 or
NP-77H
Underwater microphone
Peizoelectric microphone
Controllable function
Power on/off, recording start/stop, zooming,
focusing, monitoring
Unit: mm (inch)
Dimensions
250 (97/8)
595mm (23'/2 in.) (13°/e in.)
Weight Approx. 14:5 kg (31 Ib 15 oz)
Accessories supplied
Pedestals (3)
Shading hood (1)
Power connecting cord (1)
Arm (1)
Wide conversion lens (1)
Battery adaptor NPA-80 (1)
LCD color monitor XV-M30/MS3OE (1)
Spare O-ring (1)
Spare waterproof gasket (1)
Grease (1)
Optional accessories
Marine Pack Carring Case LCH-M301
Color filter VF-95
Underwater video light HVL-80DA
Maintenance kit ACC-804
Design and specifications are subject to change without
notice.
HANDYCAM MARINE PACK
SON Y.
