Summary of Contents for Premier KVG-DWS-100W

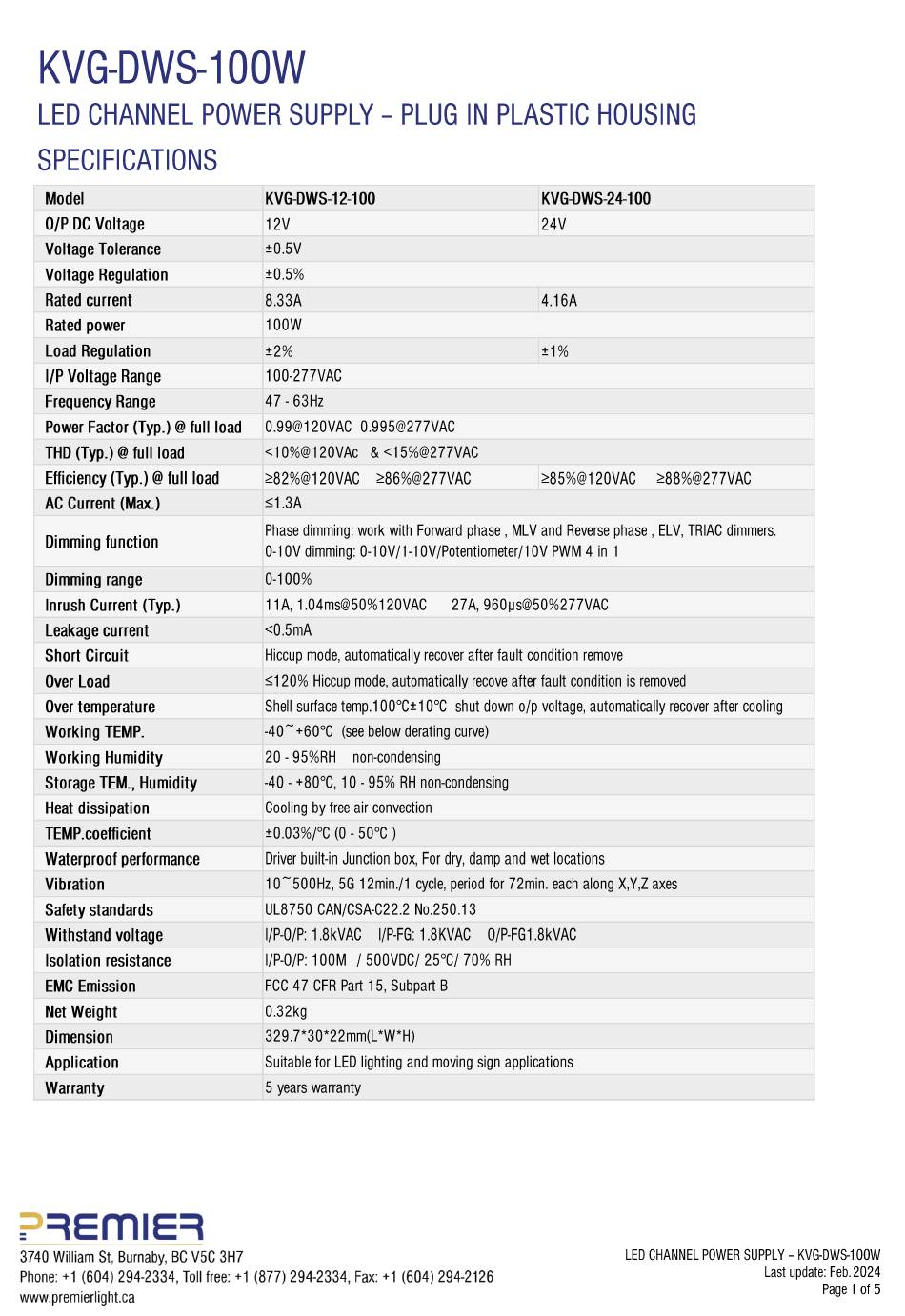

- Page 1 Ω 1. Tolerance: includes set up tolerance and load regulation. 2. All parameters NOT specially mentioned are measured at 120VAC input, rated load and 25℃ of ambient temperature.
- Page 2 1. Connect Live and Neutral wire to PRI (L) and (N) of power supply terminals. 2. Connect LED light to SEC Positive (LED+) and Negative (LED-) of power supply terminals. 3. Connect the dimming signal wire (+) and (-) to DIM (+) and DIM(-) of power supply terminals. 4.
- Page 3 1. To extend their life, please refer to the Derating Curve and de-rate according to the temperature. 2. Please note that the rise in temperature of LED fixtures over a long period of time will cause their power to rise. Therefore, we recommend the power supply to reserve a certain amount of load to avoid overloading.
- Page 4 TRIAC/Phase cut dimming 1. The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connecting a phase /Triac dimmer or lighting system. 2. Working with Forward phase, MLV and Reverse phase , ELV, TRIAC dimmers or light system. 3.
- Page 5 1. This driver should be installed by qualified and professional person. 2. Please make sure the driver is installed with adequate ventilation around it to allow for heat dissipation. 3. Ensure that wiring is correct before test in order to avoid light and power supply damage. 4.
