OPERATING INSTRUCTION
Electric Fence Energizer
Read full instructions before use!
Requirements:
The energizer complies with
the International Safety
Standard IEC 60335-2-76 +
EN 60335-2-76.
assembled in US and Europe
horizont group gmbh
Animal Care

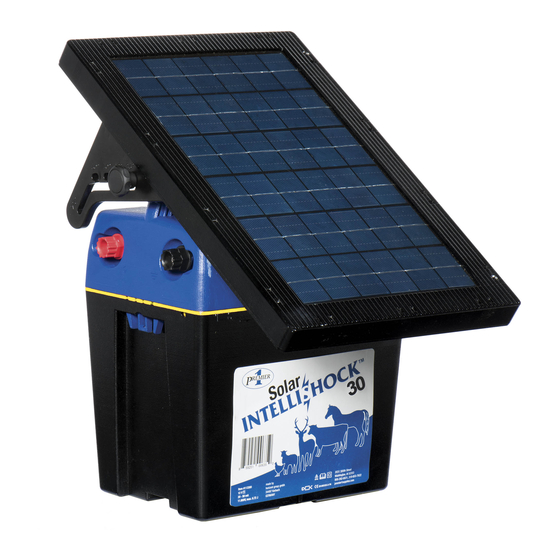

Solar IntelliShock 30
Voltage at no load:
max. 10000v
Voltage at 500 Ω
(animal contact):
max. 3300v
Solar IntelliShock 60
Voltage at no load:
max. 11500v
Voltage at 500 Ω
(animal contact):
max. 3900v
Solar IntelliShock 120
Voltage at no load:
max. 12700v
Voltage at 500 Ω
(animal contact):
max. 4300v
85398 A - 01/17
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Premier Solar IntelliShock 30
Summary of Contents for Premier Solar IntelliShock 30
- Page 1 OPERATING INSTRUCTION Electric Fence Energizer Read full instructions before use! assembled in US and Europe horizont group gmbh Animal Care Solar IntelliShock 30 Voltage at no load: max. 10000v Voltage at 500 Ω (animal contact): max. 3300v Solar IntelliShock 60 Voltage at no load: max.
-
Page 2: Spare Parts
Solar Intellishock 30 & 60 Solar Intellishock 120 Spare partS Bracket Screws 94581 Solar Panel knob 87104 Right Solar Bracket 87099 Left Solar Bracket 87098 Soft Grips IS 30: 84678GE Solar Leads: Solar Leads: 84678OR IS 60: 60812 60812 84678RT... -
Page 3: Installation And Connection
InStallatIon and connectIon InStallatIon and connectIon Solar Intellishock 30 & Solar Intellishock 60 for soft soils (5a + 6a for hard soils) Fig. 2 5 + 5a: Included (step-in) U-Spike Ground Stake (combination Ground Rod and support stand). Attach negative 6 + 6a: Position the energizer so that the solar panel faces due south. - Page 4 A. OPERATING INSTRUCTION FOR ELECTRIC FENCE ENERGIZER Allow solar panel to fully charge battery Power & Control Button Solar IntelliShock 30, Solar IntelliShock 60 & Solar IntelliShock 120 before use. Battery may have discharged during storage and transport. ON / OFF...
- Page 5 BATTERY INDICATION (FIG. 3 + 4): B. SAFETY GUIDELINES ELECTRIC ANIMAL FENCES Test battery only at daybreak. If the battery test light is flashing red/green, recharge the battery. The battery should never fall below a 20% charge (continuous red light). If this happens, permanent damage may occur to the battery. Please note, that these values can vary due to the dependence of the battery itself, the age of the battery, the PART 1: PRINCIPLES AND LIMITATIONS OF ELECTRIC FENCING FOR ANIMALS temperature (capacity) and mesuring deviation (tension).
- Page 6 Read Annex BB.1 of the International Safety Standard IEC 60335-2-76 + EN 60335-2-76 (s. page 10) Electric animal fences intended for deterring birds household pet containment or training animals such as cows need only be supplied from low output energizers to obtain satisfactory and safe per- ANNEX BB.1: formance.
- Page 7 Risk and Liability Reduction Methods 1. For reasons not fully understood, contact with the spi- nal & head area is much worse than contact with hands, Solar IntelliShock 30 ≥ 9" arms or legs. Required Solar IntelliShock 60 ≥ 18"...
- Page 9 assembled in US and Europe horizont group gmbh Animal Care...
