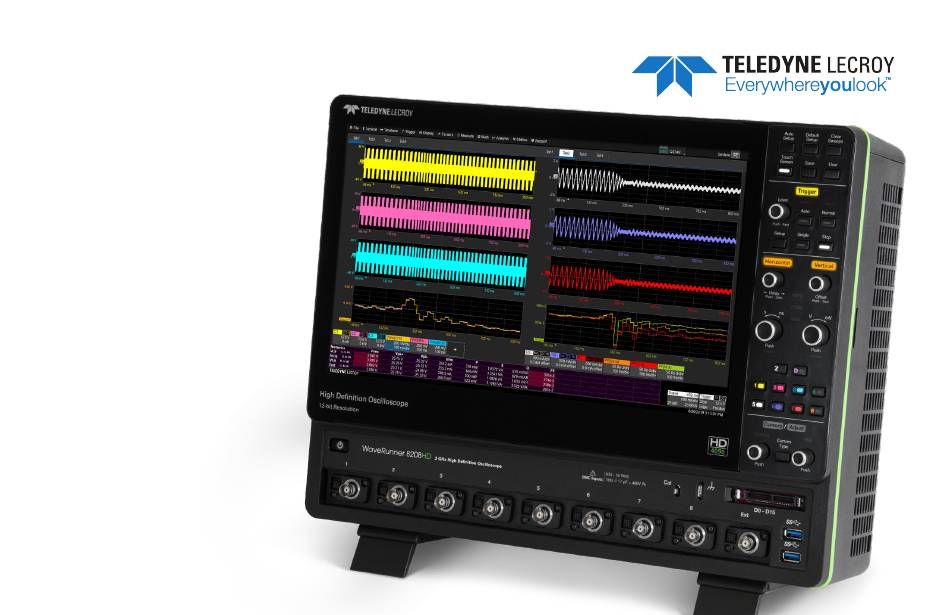

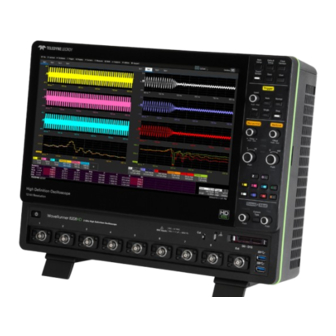

- Page 1 WaveRunner 8000HD ® MDA 8000HD Oscilloscopes Getting Started Guide...
- Page 2 Teledyne LeCroy documentation for internal educational purposes. Teledyne LeCroy is a trademark of Teledyne LeCroy, Inc. Other product or brand names are trademarks or requested trademarks of their respective holders. Information in this publication supersedes all earlier versions. Specifications are subject to change without notice.
-
Page 3: Table Of Contents
Welcome Thank you for buying a Teledyne LeCroy product. We’re certain you’ll be pleased with the detailed features unique to our instruments. This guide is intended to help you set up a WaveRunner/MDA 8000HD oscilloscope and learn some basic operating procedures, so you're quickly working with waveforms. -
Page 4: Introduction
Digital Memory up to 500 Mpts WaveRunner 8000HD is the only oscilloscope to offer 8 analog channels * With Enhanced Sample Rate. Detailed specifications are maintained on the product page at and 16 digital channels that does not penalize you for using a digital teledynelecroy.com. -
Page 5: Operating Environment
Measuring terminals are not intended to be connected directly to supply mains. Do not operate with suspected failures. Check body and cables regularly. If any part is damaged, cease operation immediately and sequester the instrument from inadvertent use. MDA/WaveRunner 8000HD Getting Started Guide... -
Page 6: Overview
OVERVIEW Front of Oscilloscope A. Touch Screen Display B. Front Panel C. Power Button D. Channel Inputs E. Calibration and Ground Terminals F. Ext In Terminal G. Mixed Signal Interface H. USB 3.1 Ports (2) I. Tilting Feet 936958-00 Rev A... -
Page 7: Powering On/Off
ProBus probes. They can also accept a conventional CAUTION. Do not change the Windows® Power setting to System BNC cable. Standby or System Hibernate. Doing so may cause failure. The tilting feet change the angle of display for easier viewing. MDA/WaveRunner 8000HD Getting Started Guide... -
Page 8: Back And Side Of Oscilloscope
OVERVIEW Back and Side of Oscilloscope A. Built-in Carrying Handle D. Kensington Lock G. USBTMC port for remote J. USB 3.1 Ports (4) control and data transfer B. Removable Solid State Drive E. Aux Out K. HDMI and DisplayPort Out H. -
Page 9: Connecting To External Devices/Systems
To configure a Static IP address, touch Net Connections on the Remote Clock Source to configure the clock. dialog and enter the IP address. Go to Utilities > Preference Setup > Email to configure email settings. MDA/WaveRunner 8000HD Getting Started Guide... -
Page 10: Digital Leadset
WaveRunner/MDA 8000HD oscilloscopes are compatible with the Each flying lead has a signal and a ground connection. A variety of ground included passive probes and most Teledyne LeCroy ProBus active probes extenders and flying ground leads are available for different probing that are rated for the oscilloscope’s bandwidth. -
Page 11: Front Panel
Many front panel buttons light to indicate which functions and traces are active. The labels for Trigger, Horizontal, Vertical and Cursors/Adjust also light in the color of the trace that is currently associated with these knobs. MDA/WaveRunner 8000HD Getting Started Guide... -
Page 12: Touch Screen Display
OVERVIEW Touch Screen Display The entire display is a capacitive touch screen. Use your finger or a capacitive stylus (not included) to touch, double-touch, touch-and-drag, or draw a selection box. Many controls that display information also work as “buttons” to access other functions. If you have a mouse installed, you can click anywhere you can touch to activate a control;... - Page 13 Add a custom name to the trace For convenience, related dialogs appear as a series of tabs behind the main dialog. Touch the tab to open the dialog Apply a custom label to the trace MDA/WaveRunner 8000HD Getting Started Guide...
-
Page 14: Basics
BASICS Changing the Display Q-Scape Multi-tab Display In addition, the display area can be divided into multiple tabs. Each tab can Grid Mode show a single grid or a different multi-grid mode. Many of the same grid The grid is 8 Vertical divisions representing 4096 Vertical levels and 10 functions you can perform in Normal mode, such as moving traces to other Horizontal time divisions. - Page 15 Various types of Persistence can be added to the display to visualize how waveforms change over time. Persistence displays can be colorized or modeled in 3D and rotated on three axes. Oscilloscope with an extended display. Intensity 100% Intensity 15% 3D color persistence display, rotated MDA/WaveRunner 8000HD Getting Started Guide...
-
Page 16: Working With Traces
BASICS Working with Traces Trace Descriptor Boxes Adjusting Channel (C1-C8), Zoom (Z1-Zn), Math (F1-Fn), Memory (M1-Mn), and On setup dialogs, many entries can be made by selecting from the pop-up Digital (Digital1-Digital4) descriptor boxes appear along the bottom of menu that appears when you touch a control. the grid area when a trace is turned on. -
Page 17: Maui With Onetouch
It is now To turn on the Measure table when it is closed, touch the Add New box the active trace. and choose Measurement. MDA/WaveRunner 8000HD Getting Started Guide... -
Page 18: Copy Setups
BASICS Copy Setups Change Source To copy the setup of one trace to another of the same type (e.g., channel to To change the source of a math, zoom or memory trace, drag-and-drop the channel, math to math), drag-and-drop the source descriptor box onto the descriptor box of the desired source onto the target descriptor box. -
Page 19: Position Cursors
To change the trigger source channel, drag-and-drop the desired channel (Cn) the grid. Cursors on the source traces adjust position accordingly. descriptor box onto the Trigger descriptor box. The trigger will revert to the last coupling and slope/polarity set on that channel. MDA/WaveRunner 8000HD Getting Started Guide... -
Page 20: Store To Memory
BASICS Store to Memory Scroll To store a trace to internal memory, drag-and-drop its trace descriptor box To scroll long lists of values or readout tables, swipe the selection dialog or onto the target memory (Mn) descriptor box. table in an up or down direction. Move Trace To move a trace to a different grid, drag-and-drop the trace descriptor box onto the target grid. - Page 21 To turn off a measure parameter or Pass/Fail query, flick the Pn or Qn cell trace horizontally. toward the bottom of the screen. If it's the last active cell of the table, the table will close. To "zoom out" on any trace, pinch two fingers over the trace horizontally. MDA/WaveRunner 8000HD Getting Started Guide...
-
Page 22: Vertical
BASICS Vertical Vertical controls adjust analog traces along the Y axis. Traces represent eight Vertical divisions of the source signal at the selected number of Volts or Amperes per division. The zero level is at the center grid line unless you add positive or negative Offset. The front panel Volts knob also controls the Vertical Scale of zoom, math and memory traces. - Page 23 Refine Volts/div or Offset. Enter Enter signal Optionally, change Make other Pre-processing settings. Bandwidth. Coupling Vertical Unit of grid Note: Averaging, Interpolation or Rescale trace. and ERes are disabled on >2 Gpts acquisitions. MDA/WaveRunner 8000HD Getting Started Guide...
-
Page 24: Digital
BASICS Digital On Mixed Signal instruments, Digital selections are added to the Vertical menu, and the front panel Vertical knobs control active Digital line and bus traces. From the Front Panel Digital Descriptor Box # Digital Lines in Group Turn Offset to raise/lower group Digital Sample Rate Vertical Position,... - Page 25 Group Height in the lines. Select lead banks as you digital line: high, low or divisions. Optionally, enter a unique Custom to enter select lines. transitioning. line name in the field unique names. beneath. MDA/WaveRunner 8000HD Getting Started Guide...
-
Page 26: Horizontal (Timebase)
BASICS BASICS Horizontal (Timebase) Horizontal controls adjust traces along the X axis. Analog traces usually represent one acquisition of the source signal for 10 divisions of the selected Time per division. The trigger event is shown at the center of the grid, unless you add positive or negative Delay time, which shifts the triger point left or right. The front panel Time/div knob also controls the Horizontal Scale of zoom, math and memory traces, allowing you to "zoom in"... - Page 27 Center or use a Fixed Sample Auto will automatically (50%) of display, or Set To Zero removes Rate. maximize based on Lock to Trigger Delay. which channels are position (see pp.28-29). in use. MDA/WaveRunner 8000HD Getting Started Guide...
-
Page 28: Navigating Long Acquisitions
BASICS Navigating Long Acquisitions For signal acquisitions >2 Gpts, measurements and math calculations take place on only the center 2 Gpts—the "Analysis Zone". This area is marked on the source channel trace by grey shading applied outside of it (over the part not analyzed). You may need to reposition the trace so that the portion you wish to analyze falls within the Analysis Zone. - Page 29 Stop acquisition, then create a zoom trace of the area you wish to analyze. Apply math and measurements to the zoom rather than the channel trace. Math applied to a zoom is calculated on the entire trace (up to 2 Gpts). Highlighting on the source trace shows the zoomed area being analyzed. MDA/WaveRunner 8000HD Getting Started Guide...
- Page 30 BASICS Navigation Reference Changing the Navigation Reference setting can also help to reposition the acquired trace for analysis by selecting for different regions of the trace to remain centered as the Time/div changes: Centered (50%) scales divisions equally so that whatever is at the center (50%) grid line remains at the center of the display. Other events move in reference to the center as Time/div changes.
- Page 31 Now, when the Timebase is changed to 1 ms/div, the trigger event remains at its current position, but the rest of the trace shifts to the right as time "expands." The values associated with each horizontal grid division are different than when centered, although Time/div is still 1 ms/div. MDA/WaveRunner 8000HD Getting Started Guide...
-
Page 32: Triggers
BASICS Triggers Triggers tell the oscilloscope when to perform an acquisition. The acquisition starts as soon as the trigger is armed and all trigger conditions are met, unless postponed by a Holdoff count of time or number of trigger events. Trigger types and modes are described at more length in the WaveRunner/MDA 8000HD Oscilloscopes Operator’s Manual. - Page 33 Choose trigger Type. Choose trigger Source channel, Set trigger Levels, Icon summarizes the then set other conditions, or Find Levels based trigger selections. such as Coupling and Slope on the signal mean. (varies by trigger type). MDA/WaveRunner 8000HD Getting Started Guide...
-
Page 34: Zoom
BASICS Zoom Zoom traces display a magnified portion of another trace. Any trace can be zoomed, although Zoom is most useful for channel traces, as it allows you to see the source at the original Timebase at the same time as the Zoom "close up." Zoom is also useful for analyzing regions of >2 Gpts acquisitions that fall outside the center Analysis Zone. - Page 35 Repeat on another section to reposition the same Zoom trace or create another Zoom trace. On the source trace setup dialog, touch Action Toolbar Zoom button to create a new zoom of just that source trace. MDA/WaveRunner 8000HD Getting Started Guide...
-
Page 36: Cursors
BASICS Cursors Cursors set measurement points on the Vertical or Horizontal axis of a trace (or both). The five preset cursor types are described in more detail in the WaveRunner/MDA 8000HD Oscilloscopes Operator’s Manual. From the Front Panel Apply cursor. Adjust cursor position. -
Page 37: Measurements & Statistics
Accept measurements measured and Measurement. (in div) to limit the region based on range limits measured, or just drag or the state of a second, markers from edge of grid qualifying waveform. to gate positions. MDA/WaveRunner 8000HD Getting Started Guide... -
Page 38: Math
BASICS Math Math creates a new trace that displays the result of applying a mathematical function (e.g., Sum, Product, FFT) to one or more source traces. One important distinction between math functions and measurement parameters is that the result of math is always another waveform, whereas the result of measurement is a number. -
Page 39: Memories (Reference Waveforms)
Mn tab to save new memory. Optionally, add Notes Choose trace to save to describing memory before saving. memory (it must be visible on the grid). Copy Now to save it. MDA/WaveRunner 8000HD Getting Started Guide... -
Page 40: Saving And Sharing Data
BASICS Saving and Sharing Data Setup, Waveform and Table Data Use the oscilloscope File menu options to save and recall data. See the WaveRunner/MDA 8000HD Oscilloscopes Operator’s Manual for more The current oscilloscope configuration can be saved to internal setup information on using these features. -
Page 41: Maintenance
Calibrate Current Setting calibrates the current vertical and horizontal The MDA/WaveRunner 8000HD is calibrated at the factory at 23 °C settings at the current temperature. This calibration is valid for only the (± 2 °C) for all possible vertical and horizontal settings. This calibration is current acquisition settings at the current temperature ±... -
Page 42: Firmware Updates
MAINTENANCE Firmware Updates Switching Windows Users Free firmware updates are available periodically from the Teledyne LeCroy Windows 10 oscilloscopes are by default set to operate from the LeCroyUser website at teledynelecroy.com/support/softwaredownload. Registered account, but you may need to switch to the Administrative User, LCRYADMIN, users will receive email notification when a new update is released. -
Page 43: Service
Return shipments must be prepaid. Teledyne LeCroy cannot accept COD Service Centers or Collect shipments. We recommend air freighting. Insure the item you’re For a complete list of Teledyne LeCroy offices by country, including our returning for at least the replacement cost. sales and distribution partners, visit: teledynelecroy.com/support/contact Follow these steps for a smooth product return. -
Page 44: Reference
REFERENCE Software Options Spectrum Analyzer (WR8KHD-SPECTRUM) creates an RF Spectrum Analyzer-like environment for analyzing frequency-dependent effects. Use These are just some of the software options available to enhance the FFT with little or no concern about the details of setting up an FFT. operation of a WaveRunner/MDA 8000HD oscilloscope. -
Page 45: Support
The product is warranted for normal use and operation, within specifications, for downloaded from the Technical Library under Manuals > Oscilloscopes. a period of three years from shipment. Teledyne LeCroy will either repair or, at our This PDF document contains more extensive operating procedures than option, replace any product returned to one of our authorized service centers within are found here. -
Page 46: Certifications
Certifications EN 61010-2:030:2021 Safety requirements for electrical equipment for measurement, control, and laboratory use–Part 2-030: Particular Teledyne LeCroy certifies compliance to the following standards as of the requirements for testing and measuring circuits time of publication. The design of the instrument has been verified to conform to the... -
Page 47: Iso Certification
Units 30 & 31 Warehouse World All patents pertaining to the WaveMaster 8000HD are on our website at: Kent Town, South Australia 5067 761 Great South Road Penrose, Auckland, New Zealand teledynelecroy.com/patents/ * Visit teledynelecroy.com/support/contact for the latest information. MDA/WaveRunner 8000HD Getting Started Guide... - Page 48 936958-00 Rev A, October, 2024 © 2024 Teledyne LeCroy, Inc. All rights reserved.
