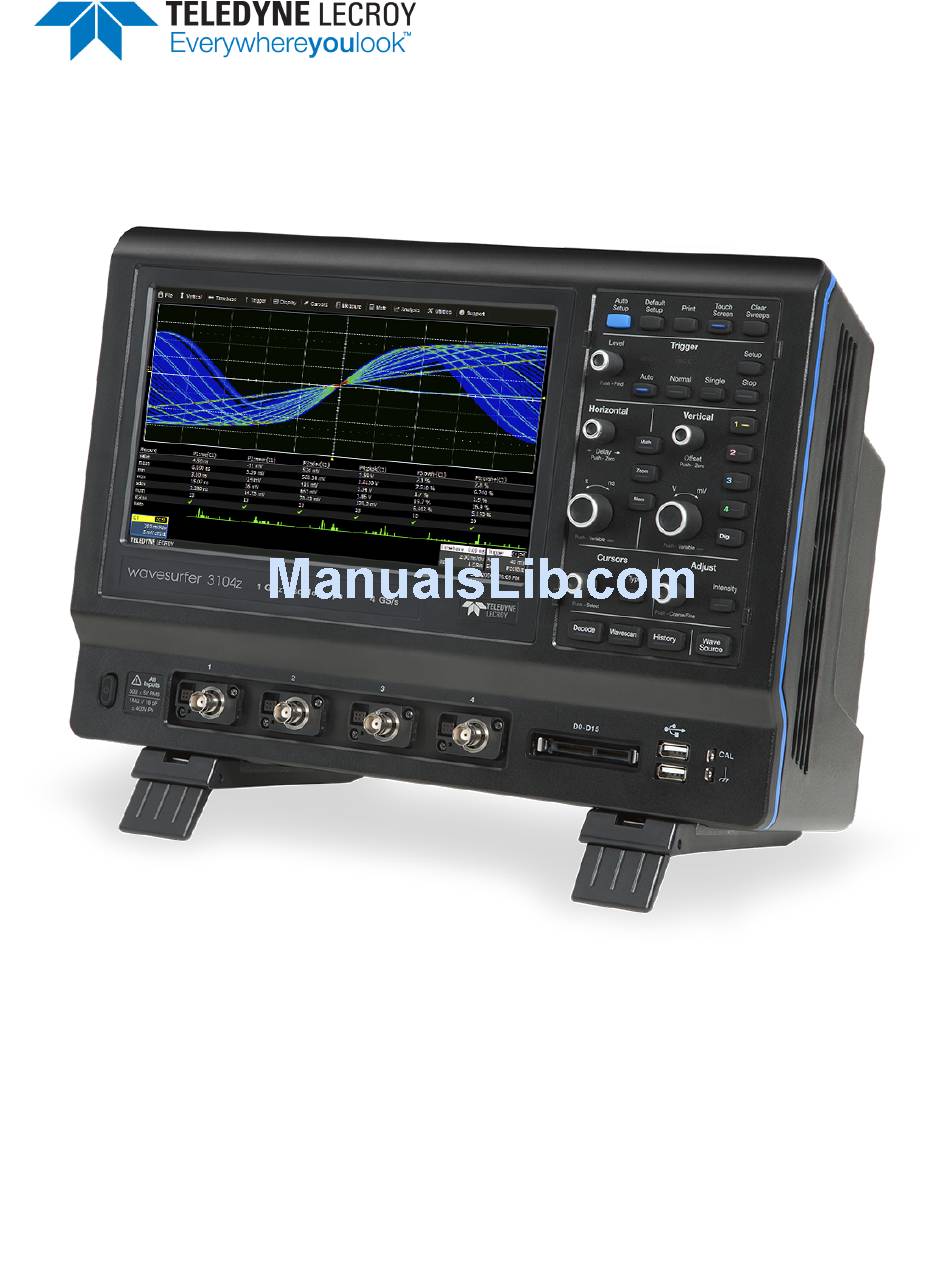

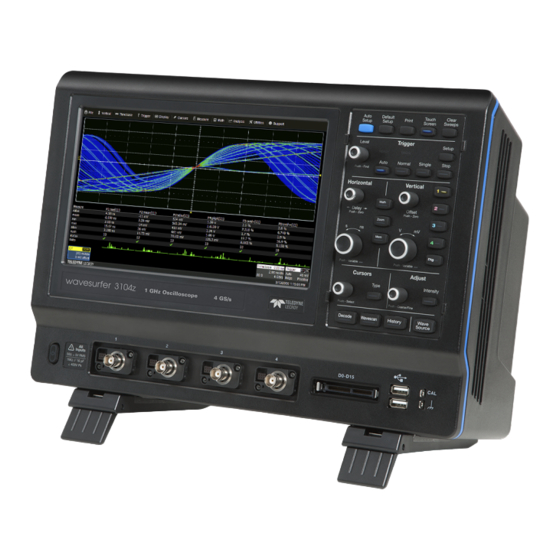

  • Page 1 Operator's Manual WaveSurfer 3000/3000z Oscilloscopes...
  • Page 2 LeCroy, Inc. documentation for their own internal educational purposes. Teledyne LeCroy is a trademark of Teledyne LeCroy, Inc., Inc. Other product or brand names are trademarks or requested trademarks of their respective holders. Information in this publication supersedes all earlier versions.

  • Page 3: Table Of Contents

    Contents Safety Symbols Precautions Operating Environment Cooling Cleaning Power Oscilloscope Overview Front Input/Output Panel Back Input/Output Panel Front Panel Signal Interfaces Micro SD Card Oscilloscope Set Up Powering On/Off Software Activation Positioning the Feet Connecting to Other Devices/Systems Language Selection Auto Setup Recall Default Setup Using MAUI...
  • Page 4 WaveSurfer 3000/3000z Oscilloscopes Operator's Manual Math and Measure Cursors Measure Math Memory Analysis Tools WaveScan Pass/Fail Testing Save / Recall Save Setups Recall Setups Save Waveforms Recall Waveforms Save Table Data Auto Save LabNotebook Utilities Utilities Dialogs Disk Utilities Preferences Dialogs...
  • Page 5 Welcome Thank you for purchasing a Teledyne LeCroy WaveSurfer oscilloscope. We're certain you'll be pleased with the detailed features unique to our instruments. Take a moment to verify that all items on the packing list or invoice copy have been shipped to you.
  • Page 6 WaveSurfer 3000/3000z Oscilloscopes Operator's Manual...

  • Page 7: Safety

    Safety Safety To maintain the instrument in a correct and safe condition, observe generally accepted safety procedures in addition to the precautions specified in this section. The overall safety of any system incorporating this product is the responsibility of the assembler of the system. Symbols These symbols appear on the instrument or in documentation to alert you to important safety concerns: Caution of potential damage to instrument or Warning of potential bodily injury.

  • Page 8: Operating Environment

    WaveSurfer 3000/3000z Oscilloscopes Operator's Manual Operating Environment Temperature: 0 to 50° C. Humidity: Maximum relative humidity 90 % for temperatures up to 31° C, decreasing linearly to 50% relative humidity at 40° C. Altitude: Up to 3,000 m at or below 30° C.

  • Page 9: Power

    5%), or a 100 to 120 Vrms (± 10%) AC power source at 400 Hz (± 5%). The instrument automatically adapts to the line voltage. Manual voltage selection is not required. Power Consumption Power Consumption WaveSurfer 3000z WaveSurfer 3000 4-channel 4-channel 2-channel Nominal...
  • Page 10 WaveSurfer 3000/3000z Oscilloscopes Operator's Manual...

  • Page 11: Oscilloscope Overview

    Oscilloscope Overview Oscilloscope Overview Front Input/Output Panel A. Power button. B. Channel inputs 1-4 for analog signals. C. Mixed signal interface for digital inputs (WS3K-MSO required). D. Front-mounted host USB port for transferring data or connecting peripherals such as a mouse or keyboard.

  • Page 12: Front Panel

    WaveSurfer 3000/3000z Oscilloscopes Operator's Manual Front Panel The Front Panel houses "hard" controls for basic oscilloscope functions. See the later sections of this manual for instructions on using the touch screen to make the settings described here. All the knobs on the front panel function one way if turned and another if pushed like a button.

  • Page 13: Horizontal Controls

    Oscilloscope Overview Single turns on Single trigger mode. The oscilloscope triggers once (single-shot acquisition) when the input signal meets the trigger conditions. If the oscilloscope is already armed, it will force a trigger. Stop prevents the oscilloscope from triggering on a signal. If you boot up the instrument with the trigger in Stop mode, a "No trace available"...

  • Page 14: Signal Interfaces

    The channel interfaces power probes and completely integrate the probe with the channel. Upon connecting a Teledyne LeCroy probe, the probe type is recognized and some setup information, such as input coupling and attenuation, is performed automatically. This information is displayed on the Probe Dialog, behind the Channel (Cn) dialog.
  • Page 15 Oscilloscope Overview Most active probes match probe to oscilloscope response automatically using probe response data stored in an on-board EEPROM. This ensures the best possible combined probe plus oscilloscope channel frequency response without the need to perform any de-embedding procedure. Be aware that many active probes require a minimum oscilloscope firmware version to be fully operational.

  • Page 16: Micro Sd Card

    WaveSurfer 3000/3000z Oscilloscopes Operator's Manual Micro SD Card The Micro SD Card acts as the oscilloscope's removable hard drive. Use it to store and easily share setup files, waveform trace files, LabNotebooks, and other user data. To remove the card, push in and release. The card should partially pop out, at which point it can be pulled out fully.

  • Page 17: Oscilloscope Set Up

    The operating software (firmware and standard applications) is active upon delivery. At power-up, the instrument loads the software automatically. Firmware Free firmware updates are available periodically from the Teledyne LeCroy website at: teledynelecroy.com/support/softwaredownload Registered users can receive an email notification when a new update is released. Follow the instructions on the website to download and install the software.

  • Page 18: Connecting To Other Devices/Systems

    These connections are "plug-and-play" and do not require further configuration. External Monitor WaveSurfer 3000 supports external monitors with 1024 x 600 ppi resolution. Connect the monitor cable to the VGA video output on the back of the instrument. The connection is “plug-and-play” and does not require any further configuration on the oscilloscope.

  • Page 19: Language Selection

    Oscilloscope Set Up Language Selection To change the language of the oscilloscope application: 1. Go to Utilities > Preference Setup > Preferences and make a Language selection. 2. Follow the prompt to restart the application. Auto Setup Auto Setup configures the essential acquisition settings based on the first input signal it finds, starting with C1.
  • Page 20 WaveSurfer 3000/3000z Oscilloscopes Operator's Manual...

  • Page 21: Using Maui

    Using MAUI Using MAUI MAUI, the Most Advanced User Interface, is Teledyne LeCroy's unique oscilloscope user interface. MAUI is designed for touch—all important controls for vertical, horizontal, and trigger are only one touch away. Touch Screen The touch screen is the principal viewing and control center of the oscilloscope. The entire display area is active: use your finger or a stylus to touch, touch-and-drag, or draw a selection box.

  • Page 22: Grid Area

    WaveSurfer 3000/3000z Oscilloscopes Operator's Manual If an action can be “undone”, the Undo button restores the oscilloscope to the prior state. Grid Area The grid area displays the waveform traces. Every grid is 8 Vertical divisions representing the full number of Vertical levels possible at the current resolution and 10 Horizontal divisions each representing acquisition time.

  • Page 23: Descriptor Boxes

    Using MAUI Grid Indicators These indicators appear around or on the grid to mark important points on the display. They are matched to the color of the trace to which they apply. When multiple traces appear on the same grid, indicators refer to the foreground trace—the one that appears on top of the others.
  • Page 24 WaveSurfer 3000/3000z Oscilloscopes Operator's Manual Pre-processing Symbols on Descriptor Boxes Pre-Processing Type Long Form Short Form Averaging Inversion Deskew Coupling DC50, DC1M, AC1M or GND D50, D1, A1 or G Bandwidth Limiting Other Trace Descriptor Boxes Similar descriptor boxes appear for math (Fn), zoom (Zn), and memory (Mn) traces. These descriptor boxes show any Horizontal scaling that differs from the signal timebase.
  • Page 25 Using MAUI Dialogs Dialogs appear at the bottom of the display for entering setup data. The top dialog will be the main entry point for the selected functionality. For convenience, related dialogs appear as a series of tabs behind the main dialog.

  • Page 26: Message Bar

    WaveSurfer 3000/3000z Oscilloscopes Operator's Manual Message Bar At the bottom of the oscilloscope display is a narrow message bar. The current date and time are displayed at the far right. Status, error, or other messages are also shown at the far left, where "Teledyne LeCroy"...

  • Page 27: Touch Actions

    Using MAUI Touch Actions Touch, drag, and swipe can be used to create and change setups with one touch. Just as you change the display by using the setup dialogs, you can change the setups by moving different display objects. Use the setup dialogs to refine touch screen actions to precise values.

  • Page 28: Working With Traces

    WaveSurfer 3000/3000z Oscilloscopes Operator's Manual Working With Traces Traces are the visible representations of waveforms that appear on the display grid. They may show live inputs (Cn, Digitaln), a math function applied to a waveform (Fn), a stored memory of a waveform (Mn), a zoom of a waveform (Zn), or the processing results of special analysis software.
  • Page 29 Using MAUI Turning On/Off Traces Turn On/Off Analog Trace From the front panel, press the Channel button. From the touch screen, choose Vertical > Channel x Setup. To turn off a trace, press the front panel Channel button a second time, or from the touch screen, do any of the following: From the Context menu...
  • Page 30 WaveSurfer 3000/3000z Oscilloscopes Operator's Manual Labeling Traces The Label function gives you the ability to add custom annotations to the trace display. Once placed, labels can be moved to new positions or hidden while remaining associated with the trace. Create Label 1.

  • Page 31: Zooming

    Using MAUI Zooming Zooms magnify a selected region of a trace by altering the Horizontal Scale relative to the source trace. Zooms may be created in several ways, using either the front panel or the touch screen. You can adjust zooms the same as any other trace using the front panel Vertical and Horizontal knobs or the touch screen zoom factor controls.
  • Page 32 WaveSurfer 3000/3000z Oscilloscopes Operator's Manual Zn Dialog Each Zn dialog reflects the center and scale for that zoom. Use it to adjust the zoom magnification. Trace Controls Trace On shows/hides the zoom trace. It is selected by default when the zoom is created.

  • Page 33: Creating Zooms

    Using MAUI Creating Zooms Any type of trace can be zoomed by creating a new zoom trace (Zn) following the procedures here. Zoom traces open in the same grid, with the zoomed portion of the source trace highlighted. Area around zoomed section shaded. Quick Zoom Use the front panel Zoom button to quickly create one zoom trace for each displayed channel trace.

  • Page 34: Print/Screen Capture

    WaveSurfer 3000/3000z Oscilloscopes Operator's Manual To close the zoom, clear the Trace On box on the Zn dialog.. Print/Screen Capture The front panel Print button captures an image of the touch screen and outputs it according to your Hardcopy settings. It can be used to create an image file of waveform traces, or send the image to a networked printer or email recipient.

  • Page 35: Acquisition

    Channel descriptor box. The Cn dialog contains: Vertical settings for scale, offset, coupling, bandwidth Units settings Probe attenuation and deskew If a Teledyne LeCroy probe is connected, its Probe dialog appears to the right of the Cn dialog.
  • Page 36 When a Teledyne LeCroy probe is connected to a channel input, the Attenuation field becomes a button to access the Probe dialog, a tab added to the right of the Cn tab. Enter Attenuation on the Probe dialog.

  • Page 37: Probe Dialog

    Auto Zero corrects for DC offset drifts that naturally occur from thermal effects in the amplifier of active probes. Teledyne LeCroy probes incorporate Auto Zero capability to remove the DC offset from the probe's amplifier output to improve the measurement accuracy.

  • Page 38: Digital (Mixed Signal)

    WaveSurfer 3000/3000z Oscilloscopes Operator's Manual Digital (Mixed Signal) When a Mixed Signal device is connected to the oscilloscope, digital input setup options are added to the Vertical menu. There are set up dialogs for each possible digital group, Digital1 to Digitaln, which correspond to digital buses.
  • Page 39 Acquisition Digital Setup Using Digital Leadset The digital leadset enables input of up-to-16 lines of digital data. Physical lines can be preconfigured into different logical groups, Digitaln, corresponding to a bus and renamed appropriately depending on the group. The transitions for each line may be viewed through different displays. The digital leadset features two digital banks with separate Threshold controls, making it possible to simultaneously view data from different logic families.
  • Page 40 WaveSurfer 3000/3000z Oscilloscopes Operator's Manual Digital Group Setup To set up a digital group: 1. Connect the digital input device to the test device and the instrument. 2. From the menu bar, choose Vertical > Digitaln Setup, or press the front panel Dig button and select the desired Digitaln tab.
  • Page 41 Acquisition Digital Display Setup Choose the type and position of the digital traces that appear on screen for each digital group. 1. Choose a Display Mode: Lines (default) shows a time-correlated trace indicating high, low, and transitioning points (relative to the Threshold) for every digital line in the group. The size and placement of the lines depend on the number of lines, the Vertical Position and Group Height settings.
  • Page 42 WaveSurfer 3000/3000z Oscilloscopes Operator's Manual Renaming Digital Lines The labels used to name each line can be changed to make the user interface more intuitive. 1. Touch Label and select from: Data - the default, which appends "D." to the front of each line number.

  • Page 43: Timebase

    Acquisition Timebase Timebase (Horizontal) settings control traces along the X axis. The timebase is shared by all channels. The time represented by each horizontal division of the grid, or Time/Division, is most easily adjusted using the front panel Horizontal knob. Full Timebase set up is done on the Timebase dialog, accessed either by choosing Timebase >...

  • Page 44: Sampling Modes

    WaveSurfer 3000/3000z Oscilloscopes Operator's Manual Memory Maximum Points is the maximum number of samples taken per acquisition. The actual number of samples acquired can be lower due to the current Sample Rate and Time/Division settings. The oscilloscope will allot the maximum memory and sample rate possible based on the activity within each pair of channels.
  • Page 45 Acquisition RIS Sampling Mode RIS (Random Interleaved Sampling) allows effective sampling rates higher than the maximum single-shot sampling rate. It is available on timebases ≤ 10 ns/div. The maximum effective RIS sampling rate is achieved by making multiple single-shot acquisitions at maximum real-time sample rate.
  • Page 46 WaveSurfer 3000/3000z Oscilloscopes Operator's Manual Sequence Mode Set Up The Sequence dialog appears only when Sequence Mode sampling is selected. Use it to define the number of fixed-size segments to be acquired. 1. From the menu bar, choose Timebase > Horizontal Setup..., then Sequence Sampling Mode.
  • Page 47 Acquisition Viewing Sequence Segments When in Sequence sampling mode, you can view individual segments easily using the front panel Zoom button. A new zoom of the channel trace defaults to Segment 1. You can view other segments by changing the First and total Num(ber) of segments to be shown on the Zn dialog.

  • Page 48: History Mode

    WaveSurfer 3000/3000z Oscilloscopes Operator's Manual Set Reference Clock By default, the oscilloscope is set to use its internal clock of 10 MHz as the Timebase reference to synchronize acquisition across all channels. You can opt to use an external reference clock for this purpose. Connect the clock source to the REF IN input on the back I/O panel of the oscilloscope using a BNC cable.
  • Page 49 Acquisition Replay Acquisition History This is a good way to begin using History Mode. Watching a "movie" of the history allows you to see waveform changes that are invisible during real-time acquisition. Select View History to enable the display, then use the Navigation buttons to "scroll" the history of acquisitions.

  • Page 50: Trigger

    WaveSurfer 3000/3000z Oscilloscopes Operator's Manual Trigger Triggers define the event around which digitized information is displayed on the grid. Different Trigger Types are used to select different events in the trigger source waveforms: edge voltages, pulse widths, high/low states, etc. These may be a single channel event or a complex pattern of events across several channels.

  • Page 51: Trigger Types

    Qualified arms on the A event, then triggers on the B event. In Normal trigger mode, it automatically resets after the B event, and re-arms upon the next matching A event. Note: This functionality is identical to Teledyne LeCroy's previous Qualify and State triggers, but presented through a different user interface.
  • Page 52 WaveSurfer 3000/3000z Oscilloscopes Operator's Manual Trigger Set Up To open the Trigger dialog, press the front panel Trigger Setup button or touch the Trigger descriptor box. Different controls will appear depending on the Trigger Type selected (e.g., Slope for Edge triggers).
  • Page 53 Acquisition For digital pattern triggers, the level is determined by the Logic Family that is set on the digital group. This can also be specified by a custom (User-Defined) crossing Threshold. Usually, there will be a separate Levels tab for these settings. Conditions (Smart Triggers) Smart triggers all allow you to apply Boolean logic to refine the triggering condition beyond simply Level and Slope/Polarity.
  • Page 54 WaveSurfer 3000/3000z Oscilloscopes Operator's Manual Note: Analog patterns always assume a logical "And" when combined with any digital pattern. Both conditions must be true for the trigger to fire. 4. To set a Time Condition in which the pattern must occur once the trigger is armed, choose the operator: Less Than to trigger only if the pattern occurs before the time set.
  • Page 55 Acquisition Serial Trigger The Serial trigger type will appear if you have installed serial data trigger and decode options. Select the Serial type then the desired Protocol to open the serial trigger setup dialogs. For setup instructions, see the software instruction manual at teledynelecroy.com/support/techlib under Manuals >...

  • Page 56: Trigger Holdoff

    WaveSurfer 3000/3000z Oscilloscopes Operator's Manual Trigger Holdoff Holdoff is either a period of time or an event count that may be set as an additional condition for Edge triggers. Holdoff disables the trigger temporarily, even if the other conditions are met. Use Holdoff to obtain a stable trigger for repetitive, composite waveforms.
  • Page 57 Acquisition Note: Because there is only one trigger per acquisition, the trigger event will always belongs to the new acquisition. The processing time shown here is for purposes of illustration only. Regardless of where in the acquisition record the trigger event was found (first edge or last), the display will show time pre- and post-trigger based on your Time/Div and Delay settings.
  • Page 58 WaveSurfer 3000/3000z Oscilloscopes Operator's Manual Holdoff Set Up To add Holdoff to an Edge trigger, touch the Trigger descriptor box or press the front panel Trigger Setup button, then open the Holdoff tab. Choose to Holdoff by Time (the clock) or Events.

  • Page 59: Viewing Status

    Acquisition Viewing Status All instrument settings can be viewed through the various Status dialogs. These show all existing acquisition, trigger, channel, math function, measurement and parameter configurations, as well as which are currently active. Access the Status dialogs by choosing the Status option from the Vertical, Timebase, Trigger, Math, or Analysis menus (e.g., Channel Status, Acquisition Status).
  • Page 60 WaveSurfer 3000/3000z Oscilloscopes Operator's Manual...

  • Page 61: Display

    Display Display Display settings affect the number and style of grids that appear on screen and some of the visual characteristics of traces, such as persistence. Auto Grid is enabled by default. This feature divides the screen as needed when new traces open. WaveSurfer oscilloscopes may be divided into a maximum of three grids—one each for channels/memories, math functions, and zooms—that each represent the full number of vertical levels.

  • Page 62: Grid Intensity

    WaveSurfer 3000/3000z Oscilloscopes Operator's Manual Grid Intensity To dim or brighten the background grid lines, touch Grid Intensity and enter a value from 0 to 100. Grid on top superimposes the grid over the waveform. Note: Some waveforms may be hidden from view with the grid on top.

  • Page 63: Persistence Display

    Display Persistence Display The Persistence feature retains waveform traces on the display for a set amount of time before allowing them to gradually "decay," similar to the analog-style display of old, phosphor screen oscilloscopes. The display is generated by repeated sampling of events over time and the accumulation of the sampled data into "persistence maps".
  • Page 64 WaveSurfer 3000/3000z Oscilloscopes Operator's Manual the intensity will saturate (become brighter) at the percentage value specified. Lowering this percentage causes the pixels to be saturated at a lower population and makes visible those events rarely seen at higher saturation levels.

  • Page 65: Math And Measure

    Math and Measure Math and Measure Teledyne LeCroy offers a rich set of standard, pre-programmed tools for the "quickest time to insight" into the characteristics of acquired waveforms. Most instruments calculate measurements for all samples in an acquisition, enabling you to rapidly and thoroughly calculate thousands or millions of parameter values and apply a variety of mathematical functions to the input waveform trace.

  • Page 66: Cursor Types

    WaveSurfer 3000/3000z Oscilloscopes Operator's Manual Cursor Types These cursors can be placed on most Channel, Memory, Math or Zoom traces: Horizontal (Time) cursors intersect two points on the horizontal axis. The readout shows absolute values and a delta of the two points.
  • Page 67 Math and Measure Standard Cursors Dialog These controls can be used instead of the front panel controls to set cursors or to refine the cursor position. Access the dialog by choosing Cursors > Cursors Setup from the menu bar. Cursor Type buttons select the type of cursor displayed on the grid.

  • Page 68: Measure

    WaveSurfer 3000/3000z Oscilloscopes Operator's Manual Measure Measurement parameters are tools that give you access to a wide range of waveform properties. Use them to analyze many attributes of your waveform such as rise-time, rms voltage, and peak-to-peak voltage. Measurements can also be graphed as a trend for statistical analysis.
  • Page 69 Math and Measure Parameter Set Up The Measure Dialog gives quick access to measurement features. Besides configuring parameters, use the Measure dialog to show Statistics and Histicons, or to Gate measurements. 1. To open the Measure dialog, choose Measure > Measure Setup from the menu bar. 2.
  • Page 70 WaveSurfer 3000/3000z Oscilloscopes Operator's Manual Gating Measurements By using gates, you can narrow the span of the waveform on which to perform tests and measurements, allowing you to focus on the area of greatest interest. For example, if you "gate" five rising edges of the waveform, rise time calculations are performed only on the five pulses bounded by the gate posts.
  • Page 71 Math and Measure Although a Track plots measurement values, it is created as a Math function and controlled on the Function dialogs. 1. On the Fn dialog, choose the Track Operator. 2. On the Track subdialog, use Find Scale to automatically find suitable values, or uncheck Auto Find Scale and enter a custom Center and Height/div.
  • Page 72 WaveSurfer 3000/3000z Oscilloscopes Operator's Manual List of Standard Measurements Measurements included standard with the oscilloscope are listed below alphabetically. Note: There may be additional parameters available depending on the software options installed on the oscilloscope. Measurement Description Measures the difference between upper and lower levels in two-level signals. Differs from pkpk Amplitude in that noise, overshoot, undershoot, and ringing do not affect the measurement.
  • Page 73 Math and Measure Measurement Description Peak to Peak Difference between highest and lowest points in waveform. Unlike ampl, does not assume the (pkpk) waveform has two levels. Peak to peak is calculated using the formula maximum – minimum . The time between every other pair of 50% crossings. Starting with first transition after left meas- Period urement gate, period is measured for each transition pair, with values averaged to give final res- ult.

  • Page 74: Calculating Measurements

    WaveSurfer 3000/3000z Oscilloscopes Operator's Manual Calculating Measurements The instrument uses the following methods to calculate measurements. Determining Top and Base Lines Proper determination of the top and base reference lines is fundamental for ensuring correct parameter calculations. The analysis begins by computing a histogram of the waveform data over the time interval spanned by the left and right measurement gates.
  • Page 75 Math and Measure Determining Time Parameters Time parameter measurements such as width, period and delay are carried out with respect to the mesial reference level, located halfway (50%) between the top and base reference lines, or with respect to the specified level for @level parameters.

  • Page 76: Math

    WaveSurfer 3000/3000z Oscilloscopes Operator's Manual Math Math traces (Fn) display the result of applying a mathematical operation to a source trace. The output of a math function is always another trace, whereas the output of a measurement parameter is a tabular readout of the measurement.
  • Page 77 Math and Measure 4. The choice of operator drives the number of Source fields you will see displayed. Make a selection in each field, or drag the source channel descriptor box to the field. A Summary of the function you are building appears on the dialog. Refer to this to be sure your sources are in the proper order to yield the function you want (e.g., C1-C2 vs.
  • Page 78 WaveSurfer 3000/3000z Oscilloscopes Operator's Manual Average Function Setting Up Averaging To apply Continuous or Summed Averaging as a Math function: 1. Follow the usual steps to set up a math fuction, selecting Average from the Basic Math submenu. 2. On the Average subdialog, choose Summed or Continuous.
  • Page 79 Math and Measure However, by setting a Sweeps value, you establish a fixed weight that is assigned to the old average once the number of sweeps is reached. For example, for a sweeps (weight) value of 4: Sweep New Average = 1 (no old average yet) (new data +0 * old average)/(0 + 1) = new data only (new data + 1*old average)/(1 + 1) = 1/2 new data +1/2 old average...
  • Page 80 WaveSurfer 3000/3000z Oscilloscopes Operator's Manual The instrument's constant phase finite impulse response (FIR) filters provide fast computation, excellent step response in 0.5 bit steps, and minimum bandwidth reduction for resolution improvements of between 0.5 and 3 bits. Each step corresponds to a bandwidth reduction factor of two, allowing easy control of the bandwidth resolution trade-off.
  • Page 81 Math and Measure FFT Function For a large class of signals, you can gain greater insight by looking at spectral representation rather than time description. Signals encountered in the frequency response of amplifiers, oscillator phase noise and those in mechanical vibration analysis, for example, are easier to observe in the frequency domain. If sampling is done at a rate fast enough to faithfully approximate the original waveform (usually five times the highest frequency component in the signal), the resulting discrete data series will uniquely describe the analog signal.
  • Page 82 WaveSurfer 3000/3000z Oscilloscopes Operator's Manual Choosing a Window The choice of a spectral window is dictated by the signal's characteristics. Weighting functions control the filter response shape, and affect noise bandwidth as well as side lobe levels. Ideally, the main lobe should be as narrow and flat as possible to effectively discriminate all spectral components, while all side lobes should be infinitely attenuated.
  • Page 83 Math and Measure Rescale Function The Rescale function allows you to create a new function trace that rescales another trace by applying a multiplication factor (a) and additive constant (b). You can also use it as a way to view the function source in a different unit of measure.
  • Page 84 WaveSurfer 3000/3000z Oscilloscopes Operator's Manual Category Unit Mnemonic Mass gram slug SLUG Volume liter cubic meter cubic inch cubic foot cubic yard YARD3 Angle radian arcdegree arcminute arcsecond cycle CYCLE revolution turn TURN Force/Weight Newton grain ounce pound Velocity meters/second...
  • Page 85 Math and Measure Category Unit Mnemonic Temperature degrees Kelvin degrees Celsius degrees Fahrenheit Energy Joule British Thermal Unit calorie Rotating Machine radians/second RADPS frequency (Hertz) revolutions/second revolutions/minute torque N•m torque in•oz INOZ torque in•lb INLB torque ft•lb FTLB power, mechanical (Watt) horsepower Magnetic Weber...
  • Page 86 WaveSurfer 3000/3000z Oscilloscopes Operator's Manual Category Unit Mnemonic Time second minute hour HOUR week WEEK Dimensionless percent percent min-max PCTMNMX decibel decibel milliwatt decibel Volt decibel millivolt DBMV decibel microvolt DBUV decibel microampere DBUA decibel referred to carrier decade DECADE...
  • Page 87 Math and Measure List of Standard Operators The math operators included standard with your oscilloscope are listed below alphabetically. Note: There may be additional operators available depending on the software options installed on the oscilloscope. Operator Definition Absolute For every point in the waveform the distance away from zero is calculated. For values greater than zero this is the same as the value.
  • Page 88 WaveSurfer 3000/3000z Oscilloscopes Operator's Manual Operator Definition Square Root For every point in the waveform, the square root of the sample value is calculated. For every point in the waveform, the value of Source1 is added to the value of Source 2.

  • Page 89: Memory

    Math and Measure Memory The instrument is equipped with internal memory slots (Mn) to which you can copy any waveform that is active on the grid. This is a convenient way to store an acquisition for later viewing and analysis. Memories can be used as source inputs for most oscilloscope math and measurements, allowing you to compare historical data to a live acquisition or perform "what if"...
  • Page 90 WaveSurfer 3000/3000z Oscilloscopes Operator's Manual Save (External) Waveform Files to Memory Trace (.trc) files saved on other Teledyne LeCroy instruments can also be saved to internal memory. Use Recall Waveform function to save external files to memory. Then, you can use the Memories dialog restore them to the touch screen.

  • Page 91: Analysis Tools

    Analysis Tools Analysis Tools The Analysis menu tools complement the standard math and measurements to help you understand the behavior of waveforms. WaveScan searches single or multiple acquisitions for events that meet specific criteria. Pass/Fail Testing shows whether waveforms meet mask test limits. Optional software packages may be purchased for specialized uses, such as power analysis.
  • Page 92 WaveSurfer 3000/3000z Oscilloscopes Operator's Manual Setting Up WaveScan Set up your source channel and triggers before setting up the scan. 1. Press the front panel Stop button to stop acquisition. 2. Choose Analysis > WaveScan. 3. Check Enable. 4. Choose the Source waveform.
  • Page 93 Analysis Tools Non-monotonic Mode Non-monotonic Mode looks for edges that cross a threshold more than once between high and low levels. All events that meet the criteria of slope, hysteresis, and level are presented in a table and highlighted in the source trace.
  • Page 94 WaveSurfer 3000/3000z Oscilloscopes Operator's Manual Bus Pattern Mode Bus Pattern Mode (only on Mixed Signal models) is used for finding 2- to 16-bit patterns across the digital lines. Bus Pattern Mode settings are: Viewing. Choose to enter the pattern as Binary or Hex(adecimal).

  • Page 95: Pass/Fail Testing

    Analysis Tools Pass/Fail Testing Pass/Fail testing is a type of mask testing that is particularly useful for comparing newly acquired signals to a previously acquired "golden standard" waveform. Note: Pass/Fail testing does not work with Sequence Mode acquisitions. A mask defines an area of the grid against which a source Channel, Zoom, or Math trace is compared. Test conditions are associated with the mask, defining how the waveform is to be compared to the masked area (e.g., some/all values fall within, some/all values fall outside), and a pass or fail result is returned indicating the condition was found to be true or false.
  • Page 96 WaveSurfer 3000/3000z Oscilloscopes Operator's Manual 3. Check View Mask to display the mask over the trace. Tip: Select the mask file and touch Delete to remove it from the directory. Remove a Mask from the Display Touch the Delete Mask button at the left of the Pass/Fail dialog.

  • Page 97: Save / Recall

    Save / Recall Save / Recall The Save/Recall dialog displays a series of shortcut buttons launching the various Save/Recall functions. You can use these buttons or the tabs to navigate to the other Save/Recall dialogs. Save Setups Save Setups allows you to quickly save up-to-six panel settings to internal storage, while Recall Setups restores them with a touch.

  • Page 98: Recall Setups

    WaveSurfer 3000/3000z Oscilloscopes Operator's Manual Recall Setups Recall Setups restores setups saved to one of the internal memory locations, or enables you to import a setup file. Choose File > Recall Setup... from the menu bar. Recall Setup from Memory Touch one of the six Recall buttons under Recall From Internal Setup..

  • Page 99: Save Waveforms

    (e.g., XYZ32a). 4. Touch Data Format and select a file format: Binary, Teledyne LeCroy's binary file format (.trc). Binary results in the smallest possible file size, and is necessary for recalling waveforms to Teledyne LeCroy instruments.
  • Page 100 WaveSurfer 3000/3000z Oscilloscopes Operator's Manual Note: Binary files can be converted to ASCII using Teledye LeCroy utilities such as ScopeExplorer or WaveStudio. ASCII text file (.txt extension). MATLAB text file (.dat extension). Excel text file (.csv extension). MathCad text file (.prn extension).

  • Page 101: Recall Waveforms

    Save / Recall Recall Waveforms Use Recall Waveform to restore previously saved waveform files to the display. Note: Only files saved in binary format (.TRC) can be recalled to the touch screen. Choose File > Recall Waveform from the menu bar. Recall Waveform From Memory 1.

  • Page 102: Save Table Data

    WaveSurfer 3000/3000z Oscilloscopes Operator's Manual Save Table Data The Save Table function saves tabular measurement data displayed on screen to an Excel or ASCII file. By default, files are saved on the MicroSD card, although you can choose a USB drive.

  • Page 103: Auto Save

    Save / Recall Auto Save Data that appears on the oscilloscope display—such as waveforms, measurement readouts and decoder data—can be very dynamic and difficult to read from the oscilloscope unless you stop the acquisition. The Auto Save enables you to automatically store waveform and table data to a file that can be recalled to the oscilloscope later or saved permanently to external storage.

  • Page 104: Labnotebook

    WaveSurfer 3000/3000z Oscilloscopes Operator's Manual LabNotebook The LabNotebook feature allows you to create and save Notebook Entries containing all setups, a capture of all displayed waveforms and waveform data, to which you may add custom annotations. Notebook Entries are stored in an internal database and are available to be recalled to the touch screen at any time.

  • Page 105: Manage Notebook Entries

    Save / Recall Manage Notebook Entries First select the entry from the My Notebook Entries list. Edit Notebook Entries 1. Select the entry from the My Notebook Entries list. 2. Go to the second tab labeled with the entry name. 3.
  • Page 106 WaveSurfer 3000/3000z Oscilloscopes Operator's Manual LabNotebook Preferences To modify the behavior of the LabNotebook tool, change settings on the LabNotebook Preferences dialog: Prompt for Entry Title Before Saving will cause a pop-up for entering a custom Title and Description to appear when a new entry is created.

  • Page 107: Utilities

    The Service button to the far right of the dialog launches a section of the application reserved for qualified Teledyne LeCroy service personnel. An access code is required to enter this section. Status The Utilities Status dialog displays information about your instrument including model number, serial number, firmware version, and installed hardware and software options.

  • Page 108: Remote Control

    The Remote dialog contains settings to configure remote control of the instrument and also network access. Supported remote control protocols are: TCPIP (Ethernet). If you choose this option, also install Teledyne LeCroy's VICP drivers on the controller. These are included in the VICP Passport plug-in, available free from teledynelecroy.com/support/softwaredownload...
  • Page 109 Utilities 5. On the Ethernet Driver Settings dialog, choose Specify an IP Address. If assigning a Name server, leave Obtain an IP address via DHCP. 6. Touch the IP Address field, and use the keyboard to enter the address. Repeat for Subnet Mask and Default Gateway.
  • Page 110 WaveSurfer 3000/3000z Oscilloscopes Operator's Manual Note: WaveSurfer 3000 oscilloscopes support PictBridge-compatible printers. Printers can be connected via LAN (Ethernet) or USB. 1. On the Hardcopy dialog, choose Printer. 2. Choose a page Orientation: portrait or landscape. 3. To print immediately, touch the Printer icon at the far right of the dialog.

  • Page 111: Aux Output

    Utilities Aux Output The Aux Out port on the back of the oscilloscope outputs a 3.3V TTL pulse to another device following a trigger or Pass/Fail event when the Pulse action is selected. Use the Aux Output dialog to configure the calibration signal output from the Cal Out hook on the front of the oscilloscope.
  • Page 112 WaveSurfer 3000/3000z Oscilloscopes Operator's Manual Date/Time Date/Time settings control the instrument's timestamp. These numbers appear in the message bar and on tables/records internal to the oscilloscope application, such as History Mode and WaveScan. To access the Date/Time dialog, choose Utilities > Utilities Setup from the menu bar, then touch the Date/Time tab.
  • Page 113 Utilities Options Many optional software packages are available to extend the Analysis functions of the instrument. When you purchase an option, you will receive a key code by email that activates the new functionality. Use the Options dialog to activate software options by installing the key code. This dialog also displays the ScopeID and Serial #.

  • Page 114: Disk Utilities

    WaveSurfer 3000/3000z Oscilloscopes Operator's Manual Disk Utilities Use the Disk Utilities dialog to manage files and folders on your instrument's hard drive. Disk Space information is shown at the far right of the dialog for convenience. Access the Disk Utilities dialog by selecting Utilities > Disk Utilities from the menu bar.
  • Page 115 Utilities Back Up Files Touch Backup to back up the entire contents of the hard drive to a removable storage device. If a USB drive is installed, you can choose to back up to USB or to the removable Storage Card (MicroSD Card). Otherwise, Storage Card is the default.

  • Page 116: Preferences Dialogs

    WaveSurfer 3000/3000z Oscilloscopes Operator's Manual Preferences Dialogs Preference settings have mostly to do with the appearance and performance of the instrument itself, rather than its interaction with other devices/systems. These settings are also called "non-volatile," because they are not lost and do not change when the oscilloscope is restarted or a setup panel is recalled.
  • Page 117 Utilities Calibration To ensure the instrument maintains specified performance, it is factory set to perform a calibration during warm-up. We recommend that you warm up the oscilloscope for at least 20 minutes prior to use to give the instrument time to complete calibration procedures. Manually calibrate the oscilloscope when: It is used in temperatures that differ from the previous calibration temperature by more than 5°...
  • Page 118 WaveSurfer 3000/3000z Oscilloscopes Operator's Manual Acquisition The Acquisition preference settings determine how traces behave as Vertical Offset or Horizontal Delay changes. To access them, choose Utilities > Preference Setup and open the Acquisition dialog. Offset Setting constant in: Volts keeps the amount of Offset in the amount of Volts specified, regardless of the V/div setting. As the Offset is adjusted, the trace will appear to move up or down relative to the zero level.
  • Page 119 Utilities E-Mail Preferences Use the E-mail dialog settings to configure e-mail on the instrument. Under E-Mail Server, select the protocol used by your network: MAPI (Messaging Application Programming Interface) is the Microsoft interface specification that allows different messaging and workgroup applications (including e-mail, voice mail, and fax) to work through a single client, such as the Exchange client.
  • Page 120 Miscellaneous These other Preference settings are located on the Miscellaneous dialog. To add the Teledyne LeCroy logo to print output, check Print Teledyne LeCroy Logo When Printing Grid Area Only. This identifies the instrument as the source of the image.

  • Page 121: Wavesource Automatic Waveform Generator

    The WaveSource Automatic Waveform Generator allows you to output custom sine, square, triangle, pulse, DC, noise, and arbitrary waveforms from the WaveSurfer 3000. Connect a BNC cable from the WaveSource output on the back of the oscilloscope to the external device.
  • Page 122 WaveSurfer 3000/3000z Oscilloscopes Operator's Manual 1. Choose Utilities > WaveSource or touch the front panel WaveSource button. 2. Select the Load level. 3. Choose Waveform type ARB. 4. Touch Browse next to the File Name field and browse to the location of the arbitrary waveform file on either the Storage Card or the USB Disk.

  • Page 123: Digital Voltmeter

    Utilities Digital Voltmeter The Digital Voltmeter option (WS3K-DVM) activates an integrated 4-digit digital voltmeter and 5-digit frequency counter that operates through the same probes already attached to the oscilloscope channels. Use it to view real-time measurements through a dedicated user interface display that continues even when your triggering system is stopped.
  • Page 124 WaveSurfer 3000/3000z Oscilloscopes Operator's Manual Set Up DVM 1. From the menu bar, choose Utilities > DVM. 2. Mark Enable to turn on the DVM function. 3. Touch Source and select the input channel to be measured. 4. Touch Mode and choose the waveform parameter to display on the readout. Options are:...

  • Page 125: Maintenance

    Maintenance Maintenance Topics in this section describe procedures for keeping the instrument in optimal working condition. Fuse Replacement Disconnect the power cord before inspecting or replacing the fuse. Open the fuse holder (located at the rear of the instrument below the AC power inlet) using a small, flat-bladed screwdriver. Replace the old fuse with a new 5 x 20 mm T-rated 3.15 A/250 V fuse.

  • Page 126: Wavesurfer 3000 Firmware Update

    WaveSurfer 3000/3000z Oscilloscopes Operator's Manual WaveSurfer 3000 Firmware Update Teledyne LeCroy frequently releases free firmware updates for X-Stream model oscilloscopes containing new product features and bug fixes. The X-Stream installer updates multiple components including the oscilloscope application, required DLLs, drivers, and low-level microcode for integrated circuits on the oscilloscope.

  • Page 127: Technical Support

    Resources Teledyne LeCroy publishes a free Technical Library on its website. Manuals, tutorials, application notes, white papers, and videos are available to help you get the most out of your Teledyne LeCroy products. Visit: teledynelecroy.com/support/techlib The Datasheet published on the product page contains the detailed product specifications.

  • Page 128: Returning A Product For Service

    4. Pack the product case in a cardboard shipping box with adequate padding to avoid damage in transit. 5. Mark the outside of the box with the shipping address given to you by Teledyne LeCroy; be sure to add the following: ATTN: <RMA code assigned by Teledyne LeCroy>...

  • Page 129: Certifications

    Certifications Certifications Teledyne LeCroy certifies compliance to the following standards as of the time of publication. See the EC Declaration of Conformity document shipped with your product for the current certifications. EMC Compliance EC Declaration of Conformity- EMC The instrument meets the intent of EC Directive 2014/30/EU for Electromagnetic Compatibility.

  • Page 130: Safety Compliance

    WaveSurfer 3000/3000z Oscilloscopes Operator's Manual Australia & New Zealand Declaration of Conformity– EMC The instrument complies with the EMC provision of the Radio Communications Act per the following standards, in accordance with requirements imposed by Australian Communication and Media Authority: AS/NZSCISPR11:2011RadiatedandConductedEmissions,Group1,ClassA.

  • Page 131: Environmental Compliance

    Certifications Canadian Certification The instrument has been certified by Underwriters Laboratories (UL) to conform to the following safety standard and bears cUL Listing Mark: CAN/CSA-C22.2 No. 61010-1-12. Safety requirements for electrical equipment for measurement, control and laboratory use. Environmental Compliance End-of-Life Handling The instrument is marked with this symbol to indicate that it complies with the applicable European Union requirements to Directives 2012/19/EU and 2013/56/EU on Waste...

  • Page 132: Warranty

    The product is warranted for normal use and operation, within specifications, for a period of three years from shipment. Teledyne LeCroy will either repair or, at our option, replace any product returned to one of our authorized service centers within this period. However, in order to do this we must first examine the product and find that it is defective due to workmanship or materials and not due to misuse, neglect, accident, or abnormal conditions or operation.

  • Page 133: Index

    Index Index readout 18, 59 date and time 106 acquisition de-embedding 9 optimiztion 110 default setup 13 pre-processing 18 degauss 31 sampling mode 37 delay 37, 112 settings 112 post-trigger 37 action toolbar 19 pre-trigger 37 activating traces 22 descriptor box 15, 22 altitude 2 deskew 18, 30 analog inputs 8...
  • Page 134 WaveSurfer 3000/3000z Oscilloscopes Operator's Manual firmware 11 labelling traces 24, 98 version 101 LabNotebook 15, 98-100 Flashback Recall 98-99 language selection 13 frequency 73 response 9, 75 mask testing 89 math 70-71 gain 30, 112 descriptor box 18 gating measurements 64...
  • Page 135 Index options 11, 107 RH 2 RIS sampling mode 39 parameter compare 89 rise and fall time 68 pass/fail testing 89 RoHS 125 persistence 57 roll sampling mode 39 position trace 25 safety 1, 124 post-trigger delay 37 sample points 38 pre-processing 18 sample rate 38-39 pre-trigger delay 37...
  • Page 136 WaveSurfer 3000/3000z Oscilloscopes Operator's Manual system delay 37 status 101 descriptor box 18 timestamp 106 holdoff 50 time 50 technical support 121-122 temperature 2 UL compliance 124 time parameters 69 undo 16 timebase 37, 112 units 77 controls 37 utilities 101...

This manual is also suitable for:

Wavesurfer 3000z

Table of Contents
